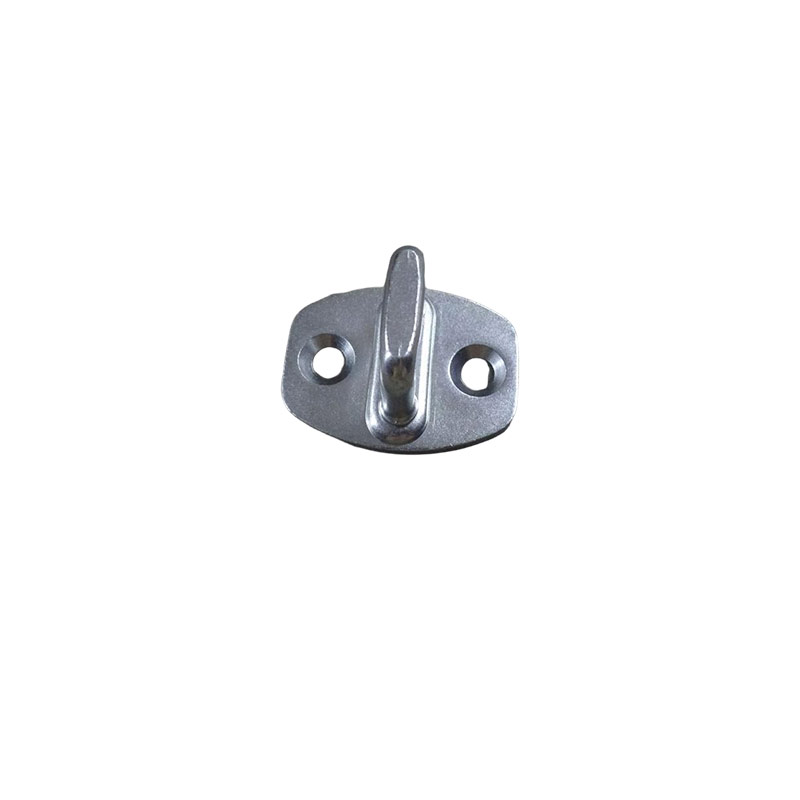

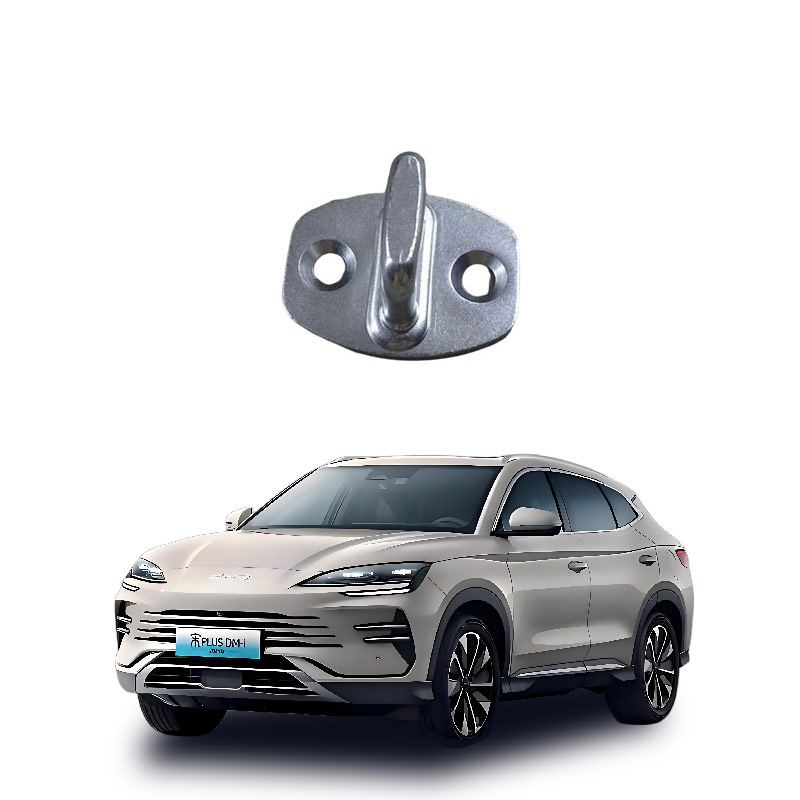

What is the side door lock ring assembly?
In the closing structure of a car door, the side door lock ring assembly is a core safety component that is constantly covered by the door and rarely noticed by the owner. It is also commonly referred to as the door lock catch, which is fixed to the corresponding position of the vehicle's B-pillar or C-pillar using high-strength bolts, and precisely engages with the lock body on the door to form the door locking system. This seemingly simple metal component directly determines whether the door can remain stably closed during driving and is an indispensable part of the vehicle's passive safety system. Even a millimeter-level positional deviation can trigger a series of chain reactions that affect the safety of vehicle use.
The core function of the side door lock ring assembly is to form a rigid engagement with the door lock body, firmly locking the closed state of the door. When passengers forcefully close the door, the door lock tongue will precisely fit into the U-shaped slot of the lock ring, and after complete engagement, even if the vehicle undergoes severe bumps, emergency braking, or side collisions, the door will not accidentally pop open. Its mechanical design has been strictly calibrated by the vehicle manufacturer and can withstand tens of thousands of Newtons of lateral force. During a collision, it prevents the door from detaching from the vehicle body due to the impact force, protecting the passengers inside the cabin. This is also one of the core assessment items in vehicle crash safety tests.
In addition to the basic locking safety function, it also plays a role in optimizing many details of the experience. The installation position of the lock ring directly determines the uniformity of the gap after the door closes. During the original factory adjustment stage, technicians will fine-tune the position of the lock ring to make the door and the vehicle completely flush. This ensures the vehicle's sound insulation and sealing performance, avoiding obvious wind noise at high speeds, and preventing rainwater from seeping into the cabin through the door gap. At the same time, the polished surface of the lock ring, which has undergone wear-resistant polishing treatment, makes the door opening and closing feel smooth and substantial, without the problem of needing a lot of force to close or the door shaking after locking. This directly affects the first impression of the vehicle's quality for users. Many high-end models also add a silent buffer pad on the lock ring surface, further reducing the metallic impact sound at the moment of door locking and significantly enhancing the driving luxury.
Although the side door lock ring assembly seems to be a single piece of high-strength metal, faults often lie in the details of long-term use. Many initial signals are easily mistaken by the owner as problems with the door lock body. The most common fault is position deviation. After years of use, the repeated impact force of opening and closing the door will cause the bolt fixing the lock ring to slightly loosen, and the originally calibrated installation position will shift. The most obvious manifestation is that the feel of door closing becomes worse. Previously, a gentle push could close the door, but now it requires a lot of force to fully close it, and even sometimes it prompts "door not closed" after two attempts; when driving on bumpy roads, the position of the door will produce a faint "clunk" sound. Many owners remove the door interior panel to check the lock body, spending a long time but still unable to find the root cause, and finally discover that the position of the lock ring is crooked.
As the deviation intensifies, more concealed wear faults will occur. The lock ring and the lock tongue are in a misaligned state for a long time, and the smooth metal surface will be worn out with obvious grooves. The locking gap between the two becomes larger, and when the door is shaken by hand, you can feel the obvious slack. In this state, during high-speed cornering, the door will experience slight loosening displacement. Not only will the wind noise become significantly louder, but more dangerously, if a side collision occurs, the misaligned lock ring cannot form sufficient locking force with the lock body, and the door is likely to be pushed open by the impact force, directly threatening the safety of the passengers inside. There are also some old vehicles where the anti-rust layer on the surface of the lock ring has been worn away. Due to prolonged exposure to rain and moisture, the lock ring begins to rust. The rust will fill the interlocking grooves of the lock ring, causing the lock tongue to fail to fully engage properly. The sensors of the door lock system will continuously misjudge that the door is not closed. The door indicator light on the dashboard will remain constantly illuminated. In some models, the door lock may also fail to lock properly, directly affecting the security of the vehicle.
During daily use, the maintenance threshold for the door lock ring is extremely low, yet it can prevent most faults. During regular maintenance, it is convenient to check if the fixing bolts of the lock ring are loose. Use a dry cloth to wipe off the dust and rust on the surface of the lock ring, apply a thin layer of silicone-based lubricating grease, and do not use ordinary engine oil for lubrication to avoid more dust contamination and further wear. If you find that the door switch feels heavier or there is abnormal noise when the door is jiggled, do not blindly add oil to the lock body. First, check if the position of the lock ring has shifted. Use a wrench to loosen the bolt and adjust the position until the door switch operates smoothly and the gap is uniform before relocking. If you find that the surface of the lock ring has developed deep grooves, do not continue to use it in a makeshift manner. Replace the original factory specification new lock ring in time to avoid leaving potential safety hazards. This metal component hidden in the door gap, through stable interlocking day after day, guards the last line of defense for the door safety.
