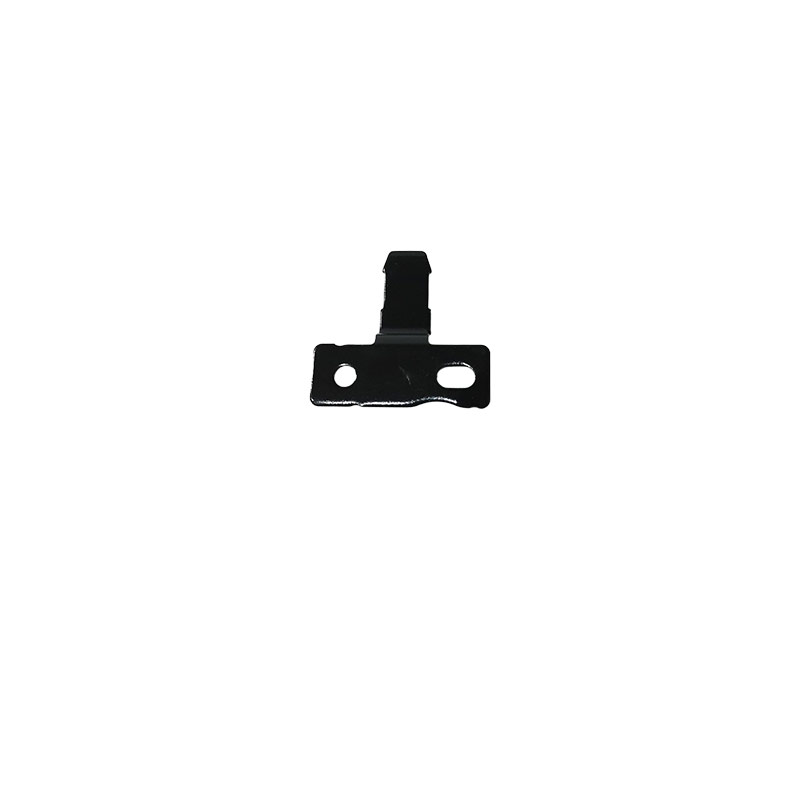

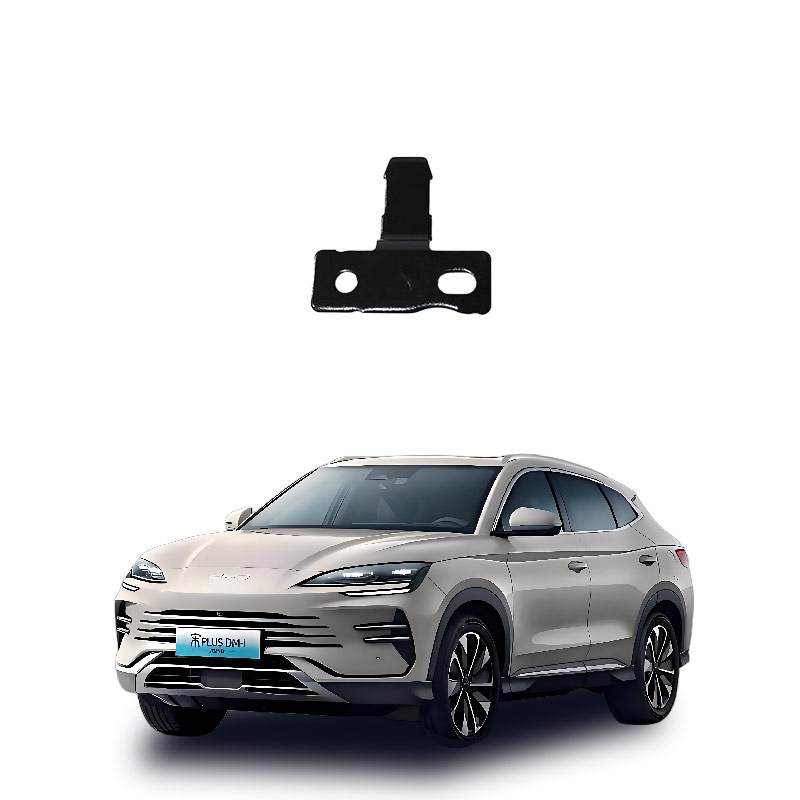

What is the electromagnetic valve bracket for the car's carbon canister?
The automotive carbon canister electromagnetic valve bracket is a mechanical component used to fix and support the carbon canister electromagnetic valve. It does not have control functions on its own; it merely serves the purpose of installation and positioning.
Core Definition and Function
Fixed Positioning: By using bolts, clips, or welding, the carbon canister electromagnetic valve is securely installed at a specific location in the engine compartment (such as near the intake manifold, beside the firewall, or on the radiator bracket), preventing the valve from loosening or the pipe from breaking due to vehicle vibration.
Space Optimization: The position of the electromagnetic valve is reasonably arranged to ensure that the rubber pipes connecting the carbon canister and the intake manifold run smoothly without kinking or interfering with the surrounding cooling components.
Structural Protection: Some brackets are designed to buffer engine vibrations, reducing the risk of damage to the internal coils and valve body of the electromagnetic valve due to long-term vibration.
Common Features
Material: Mostly made of metal (steel/aluminum) or high-strength engineering plastics, which must be able to withstand the high temperatures and oil contamination in the engine compartment.
Form: The structure is simple, usually in L-shaped, U-shaped plate-like, or integrated clip structures. The shapes of the brackets vary greatly among different vehicle models, and there is no universal standard.
Fault Manifestation: The bracket itself rarely gets damaged. If it breaks or rusts, it will cause the electromagnetic valve to shift, the pipe to be pulled apart, and thereby lead to fuel vapor leakage or engine fault lights coming on.
In summary, it is the "base" of the carbon canister electromagnetic valve, ensuring that this electronic component remains in the correct position to work properly under complex conditions. If replacement is needed, it is usually purchased along with the electromagnetic valve assembly or customized for the corresponding vehicle model.
The core function of the automotive carbon canister electromagnetic valve bracket is to fix and dampen vibrations, ensuring that the electromagnetic valve works stably and maintains a sealed connection with the pipe under high vibration conditions in the engine.
Rigid Fixation: Securely locking the carbon canister electromagnetic valve in a designated position in the vehicle body or engine compartment (such as near the intake manifold, beside the firewall), preventing the valve from shifting or falling off due to vehicle vibration.
Vibration Isolation: Absorbing high-frequency vibrations from the engine through rubber sleeves or elastic structures to prevent vibration from being transmitted to the internal coils and valve core of the electromagnetic valve, thus preventing component fatigue fractures or electrical contact failures.
Protection of Pipe Interface: Supporting the flexible pipe connection between the carbon canister and the intake manifold to eliminate stress caused by the weight of the pipe or thermal expansion and contraction, preventing the interface from loosening and causing fuel vapor leakage or abnormal mixture.
Compact Layout Optimization: Some integrated brackets combine the carbon canister and the electromagnetic valve for installation, reducing the space occupied by the vehicle frame and improving the overall compactness and assembly efficiency of the system.
If the bracket breaks or the rubber ages, it may cause abnormal noise, pipe leakage, unstable idle, or even fault lights to come on, requiring prompt replacement.
The electromagnetic valve bracket of the automotive carbon canister rarely experiences functional failures. It usually manifests as loose fixing screws, broken plastic bracket clips (common in older models), or deformed brackets, resulting in resonance noise from the electromagnetic valve, leakage of the pipe, or intermittent fault lights.
Core Fault Manifestation
Abnormal Noise: During engine operation, if the bracket is loose, the electromagnetic valve and the vehicle body/engine will have metal resonance, causing the "tap-tap" sound to intensify or new low-frequency buzzing sounds.
Pipe Leakage: The failure of the bracket causes the connecting pipe to remain in a stretched or twisted state for a long time, resulting in a lack of sealing at the interface, causing a gasoline smell or fault codes (such as P0446).
Electrical Contact Failure: Intense vibration causes the electromagnetic valve plug to come loose or the pins to be disconnected, triggering intermittent fault lights. Pipeline inspection: Confirm whether the loosening of the support causes the intake pipeline to be pulled. If necessary, re-arrange the pipeline path and install straps for fixation.
Replacement plan:
If it is a metal support that is rusted and loose, try tightening or removing the rust and then install a spring washer.
If it is a plastic support that is broken, it is recommended to directly replace the original factory support assembly to avoid using glue for bonding (it may fail at high temperatures).
For some models, the support and the electromagnetic valve are integrated. The entire electromagnetic valve assembly needs to be replaced. Notes for Attention
The failure of the support is often accompanied by the aging of the carbon canister electromagnetic valve body. If you find oil stains or carbon deposits on the valve body, it is recommended to replace the electromagnetic valve at the same time.
After the repair, it is necessary to clear the fault code and start the engine to observe whether the idle speed is stable. Ensure there is no air leakage.
If it is impossible to determine the specific model of the support structure, it is recommended to consult the repair manual or go to a professional repair shop for handling to prevent damaging the fragile fuel vapor pipeline during the disassembly and assembly process.
