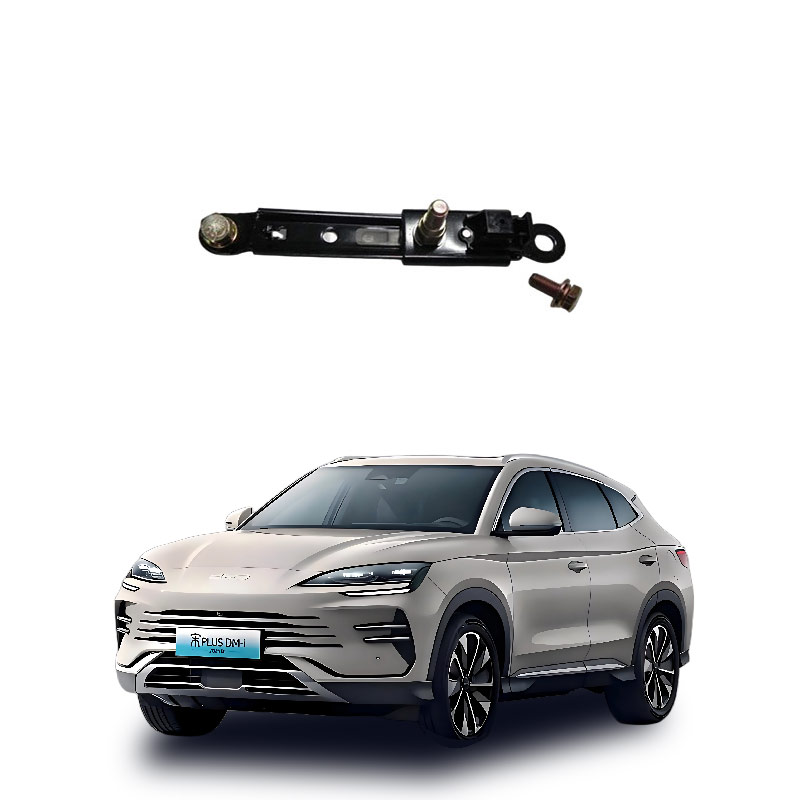

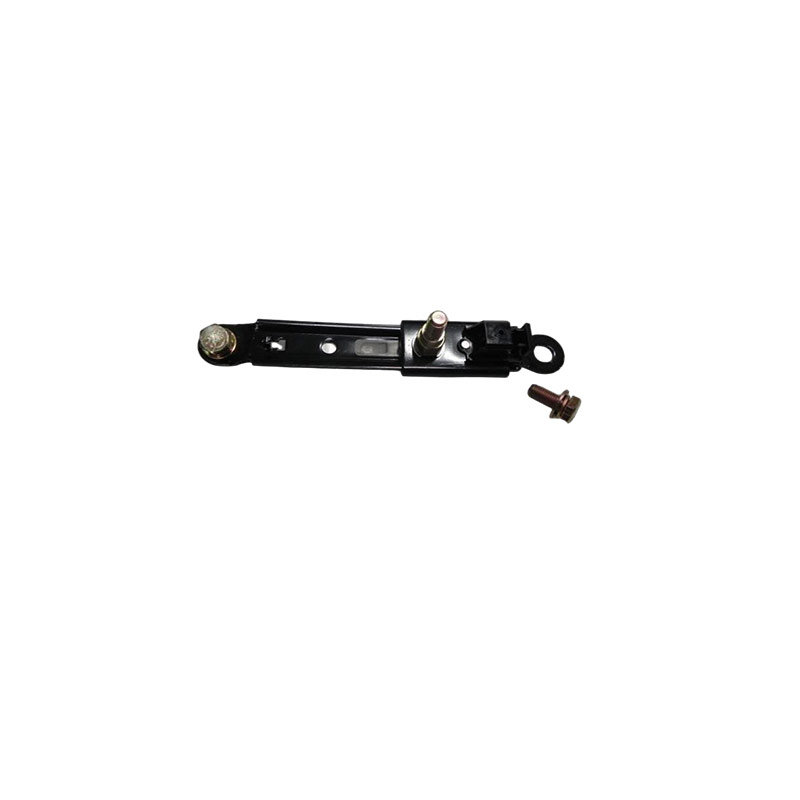

What is the car seat belt height adjuster assembly?
The automotive seat belt height adjuster assembly is a mechanical device installed on the inner side of the vehicle's B-pillar, used to adjust the vertical position of the upper fixation point of the seat belt. Its purpose is to make the seat belt strap fit the shoulder positions of passengers of different heights, ensuring effective restraint during a collision and avoiding neck strangulation or shoulder slippage.
Core composition structure
This assembly is typically composed of the following key components:
Guide rail/： A metal track fixed on the B-pillar， providing a sliding path and locking teeth positions.
Slider (drag plate)： A component that moves along the guide rail， with an integrated locking mechanism that directly connects to the seat belt guide ring.
Unlock button/lever： An external operation piece that releases the internal locking pin when pressed or pulled， allowing the slider to move.
Locking mechanism： Usually adopts a design of a ratchet + spring or a toothed rail + pin， and automatically engages into the toothed groove after releasing the button to achieve multi-level locking.
Cover： An exterior decorative piece covering the internal mechanical structure， some of which have "↑↓" indicators to indicate the operation.
Main functions and roles
Ergonomic adaptation： Through vertical adjustment (typically a travel of about 100mm)， the seat belt passes through the middle of the collarbone， maintaining a 20°-30° optimal force-bearing angle.
Enhanced safety： Prevents neck injuries due to an excessively high position or "submarining" (slipping out of the seat belt below) during a collision.
Compatibility diversity： Coordinated with seat adjustment， it meets the needs of different body types from children to tall adults.
Common types and materials
Adjustment methods： Include button-type (pressing to unlock) and pull-type (pulling out to unlock)， etc.
Material and processing： The outer shell is usually made of PA66 + GF30 glass fiber reinforced plastic for impact resistance， and the internal locking components are mostly made of 304 stainless steel for rust prevention and wear resistance.
Installation form： There are exposed type (with the button visible) and hidden type (fused with the trim) designs.
If there is a stuck adjustment， abnormal noise， or inability to lock， check if there is dust， rust， or failure of the internal spring. It is recommended to have a professional replace the original factory parts to ensure safety performance.
The core function of the automotive seat belt height adjuster is to adapt to the body types of passengers of different heights. By adjusting the vertical position of the upper fixation point of the seat belt on the B-pillar， it ensures that the shoulder strap passes correctly between the collarbone and the chest (the center of the shoulder)， balancing comfort and collision protection performance.
Core functions
Enhanced comfort： Avoids neck strangulation due to an excessively high seat belt， or friction on the shoulders due to an excessively low seat belt position， causing discomfort.
Improved safety protection： Ensures that the seat belt can evenly distribute the impact force to the strong bones (such as the collarbone， pelvis) during a collision， preventing neck whip injuries， rib fractures， or internal organ compression due to incorrect positioning.
Adaptability to diverse scenarios： Coordinated with seat adjustment， it meets the wearing needs of tall people， short people， pregnant women， and those wearing thick clothing， etc.
Risk of incorrect adjustment
Excessively high position： During emergency braking or a collision， the strap is prone to strangle the neck， increasing the risk of cervical injury.
Excessively low position： The seat belt strap may slip out of the shoulders， unable to effectively restrain the upper body， causing the head to lean forward and impact the steering wheel or airbag， and the belt may press on the abdomen instead of the pelvis.
Standard for correct adjustment
After adjustment， the seat belt should cross diagonally across the chest， not touching the edge of the neck， nor falling off the shoulder， maintaining a natural angle of about 20°-30° with the torso. During daily use， if you feel neck strangulation or looseness， immediately reposition it through the adjustment button on the B-pillar and confirm that it is locked in place.
