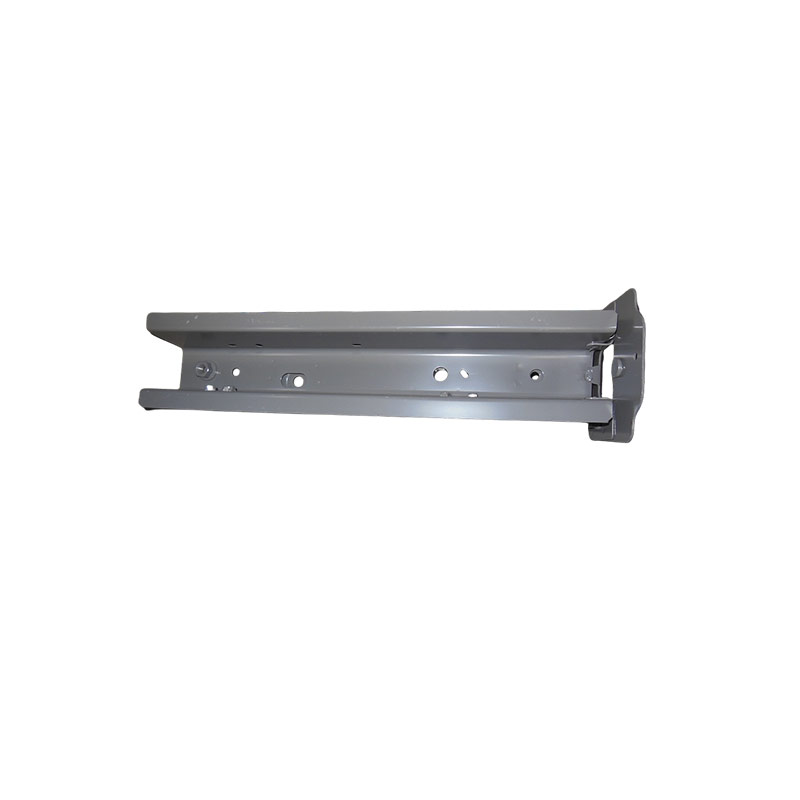

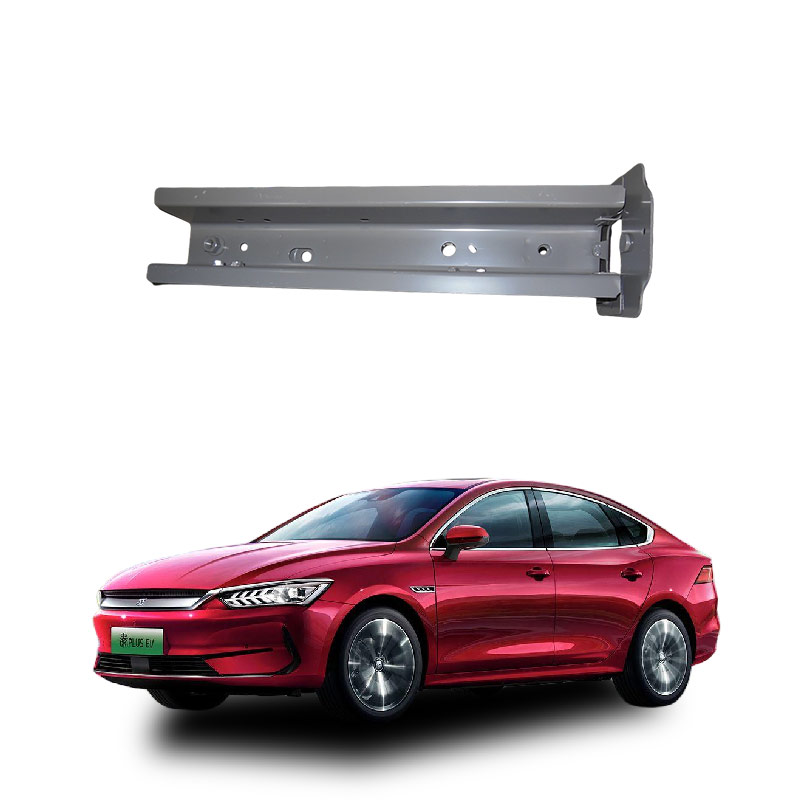

What is the assembly at the rear end of the left rear longitudinal beam of the car?
The rear end assembly of the left rear longitudinal beam of the car is not a single component, but a structural assembly formed by welding or bolting together the rear longitudinal beam body, energy absorption box (crumple box), rear panel connection flange and reinforcement plate.
Core components
Energy absorption box/crash absorption box: Located at the very end of the beam, it is the first line of defense during a collision and is designed with an induction groove to allow for orderly crumpling and energy absorption in a rear-end collision.
Connection flange and reinforcement plate: Used to fix the rear end of the beam to the rear panel of the vehicle (behind the trunk partition) or the rear floor beam, usually consisting of multiple layers of steel plates welded to enhance the node stiffness.
Installation bracket: Some models integrate rear suspension tower top support or spare tire/oil tank fixing brackets here, depending on the chassis layout.
Function and location
Location: Located at the left rear of the vehicle, beneath the trunk floor, extending to the inner side of the rear bumper.
Function: In a rear-end collision, it transmits and disperses the impact force, protecting the passenger compartment and battery pack (for electric vehicles) or fuel tank; at the same time, it serves as an installation reference point for the rear suspension and vehicle body panels.
Maintenance tips
This component is a safety structure. If it deforms, it needs professional correction or overall replacement. Simple sheet metal repair is not allowed as it will affect the vehicle's torsional stiffness and collision safety.
The rear end assembly of the left rear longitudinal beam is the core load-bearing and energy absorption structure of the vehicle's rear end. Its main functions include:
Collision energy absorption and force transmission: In a rear-end collision, it can control the controlled crumpling to absorb the impact energy and disperse the remaining impact force along the longitudinal direction to prevent excessive intrusion of the passenger compartment.
Key component protection: As the last structural line of defense, it protects the fuel tank, high-voltage battery pack (for electric vehicles), rear suspension installation points and rear panel from direct compression damage.
Maintaining vehicle rigidity: Together with the crossbeam, it forms the rear rigid frame, enhancing the vehicle's torsional stiffness and ensuring the stability of the four-wheel alignment and the reference point not easily losing accuracy.
Connection and fixation function: The rear end usually integrates the energy absorption box interface or bumper installation points, achieving a reliable connection between the impact beam and the vehicle body main body, ensuring orderly force flow transmission during low-speed collisions.
If this component is severely deformed, it will directly affect the vehicle's safety and residual value. Maintenance requires professional beam correction equipment to restore the original factory geometric dimensions.
The rear end of the left rear longitudinal beam is a core safety structure component. The "assembly failure" of this component usually refers to cracked connection points, failed welding, deformed suspension installation seats or corroded fractures, rather than ordinary wear and tear damage. Such faults directly affect the vehicle's rigidity and collision safety and require immediate professional intervention.
Core impact of the fault
Increased safety risk: The beam is responsible for dispersing the impact force at the rear end of the vehicle. A failure will cause the energy absorption to fail, significantly reducing the occupant protection capability in a secondary collision.
Driving dynamics abnormalities: It may cause the vehicle to veer, high-speed shaking, uneven tire wear and abnormal noises from the chassis, due to the loss of geometric parameters (such as camber, toe-in) of the suspension.
Structural隐患： If it is a welding point detachment or metal fatigue fracture， continued driving may lead to further tearing of the structure， even affecting the sealing and waterproof performance of the trunk.
Diagnosis and treatment plan
Immediate stop and inspection： Avoid high-speed or heavy-load driving， and tow to a regular repair facility with a beam correction instrument and laser measurement equipment.
Determination of damage degree：
Minor deformation/gap deviation： If only the installation holes are slightly misaligned without metal cracks， cold correction can be attempted and the bolts can be re-tightened (only for non-welded connection points).
Severe deformation/cracking/failure： Must be replaced. Welding repair cannot restore the original factory strength and will damage the anti-corrosion layer， presenting significant safety hazards. Replacement process requirements: The damaged section needs to be cut, the original factory data should be used for positioning, MIG or other inert gas protection welding should be adopted to ensure the error is controlled within 2mm, and anti-rust and anti-corrosion treatment should be carried out.
Four-wheel alignment calibration: After replacement, the four-wheel alignment must be recalibrated to eliminate the risks of deviation and uneven wear. Important Notice
Accident vehicle determination: After the longitudinal beam is cut and replaced, the vehicle will be classified as an "accident vehicle", and the residual value of the used car will significantly decrease.
Be vigilant about factory defects: If this fault occurs without a history of collision, it is necessary to investigate whether it is caused by inherent stress concentration due to stamping rebound or welding quality defects. In such cases, you can claim compensation from the manufacturer.
Refuse simple repairs: It is strictly prohibited to only use external sheet metal or simple welding for repair. The internal metal integrity must be verified.
