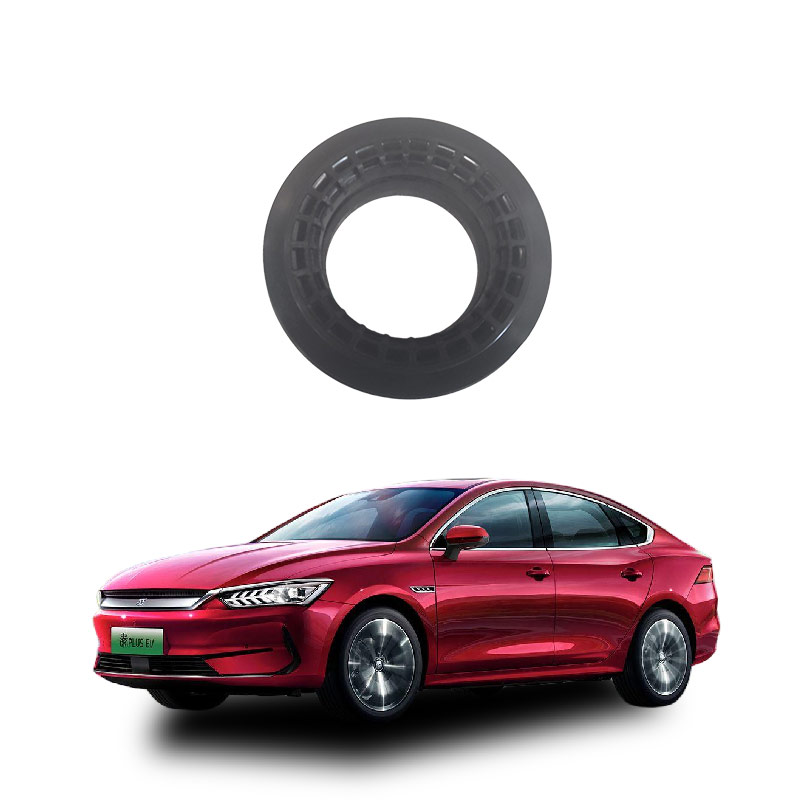

Front-end reduction bearing assembly: Function analysis and fault identification
In the front-end assembly of the vehicle chassis, the reduction bearing assembly is a core component responsible for reducing friction and ensuring smooth operation. It usually integrates two core parts: the front wheel bearing and the front shock absorber pressure bearing. Through precise cooperation, it achieves a balance between rotational freedom and rigid load-bearing. This not only serves as the foundation for ensuring stable vehicle operation but is also crucial for enhancing driving comfort and safety. This article will analyze this seemingly insignificant yet crucial front-end reduction bearing assembly from two dimensions: function and fault manifestations.
The core function of the front-end reduction bearing assembly
The core positioning of the "reduction bearing" is to reduce losses by replacing sliding friction with rolling friction. The front-end assembly consists of two core units: the front wheel main bearing and the top pressure bearing of the shock absorber. Each unit performs its own function and cooperates to move together:
First, the core function is to balance load-bearing and rotation, achieving low-friction operation. The front wheels of the vehicle need to rotate continuously around the axle while being rigidly fixed in the suspension system to bear the vertical weight of the vehicle, lateral and longitudinal impacts. This mechanical contradiction requires the reduction bearing to solve it. The front reduction bearing assembly uses an internal ball or roller structure to separate the wheel from the fixed steering knuckle, replacing the traditional sliding friction with minimal rolling friction. This not only ensures the freedom of wheel rotation but also provides high-precision positioning through the high-strength structure of the inner and outer rings, ensuring stable wheel positioning parameters and preventing unnecessary displacement during vehicle operation. This reduces energy loss and component wear, and lowers the vehicle's energy consumption and maintenance costs.

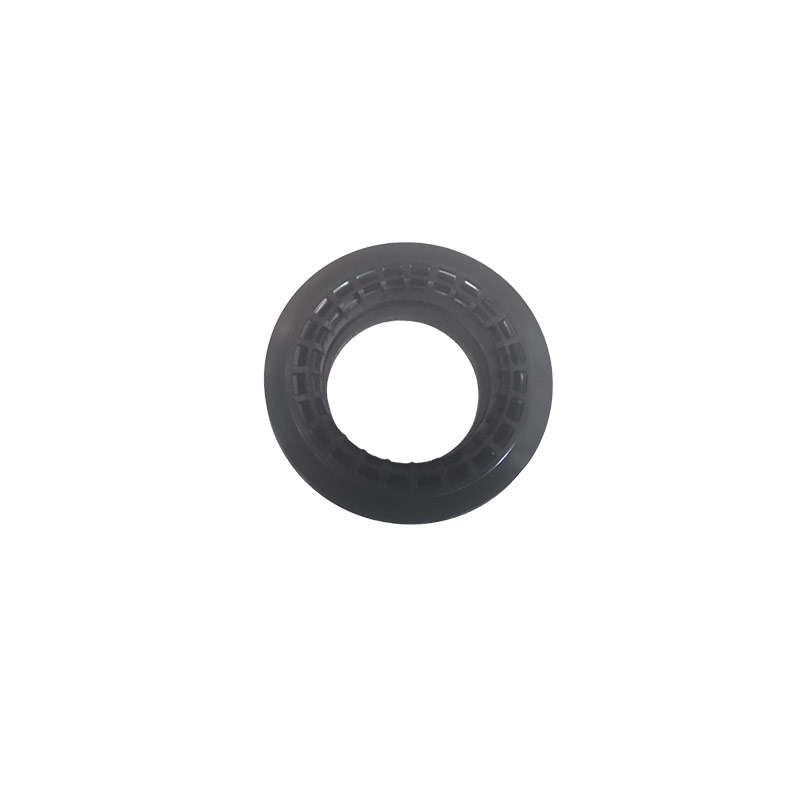

Second, it withstands multi-directional loads, ensuring stable driving. In the front bearing assembly, the front wheel bearing commonly uses angular contact ball bearings or tapered roller designs. The raceways are specially optimized to simultaneously withstand radial and axial combined loads—centrifugal lateral forces during vehicle转弯 and axial impact forces from bumpy road surfaces. These can be effectively dispersed to prevent lateral wheel deviation， ensuring precise steering geometry parameters， and making the vehicle's straight-line driving stable and steering accurate. The pressure bearing at the top of the shock absorber is responsible for bearing the weight of the shock absorber， while allowing the shock absorber to turn synchronously with the wheel. Through rolling contact， it avoids direct friction between the shock absorber spring and the vehicle tower top， reducing vibration transmission to the vehicle body and buffering shock jumps， improving driving comfort， and extending the service life of the shock absorber. The front reduction bearing assembly optimizes smoothness and assists in the lifespan of the system. Through high-precision shaping design， it reduces edge stress， and the built-in sealing structure prevents dust and rain from entering， maintaining long-term effective lubrication of the grease. This reduces wear between components and extends the lifespan of the entire suspension system and steering system， lowering the maintenance costs over the vehicle's long-term use. High-quality bearing assemblies can extend the lifespan of the front suspension system by more than 30%. For family cars， normal use can reach a lifespan of 8-100，000 kilometers or more， significantly reducing operating costs.
Common faults and identification of the front-end reduction bearing assembly
The front-end reduction bearing assembly is subjected to alternating loads over a long period of use. After long-term use， it may experience various faults due to wear， aging， and seal failure. Common faults can be identified from several dimensions：
First， abnormal noise is the most intuitive fault signal and the earliest symptom. When the wear gap of the front wheel bearing increases， during driving， a continuous humming noise will occur， the noise becomes louder as the vehicle speed increases. In high-speed driving， the entire cabin can hear low-frequency vibration noise and tire noise that are difficult to distinguish. The noise during cornering can be used to determine： when the inner wheel bearing load decreases， the noise will slightly reduce， while the outer wheel bearing load increases， the noise becomes significantly stronger. This can basically determine that it is a front wheel bearing fault. When the top pressure bearing of the shock absorber is damaged, a clear squeaking sound can be heard when the vehicle is turned at low speed on the spot. When passing over speed bumps or driving on bumpy roads, a thumping sound can be heard from the front of the vehicle. During turns, there will be a significant feeling of the vehicle sinking down. In severe cases, it may even collide with the chassis, significantly increasing the driving risks.
Second, the handling stability decreases, and the handling feels abnormal. After the bearing wears out and the clearance increases, the wheel alignment parameters will shift. When the vehicle is traveling in a straight line, it will veer off course, requiring continuous correction of the direction. During high-speed driving, there will be shaking of the steering wheel, instability of the vehicle body, drifting, poor steering response, and the directionality of the steering wheel will deteriorate. The driver can clearly feel that the handling is not responsive, and the driving risks increase significantly. After the shock absorber bearing fails, the shock absorber cannot effectively suppress the spring movement. During cornering, the side-slip amplitude will significantly increase. After passing over speed bumps, the vehicle body will shake several times before stabilizing. Both the comfort and stability will significantly decrease.
Third, other abnormal manifestations can also assist in judgment. After the front wheel bearing is damaged, the internal friction intensifies, generating a large amount of heat. After driving for half an hour, touching the hub position will be significantly warmer. In severe cases, it may even be hot to the touch. Moreover, the tires will show uneven wear and the lifespan will be significantly shortened. If the long-term faults are not repaired, the bearings with excessive clearance will also cause the braking distance to increase, the braking reaction to slow down, and increase the braking risks. If the clearance of the front wheel bearing is too large, raising the vehicle and shaking the tires will clearly show that there is a gap between the tire and the hub, which is also the direct manifestation of bearing failure. The damage of the shock absorber bearing may also cause oil leakage of the shock absorber, with hydraulic oil seeping from the piston rod, indicating that the shock absorber has basically failed.
Fault maintenance and response
For the front-end reduced bearing assembly, during daily maintenance, it is only necessary to check once every 3-40,000 kilometers. Pay attention to the bearing temperature, clearance, and sealing condition. After 80,000 kilometers or so, based on the usage situation, it can be replaced with lubricating oil or replaced as a whole to avoid the expansion of the fault. If the above-mentioned abnormal sounds, veering, or shaking symptoms occur, it is necessary to promptly test and replace at a professional repair shop. Do not delay, as small faults not being repaired may lead to more serious safety accidents.
The front-end reduced bearing assembly may seem insignificant, but it is a core component that ensures the stability of the front-end driving system. Understanding its function and fault manifestations, and timely maintenance and replacement, can ensure the safety and comfort of vehicle driving.
