Rear suspension torsion beam assembly: Function analysis and common faults
In the rear suspension of economy-class family cars and small SUVs, the torsion beam assembly is the most crucial component, also known as the torsion bar. As a typical representative of semi-independent suspension, the torsion beam is not the "low-end configuration" that many people think. Its design plays a role in balancing cost, space, and performance, and has a significant impact on the stability and comfort of vehicle driving. Understanding the function and common faults of the torsion beam assembly can help car owners better maintain their vehicles and avoid safety hazards.
The core function of the torsion beam assembly

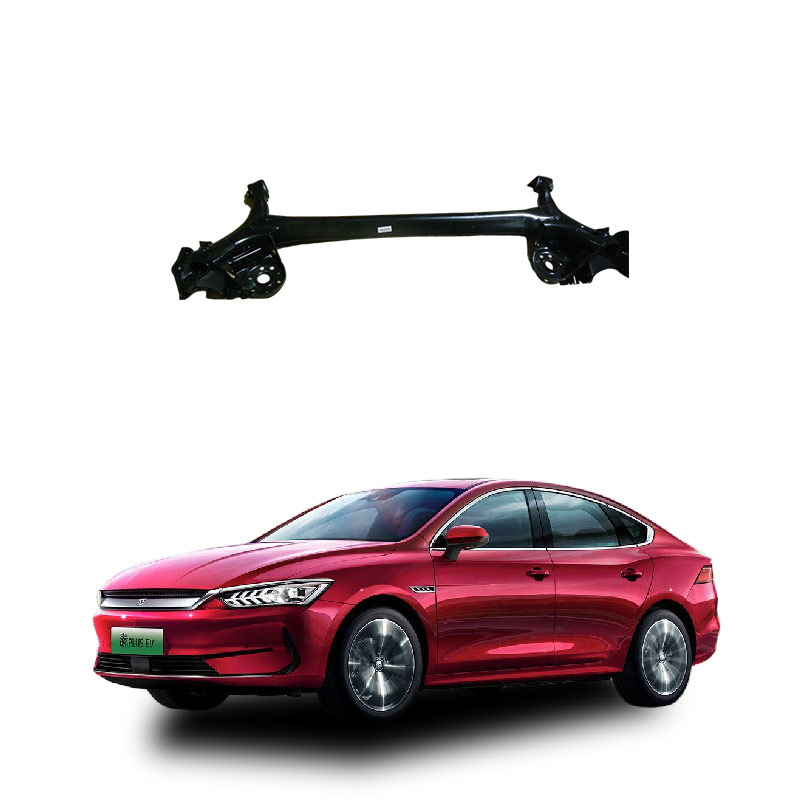

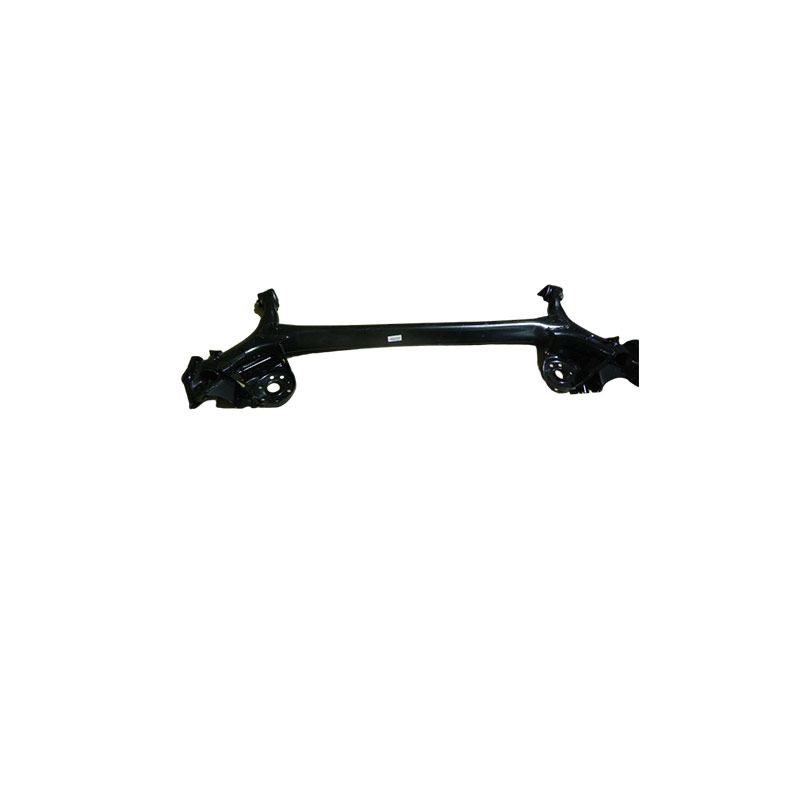

The torsion beam is an integrated assembly consisting of a crossbar, longitudinal arms symmetrically set at both ends, as well as rubber bushings, spring seats, shock absorber brackets, and other components that connect the vehicle body and the rear wheels. It connects the vehicle body and the rear wheels, and performs multiple core functions:
Firstly, it transmits force and torque, bearing the vehicle load. As the core component of the suspension system, the torsion beam needs to bear the vehicle weight and transfer the longitudinal force, lateral force, and torsional force received by the wheels during driving, conducting all the forces reasonably to the vehicle body to ensure the stability of the entire rear suspension structure. Compared to multi-link independent suspension, the torsion beam structure is compact, does not require complex linkages and guiding mechanisms, and can save a lot of chassis space, allowing more space for the rear passengers and the trunk, which is the core reason why many family cars choose it.
Secondly, it realizes shock absorption and filtering, balancing handling and comfort. When the vehicle passes over uneven roads, the single-side wheels encountering bumps and depressions will drive the longitudinal arm to rotate around the bushing. The torsion beam itself has certain torsional stiffness and will undergo elastic deformation to absorb some vibration energy, while limiting excessive wheel bouncing. It cooperates with shock absorbers and spiral springs to complete the remaining shock absorption, ensuring passenger comfort. In addition, the torsional stiffness of the torsion beam can play a similar role to the lateral stabilizer bar, increasing the vehicle's side roll stiffness, reducing the vehicle's side roll amplitude during cornering, and enhancing lateral stability, ensuring the safety of driving control.
Thirdly, it controls production costs and improves reliability. The torsion beam assembly has a simple structure and only has about one-third of the components of the multi-link independent suspension. The manufacturing cost is much lower than that of the multi-link independent suspension, helping manufacturers control the vehicle cost and making the terminal vehicle price more affordable. At the same time, fewer moving parts mean a lower failure rate, and daily maintenance only requires attention to the aging of the bushings and the condition of the shock absorber. The maintenance and repair costs are also lower, making it more practical for daily commuting family cars.
Common faults and hazards of the torsion beam assembly
The torsion beam assembly is mostly made of high-strength steel, and its overall reliability is strong. However, during long-term use, various faults may occur, with the most typical being torsion beam deformation:
The main reasons for torsion beam deformation are three: First, long-term overloading. Each component in the vehicle has a reasonable force-bearing range. If the vehicle is driven with excessive load for a long time, the torsion beam bears a force far beyond the design standard, and the metal material remains in an overloaded state for a long time, gradually causing deformation; Second, road conditions and driving habits affect it. Long-term driving on uneven and rough roads, or passing over speed bumps and potholes without decelerating, frequent sudden braking and sharp turns, will cause the torsion beam to bear a force far beyond the design value, gradually damaging the original structure and causing deformation; Third, aging and manufacturing defects. After many years of use, the metal material gradually ages and loses strength, increasing the risk of deformation. A few original factory-made torsion beams with substandard materials and manufacturing defects may already have deformation problems in the early stage of use.
Torsion beam deformation brings a series of serious hazards: Firstly, the driving stability decreases. Deformed torsion beams cannot balance the force on the wheels, causing the vehicle to veer, requiring the driver to grip the steering wheel to correct the direction to maintain a straight line. When encountering bumpy sections, the bumpiness will be significantly intensified, affecting driving safety and passenger comfort. Secondly, it will accelerate tire wear. The deformation of the torsion beam will change the rear wheel alignment parameters, causing uneven contact between the tires and the ground and exacerbating the uneven wear problem. This will significantly shorten the service life of the tires. Finally, it will reduce the handling performance. During steering and braking, the vehicle's response will be slower, the control accuracy will decrease, and the side-slip amplitude during cornering will also increase, affecting driving safety.
Apart from deformation, another common fault of the torsion beam is the aging and wear of the bushing. As the core component connecting the torsion beam to the body, the rubber bushing will gradually age and crack under long-term force, causing abnormal sounds from the rear chassis, a clear creaking sound when passing over speed bumps, and a decline in the vehicle's shock absorption performance. It will also increase the bumpiness in the rear seat, and in severe cases, it will change the rear wheel alignment parameters, causing drift and uneven tire wear.
Daily maintenance and fault handling
For vehicles with torsion beam rear suspension, daily maintenance is actually not complicated: First, avoid long-term overloading and follow the vehicle's design load requirements. Do not let the torsion beam be overloaded for too long to carry more cargo; second, slow down in potholed roads and speed bumps to reduce the impact force on the torsion beam and the bushing; finally, conduct regular maintenance and inspections. Check the condition of the bushing once every 20,000 kilometers. If the vehicle is involved in a rear-end collision, even if there is no visible damage to the exterior, it is necessary to promptly check whether there is any hidden deformation of the torsion beam. If problems such as vehicle drift, uneven tire wear on the rear wheels, abnormal sounds from the chassis, or uneven tire wear are found, promptly have it inspected at a professional institution. If it is confirmed that the torsion beam is deformed, generally, the entire torsion beam needs to be replaced; it is not advisable to attempt to correct it forcibly to avoid leaving safety hazards.
Although the torsion beam component has a simple structure, it is the core component ensuring the safety of the rear driving. Reasonable use and regular maintenance can enable it to perform its expected functions and safeguard travel.
