What is the protective cover assembly on the car combination switch?

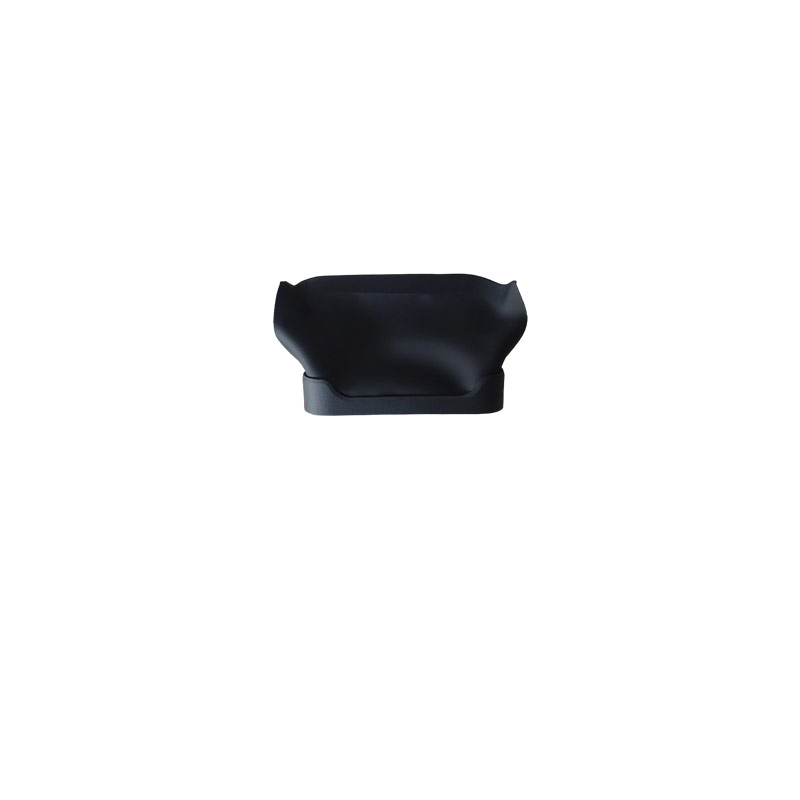

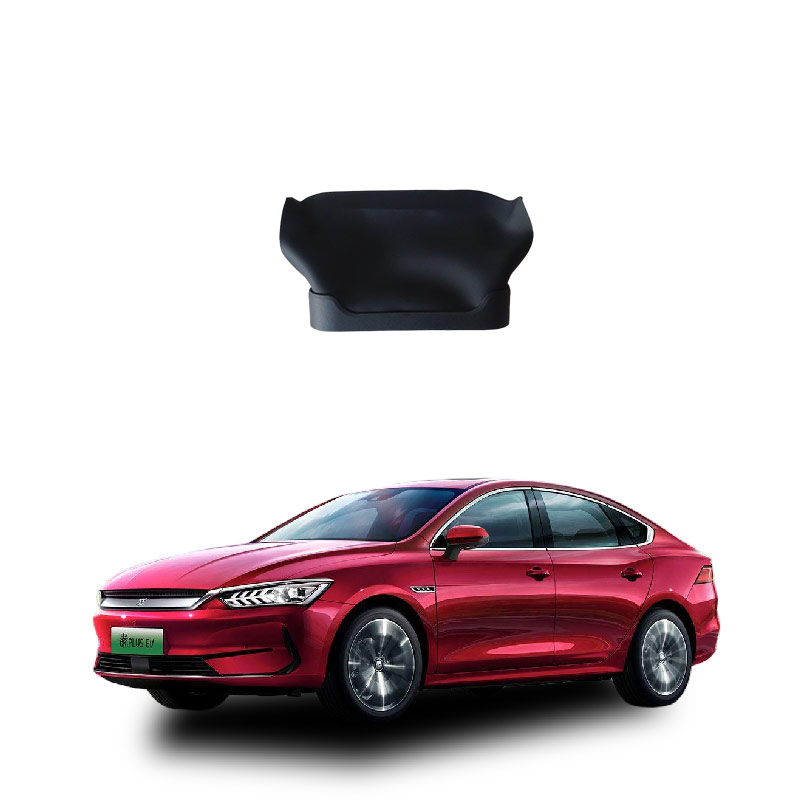

The protective cover assembly for the automotive combination switch refers to the plastic or composite material enclosure installed on the steering column, which covers and protects the combination switch (lighting, wipers, turn signal control switches, etc.). It mainly serves the functions of dust prevention, accidental touch prevention, decoration, and partial safety protection.
Location: Usually located below the steering wheel and on the outer side of the steering column, covering the combination switch body and its wiring interface.
Function: Prevents dust and liquids from entering the switch mechanism, reduces accidental touches during driving, enhances interior aesthetics, and some designs also have collision buffering or diversion functions.
Material: Mostly made of engineering plastics (such as ABS or polypropylene), fixed to the steering column guard assembly by clips or screws.
Note: It is not the switch itself (the combination switch is the electrical control unit), nor is it the entire "lower guard plate of the steering wheel" (the latter often refers to a broader lower decorative cover of the steering column); "the upper guard" specifically refers to the local covering part that closely adheres to the combination switch body, and in some models, it is installed in conjunction with the "lower guard" for installation.
If there are abnormal sounds, sticking, or cracking of the guard, it is usually an issue with the appearance/protective part, and it does not affect the core function of the switch (unless the internal structure is damaged). When repairing, specific parts matching the vehicle model are required, due to significant differences in shape and installation points.
The protective cover assembly for the automotive combination switch (often called "combination switch guard" or "switch lever guard") mainly serves the functions of dust prevention, accidental touch prevention, precise positioning of the switch lever, and protection of the internal structure, and does not participate in circuit control. It belongs to physical protection and auxiliary components for human-computer interaction.
Dust and dirt prevention: Blocks dust, liquids, or foreign objects from entering the mechanical and electrical contact areas of the combination switch, ensuring long-term reliable operation.
Prevention of accidental touch: Through limit structures or shielding designs, reduces accidental touches of turn signals, wipers, etc. of the switch lever during driving, leading to incorrect operations.
Precise positioning and hand feel support: Fixes the axis of the switch lever, maintains return accuracy (such as automatic return of turn signals), and provides clear and crisp operation feedback.
Buffering and protection: Absorbs some impact forces of operation, protects internal clips, springs, and line connections, and provides basic buffering in a collision.
Sealing and sound insulation: Some designs also have a slight sealing function, reducing noise or wind noise from entering the cabin.
Note: The guard itself is not a functional component of the switch (the combination switch itself is the electrical control unit), nor is it the entire "lower guard plate of the steering wheel" (the latter often refers to a broader lower decorative cover of the steering column); "the upper guard" specifically refers to the local covering part that closely adheres to the combination switch body, and in some models, it is installed in conjunction with the "lower guard" for installation.
The "guard assembly" of the automotive combination switch itself usually does not have direct electrical faults, but if it is damaged, loose, or has abnormal shielding, it may expose internal switch damage, worn wiring, or CAN communication interruption problems, which need to be comprehensively judged based on functional abnormalities.
The fault manifestation of the guard itself: Plastic clips break, the guard deforms/comes off (does not affect functionality but loses protection), interferes with steering wheel adjustment or makes it difficult to disassemble; the guard does not have a circuit, and the faults are mostly mechanical damage.
The real risks often stem from hidden problems beneath the guard: such as burnout of internal contacts of the combination switch, failure of steering/rain wiper gears, no response of high/low beam, or wear of the wiring at the steering column corners due to the absence of the guard (commonly caused by a broken CAN wire, resulting in a "no communication" fault code such as B12FE).
Emergency handling: If the guard cracks but functions normally, it can be temporarily fixed with cable ties to avoid further damage to the wiring; if accompanied by failure of lights/wipers/horn, do not simply replace the guard - power off (remove the negative terminal) and remove the guard for inspection of oxidation of contacts, whether the wiring is worn or the plug is loose. Maintenance Key Points: The cover is usually fixed with 2-3 screws and a snap ring (no need to remove the steering wheel), but before disassembly, make sure to confirm whether the fault is truly in the switch body (use a diagnostic tool to read the comfort CAN or directly short-circuit to test the on/off of the gear position); if the wiring harness is worn out, simply installing a new cover is ineffective; it is necessary to wrap/protect with a corrugated tube and fix the direction.
Note: The "combined switch cover assembly" available on the market is rarely sold separately (it is mostly replaced along with the assembly); if only the cover is damaged, consider using adhesive reinforcement or second-hand parts from a scrapped vehicle; but if the internal switch is stuck or sparking, the entire combined switch must be replaced and programmed (for some models).
If only the cover is cracked with no electrical abnormalities, it is an appearance/protection part damage; you can temporarily not repair it but need to regularly check the wiring harness below; once problems such as the turn signal not returning to position, the wiper running erratically, or the high/low beam not working occur, the fundamental problem lies within the combined switch or the wiring harness; the cover is only the "visible symptom area". It is recommended to scan for fault codes using the diagnostic tool first, and then decide whether to disassemble and inspect.
