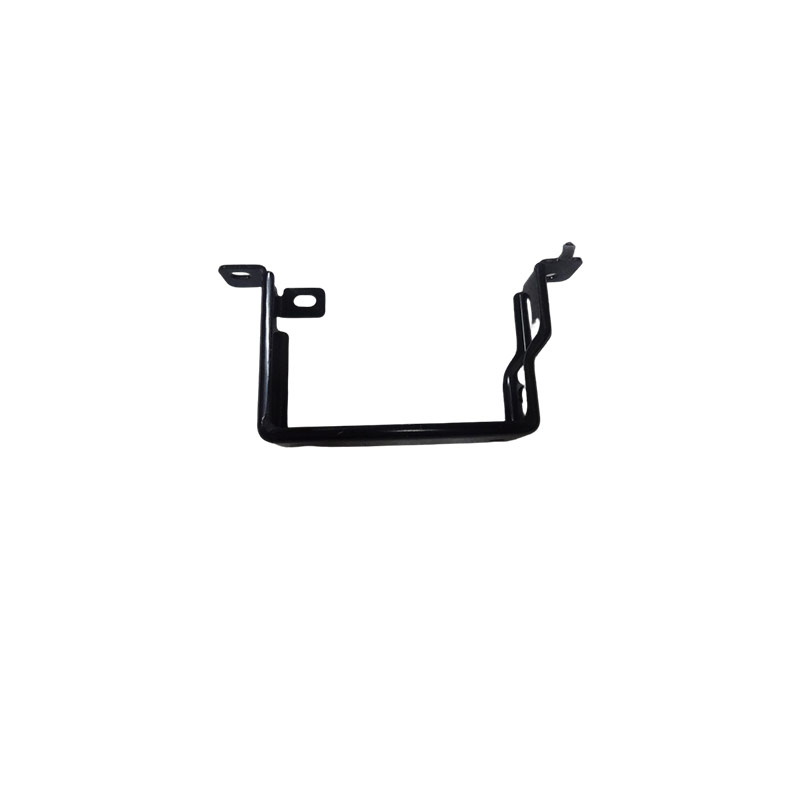

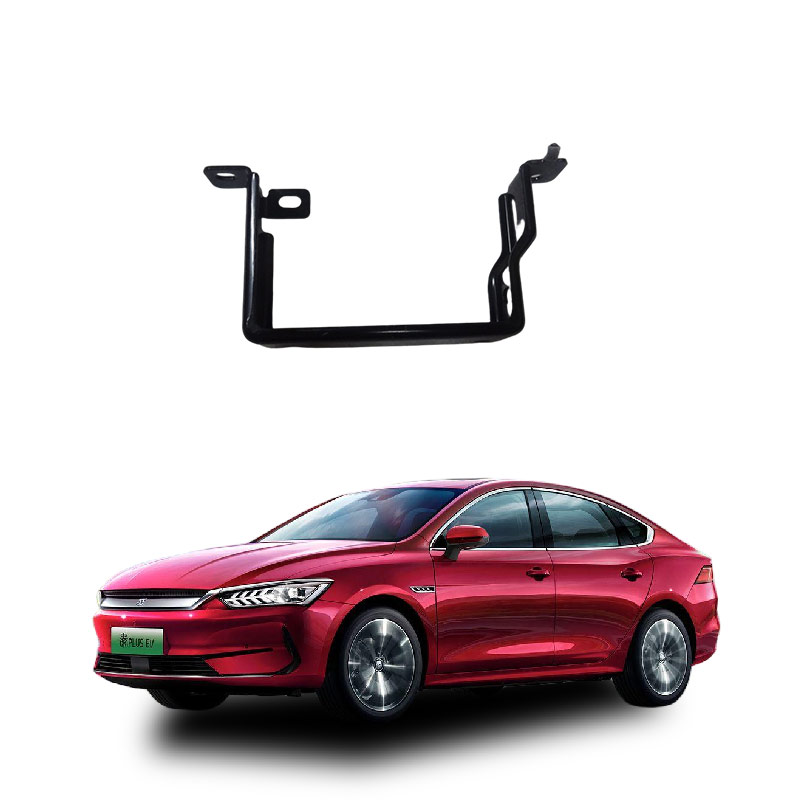

What is the mounting bracket assembly installed in the middle of the car dashboard?
The central mounting bracket assembly on the car dashboard is a structural component that supports and fixes the core parts of the dashboard assembly (such as the central control screen, air conditioning vents, gearshift area, or the auxiliary dashboard), usually located in the center of the cockpit, below the dashboard crossbeam, or above the central aisle. It serves to connect the dashboard body with the vehicle frame (such as the auxiliary dashboard bracket, floor, or central console frame), taking into account factors such as stiffness, shock absorption, modular assembly, and ease of maintenance.
Functionality: It supports the central dashboard/auxiliary dashboard, fixes the central control unit, electronic modules, or gearshift mechanism, and participates in energy dispersion during a collision (not the main safety structure, but it affects local stiffness).
Typical location: The central part of the dashboard in the area behind the steering wheel and between the front seats, often integrated with "central aisle", "auxiliary dashboard", "central console".
Structural features: Mostly made of plastic injection parts (such as glass fiber reinforced PP) or metal stamping/pressing parts (such as aluminum alloy), may contain clips, bolts, shock-absorbing pads, etc.; modern design tends towards "split" and quick-release structures" (as described in patent CN116353715A), facilitating local maintenance.
Distinguishing concepts: Different from "dashboard crossbeam" (the main load-bearing structure, located at the top of the dashboard and connecting the A-pillar), "central bracket" focuses on the central control area; also different from "vehicle clamping bracket" (a rear-mounted mobile phone/device bracket).
This component does not directly participate in the display of instrument readings (such as the speedometer), but is part of the interior installation framework. If damaged, it may cause abnormal sounds from the central console, loosening, or misalignment of components. The specific structure varies greatly by vehicle platform, and there is no unified standard part. It needs to be identified based on the actual vehicle or repair manual.
The central mounting bracket assembly (original factory structural component) on the car dashboard is mainly used to support and fix key components of the central console area, such as the air conditioning control panel, audio system host, peripheral decorative panels around the gearshift mechanism, or integrated displays, ensuring their stability, no abnormal sounds, and no loosening during driving, and bearing part of the structural stiffness and vibration isolation functions.
Structural support: As part of the internal framework of the central console, it connects the dashboard, the passenger-side decorative panel, the glove box, etc., maintaining overall assembly accuracy and rigidity.
Component fixation: Provides an installation base for audio, air conditioning control modules, button groups, or in-car computer displays, preventing loosening or damage due to driving vibrations.
Vibration and sound insulation: Some brackets integrate rubber sleeves or sound-absorbing materials to reduce the transmission of equipment vibrations to the passenger cabin, improving NVH performance.
Wire management: Often serves as a wire routing guide or a support point for clips, avoiding interference with moving parts or wear of the wire.
Note: If referring to a "rear-mounted mobile phone/navigation bracket" (not an original "component"), it is an external accessory, only serving to fix portable devices; but "central mounting bracket assembly" in engineering context usually refers to the "original vehicle integrated structural mounting bracket", not a common "vehicle bracket".
The failure of the central mounting bracket assembly on the car dashboard usually manifests as abnormal sounds, loosening, dashboard skewing, or abnormal installation positions of the airbag, rarely triggering the "fault light", but may affect structural safety or airbag performance.
Common causes: Plastic clips breaking, metal brackets rusting (especially in humid areas or salt-affected environments), loose assembly bolts, fatigue cracking of welds or connection points due to long-term vibration; some models (such as early Chery) once had rust problems with the crossbeam (including brackets).
Whether it affects safety: If the bracket is a rear airbag or steering column support, severe failure may weaken collision protection, requiring immediate repair; only loose decorative panel brackets are mostly a comfort issue, but abnormal sounds may mask the true fault. Self-inspection suggestions: Press the middle part of the dashboard lightly to listen for any abnormal sounds, observe if there are visible cracks or detachment, and check if the airbag indicator light is on (if it is on, do not attempt to handle it yourself; it is necessary to read the codes and perform maintenance); Do not forcibly glue or forcefully push to reset, to avoid damaging the wiring harness or airbag module.
Maintenance method: Usually, some parts of the dashboard cover need to be disassembled, and the bracket or clip needs to be replaced (original factory parts are more durable); When involving structural beams or airbag installation points, it is necessary to be done by a professional repair shop according to the manual torque for tightening or welding repair; Do not do it yourself.
Note distinction: "Dashboard bracket" is not a suspension system component (such as if the chassis bracket failure indicator light is on, it belongs to a different system); If the dashboard shows airbag indicator light, body stability light or abnormal alarm, it may be related to the failure of the bracket causing the sensor displacement or wire pulling. If there is no fault light but only abnormal sounds or looseness, you can postpone the repair but handle it as soon as possible; If accompanied by the airbag indicator light on, obvious deformation of the dashboard or collision history, immediately stop driving and tow to the authorized repair point. The specific plan needs to be determined based on the vehicle model year and fault phenomenon (such as whether it has been submerged in water, involved in an accident); It is recommended to use OBD to read all vehicle fault codes (including SRS system).
