What is the main body of the car's electric seat adjustment switch?

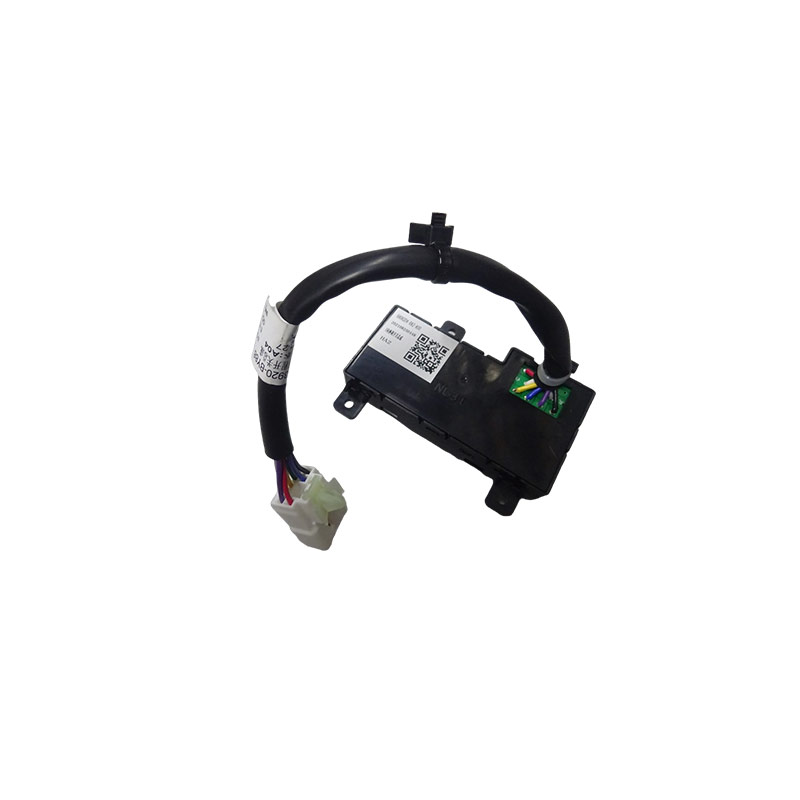

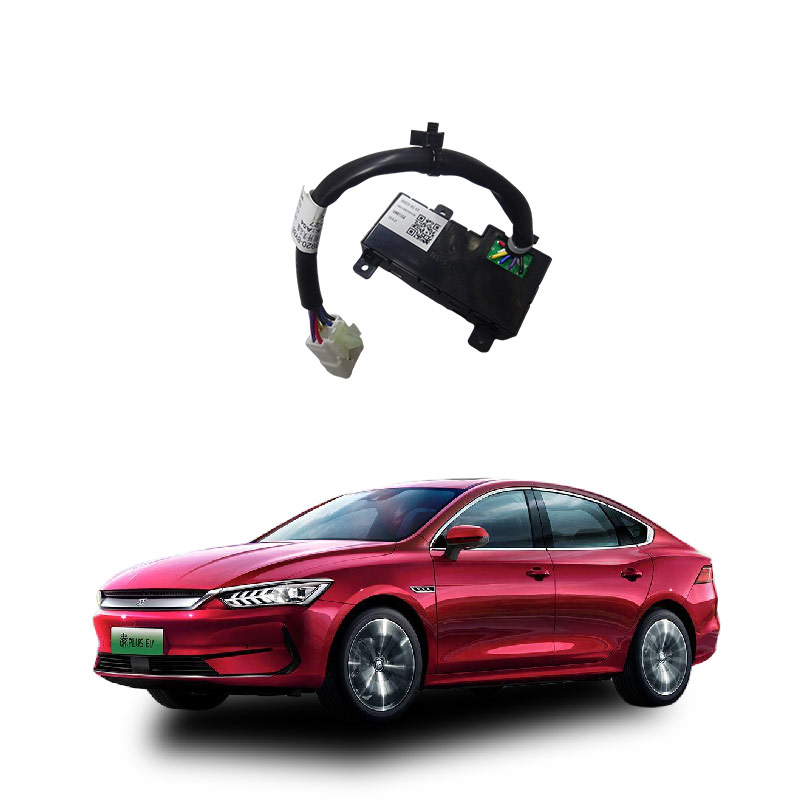

The main body of the automotive electric seat adjustment switch is a combined control unit integrated with multiple contact switches, circuit boards, and microswitches, usually installed on the seat side panel or the door handle, to send adjustment instructions to the electric seat ECU.
Structure: It consists of horizontal (front-back/height) and vertical (backrest inclination) bar-shaped levers (or buttons) and a circular waist support adjustment knob. Inside, there are multiple groups of metal contacts/film switch circuit boards and connection cables.
Function: It is not a power-driven component but a human-machine command input device. It controls the forward and reverse rotation of the bidirectional DC motor by connecting different circuits.
Common layout: Most models adopt a "one horizontal, one vertical, one round" three-zone design. Some high-end models integrate memory buttons or additional function keys.
Core components: Circuit board (signal processing) + microswitch (touch input) + wiring interface (signal output). It does not include the motor or transmission mechanism.
Note: The switch itself does not generate power; it only sends electrical signals. The actual adjustment is accomplished by the motor, transmission mechanism, and regulator working together below the seat.
The core function of the automotive electric seat adjustment switch is to serve as the control center, driving the motor through electrical signals to achieve multi-directional electric adjustment of the seat, such as front-back, height, backrest angle, and waist support, to accommodate the body shape and comfort needs of different passengers.
Receiving operation instructions: Through buttons/rotors (such as horizontal/vertical bar-shaped keys, circular waist support keys), manual input is received, corresponding to controlling different dimensions of seat movement.
Sending control signals: The operation is converted into electrical signals and transmitted to the electric motor and ECU (electronic control unit) below the seat, driving the corresponding actuator (such as slide rails, worm gears, connecting rods) to move.
Achieving continuous and precise adjustment: It supports continuous, smooth, and effortless multi-degree-of-freedom adjustment (usually including front-back sliding, height elevation, backrest inclination, and waist support), and some models also integrate memory functions or leg support control.
Ensuring safety and convenience: It replaces manual levers or handles, improving adjustment efficiency and accuracy, especially facilitating the driver to quickly find the best driving posture and enhancing handling and comfort.
The switch itself does not generate power; it is the "command entrance" of the entire electric seat system (switch → ECU → motor → transmission mechanism).
When the switch itself fails, it usually manifests as the seat not responding at all or no response in some directions. The priority check should be on the switch itself, power supply, and wiring. In most cases, a replacement of the switch assembly is required.
Confirming the scope of the fault: If only one direction (such as front-back/above/below) fails, it may be due to wear of the internal contacts or problems with the corresponding motor/wiring; if all directions fail to respond, the switch body is damaged, the fuse is blown, or the power supply is interrupted.
First step of troubleshooting: Check the relevant fuses (usually on the driver's side or in the engine compartment fuse box, refer to the manual). If they are blown, replace them with the same specification and model. Also, confirm whether the power wiring is loose or corroded.
Check the switch body: Try tapping or repeatedly turning the switch to see if there is occasional response. If the button is loose, stuck, has no mechanical feedback, or emits a burnt smell, it is generally possible to determine that the internal contacts or circuit board of the switch are damaged.
Temporary verification method: Use a multimeter to measure the output signal of the switch (need the circuit diagram), or cross-connect the corresponding motor wire (operate with caution) to determine if the motor is working - if the motor works but the switch has no output, the switch body failure is confirmed.
Treatment method: The switch body generally cannot be disassembled and repaired. It is recommended to replace with the original or matching assembly; some models support replacing the panel alone, but most require the replacement of the entire wiring + switch assembly. Note: Electric seats usually do not have a manual adjustment backup. If the seat position cannot be temporarily adjusted after a malfunction and the power supply is not available, it will be difficult to make adjustments.
If the fuse is normal, the circuit has no open/closed circuit, the motor test is normal, but the switch still does not output, decisively replace the adjustment switch assembly; before operation, disconnect the negative terminal of the battery to avoid short circuit.
If you do not have the ability to detect the circuit or the experience of replacement, it is recommended to have it handled by a professional repair shop or 4S store to avoid damaging the seat control module (ECU). Avoid liquid splashing and forcibly turning the switch to prolong the lifespan.
