What is the component of the car sunroof control motor?

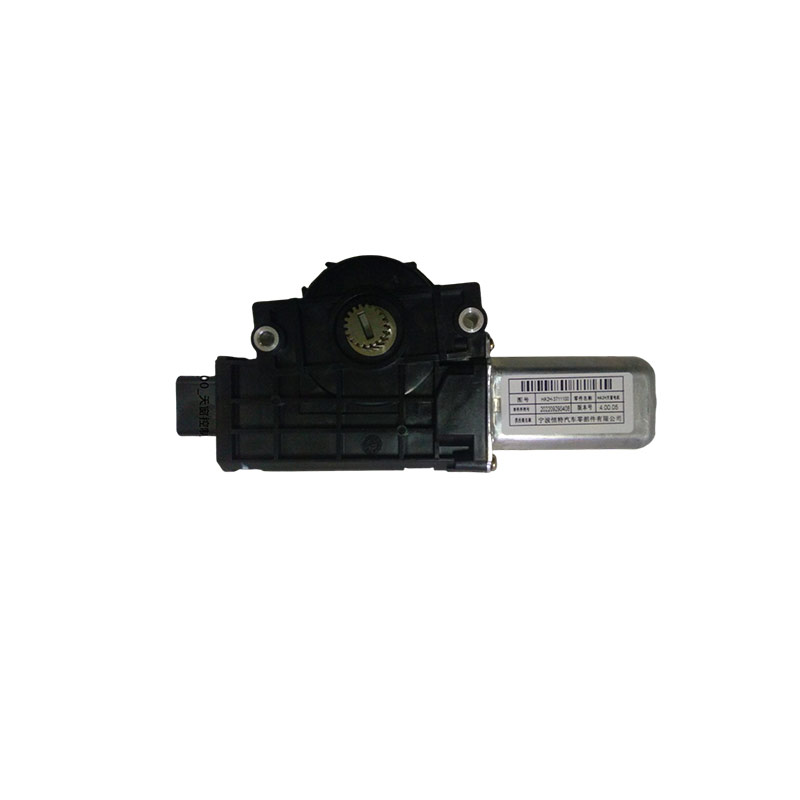

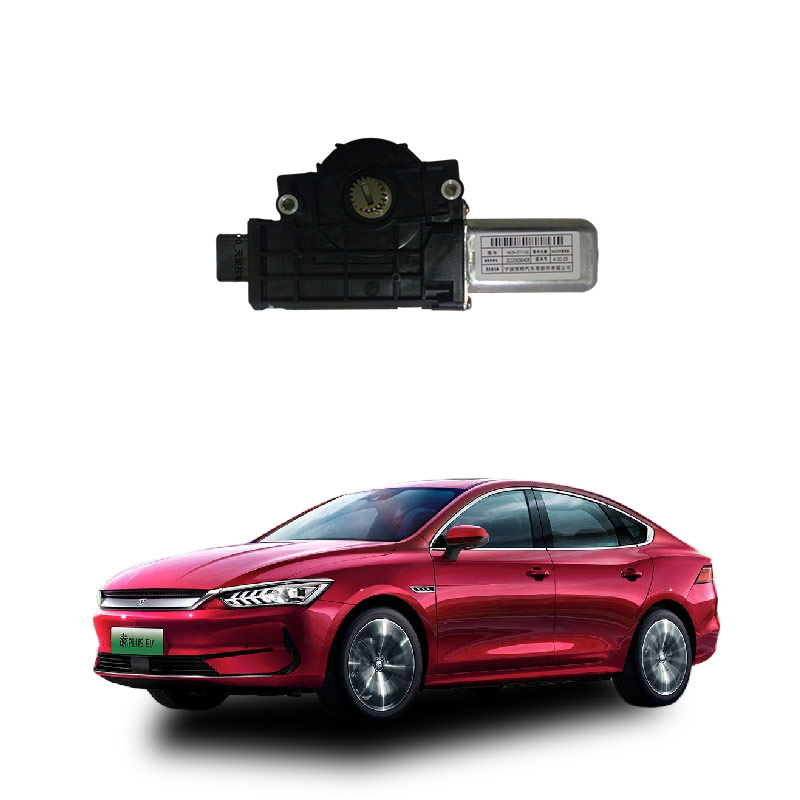

The automotive sunroof control motor assembly is the core power execution component of the electric sunroof system. It typically refers to the electromechanical assembly integrating the motor, reduction gear set, limit switch (or Hall sensor), and control circuit, responsible for converting electrical energy into mechanical motion to drive the sunroof glass to achieve opening, closing, tilting, or anti-clamping functions.
Motor body: Mostly reversible DC permanent magnet motors (such as CM3G Hall motors), which achieve forward and reverse rotation by changing the current direction, driving the sunroof to open/close/tilt.
Reduction transmission mechanism: Worm gear, worm wheel, or gear set, converting the high-speed low-torque output of the motor into low-speed high-torque (commonly 7.5–11.5 Nm), pushing the sliding screw or linkage mechanism.
Position detection and limit unit: Mechanical cam-type limit switch or electronic Hall sensor, identifying the fully open/fully closed/anti-clamping position and feeding back signals to the vehicle body control module (BCM).
Control interface: Some assemblies are internally equipped with simple logic or communicate with an external ECU (such as CAN bus), supporting intelligent functions such as anti-clamping, one-button opening/closing, and ventilation mode.
This component is not equivalent to the "sunroof assembly" (which includes the glass, guide rails, sunshade curtains, etc.), nor does it merely refer to the "motor" - but is an integrated module that combines drive, transmission, sensing, and basic control, commonly known as "sunroof motor assembly" or "sunroof control motor component". If it fails, it often manifests as the sunroof not moving, abnormal noise, anti-clamping mis-triggering, or inability to center and stop.
The function of this component is to convert electrical energy into mechanical power to drive the sunroof glass along the guide rails to achieve opening, closing, tilting, or sliding movements, and control the direction of movement through forward and reverse rotation.
It provides the core driving force, through gears or worm gear and worm wheel transmission mechanisms, to drive the sunroof glass to move;
Bidirectional rotation (depending on the current direction switching), achieving opening/closing, raising/lowering functions;
Cooperating with limit sensors and control systems, it automatically stops at the end of the stroke to prevent overload or damage;
Supports intelligent functions (such as anti-clamping, one-button opening/closing, and rain-sensing automatic closing), relying on the motor response control unit instructions;
It is the only power source in the electric sunroof system, and without a motor, automatic control cannot be achieved (except for manual sunroofs).
The typical manifestations and initial troubleshooting of the failure of the automotive sunroof control motor assembly are as follows:
No response: The sunroof switch does not move at all (no sound, no vibration), first check the corresponding fuse (located in the manual) and the voltage of the power supply plug (measured with a multimeter), if normal, the motor or its built-in control module may be damaged; pay attention to excluding the jamming of the guide rails (manually push the sunroof glass to see if it is flexible).
There is a running sound but the sunroof does not move: mostly due to the wear of the output gear of the motor, broken teeth, or disengagement of the transmission linkage, it is necessary to inspect the ceiling lining to confirm the mechanical connection; gear damage usually requires the replacement of the entire motor assembly.
Abnormal noise (clicking/knocking/whining): If it comes from the motor area and the guide rails have been cleaned and lubricated, it may be due to carbon brush wear, bearing failure, or broken internal gears, continue to use it will cause overheating and locking.
Running stalling/inaccurate position/anti-clamping mis-triggering: may be due to insufficient motor power (carbon brush wear to 1/3 length), failure of the position sensor, or excessive resistance of the guide rails, use it for a long time will cause overheating and locking.
Intermittent operation or overheating protection: automatic shutdown after frequent on-off, it is overload protection; if it occurs frequently, check the oxidation of the wiring plug, increase in internal resistance of the motor (measure the current to see if it is abnormally increased), or blockage of the drainage hole causing the motor to be waterlogged and rusted.
Memory position loss/tilt function failure: mostly related to the failure of the motor encoder or control unit, software upgrade is ineffective, replace the motor assembly. If after self-checking the fuse, power supply, and lubrication of the guide rail (using special lithium-based grease) the problem persists, do not attempt to operate forcefully. This could cause damage to the guide rail or the motor. It is recommended to contact a professional repair shop to use a diagnostic tool to read the codes. In most cases, the motor assembly needs to be replaced entirely. Cleaning the sliding rail and clearing the drainage holes of the skylight every six months can significantly delay the overload failure of the motor.
