What is the rear camera component for the car?
"Reverse car camera" usually refers to "rearview camera" (or "reverse camera"), not a camera with reversed orientation; if the system shows reversed images, it is mostly due to installation or setup issues rather than being an independent component type.

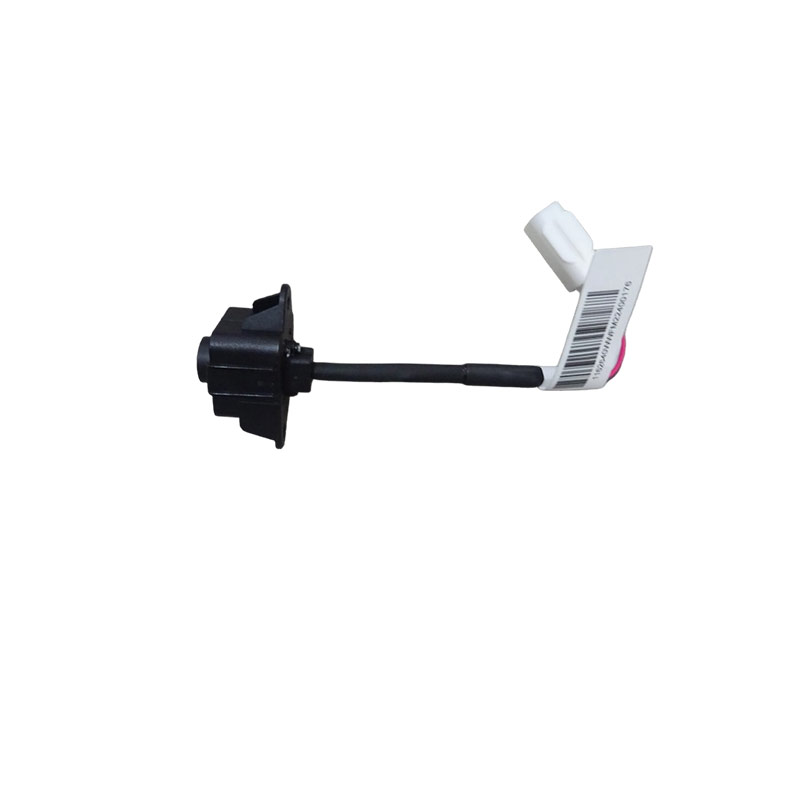

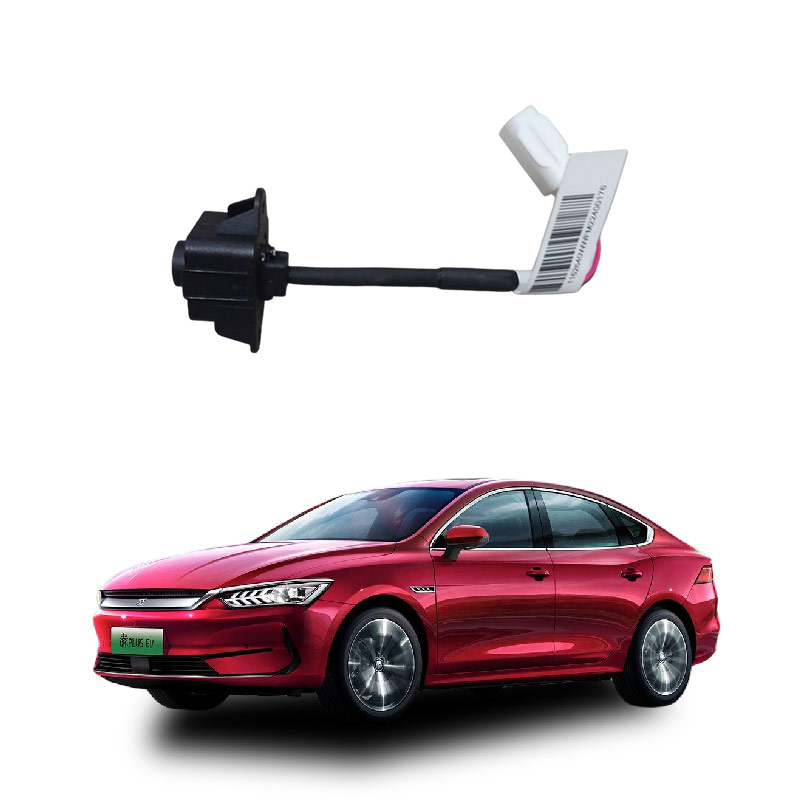

Core Definition: A reverse car camera (actually a rearview camera) is a wide-angle camera installed at the rear of the vehicle. It automatically activates when in reverse gear and transmits real-time images of the rear to the interior display, assisting in observing blind areas.
Main Components: Include a wide-angle camera module (containing lens, CMOS/CCD image sensor), video signal cable (wired) or wireless transmitting module (wireless), power cable (often connected to the 12V/24V reverse lights), as well as the accompanying display and image processing unit (some models integrated in the central control screen or dedicated host).
Common Misunderstandings: "Reverse" does not refer to the camera's function itself, but rather the image being displayed upside down on the screen - this is usually caused by the camera being installed incorrectly or not enabling the "image inversion" setting, rather than an independent "reverse camera component"; in the field of transportation, "reverse cameras" (such as for capturing) are fixed monitoring devices and do not belong to vehicle-mounted components.
Technical Points： The imaging angle is typically 120°–140°， supporting night vision and dynamic guiding lines， but does not actively control the vehicle， belonging to the basic visual assistance of ADAS， distinct from radar or automatic braking systems.
If you mean the image is reversed when reversing， check the installation direction of the camera or enable "image mirroring" in the vehicle's console settings； if referring to "added aftermarket reverse camera"， confirm compatibility (voltage， interface， screen support) and whether it includes brackets， wiring harnesses， etc. for installation.
The core function of the car reverse camera (i.e.， rearview camera) is to automatically activate when in reverse gear， providing real-time images of the rear to help the driver intuitively observe the blind area， enhancing reverse safety and accuracy.
Eliminate visual blind spots： Make up for areas not covered by the rearview mirror， such as the near end of the rear， low obstacles on both sides (such as pedestrians， pets， curb stones) and other blind spots.
Provide real-time images： Clearly display the rear scene on the central control screen， some support dynamic guiding lines， distance scale (red， yellow， green warning) and night vision functions.
Reduce collision risks： Significantly reduce the probability of scraping， colliding with obstacles or pedestrians during reverse parking， especially for novice drivers or in complex parking scenarios.
Automatically联动 operation： Usually linked with the reverse light circuit， it automatically activates when in R gear， requiring no manual operation.
Note： If "reverse camera" refers to the image being reversed (mirror anomaly)， it is a fault or setting error； normally， it should display normally (inverted image) to ensure accurate direction judgment； if referring to "rear-facing camera for reverse parking"， the above functions are its entire design purpose.
"Reverse camera component failure" in cars usually refers to no display of reverse images， abnormal images (such as inversion， left-right reversal， black screen， snow pattern) or complete lack of signal； common causes include mistakenly enabling image mirroring in settings， loose wiring， camera damage or control module failure.
First， check the software/settings： After entering reverse gear， search for options like "reverse mirror" or "image inversion" in the vehicle's console/navigation menu and disable them (most models default to "normal")； some portable navigators need to touch the corners of the screen to bring up settings.
Check physical connections and appearance： Confirm if the rear door camera connector is loose， if the wiring harness is worn (especially at the hinge of the rear door， prone to damage)； is the lens covered by dirt， ice or frost?
Determine if it is a hardware fault： If there is no image on the screen (not black screen but other image display)， or repeated screen flickering/shadowing， it may be damage to the camera， video cable or reverse image module； You can try using a multimeter to measure the power supply of the camera (it should have 12V when the ignition is on) or temporarily replace a camera of the same model for testing.
Note "Installing the Wrong Camera": If the vehicle has been repaired or modified, mistakenly installing the front-view camera at the rear of the vehicle will cause the left and right to be reversed (due to different imaging logic), and it is necessary to replace it with the dedicated rear-view lens (usually marked as "REAR").
Handling within Warranty: If the vehicle is within the warranty period and there is no water ingress or external damage, the 4S store should check if it is a systemic fault (such as the collective failure of all camera systems in the vehicle may involve the electronic control module); if only a single rear-view camera is abnormal, it is often due to aging wiring or loose installation, and it may not be a "quality issue".
If there is a fault despite no abnormalities in the settings and appearance, it is recommended to use a diagnostic tool to read the relevant fault codes for rear-view image (such as U1000 type network communication codes or C1000 type camera fault codes) to avoid replacing blindly. When disassembling, pay attention to static protection, and complex circuit problems should be handled by professional repair points.
