What is the nylon pipe assembly for car fuel injection?

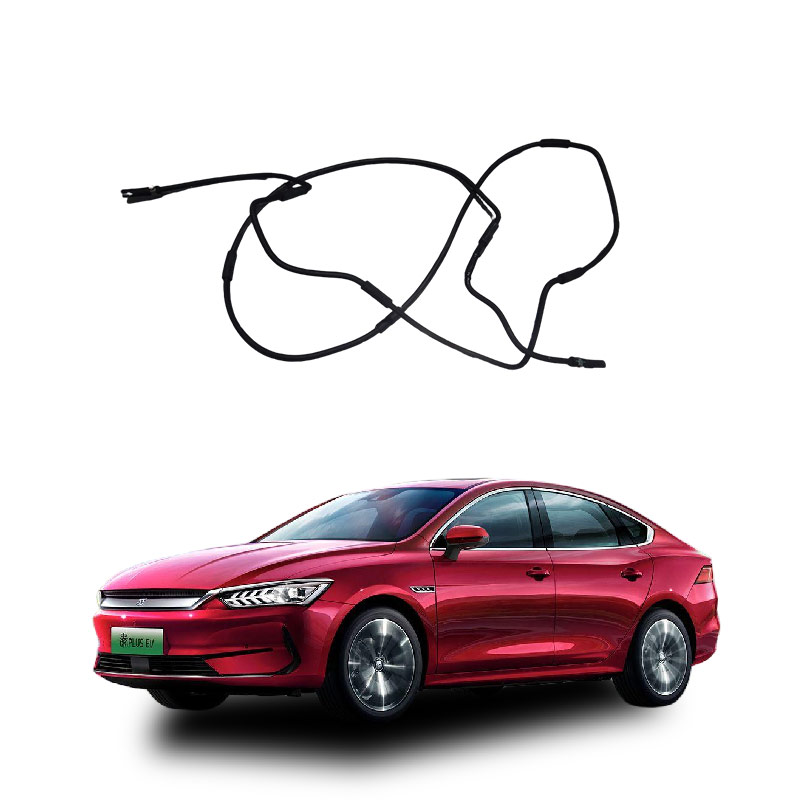

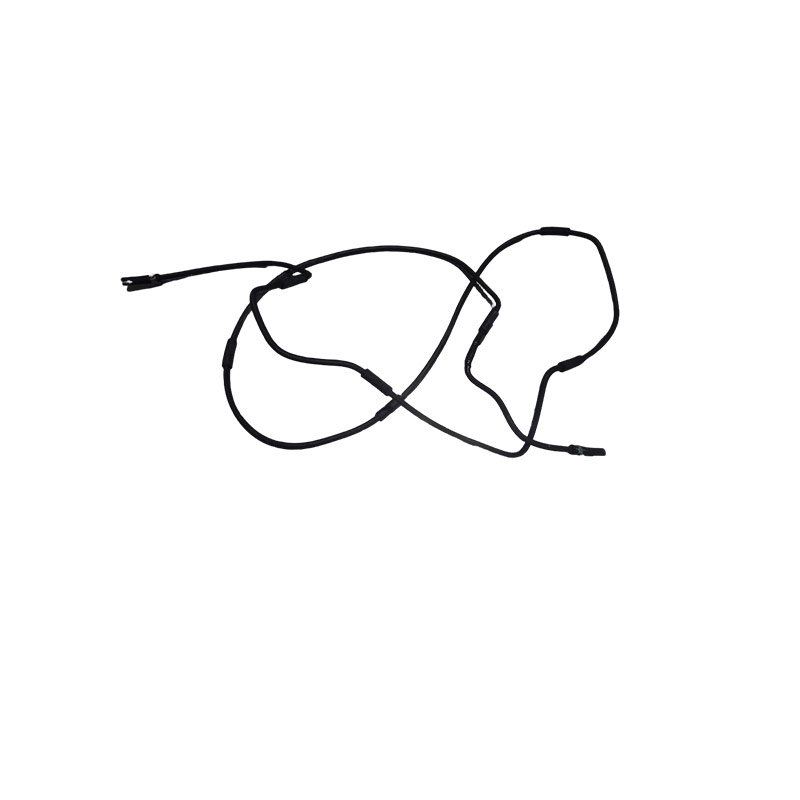

The automotive fuel inlet nylon pipe assembly is a nylon (usually PA12 or PA6) formed pipeline assembly responsible for transporting fuel from the fuel tank (or fuel pump) to the engine fuel injector in the fuel system. It consists of a pipe body, connectors, clamps, and other components, specifically designed for the fuel inlet (fuel supply) path.
Material: It mostly uses oil-resistant, pressure-resistant, and high-temperature-resistant PA12 (polyamide 12) nylon. Some are reinforced with fibers or have a composite structure to meet the requirements of Euro VI emissions and lightweighting.
Function: It stably transports gasoline/alcohol mixed fuel within a pressure range of 10 bar and a temperature range of -40°C to +125°C, ensuring continuous, sealed, and leak-free fuel supply.
Structure: It is usually a formed hard pipe (not soft rubber tube), with metal or plastic quick connectors, integrated into the vehicle's fuel system, and belongs to a "pipe assembly" (i.e., a complete component with connectors already assembled and ready for installation).
Advantages: Compared to metal pipes, it is lighter, corrosion-resistant, and has a smoother inner wall to reduce fuel turbulence; compared to rubber pipes, it has higher pressure resistance, lower leakage emissions, and complies with modern fuel system environmental and safety standards (such as QC/T 1043-2016).
Commonly found in the engine compartment of gasoline/diesel vehicles, it differs from return oil pipes or high-pressure common rail oil pipes; if damaged, it can easily cause starting difficulties, unstable idle, or fuel leakage risks, and is a key safety component.
The function of the automotive fuel inlet nylon pipe assembly is to safely and reliably transport fuel from the fuel tank to the engine fuel injection system, while possessing key performance characteristics such as oil resistance, pressure resistance, lightweighting, corrosion resistance, and low leakage.
Fuel transportation: Connects the fuel pump (usually in the fuel tank) to the engine fuel rail to form the main fuel supply channel.
Oil resistance: Uses materials such as PA11, PA12, or modified PA6/66, which are not easily swollen or corroded by gasoline, diesel, or ethanol gasoline.
Sealing and safety: The multi-layer structure (often containing an EVOH barrier layer) inhibits fuel vapor leakage, meeting environmental emission regulations (such as Euro VI/Octavius VI).
Lightweight and flexible layout: It is lighter than metal pipes by more than 30%, flexible and bendable, facilitating vehicle layout, and reducing the number of connectors to lower the risk of leakage.
Pressure resistance and impact resistance: The working pressure is usually 1–3 MPa, with a burst pressure of >10 MPa (especially for glass fiber reinforced type), and it can absorb vibrations, reducing noise and fatigue fracture risks.
This assembly generally includes a nylon pipe body, quick connectors, clamps, and seals, being the mainstream solution in modern fuel systems to replace rubber or steel pipes, balancing cost, weight, and reliability. Note: "fuel inlet nylon pipe assembly" specifically refers to the fuel supply path (fuel tank → engine), not including return oil pipes (engine → fuel tank), as their functions and pressures are different and cannot be used interchangeably.
The "automotive fuel inlet nylon pipe" assembly usually refers to the nylon fuel supply pipeline in the fuel system that connects the fuel tank, fuel pump, or fuel rail. Faults are often manifested as oil leakage, insufficient fuel supply, or abnormal cold start, and in severe cases, can cause engine stalling, inability to start, or fire.
Typical symptoms: Obvious fuel odor, idle jitter/cold start difficulty, acceleration weakness, engine fault light on (possibly reporting P0171/P0172 mixture too lean/over-rich), oil pressure drop, visible nylon pipe cracking/connector oil leakage (especially after high temperature or vibration).
Main causes: Nylon pipe aging and cracking (highly common after 5–8 years), failure of the sealing ring of the connector, installation distortion/friction wear, fuel impurities corrosion or external force scratching; note: "fuel inlet pipe" is not "air intake pipe", do not confuse with air intake pipe faults (which affect air rather than fuel). Risk Warning: Oil leakage is highly prone to catching fire when encountering high-temperature components. If leakage is detected, stop the vehicle immediately and do not continue driving. Do not attempt to temporarily repair with adhesive tape or soap and drive on; the nylon pipe is a high-pressure fuel pipeline (typically 2.5–4 bar) and requires a complete replacement of the assembly.
Treatment Method: Have a professional repair shop replace the original or compatible nylon pipe assembly (including joints, clamps, and seals). Do not replace only the pipe section; after replacement, conduct a pressure test for leak detection and clear the fault codes. If there is insufficient fuel supply, also check the fuel pump, filter, and pressure regulator simultaneously.
If the vehicle is an older model (such as before 2010) or uses ethanol gasoline frequently, the nylon pipe is more prone to deterioration. It is recommended to include oil circuit inspection as an item every 60,000 kilometers or 8 years. If symptoms occur suddenly (such as engine stalling while driving), prioritize checking whether it is a fault in the fuel pump power supply/grounding or a clogged filter. Avoid misjudging it as a pipe problem.
