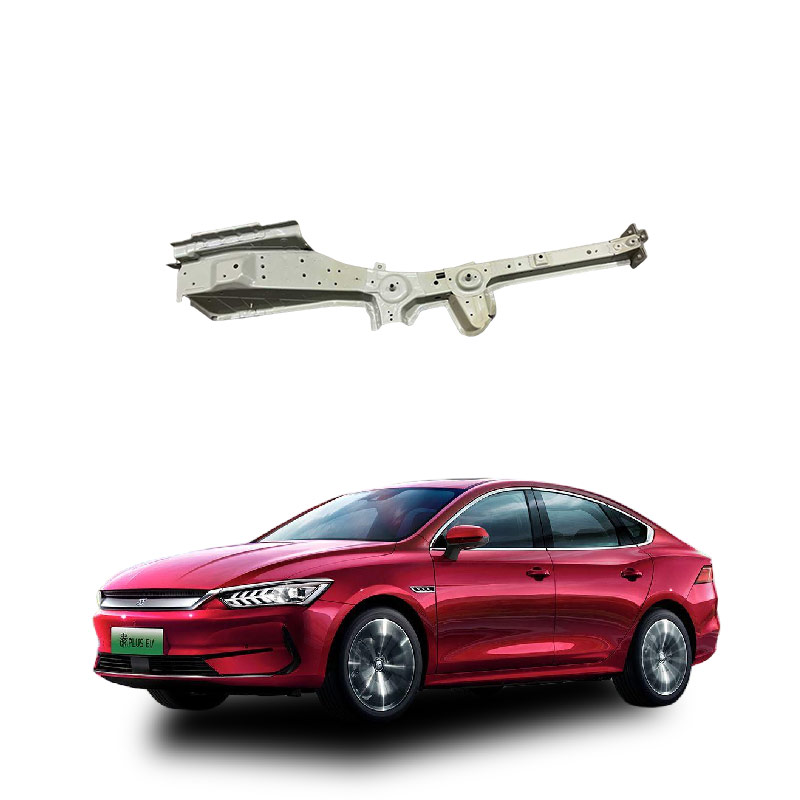

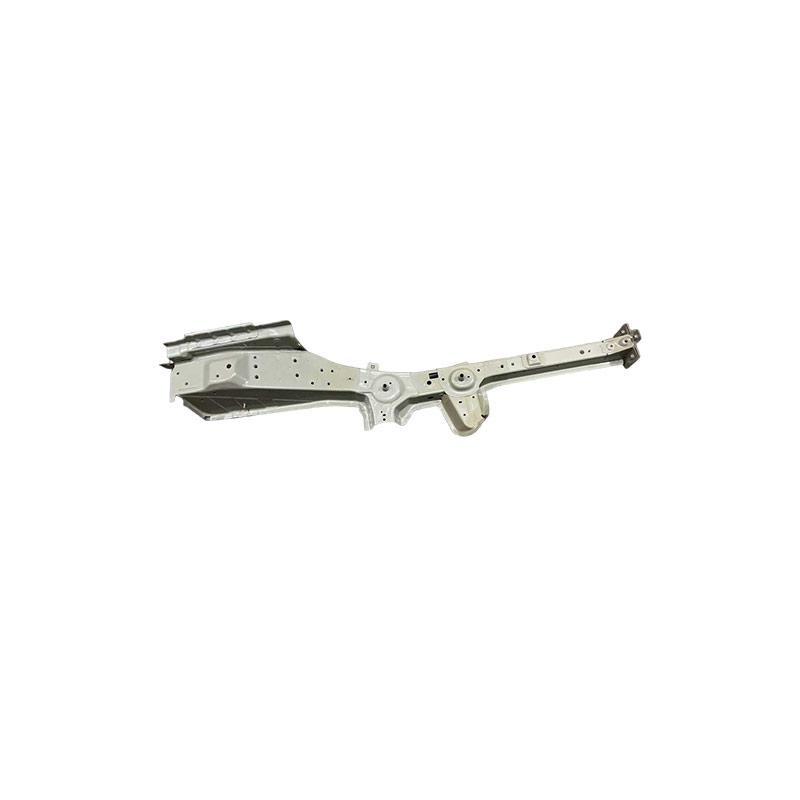

The function of the left rear longitudinal beam assembly of the car
The left rear longitudinal beam (left rear longitudinal member) is a core structural component at the rear of the vehicle, mainly responsible for supporting the rigidity of the vehicle body, transmitting and absorbing the energy from rear collisions, and protecting the passenger compartment and key components (such as the fuel tank and battery).
Structural support: It works in conjunction with the right rear longitudinal beam to form the "spine" of the vehicle body, connecting the rear suspension, subframe, and floor, maintaining the rigidity of the vehicle bottom and the stability of the overall vehicle posture.
Collision energy absorption: In rear-end collisions, it undergoes controlled deformation to absorb the impact force, in coordination with the rear bumper beam and energy absorption box, reducing the force entering the passenger compartment and enhancing passive safety.
Load transmission: It bears the loads from the rear axle, luggage, and longitudinal and lateral forces during driving, affecting the four-wheel alignment and durability.
Safety protection: It indirectly protects the rear fuel tank, high-voltage battery (for electric vehicles), and other flammable and explosive components, preventing secondary risks caused by compression during collisions.
The left rear longitudinal beam is typically made of high-strength steel and formed into a channel or box shape, located beneath the trunk floor and inside the left rear tire. If severely deformed, it requires professional correction or replacement; otherwise, it will significantly weaken the vehicle's safety and driving stability.
The component failure of the left rear longitudinal beam is usually a structural deformation, cracking, or corrosion, which is a serious safety hazard. It must be immediately stopped and sent to a professional institution for assessment. It should not be repaired by oneself.
The rear longitudinal beam is the core structural component of a monocoque vehicle. It is responsible for absorbing collision energy, maintaining the rigidity of the vehicle body, and ensuring the alignment of the four wheels. A failure of the left rear beam (such as deformation, fracture, or rust penetration) will significantly reduce safety, cause abnormal sounds, veering, abnormal tire wear, and even the risk of loss of control.
Whether it can be repaired depends on the extent of the damage: minor dents can be repaired by a professional sheet metal shop using laser measurement and hydraulic correction (retaining the original factory strength); if there are cuts, welding, severe folds, or fractures, it falls under the category of "major accident vehicles," even if repaired, it is difficult to restore the original design's energy absorption performance, and it is strongly recommended not to continue using or purchasing it.
Do not be deceived by "simple straightening": The rear longitudinal beam is mostly made of high-strength steel sheeting. Improper correction can lead to stress concentration and hidden cracks; if there are cuts, welding, severe folds, or fractures, it belongs to the category of "major accident vehicles," even if repaired, it is difficult to restore the original design's energy absorption performance. It is strongly not recommended to continue using or purchasing it.
Do not believe in "simple straightening": The rear longitudinal beam is mostly a high-strength steel sheeting component. Improper correction can lead to stress concentration and hidden cracks; if there are corrosion perforations or material loss, it usually must be replaced with the entire component (not ordinary sheet metal parts), which requires the use of heat fusion cutting, special fixtures, and new parts of the original factory specifications.
Common causes of failure: rear-end collisions (the rear longitudinal beam is the energy absorption zone), chassis impacts, and long-term water accumulation leading to rust (especially for older vehicles or in coastal areas).
Required subsequent actions: After repair or replacement, it is necessary to perform four-wheel alignment + three-dimensional measurement of the vehicle body + non-destructive testing (such as ultrasonic testing) to confirm that the structure has been restored and there are no hidden damages.
If this fault is detected in a used car, it is considered a major accident vehicle; if an abnormal sound, tilt, or abnormal control occurs during daily use, immediately stop driving and tow it to a brand 4S store or an independent high-end sheet metal shop (with a laser measurement system) for diagnosis. Welding reinforcement or filling with putty and other "temporary treatments" will completely lose the collision protection capability and is extremely dangerous.
The left rear longitudinal beam (left rear longitudinal member) is an integral structural component and is not usually divided into "multiple components"; however, in the context of vehicle assembly or repair, the integrated components or substructures directly related to it may include:
- Rear longitudinal beam body: High-strength steel (such as HC340~590DP) or aluminum alloy sheeting formed into a longitudinal load-bearing beam, with a cross-section mostly in a channel, box, or Z-shape, located beneath the trunk floor and inside the left rear tire;
- Rear longitudinal beam reinforcement plate/liner: Local reinforcing plates welded or screwed to the inner side of the main beam, enhancing the bending and torsion resistance;
- Rear bumper energy absorption box (connected by bolts or welding): Located at the rear end of the rear longitudinal beam, used for controlled crushing and energy absorption during collisions;
- Rear suspension mounting points/supports: Integrated on the upper or outer side of the rear longitudinal beam, used to connect multi-link, torsion beam, etc., the rear suspension system; Fuel tank/battery pack protective bracket/installation support: For some models, the front fixation points of the fuel tank or battery pack are integrated onto the left rear longitudinal beam.
Exhaust pipe suspension bracket, wire harness fixing clips, etc. auxiliary installation points: Non-structural parts but attached to the surface of the longitudinal beam.
Note: "Left rear longitudinal beam assembly" is not a standard component classification term - in the maintenance manual or BOM table, usually only "Rear longitudinal beam assembly (left side)" is listed as a single replacement part (including the above integrated structure), unless there is a local cutting replacement (such as the energy absorption box section). If collision repair is involved, professional manufacturers will distinguish between "Rear longitudinal beam body", "Energy absorption box", "Suspension bracket" and other replaceable modules, but the original factory generally supplies as a complete assembly.
