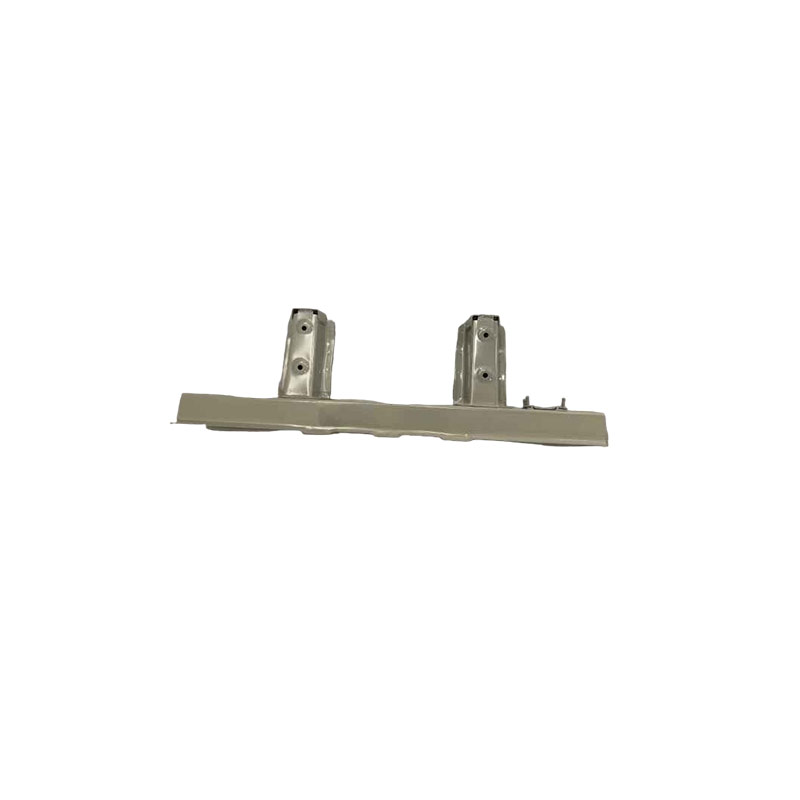

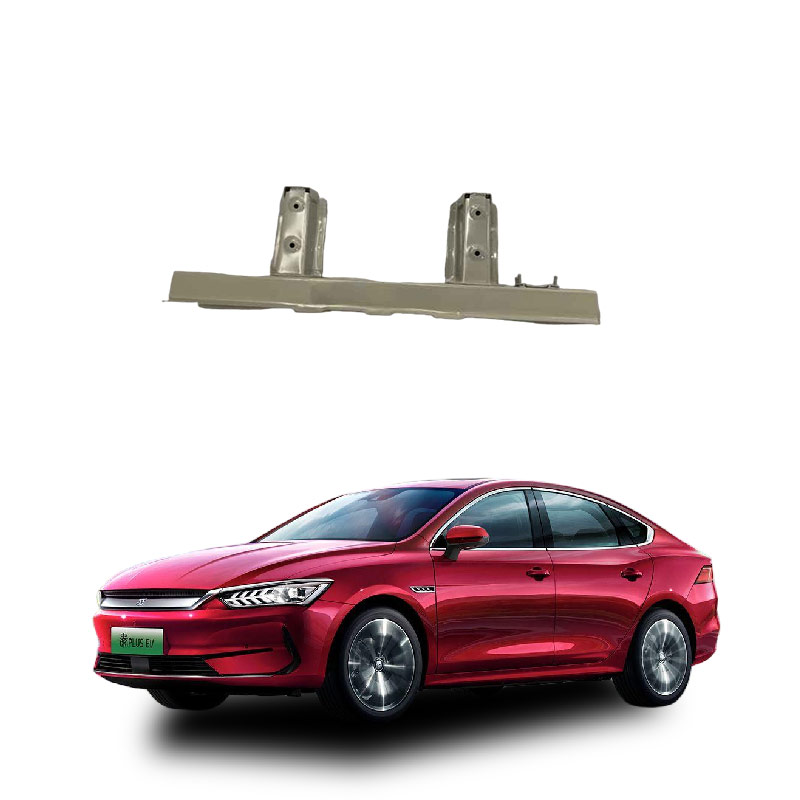

The function of the lower crossbeam assembly of the car's rear frame
The core function of the lower crossbeam assembly of the vehicle's rear frame (typically referring to the rear subframe crossbeam or the rear chassis crossbeam) is to connect the left and right longitudinal beams, enhance the vehicle's torsional stiffness, support the rear suspension system, and assist in distributing the rear impact force during a collision.
Structural rigidity enhancement: It forms a "frame-like" or "T-shaped" chassis skeleton with the rear longitudinal beam, significantly improving the vehicle's torsional stiffness, reducing body deformation during driving, and enhancing handling stability and NVH performance.
Suspension support reference: As a key installation point for the rear subframe or rear suspension (such as multi-link or torsion beam), it directly bears and positions the rear wheel suspension components, ensuring stable wheel spacing and positioning parameters.
Collision energy management: In rear-end collisions, it cooperates with the rear bumper crossbeam and longitudinal beams to distribute the impact force to both sides, reducing the risk of rear cabin intrusion (some models have this crossbeam integrated with the bumper crossbeam or adjacent).
Component installation carrier: It provides fixed supports for the fuel tank, exhaust system, rear brake lines or electric drive unit (for electric vehicles), ensuring precise layout and safe operation.
Note: "Lower crossbeam assembly" is commonly found in rear subframes of body-on-frame vehicles or rear lower crossbeams of non-body-on-frame vehicles, and it is not equivalent to the rear bumper crossbeam (located inside the bumper) or the rear roof crossbeam; its specific structure and function vary depending on the vehicle model (sedan/SUV/truck) and frame type (body-on-frame/non-body-on-frame).
Common faults of the rear frame lower crossbeam assembly usually manifest as chassis abnormal noises, driving drift, loose handling, or abnormal rear suspension, and in severe cases, they can affect structural safety. Professional inspection and assessment are required to determine if it has deformed, cracked, or corroded.
Common causes: Severe collisions (especially rear-end or rollover), long-term rusting (especially in northern winters), welding defects (such as recall cases for certain vehicle models), or material fatigue.
Typical symptoms: Abnormal "clunking" noise when passing over speed bumps or potholes, body swaying during high-speed lane changes, abnormal tire wear, visible cracks, dents, or weld separations on the chassis, or even incorrect wheel alignment parameters.
Risk warning: The lower crossbeam is a critical load-bearing component (mostly made of high-strength steel), and if it fractures or severely deforms, it will weaken the vehicle's torsional stiffness and reduce collision protection capability. It must not be ignored or repaired temporarily.
Treatment method: Immediately stop using the vehicle and tow it to the brand's 4S store or a professional chassis repair shop. Use laser measurement and flaw detection to confirm the extent of the damage; minor dents can be attempted to be corrected in a cold state (rarely applicable), and deformation, cracking, or rust-through usually require replacing the assembly. Do not simply weld it.
Note recall: If it is a Holden (Holden) 2019–2020 model or Asterra, it was recalled due to welding issues with the rear seat crossbeam (not the rear frame lower crossbeam), but faults in the rear frame crossbeam are usually caused by accidents or corrosion, and it is necessary to check if the VIN is on the recall list (check the official website or call the manufacturer).
If there is no obvious accident history but the vehicle suddenly breaks down, focus on checking for rust or original manufacturing defects; if there is a collision history, even if the exterior appears intact, a comprehensive inspection of the frame should be conducted, as structural component damage is often concealed. Do not attempt to weld or use non-standard parts as substitutes; otherwise, the vehicle may be deemed an "accident vehicle" and lose insurance/annual inspection eligibility.
