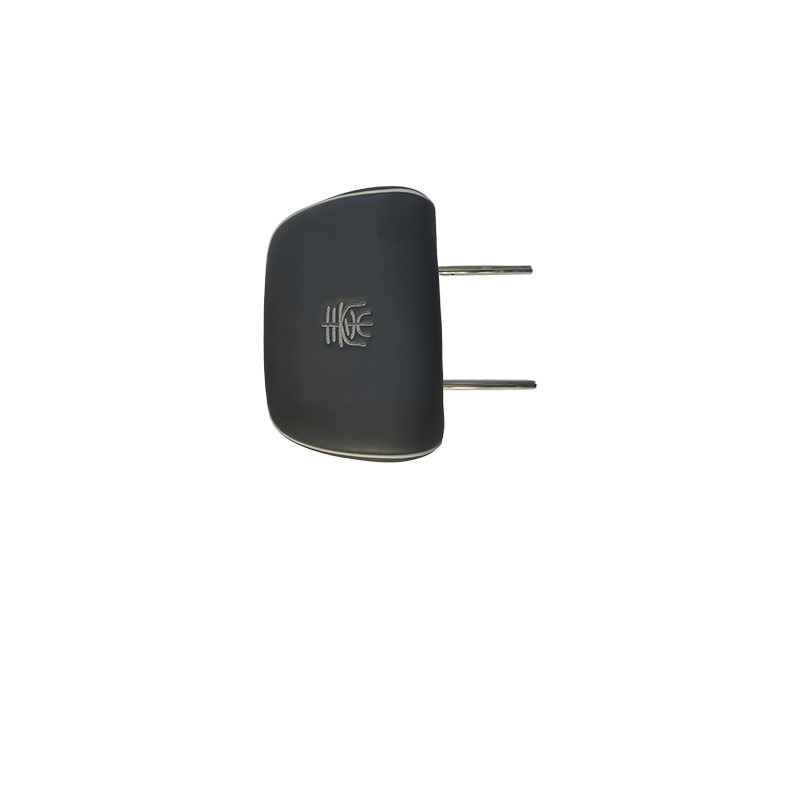

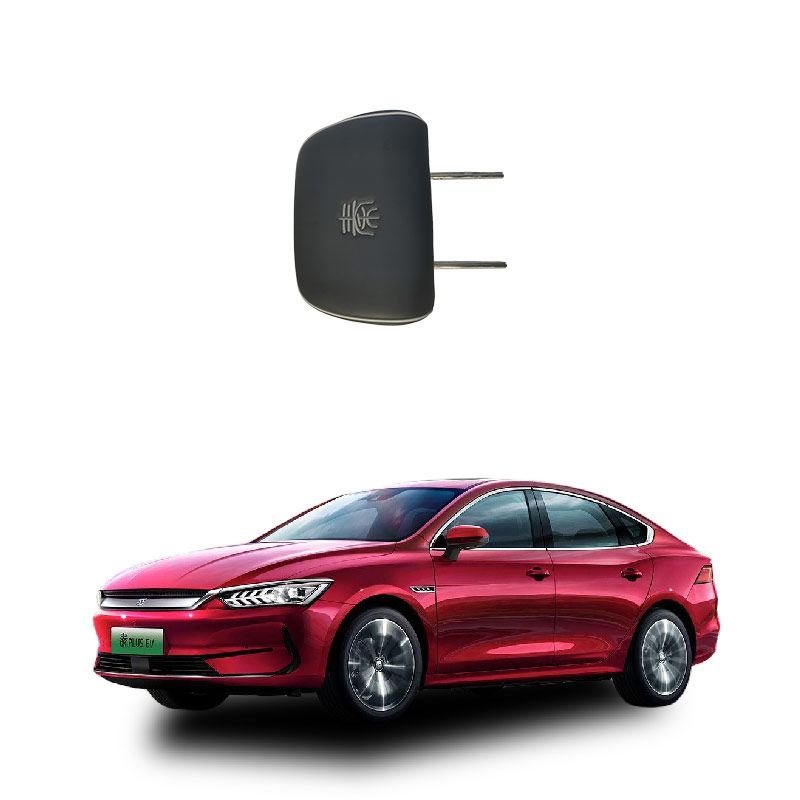

What is the rear headrest assembly of a car?
The rear seat headrest assembly refers to the complete component system installed on the back of the rear seats of a vehicle, used to support the head and neck of the occupants. It not only includes the visible headrest body but also covers the internal supporting structure, adjustment mechanism, fixation device, and possibly electronic or mechanical components.
Core Components and Functions
Headrest Body: Usually made of materials such as memory foam, EPP (expanded polypropylene), or PIP (one-piece polyurethane), it is covered with PVC, PU, or leather, providing comfortable support.
Supporting Rods and Adjustment Mechanism: Enable the adjustment of the height or angle of the headrest (manual or electric), and some models support multi-directional adjustment.
Fixation Device: Connected to the seat back via dovetail joints, buttons, or rotating locks to ensure stability during driving without loosening.
Back Cover/Protective Plate: Protects the internal structure from dust and dirt intrusion, while enhancing aesthetics and providing additional head support.
Safety Function: Absorbs impact energy in rear-end collisions, reducing the risk of "whiplash injury" (Whiplash Injury), and must comply with national mandatory safety standards such as GB11550.
Common Types and Characteristics
By Structure:
Fixed Type: Unadjustable, commonly found in the rear seats of economy models.
Adjustable Type: Supports up and down or front and back adjustment, common in mid-to-high-end models.
Four-Part/Six-Part Back Assembly: An integrated back component with the headrest, which can be replaced as a whole (such as the accessories provided by Hengke Auto Parts Network).
By Process:
Covered Type: Low cost and light weight, mostly used in the rear seats, with limited adjustment functions.
Packed Type: Front and rear shells are separate, can integrate functions such as electric and audio, mostly used in high-end cars.
EPP/PIP Type: Simple structure and low cost, but with poor comfort, common in basic rear seats of lower models.
Installation and Maintenance Suggestions
Installation Precautions:
It is necessary to select headrests with a steel frame support and high-density memory foam to ensure compliance with safety standards.
After installation， it is necessary to test whether the headrest is directly facing the back of the head during sudden braking and whether the locking state is reliable.
Disassembly Method (varies by model)：
Raise to the highest position， and hear the "click" sound to confirm entering the operating position.
Locate the Locking Mechanism：
Button type： Press the side/bottom button while pulling.
Rotary type： Rotate 90° in the arrow direction and pull out (common in German cars).
Hidden latch： Use a tool to press down the latch and pull (common in Japanese and American cars).
Reposition Test： Put it back and shake to confirm stability， avoiding abnormal noise or loosening during driving.
The rear seat headrest assembly of a car mainly functions in two aspects： safety protection and seating comfort. It is an important component of the vehicle's passive safety system.
Safety Protection Function
Prevent Whiplash Injury (Whiplash Injury)： In rear-end collisions， the occupant's head will suddenly swing backward due to inertia. Without a headrest to support it， it is very likely to cause excessive stretching of the cervical spine， ligament tears， or even fractures. The headrest can effectively hold the head， limiting its backward movement， significantly reducing the risk of such injuries.
Compliance with National Mandatory Standards： According to current motor vehicle safety national standards， all vehicle seats (including passenger cars) must be equipped with headrests， and there are strict regulations on material strength， energy absorption performance， installation position， etc.
Enhance Rear Seat Occupant Safety： Especially for children， women， etc.， whose cervical structures are relatively fragile， correct use of the headrest can reduce the probability of neck injury by approximately 40%.
Comfort Function Relieve Neck Fatigue: During long drives or rides, the headrest fits the curve of the neck, helping to maintain the natural physiological curvature of the cervical spine and reducing muscle tension and soreness.
Optimize Seat Support: Through ergonomic design (such as U-shaped curves, memory foam filling), it provides uniform pressure distribution, enhancing the comfort of the ride.
The Speciality of the Rear Headrest Assembly
Structural Integrity: "Assembly" refers to the complete components including the support frame, adjustment mechanism (if any), cushioning material, and exterior cover, ensuring reliable functionality.
Some Models Require Additional Installation: Although the regulations require standard equipment, some economy or special-purpose models may not be equipped. It is recommended that car owners install compatible products themselves to enhance safety protection.
Balance Beauty and Protection: The rear cover of some rear headrests also has the functions of dust prevention, protecting the internal structure, and improving the interior tidiness.
Correct Usage Suggestions:
Adjust the height of the headrest so that its center is level with the upper edge of the ears (or about 8.89 cm below the head);
Keep the distance between the back of the head and the headrest no more than 10 cm (ideally ≤ 4 cm);
Keep the back as upright as possible, avoiding excessive backward tilting that weakens the supporting effect.
