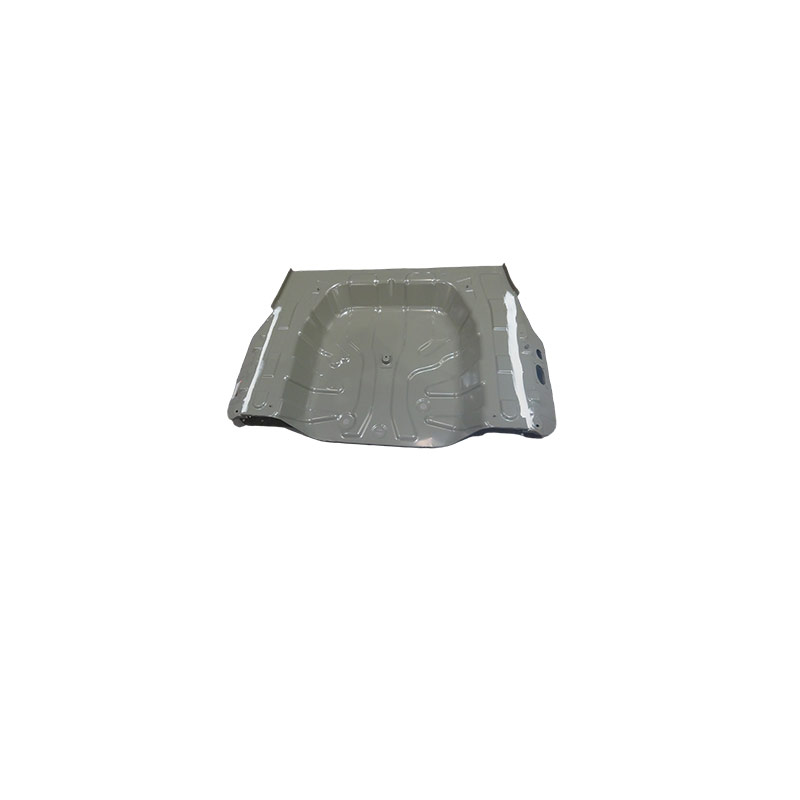

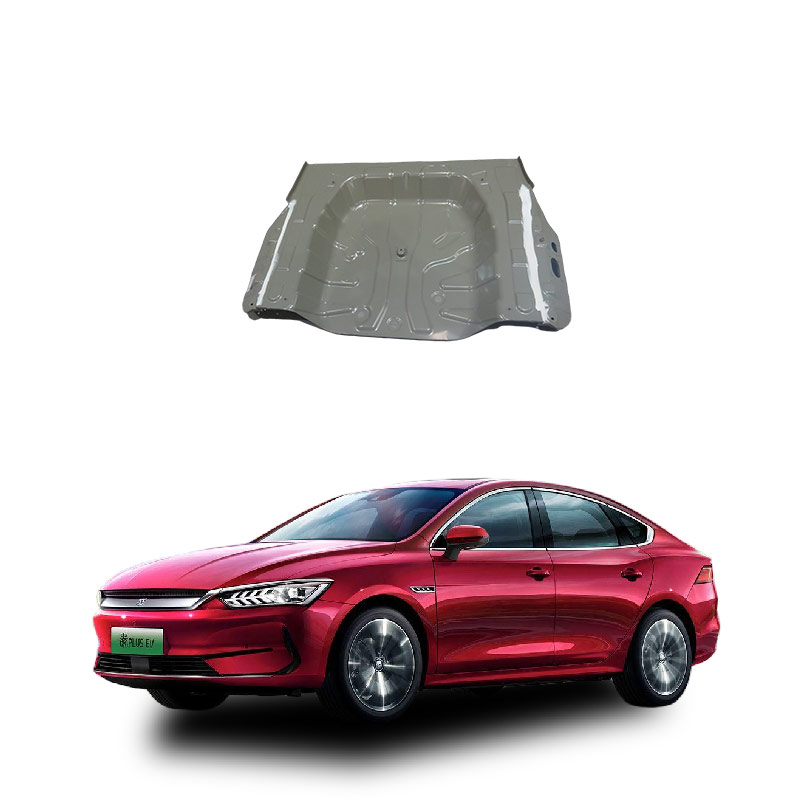

The function of the rear floor panel assembly of the car
The rear floor panel assembly is a key component of the vehicle body structure, mainly located at the bottom of the vehicle trunk and the rear of the vehicle body. According to authoritative public information, its functions can be summarized as follows:
Core functions
Support and bearing: Provides installation basis and bearing platform for rear seats, trunk, spare tire, luggage, etc.
Structural integration: As an installation carrier for the chassis, interior, electrical systems, etc., supports rear subframe, rear suspension, fuel tank, exhaust system, seat belt fixation points, hat rack, luggage compartment lid lock, etc.
Enhance safety: Participates in energy absorption and transmission in rear collision accidents, protecting battery, fuel tank and passenger safety
Increase stiffness and durability: Together with the rear floor frame assembly and rear panel assembly, they form a closed cross-sectional structure, significantly improving the vehicle's torsional stiffness and durability
Optimize NVH performance: Absorbs noise and reduces vibration through internal cavity design, improving the interior quietness
Sealing protection: Collaborates with rear panel and other components to prevent rain and dust from entering the vehicle, protecting lower components
Structural features (supplementary explanation)
Usually consists of the front section of the rear floor panel and the rear section of the rear floor panel, facilitating manufacturing and assembly
Some new designs adopt integrated molding or reinforced convex structure (such as H-shaped plate, convex plate), to enhance compressive strength and lightweight level
The upper surface often has convex and concave strengthening ribs, reducing weight while enhancing local stiffness In conclusion, the rear floor panel assembly not only serves as a load-bearing structure, but also is a crucial component that ensures the safety, rigidity, comfort, and functional integration of the entire vehicle.
The rear floor panel assembly is a key component of the vehicle's rear body structure, primarily responsible for functions such as support, load-bearing, safety protection, and functional integration.
Definition and Position
The rear floor panel assembly is the covering part of the rear floor assembly, usually located at the bottom of the trunk, beneath the rear seats, and constitutes the rear floor structure of the passenger cabin.
It together with the rear floor frame assembly (including beams, crossbeams, and strengthening beams) and the rear panel assembly forms a complete rear floor system.
Core Functions
Structural Support: Carries rear passengers, trunk items, and some chassis components (such as rear suspension, fuel tank, spare tire, etc.)
Safety Protection: Protects the battery, fuel tank, and occupants in rear collisions or 25% small-offset collisions.
NVH Performance: Absorbs noise through internal cavity structure and improves interior quietness.
Installation Carrier: Provides installation points for seats, exhaust systems, fuel tanks, spare tires, electrical wiring harnesses, hat racks, etc.
Typical Structural Features
Mostly made of stamped steel or aluminum, some models use an integrated molding design to enhance stiffness.
Commonly include a spare tire recess groove, step立面/平面 (used to adapt to different seat layouts).
Internal often contains strengthening ribs， H-shaped plates， convex plates or thin-walled cavities to enhance compression and torsion resistance.
Latest Technical Advances (2024–2026)
Zero Auto Technology： Achieves shared platform for five-seat and six-seat models through differentiated frame structure， reducing production costs.
Chery Commercial Vehicles： Uses an integrated crossbeam and floor assembly to enhance 25% small-offset collision safety.
Aurus Machinery： Uses U-shaped convex plates + H-shaped plates to significantly enhance compression capacity.
Geely Holding： Integrates the rear floor panel， beams， wheel arches， and crossbeams， achieving high integration and good stiffness.
Great Wall Motors： Optimizes the connection method of the middle crossbeam to save front and rear space and is compatible with various rear suspensions.
Related Resources
If you need to view the engineering drawings or 3D models of the rear floor panel assembly， you can refer to the following platforms：
Mufeng Network - Rear Floor Panel Assembly Fixture Drawings
Mufeng Network - Rear Floor Assembly Physical Structure
These materials contain welding fixtures， lifting devices， and assembly body data in formats such as CATIA and SolidWorks， suitable for design or maintenance reference.
