What is the installation bracket for the left rear door handle of the car?

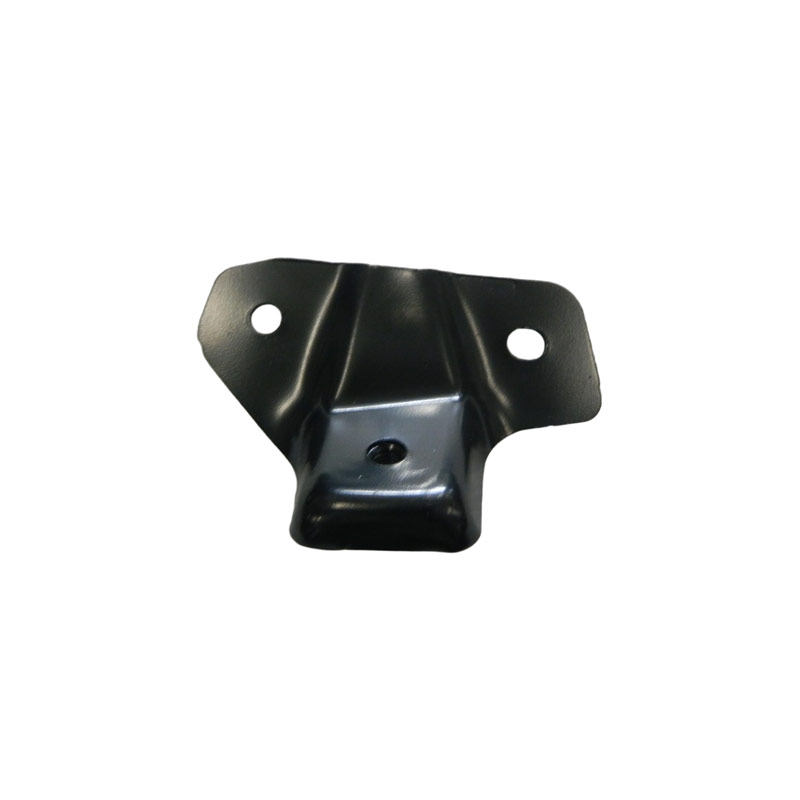

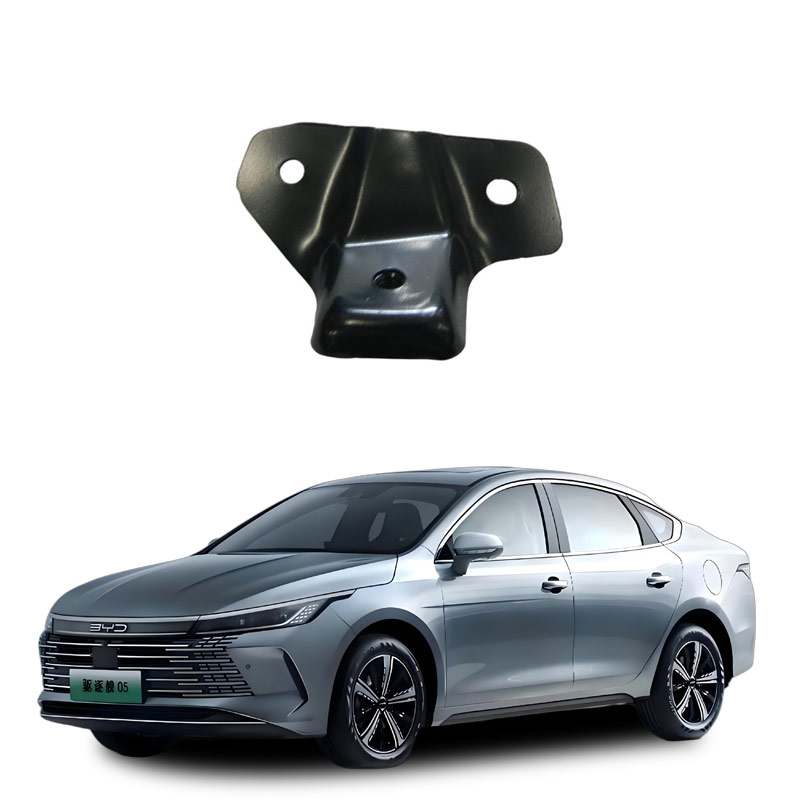

The installation bracket for the left rear door handle of the car is a structural component used to firmly attach the left rear door handle box (which usually includes storage functions) to the inner panel of the car door. It is a key load-bearing and positioning component in the car interior system, directly affecting the stability, comfort, and lifespan of the handle.
Core functions and structural features
Installation position: Fixed to the inner panel of the left rear door, located near the inner side handle area.
Main function:
Supports the handle box body to ensure it does not loosen or deform during frequent use (such as getting on and off the vehicle for assistance, placing arms).
Provides a reasonable installation height and angle to enhance the comfort of the driver and passengers.
Part of the design integrates a storage box opening for easy storage of small items (such as tickets, headphones, etc.).
Typical structural composition (based on a utility model patent):
Fixing part: Connected to the car door inner panel via screws or clasps.
Transition part: Connects the fixing part with the handle box installation part, serving as a buffer and avoidance function.
Handle box installation part: Carries the handle box body, often equipped with installation holes and reinforcing ribs.
Flange structure: Enhances overall rigidity and prevents deformation.
Symmetrical design: Some brackets can be used on both sides, reducing production costs.
Installation and modification precautions
Original factory bracket: Usually pre-installed when the vehicle is manufactured, cannot be removed randomly, otherwise it may affect the warranty or cause abnormal noise.
Modification/added bracket:
Mostly universal height-increasing brackets, fixed by double-layer silicone pads or 3M glue, no drilling required.
After installation, test to see if it is stable. There should be no abnormal noise when passing over speed bumps.
If replacing a damaged bracket (such as in forum cases), be aware of:
The original bracket often has plastic weld points, which need to be removed using a hot air gun or soldering iron;
After replacement, use new clasps to ensure the door panel is properly reinstalled.
Faults in the left rear door handle installation bracket of the car usually manifest as the handle loosening, inability to support, abnormal noise, or inability to open and close normally. According to the current (April 2026) authoritative public information available, the following systematic handling suggestions are provided:
Common causes of faults
Loose or脱落 connection screws： The handle is fixed to the car door inner panel through the bracket， and long-term vibration may cause the screws to loosen.
Bracket fracture or deformation： The plastic or metal bracket is damaged due to material aging， external force impact， or improper installation.
Wear or fracture of the clasp： The clamping structure between the handle and the bracket fails， common in frequently used rear handles.
Internal mechanical structure damage： Such as failure of springs， pull wires， or locks， affecting the function of the handle.
Recommended maintenance steps
Initial inspection
Observe if the handle is visibly shaking， if there is any abnormal noise， and if it can open and close normally.
Check if there are visible loose screws at the edge of the car door (some models have hidden screws on the door edge).
Disassemble the door panel (if necessary)
If it is impossible to secure externally， remove the car door interior panel to access the internal bracket and fixation points.
When disassembling， pay attention to：
First， disconnect the power supply (if there are power window devices， etc.)；
Use a suitable pry tool to carefully peel off the clasps along the gap；
Record the positions of all connection wires and pull ropes to avoid misinstallation.
Evaluate the status of the bracket
If it is only loose screws： Tighten it， and apply anti-loosening paint if necessary.
If the bracket fractures or the clasp is damaged： It is recommended to replace the entire bracket or handle assembly.
If it is a slight fracture of the plastic part： Try to use high-strength automotive interior glue (such as 3M Automotive Adhesive) for bonding， but the long-term reliability is relatively low.
Reinstallation and testing
Before reinstalling the door panel， ensure that all clasps， screws， and wires are correctly positioned.
After installation， repeatedly open and close the handle to confirm no abnormal noise， no loosening， and normal function.
Can it be handled by oneself?
Cases where one can attempt to handle it： Only loose screws， surface scratches， leather wear， etc.， are minor problems. Situations requiring professional repair:
Frame fracture, internal mechanism damage;
Not familiar with the door structure, worried about damaging the wiring or airbag lines;
The vehicle is still within the warranty period, disassembling it by oneself may affect the warranty rights.
Alternative solutions:
If the original factory parts are expensive, you can consider searching for "Left Rear Door Armrest Bracket + Model Year" on Xianyu or 1688 Auto Parts platform. Pay attention to compatibility.
Some repair shops offer bracket repair services (such as welding of metal brackets, laser welding of plastic parts), with costs lower than replacing the entire assembly.
Safety reminder: The interior of the door contains sensitive components such as airbag wiring and window lifting motors. Non-professional operation poses risks. It is recommended to consult professional repair personnel first.
