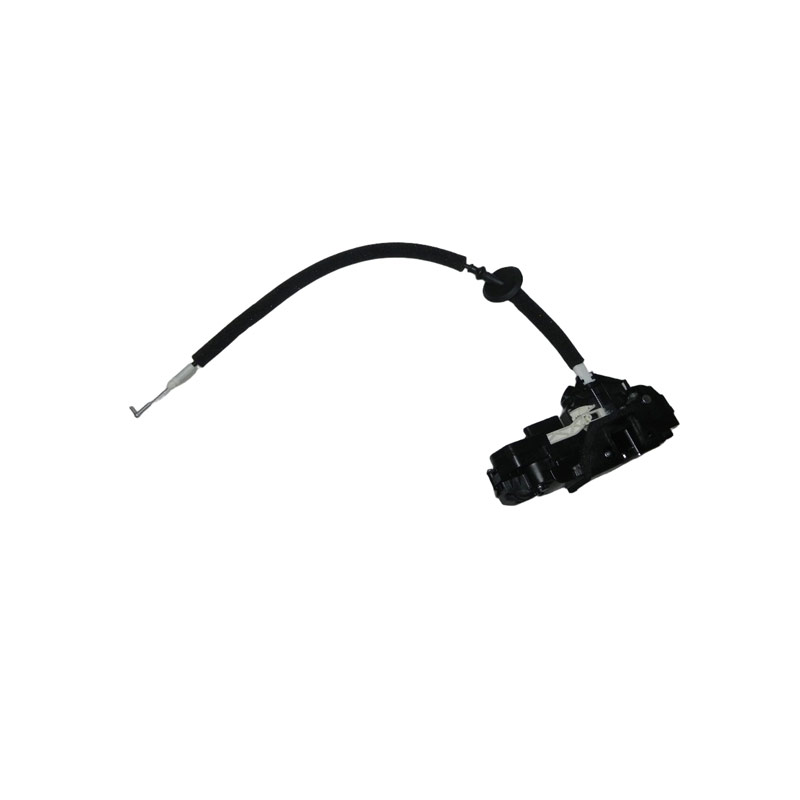

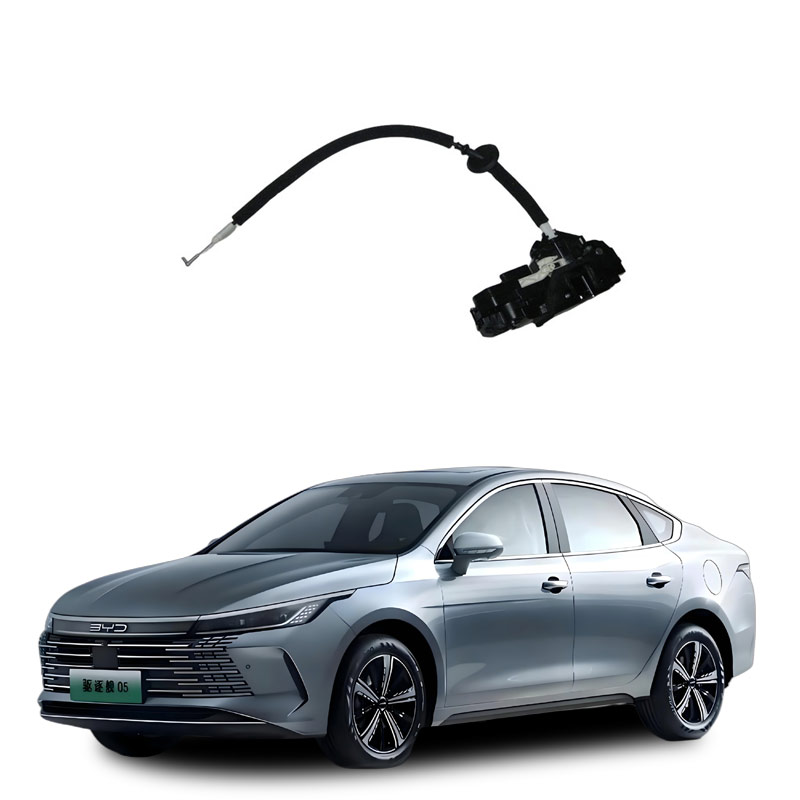

What is the front door lock assembly of a car?
The front door lock assembly is a crucial component in the vehicle safety system, responsible for functions such as locking, unlocking, bulletproofing, and opening from both inside and outside. According to authoritative public information, its main components are as follows:
Core structural components
Lock cylinder: Inserting a key and rotating it to initiate the unlocking/locking action, it is the "brain center" of the mechanical door lock, consisting of pins, springs, casing, and key slots, achieving unique unlocking through physical tooth matching.
Lock body: Serving as the supporting framework of the entire door lock system, it accommodates and fixes the lock cylinder, lock tongue, connecting rods, etc., ensuring the coordinated operation of all components.
Lock tongue (including large lock tongue and small lock tongue):
Large lock tongue: Interacts with the door frame latch to achieve basic door locking;
Small lock tongue: Controls the self-locking function of the large lock tongue to prevent accidental opening during driving.
Connecting rod mechanism: Connecting the lock cylinder and the lock tongue, it transmits the key rotation or remote control command to the lock tongue to complete the opening and closing action.
Inside and outside handles and pull rods:
Outer handle: Triggered by the key or manual operation to unlock;
Inner handle: For passengers to open the door inside the vehicle.
Self-lock/insurance mechanism: Including self-lock buttons, limit plates, etc., which can achieve internal self-locking or external locking insurance, enhancing safety.
Execution mechanism (in the central control door lock system): such as micro motors, electromagnets or relays, driven by electrical control to extend or retract the lock tongue, supporting remote control, central control and other functions.
Additional function components (in the central control door lock system)
Door lock switch: Control button on the vehicle or remote control .
Door lock controller/BCM (Body Control Module): Coordinating all door lock actions, receiving signals and issuing instructions .
Position sensor: Feedback the lock tongue status (locked/unlocked) to the vehicle control system .
Note: Different vehicle models (such as Toyota Prado) may adopt non-standard designs, and the lock cylinder, lock body, etc. usually cannot be used interchangeably. When replacing, it is necessary to match the original factory specifications.
The front door lock assembly is the core component of the vehicle access control system, mainly responsible for three functions: safety protection, convenient operation, and system coordination. According to authoritative public information, its functions can be summarized as follows: Core function
Manual/Automatic Locking and Unlocking of the Car Doors
Through the lock core, lock tongue, actuating motor and linkage mechanism, in response to the instructions from the key, remote control or keyless entry system, complete the locking or unlocking actions .
Provide Anti-Theft Security Assurance
Linked with the vehicle's central door lock system and anti-theft system, it forms a closed protection after the vehicle is locked, preventing illegal intrusion .
Support for Centralized Door Lock and Child Safety Functions
The driver can control all the car doors (central function) with one click.
The rear door usually has a child safety lock to prevent children in the vehicle from opening the door by mistake .
The front door lock generally does not have a child lock, but may have the function of internal locking/ unlocking: in the fully locked state, neither the inner nor the outer handles can open the door, and it needs to be unlocked through the unlocking mechanism .
Status Feedback and System Integration
Built-in sensors provide real-time feedback on the lock block status to the vehicle body control module (BCM), ensuring the coordinated operation of the central control system .
Common Fault Manifestations (to aid in understanding their importance)
Difficulty in turning the key, remote control failure, inability to fully lock/lock the car doors
A "click" noise or lock tongue jamming occurs when opening/closing the door
The dashboard misreports "the car door is not closed" or the anti-theft system frequently triggers false alarms
Maintenance Suggestions
Spray graphite lubricant on the moving parts of the lock core and lock tongue every 1-2 years to reduce wear
Replacing the lock block requires professional operation, as it involves door trim, wiring harness and code matching. It is recommended to handle it by a 4S store or a regular auto repair shop. In conclusion, the front door locking component is not merely a physical locking device; it is also an important carrier of modern automobiles' safety, intelligence and convenience.
