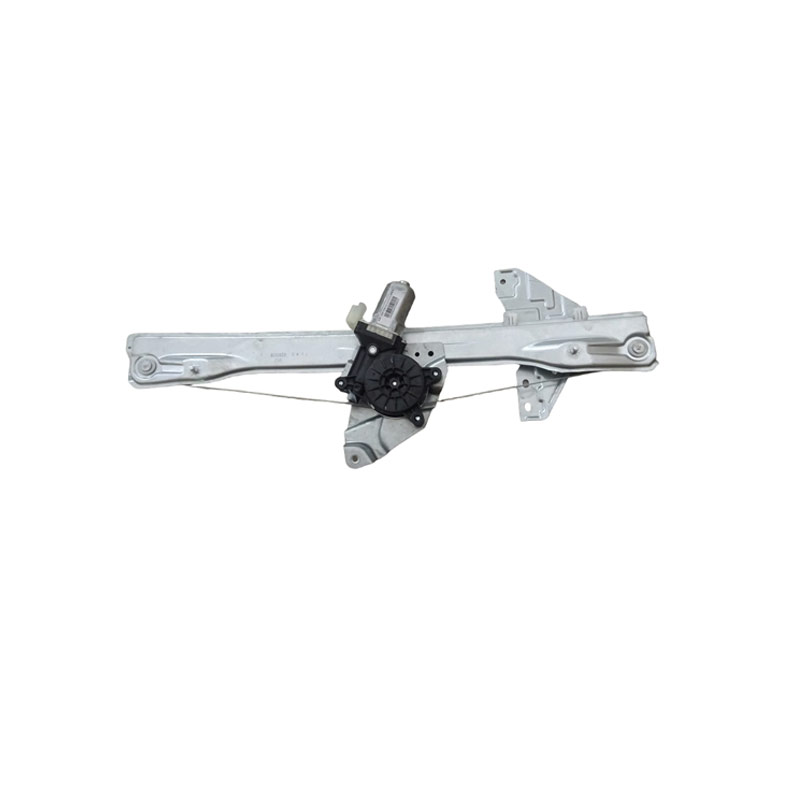

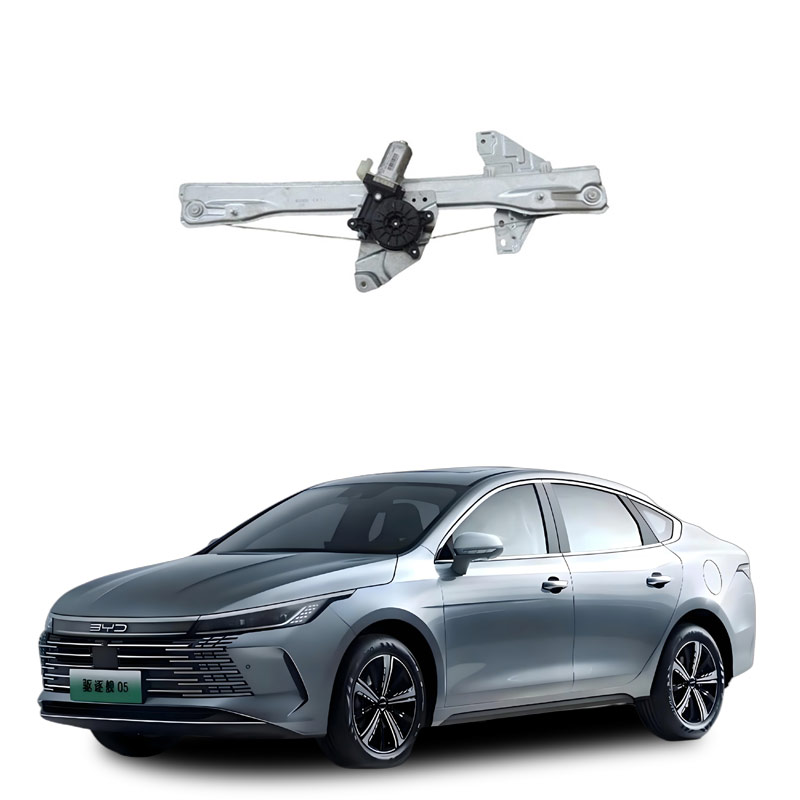

What is the car front door glass lift control assembly?
The car front door glass lift system component is the core mechanical-electrical integrated system responsible for driving the front door window glass to achieve the up and down movement. According to authoritative public information, its main components are as follows:
Core Components Composition
Control Mechanism: Includes electric control switches (such as the left front door assembly switch) or manual cranks, used to issue the lift command .
Transmission Mechanism: Transmits power from the motor to the glass support frame. Common forms include:
gears, toothed plates, toothed strips
steel cables, flexible shafts or cross-arm structures
Glass Lift Mechanism: Includes the lift arm (active arm/passive arm), and the movement support frame, directly driving the glass to move up and down .
Glass Support Mechanism: That is, the glass support frame, used to fix the glass and connect with the lift mechanism, ensuring stable movement .
Balance Spring and Locking Spring:
Balance Spring: Reduces the weight of the glass, reducing the operating load;
Locking Spring: Locks the glass position, preventing it from sliding .
Motor and Reducer (Electric Type): Usually a reversible DC motor combined with a worm gear or gear reduction mechanism, providing power and amplifying torque .
Guide Rails and Supports: Guide the glass to slide along the predetermined trajectory, improving the stability and accuracy of the operation .
Comparison of Common Types
Arm Type (such as cross-arm type):
Advantages: Smooth operation, large lift range, suitable for large-sized glass;
Disadvantages: Many components, prone to wear, and higher noise .
Flexible Type (such as rope wheel type):
Advantages: Light structure, easy installation, suitable for curved door panels;
Disadvantages: Lower transmission efficiency, higher cost .
Note: Modern vehicles (especially those after 2020) mostly adopt the electric glass lift assembly, integrating motor, reducer, transmission, and limit functions, and often equipped with anti-collision, one-button lift, and other intelligent features .
The car front door glass lift system component is the core component in the car door system that realizes the up and down movement of the window glass. Its functions cover multiple dimensions such as basic control, safety protection, sealing optimization, and intelligent interaction. According to authoritative public information, its main functions are as follows:
Basic Functions
Precise control of window opening degree: Whether manually or electrically operated, it can fully close, fully open, or stay at any position, meeting daily needs such as ventilation, lighting, and exhaust .
Smooth lift movement: Through the transmission mechanism (such as gears, toothed strips, steel cables or guide rails), the power is converted into the linear movement of the glass, ensuring smooth and uninterrupted lifting process . Safety protection
Anti-collision protection: When the glass rises and encounters resistance exceeding 100N, the system automatically rebounds within 0.2 seconds to avoid limb injuries.
Automatic locking during driving: When the vehicle speed exceeds 15km/h, the rear window automatically locks to prevent accidental operation by children.
Emergency escape support: In emergency situations such as vehicle immersion or fire, the windows can be lowered quickly to provide an escape route.
Sealing and environmental optimization
Enhanced air tightness: The high-quality lifting mechanism, combined with a double-guide rail design, controls the glass tilt within ±0.5mm, closely adheres to the sealing rubber strip, effectively isolating rain, dust, and reducing wind noise by 5-8 decibels.
Adaptability to extreme weather conditions: Can withstand 200Pa pressure and maintain sealing performance.
Intelligent and convenient functions
Central control and split control: The driver can operate all four windows with one button, and passengers can independently control the window on their side through the split switch.
Remote/voice control: Some high-end models support remote window opening and closing through mobile phone apps, car keys, or voice commands.
Point movement/one-click lifting: Short press for segment control, long press to trigger full opening or full closing.
Maintenance suggestions
Clean the guide rails every six months and apply silicone grease for lubrication;
When ice forms in winter, thaw first before operating;
If abnormal sounds, jams, or abnormal lifting are detected, promptly check the condition of the rubber strip, motor, or guide rail.
In summary, the front door glass lifters are not only the execution mechanism for window opening and closing, but also a key component that ensures the comfort, safety, and intelligent experience of passengers.
