What is the function of the sealing strip in the front compartment of the car?

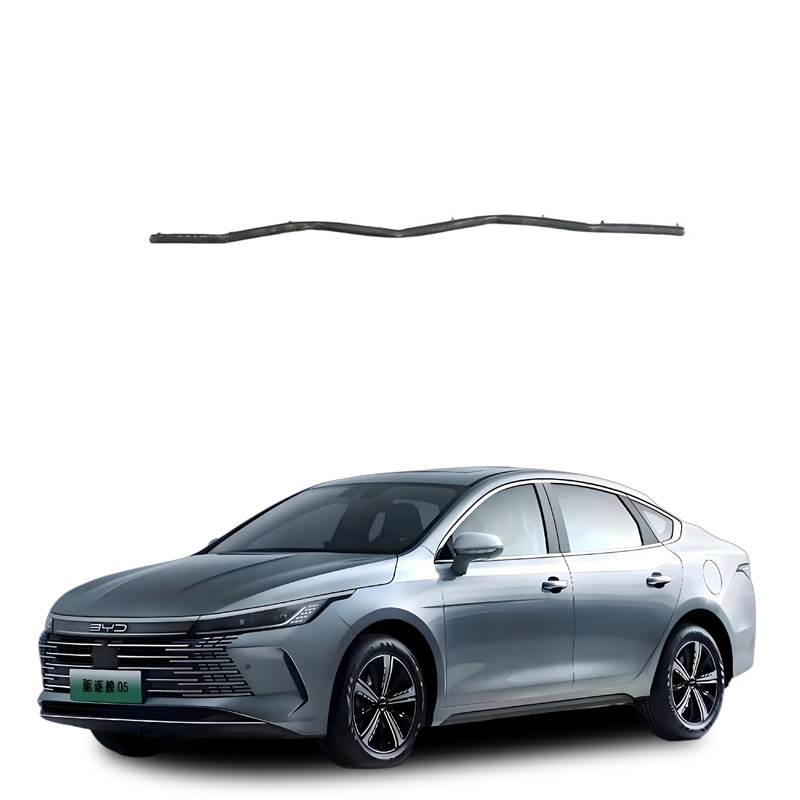

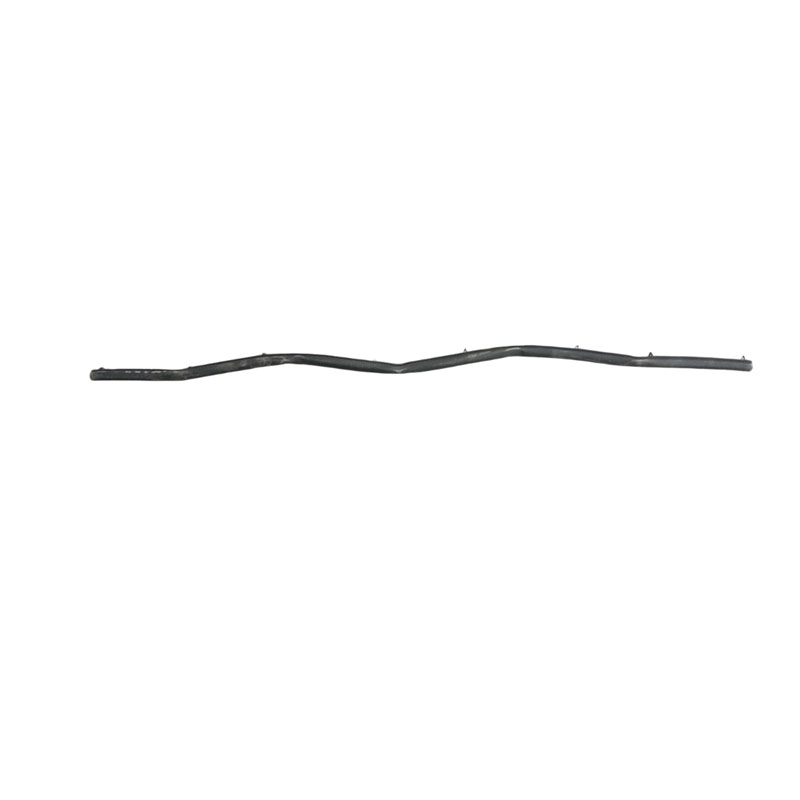

The front cabin sealing strip (usually referring to the engine compartment sealing strip or the hood sealing strip) is a rubber or elastic sealing piece installed at the edge of the engine compartment where it contacts the vehicle body. Its main functions include:
Waterproof and dustproof: Preventing rain, dust, fine sand, insects, etc. from entering the engine compartment through the gap between the hood and the vehicle body, protecting precision components such as spark plugs and electromagnetic valves.
Sound insulation and noise reduction: Blocking the noise from the engine compartment from escaping, reducing wind noise and engine noise that travels into the driver's cabin, and enhancing the quietness.
Shock absorption and buffering: Providing cushioning when the hood closes, reducing impact force, and preventing metal parts from directly colliding and generating abnormal sounds.
Sealing protection: Filling the gaps in the sheet metal, maintaining the airtightness of the front cabin, and preventing moisture condensation that causes rust or electrical components to get damp.
Note: Some sources indicate that applying additional sealing strips on the surface of the hood has limited effect on sound insulation and mainly serves the purposes of sealing and protection.
If the sealing strip is aged and cracked, it is recommended to replace it with the original factory specification parts to ensure performance.
After the front cabin sealing strip (usually referring to the sealing strip between the engine compartment and the driver's cabin, or the front windshield cover sealing strip) is damaged, it will affect the sealing performance, sound insulation effect, and even allow rain, dust, or unpleasant odors to enter the vehicle. According to current publicly available information, the handling methods are as follows:
Repair or replacement suggestions
Minor damage (such as small cracks, local delamination):
It can be repaired using a dedicated sealing strip adhesive or acrylic glue.
Before repairing, thoroughly clean and dry the damaged area to ensure a secure bond.
Severe damage or overall aging (such as cracking, deformation, loss of elasticity):
It is recommended to replace the new sealing strip to restore good sealing performance.
When replacing, choose a sealing strip that matches the vehicle model and ensure accurate installation and proper pressing and adhesion.
Front windshield-related sealing strips (such as the upper pressure strip of the engine compartment):
If it is an external pressure strip, it can be directly replaced;
If it is an embedded rubber strip that has delaminated, usually it is necessary to remove the glass and reapply glue, and it is recommended to be operated by a professional repair shop (such as a 4S store).
Operation precautions
When removing the old sealing strip, avoid scratching the vehicle body or the glass.
Before installing the new sealing strip, clean the dust and old glue residue in the sealing groove.
Some vehicle models require additional application of sealing glue or anti-corrosion coating at weld seams or joints.
After replacement, test the sealing effect and check for any air leakage, rain leakage or abnormal sounds.
The installation of the front cabin sealing strip (usually referring to the hood sealing strip) is crucial in the four steps of cleaning, cutting, pasting and inspection. According to the latest and authoritative publicly available information, the following is the standard operation procedure:
Installation steps
Preparations
Select sealing strips that match the vehicle model (common materials include rubber, silicone, and sponge, which are suitable for regular cars, high-end/new energy vehicles, and economy cars respectively).
Tools needed: cleaner, cloth, scissors, hair dryer (use in low-temperature environments).
Clean the installation surface:
Use cleaner and cloth to thoroughly remove dust, oil stains, and old glue residues from the edges of the engine hood. Ensure the surface is dry and clean to enhance the adhesion.
Measurement and cutting:
Measure the length of the sealing strip according to the edge length of the engine hood. Reserve a small amount of excess to prevent insufficient adhesion.
Use scissors to cut along the lines or seams, avoiding cutting too short to cause stretching and deformation.
Installation and sticking:
Tear off one end of the back adhesive protection paper and fix the position first.
While tearing off the adhesive, press down to ensure the sealing strip adheres tightly to the edge. Avoid bubbling or wrinkles.
Be careful when bending corners or appropriately cutting to ensure a good fit.
If the ambient temperature is below 10℃, it is recommended to heat the back adhesive of the sealing strip and the installation surface with a hair dryer before sticking to enhance the adhesion.
Check and adjust:
After installation, close the engine hood and check for any air leakage or water leakage.
Confirm that the sealing strip is not loose, distorted, and there are no gaps at the interface. Notes for Attention
Avoid rain and direct sunlight: Within three days after installation, try to avoid contact with rain or direct sunlight to ensure the adhesives cure properly.
If the sealing strip has a snap-lock structure (such as some original factory parts), align the snap claws with the metal card slots and insert them one by one until they are fully in place.
If you want to know more, keep reading the other articles on this site!
