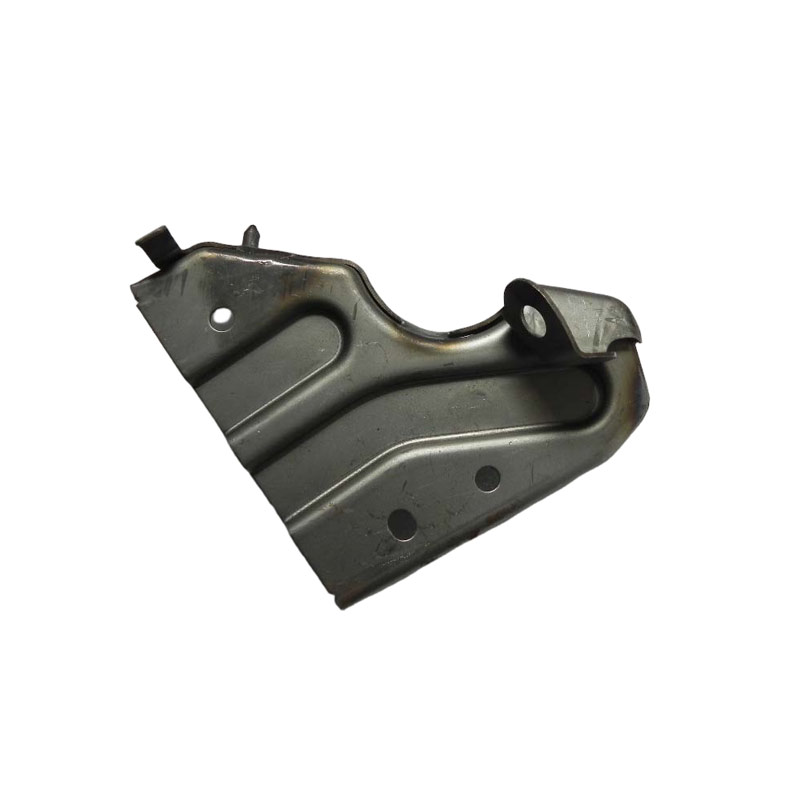

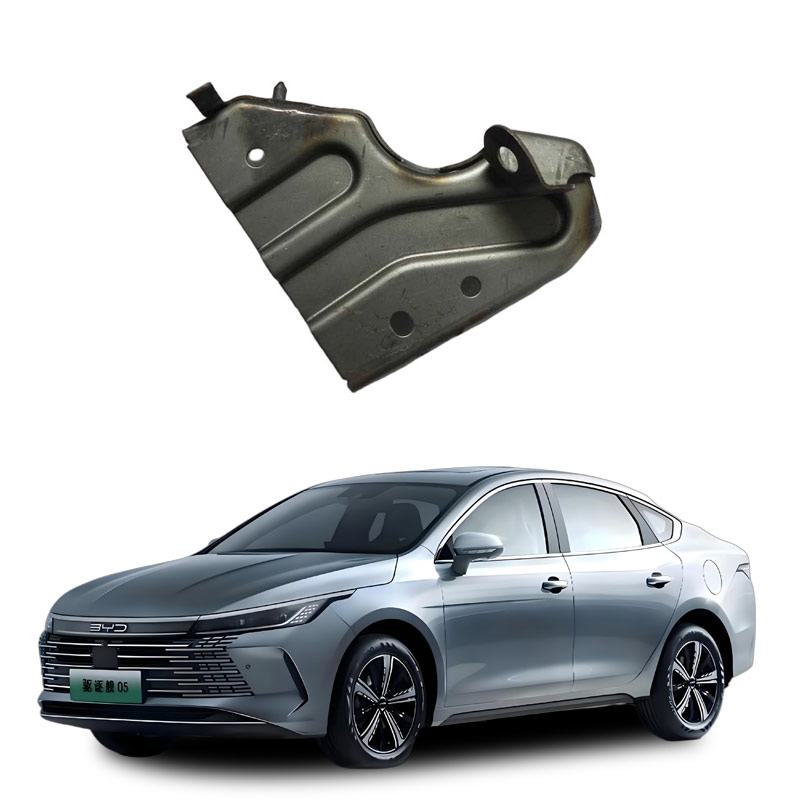

What is the installation support component for the side beams of the car?
"The automotive side beam frame installation support component" usually refers to the structural components or tooling systems used for fixing, supporting, and positioning side beam frames (such as transverse or longitudinal beams in the side panel framework, impact beams, skirt beam, etc.). According to publicly available information, its specific meaning can be understood from two perspectives:
In the context of the vehicle structure
In the automotive manufacturing or maintenance context, the "side beam frame installation support component" is a functional supporting component in the side structure of the vehicle body, mainly including:
Supporting the side beam frames (such as side panel skirt beam, waist beam, etc.), ensuring their accurate position during assembly;
Enhancing the stiffness of the side panel structure, together with the pillars and crossbeams to form the side panel framework;
Transmitting and distributing loads during collisions, improving side safety;
Facilitating the installation of other accessories (such as doors, glass, interior components, etc.).
This component is commonly found in the side area of side beam frames or load-bearing bodies, mostly made of high-strength steel or aluminum, and fixed through welding, riveting, or bolt connections.
In the manufacturing/warehousing context
In the automotive production or logistics process, "support component" may also refer to the "impact beam support frame" or "special tooling", used for:
Temporarily supporting side beam frame components (such as side door impact rods, side skirt reinforcement beams);
Preventing deformation or scratches during transportation or assembly;
Maintaining the original curvature and surface finish of the components.
These supporting components belong to industrial-grade tooling, with functions such as pressure resistance, positioning, and stacking. Although not directly installed on the vehicle, they are crucial for ensuring the final assembly quality.
Common types and features
By structure:
Tubular support (for round tubes, rectangular beam frames)
Cap-shaped support (matching U-shaped/M-shaped beams)
Arc-shaped/adjustable support (suitable for complex curves)
By material:
Ordinary high-strength steel (tensile strength 1400–1600 MPa)
Hot-formed steel (up to 2400 MPa)
Aluminum alloy (lightweight design)
By function:
Structural support (part of the vehicle body side frame framework)
Tooling support (temporary fixation device for manufacturing/warehousing)
The term "automotive side beam frame installation support component" does not have a direct corresponding standard term in publicly available information. However, considering the context and automotive structure knowledge, "side beam frame" is likely referring to "side door impact beam" (or side impact rod), and "installation support component" refers to the brackets, connecting parts, or installation structure used to fix this beam.
According to authoritative publicly available information, its functions can be summarized as follows:
The core function of the side door impact beam and its installation support component
Improving side collision safety: When the vehicle suffers a side impact, the high-strength beam absorbs and disperses impact energy, reducing the intrusion deformation of the door into the passenger compartment and protecting the occupants' safety.
Forming a three-level protection mechanism:
Elastic interlayers and support ribs provide initial buffering;
Impact main frame absorbs impact energy through controllable deformation;
Buffer slots or collapse structures guide the remaining energy.
The function of the installation support component:
Reliable fixation: Ensuring the impact beam is precisely positioned and firmly connected in the door interlayer;
Optimizing force transmission: For example, the Y-shaped support structure can distribute longitudinal force to the vehicle side panel, reducing the direct impact on the door;
Adapting to manufacturing processes: Tubular beams are fixed at both ends by brackets (common in Japanese and Korean models), and cap-shaped beams are directly spot-welded to the inner panel of the door (mainstream in European and American models).
Common structural forms and installation characteristics
By shape classification:
Tubular (round tubes, rectangular tubes, etc.): Both ends have brackets, mostly used in Japanese and Korean models;
Cap-shaped (U-shaped, M-shaped): Directly welded, mainstream in European and American models, with a larger contact area and better energy absorption;
Installation requirements:
Layout height from the ground 300–500mm (in line with collision test standards); The gap between the beam and the outer panel of the vehicle body is controlled at 3-5mm, which is convenient for applying glue for sealing;
The positioning error of the clamping or welding should be ≤ ±1.5mm.
Note: If "side beam" actually refers to the side longitudinal beam of the side-structured vehicle frame, then its supporting components are mainly used to enhance the torsional stiffness of the vehicle frame, support the suspension and powertrain, but combined with keywords such as "beam", "installation support", etc., it is more likely to refer to the "side door impact protection system".
