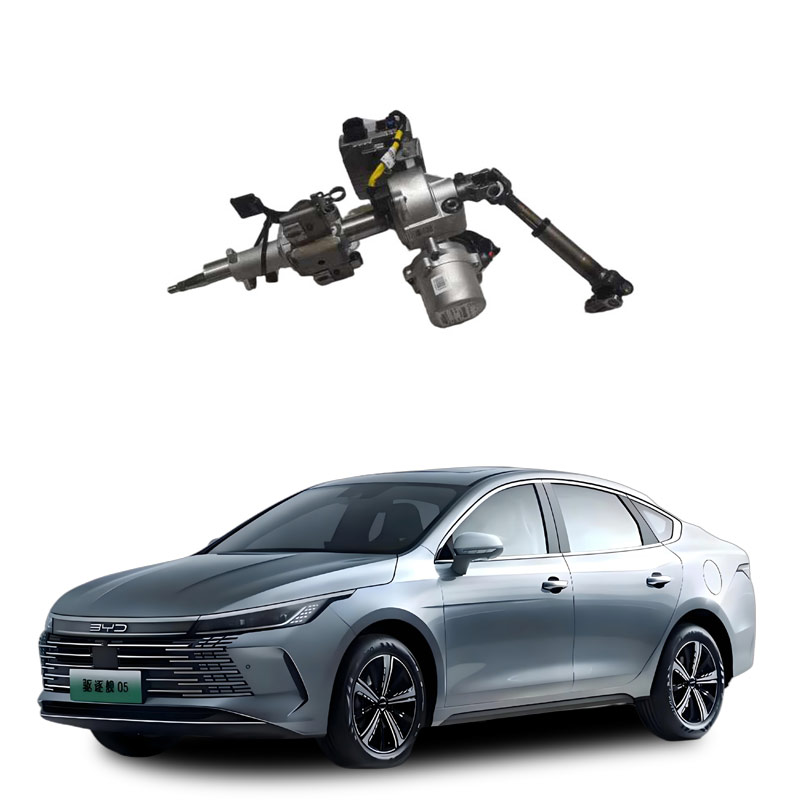

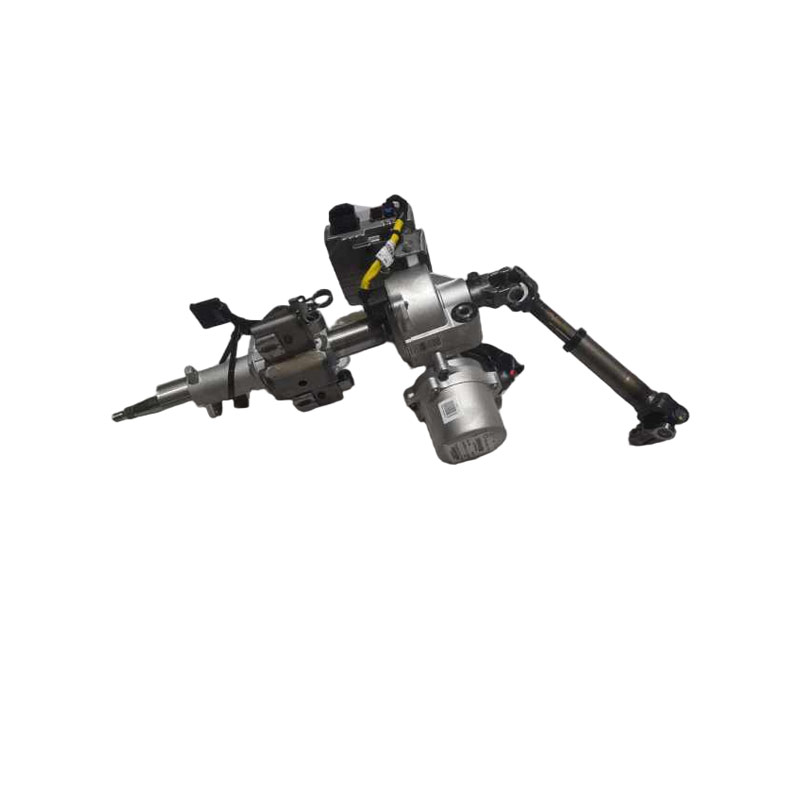

What are the automotive electric power steering column and universal joint assembly?
The automotive electric power steering column and universal connector assembly is a key component in the electric power steering system (EPS), combining the mechanical transmission function of the steering column with the intelligent control of electric assistance.
The definition and function of the electric power steering column
The electric power steering column (also known as the electric steering column) is a component that integrates an electric power assist mechanism onto the traditional steering column, providing real-time and adjustable assist torque when the driver turns the steering wheel.
It not only transmits the steering force but also achieves lightweight and precise steering control through sensors and motors, especially optimizing the driving experience during low-speed parking or high-speed stable driving.
Main components
Steering column: Connects the steering wheel to the steering gear, transmitting the torque; usually equipped with height, angle adjustment, and crushable energy absorption functions.
Torque sensor: Detects the input torque and direction of the steering wheel, converting it into an electrical signal sent to the ECU.
Servo motor/electric motor: Outputs assist torque according to the instructions of the ECU, directly acting on the steering column or the steering mechanism.
Electronic control unit (ECU): Receives signals such as vehicle speed, torque, and angle, calculates and controls the motor output.
Electromagnetic clutch: Controls the engagement and disengagement of the assist power, improving the system's response efficiency.
Reduction mechanism: Converts the high rotational speed and low torque output of the motor into a suitable low rotational speed and high torque for assist.
Universal connector assembly: Refers to the standardized mechanical interface used to connect the steering column with the steering gear, motor output shaft, etc., ensuring compatibility and ease of assembly between different vehicle models or brands, while transmitting torque and reducing clearance.
Technical features and advantages
Fast response: The assist response is approximately 0.3 seconds faster than the hydraulic system.
Energy-saving and efficient: It only consumes power during steering, reducing energy consumption by approximately 30%.
Variable assist: Automatically adjusts the assist size based on vehicle speed, balancing lightness and stability.
Compact structure: Eliminates hydraulic pumps, pipes, etc., resulting in lighter weight and more flexible layout.
Supports advanced functions: Can be integrated with systems such as ESC, automatic emergency braking, and line-controlled steering.
Classification (based on motor installation position)
Column-mounted power assist type (C-EPS): The motor is installed on the steering column, with a simple structure, mostly used in compact cars.
Pinion-mounted power assist type: The motor drives the small gear, suitable for light vehicles.
Rack-mounted power assist type: The motor directly drives the rack, suitable for heavy or luxury vehicles. It can be integrated with ADAS functions such as lane keeping and automatic parking.
The role of the universal connector component
Although the term "universal connector component" is not specifically defined in public materials, based on the structure of the automotive steering system, it can be reasonably inferred that it refers to the mechanical connection piece or universal joint that connects the electric power steering column with other steering components (such as the steering shaft, input shaft of the steering gear, etc.), and its main functions include:
Realize power transmission: Reliably transfer rotational motion and torque between the steering column and the steering gear;
Compensate for installation errors: Allow certain angular or axial deviations, adapting to the vehicle layout;
Simplify assembly and maintenance: Standardized interfaces facilitate sharing across different vehicle platform models, reducing manufacturing costs.
Note: If "universal connector" specifically refers to a certain brand or patent structure (such as quick-release connectors, spline couplings, etc.), it is necessary to confirm with the specific vehicle technical documentation.
System classification and application scenarios
According to the installation position of the motor, EPS is divided into different types. Among them, the tube column assist type (C-EPS) is as follows:
Structure: The motor and the reduction mechanism are integrated within the steering column;
Advantages: Compact structure, convenient installation, lower cost;
Limitations: The motor output torque is small, mostly used in small and compact vehicles.
In conclusion, the electric power steering column is a mainstream configuration in modern passenger cars, featuring three major advantages of energy saving, intelligence, and safety; the universal connector component ensures the reliability and universality of system connection.
