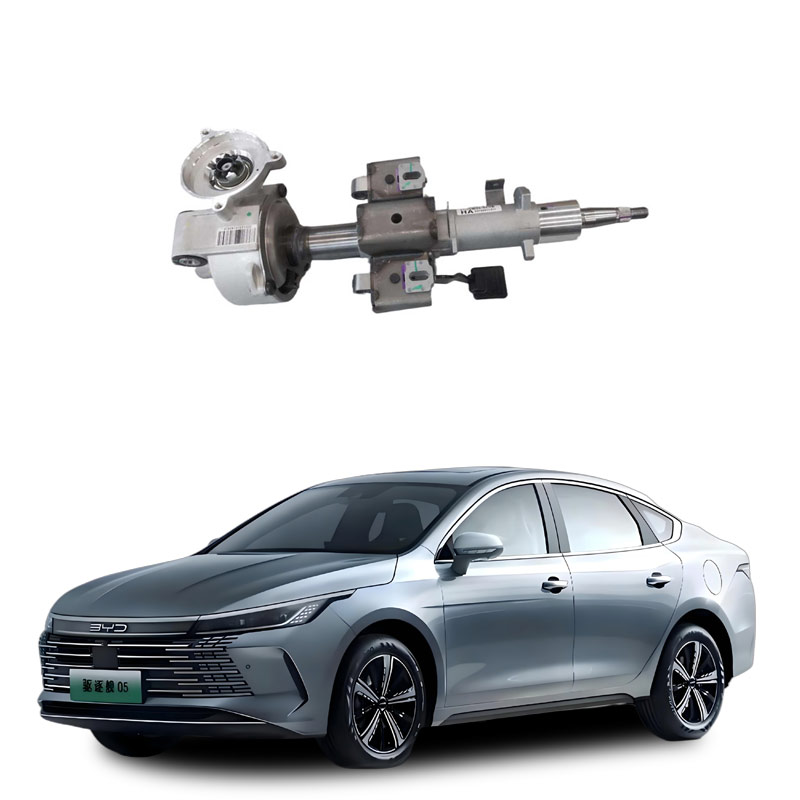

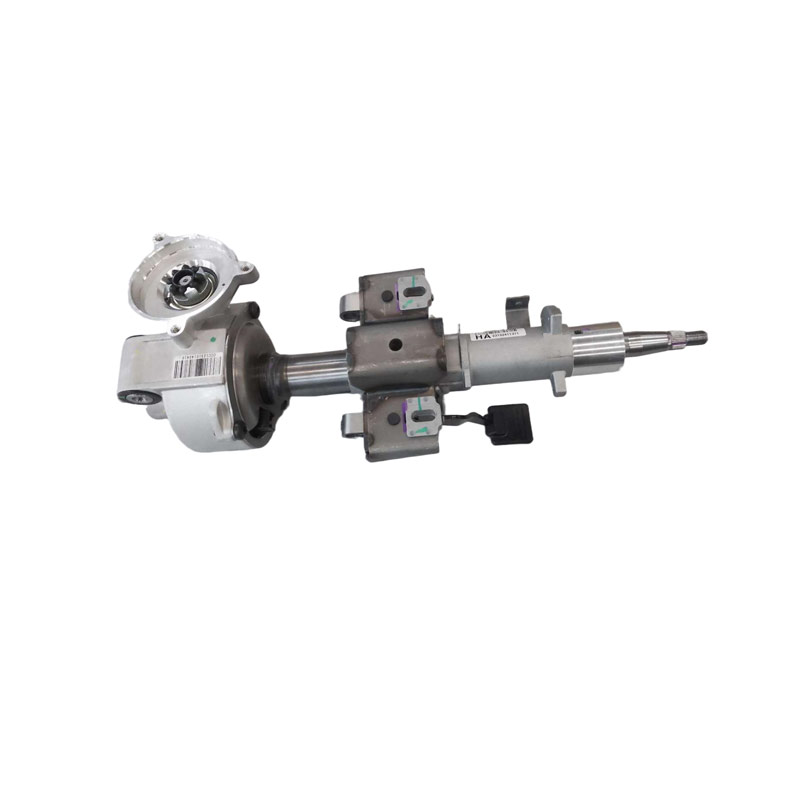

What is the automotive steering column assembly?
The steering column assembly (also known as the steering column) is a core component of the vehicle's steering system, connecting the steering wheel to the steering gear, responsible for accurately transmitting the driver's steering operation to the wheels, and also having multiple functions such as safety protection, functional integration, and human-machine adjustment.
Core functions
Torque transmission: The rotational force from the steering wheel is transmitted through the steering shaft to the steering gear (such as a gear-rack type or recirculating ball type), driving the wheels to turn.
Collision energy absorption: Equipped with a crushable mechanism, it absorbs energy during frontal collisions, reducing secondary injuries to the driver (such as shortening the rearward movement of the steering wheel by up to 120mm).
Position adjustment: Supports tilt (±15°) and extension (about 40mm) adjustment, adapting to different body types of drivers, and enhancing comfort.
Anti-theft integration: Linked with the ignition lock, it automatically locks the steering column after the key is removed, preventing vehicle theft.
Electronic integration: Modern models often integrate steering signal switches, audio control, cruise control, etc. Some high-end models also support electric adjustment and line control steering.
Main structural components
Upper/Lower Column: Double-layer nested precision steel tubes, with an inner diameter of typically 32mm, providing structural support.
Adjustment mechanism: Includes a three-piece assembly of cam block, locking block, and limit block, which is achieved through a regulating screw.
Energy absorption device: Composed of a bent guard plate, energy absorption belt, and injection molded pin, it collapses controllably at a rate of 5mm/s during a collision.
Bracket assembly: Cast from QT500 ductile iron to ensure installation stability.
Bearings and universal joints: Ensure the flexible rotation of the steering shaft and compensate for angle deviations.
Common types
By power assistance method:
Mechanical type: Without power assistance, purely manual transmission (common in older models).
Hydraulic assist type: Dependent on a hydraulic pump for steering assistance.
Electrically controlled hydraulic assist type (EHPS): Electronic-controlled hydraulic assistance, automatically adjusting force based on speed.
Electrically assisted type (EPS): Uses a motor for direct assistance, with fast response, energy saving, and support for advanced driving assistance functions (such as automatic parking).
By structural form:
Ordinary type
Crushable energy absorption type
Mechanically adjustable inclination type
Electrically adjustable elevation type
Fault manifestations and maintenance suggestions
If the steering column has the following problems, it should be repaired promptly:
Straight-line deviation
Excessive weight of the steering wheel or excessive free travel
Shaking during steering, abnormal noise
Failure of adjustment function Damage to the steering column can seriously affect driving safety. It is recommended to go to a professional repair facility for inspection immediately.
The automotive steering column assembly is a crucial component that connects the steering wheel to the steering gear, playing multiple core roles in vehicle handling, safety, and comfort. According to authoritative public information, its main functions can be summarized as follows:
Core functions
Torque transmission: Transmits the mechanical force (torque) of the driver turning the steering wheel precisely to the steering gear, driving the wheels to turn as intended, which is the basic transmission link of the steering system .
Power-assisted steering: Depending on the type (hydraulic/electric/electro-hydraulic), it provides different forms of assistance, reducing the driver's burden and can intelligently adjust the assistance size based on vehicle speed and road conditions .
Safety protection: Equipped with an energy-absorbing crumple structure, during a frontal collision, it absorbs impact energy through plastic deformation, reducing the distance the steering wheel moves backward and minimizing injuries to the driver's chest and neck .
Position adjustment: Supports height, angle, and extension (for some models) adjustment, adapting to drivers of different body types, enhancing operation comfort and visibility .
Anti-theft and integrated control: Linked with the ignition lock to achieve steering wheel locking for anti-theft; integrates steering signal switches, control modules, etc., as electronic components .
Type classification (based on assistance method)
Mechanical type: Pure mechanical transmission, no assistance, simple structure but laborious operation .
Hydraulic assistance type: Dependent on a hydraulic pump to generate oil pressure to assist steering, providing a stable road feel .
Electrically controlled hydraulic assistance type: Adds electronic control on the hydraulic basis, allowing the assistance to be automatically adjusted according to vehicle speed .
Electric power assistance type (EPS): Uses a motor to provide assistance, with fast response, energy-saving and efficient, and facilitating the integration of ADAS functions .
Note: As of July 2026, some regulations will allow the application of line-controlled steering (eliminating mechanical connections), but currently, mainstream vehicles still generally use steering columns with mechanical connections.
