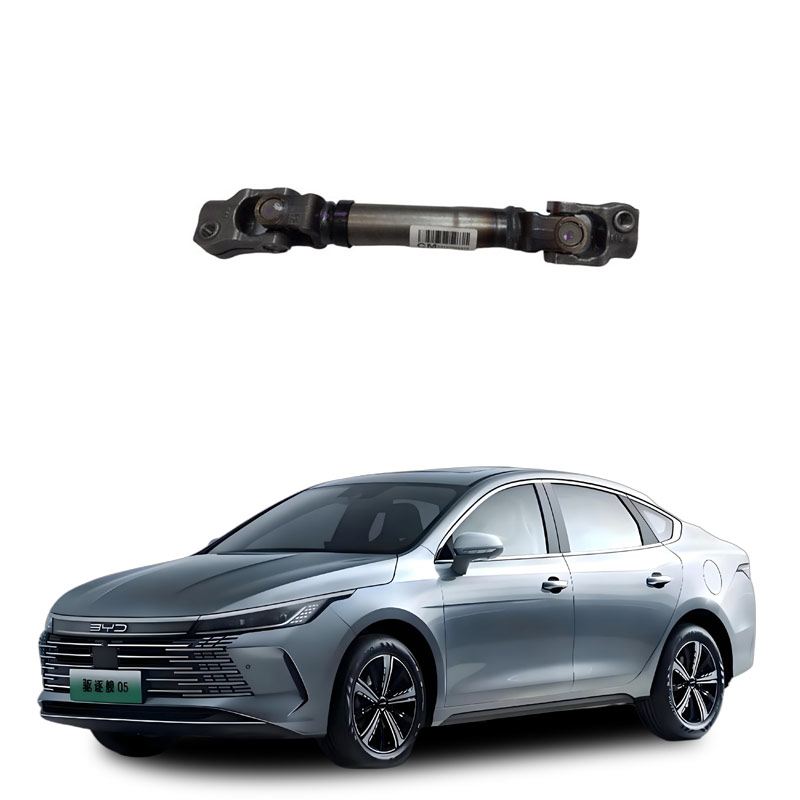

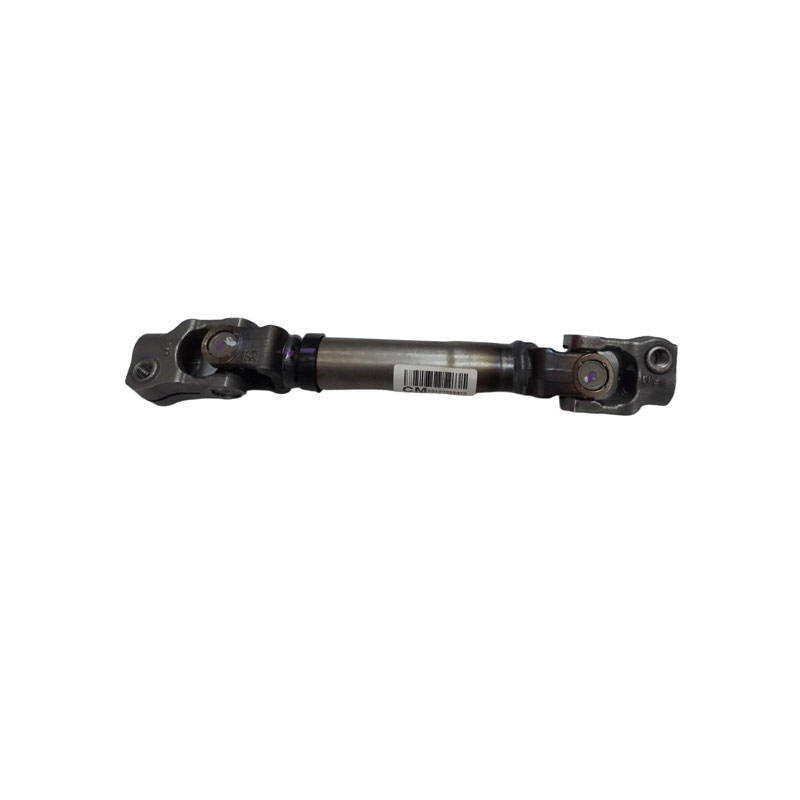

The function of the automotive intermediate shaft assembly
The functions of the intermediate shaft components vary depending on their specific positions and types within the vehicle, mainly falling into two categories: the intermediate shaft within the gearbox and the intermediate shaft (or transmission shaft) in the transmission system. Here is a comprehensive explanation based on authoritative public information:
Function of the intermediate shaft within the gearbox
In manual or automatic gearboxes, the intermediate shaft is a key component for power transmission. Its core functions include:
Connecting the input shaft and the output shaft: Transferring the power input by the engine through the clutch to the output shaft via gear engagement.
Achieving speed change and torque variation: By engaging with different gears, it cooperates with gear shifting operations to provide different rotational speeds, directions, and torques to the output shaft.
Optimizing structural layout: In dual intermediate shaft transmissions, it can share torque, reduce axial dimensions, reduce weight, and improve the stress conditions of the main shaft.
This type of intermediate shaft is often called "tower teeth" due to its shape resembling a "tower" and is commonly used in traditional fuel vehicles with mechanical gearboxes.
Function of the intermediate shaft (or transmission shaft) in the transmission system
In the chassis transmission system, the intermediate shaft usually refers to the transmission component connecting the gearbox and the drive axle, especially in mid-engine or four-wheel drive vehicles where its role is significant:
Power transmission: Efficiently transferring the power output from the gearbox to the drive wheels, reducing power loss (efficiency increase of approximately 5%-8%).
Weight balance adjustment: Affecting the front-to-rear weight ratio of the vehicle, helping to achieve an ideal 50:50 weight distribution, improving handling stability.
Suppressing body roll: Enhancing the stability of the vehicle's posture during high-speed cornering or lane changing, reducing the roll angle by 10%-15%.
Angle compensation and flexible transmission: Equipped with universal joints or constant velocity universal transmission structures, it adapts to the angle changes during vehicle travel, ensuring continuous and stable power output.
This type of intermediate shaft is commonly found in mid-engine rear-wheel drive (MR), mid-engine four-wheel drive (4MR), and some four-wheel drive vehicles, as well as in the intermediate shaft components of the steering system (as described in Geely's patent), to enhance steering freedom and space utilization.
Other related explanations:
Material and lifespan: Intermediate shafts are mostly made of alloy steel such as 40Cr, treated with quenching + tempering (hardness of 52HRC~58HRC). Even after 15–20 years of use, they still retain more than 60% of their remaining lifespan and have recycling value.
Aging signs: If there are low-speed clicking noises, acceleration vibration, or high-frequency buzzing resonance, it may indicate aging of the rubber bushings, loosening of the universal joint, or dynamic imbalance, and prompt immediate maintenance.
In summary, "intermediate shaft components" are not a single component, and their functions need to be understood based on the specific application scenarios (within the gearbox or in the transmission system). If unsure of the type, it is recommended to further confirm by referring to the vehicle structure diagram or maintenance manual.
Intermittent faults of the intermediate shaft components typically manifest as abnormal noises, vibrations, and abnormal power transmission. According to the current (April 2026) authoritative public information, the causes and manifestations of faults can be summarized as follows:
Common fault manifestations:
Noise types:
"Clicking" or "clunking" sound: Commonly seen during low-speed turns, starts, or reverse, often caused by excessive keyway clearance, aging of the rubber bushings, or loosening of the universal joint.
"Whining" or low-frequency buzzing sound: Increases with vehicle speed, especially in the 30–60 km/h range, mostly due to wear of the intermediate support bearing or aging of the rubber bushings.
"Klack" or metallic impact sound: Accompanied by obvious vibration, possibly caused by loose universal joint support bolts or damage to the transmission shaft's dynamic balance.
Vibration sensation:
During acceleration, braking, or coasting, vibrations are transmitted through the chassis or steering wheel, indicating dynamic imbalance of the transmission system.
During high-speed driving, body resonance may occur, possibly related to transmission shaft bending, keyway wear, or bearing damage.
Operational Abnormalities:
Shift hesitation and sluggish power connection (especially in pickup trucks or heavy-duty vehicles), possibly due to wear of the internal intermediate shaft gears in the gearbox .
There is a "clicking" noise when turning the steering wheel (if it is the intermediate shaft of the steering), mostly caused by the friction of the torsion spring box or internal clearance .
Main Fault Causes:
Wear and aging:
Long-term use leads to wear of spline, universal joint, and rubber bushings, resulting in increased clearance .
Insufficient lubrication accelerates wear of bearings and cross shafts, and a wear amount exceeding 0.13 mm may cause abnormal noise .
Installation and tightening issues:
The intermediate support bolts were not tightened to the standard torque (e.g., M12 bolts require 115 Nm, M16 bolts require 295 Nm), causing loosening or deformation .
After repair, if no dynamic balance check was performed or the installation was skewed, vibration occurred .
Manufacturing or material defects:
Insufficient machining accuracy of the tooth surface, insufficient strength of the spline, poor aging resistance of the rubber bushing, etc., are inherent problems .
External factors:
Off-road driving causes water and sand to enter, resulting in rust or lubrication failure .
Air circuit or hydraulic system failure (such as air cylinder leakage in the gearbox auxiliary box) indirectly causes shift shock and increases the load on the intermediate shaft .
Suggested Treatment Measures:
Preliminary Self-Inspection:
On a flat surface, shift into neutral and manually twist the transmission shaft to check if it is loose or has abnormal resistance .
Note if the noise is related to vehicle speed, steering, or throttle operation to help locate the source of the fault.
Professional Maintenance:
Raise the vehicle, inspect the tightening condition of the intermediate support bolts, whether the rubber sleeve is cracked, and if the bearings are lacking lubrication .
If the transmission shaft is bent, the spline is severely worn, or the clearance of the universal joint exceeds the standard, it should be disassembled for straightening or replacement .
Preventive Maintenance:
Regularly add lubricating grease to the universal joint and intermediate support bearings .
When replacing the intermediate shaft assembly, it is recommended to use original factory or high-precision compatible parts (such as the strengthened intermediate shaft for Great Wall Fengyun/Mazda Ruiyi)
