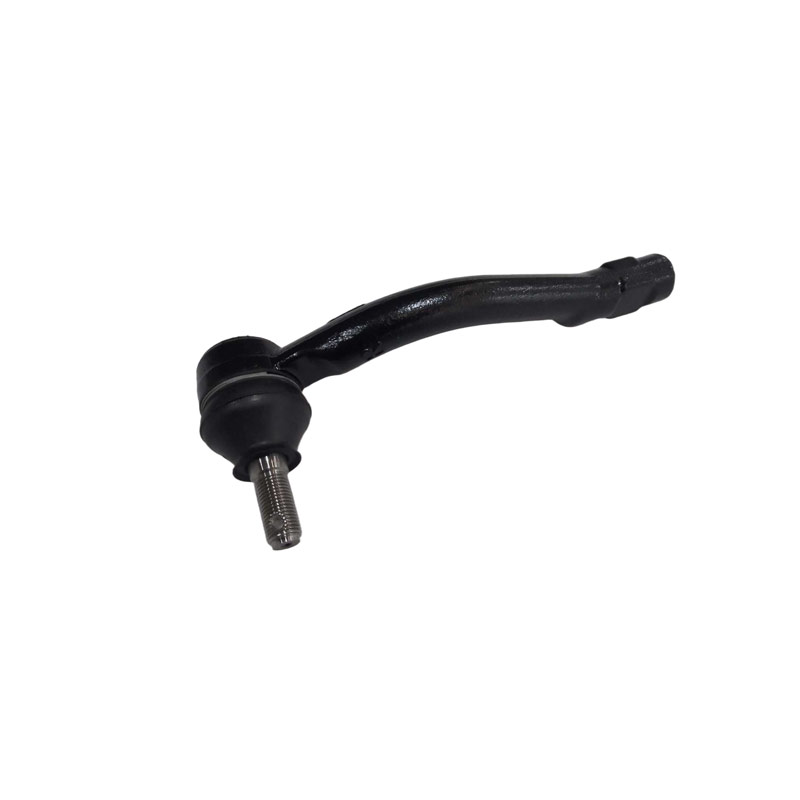

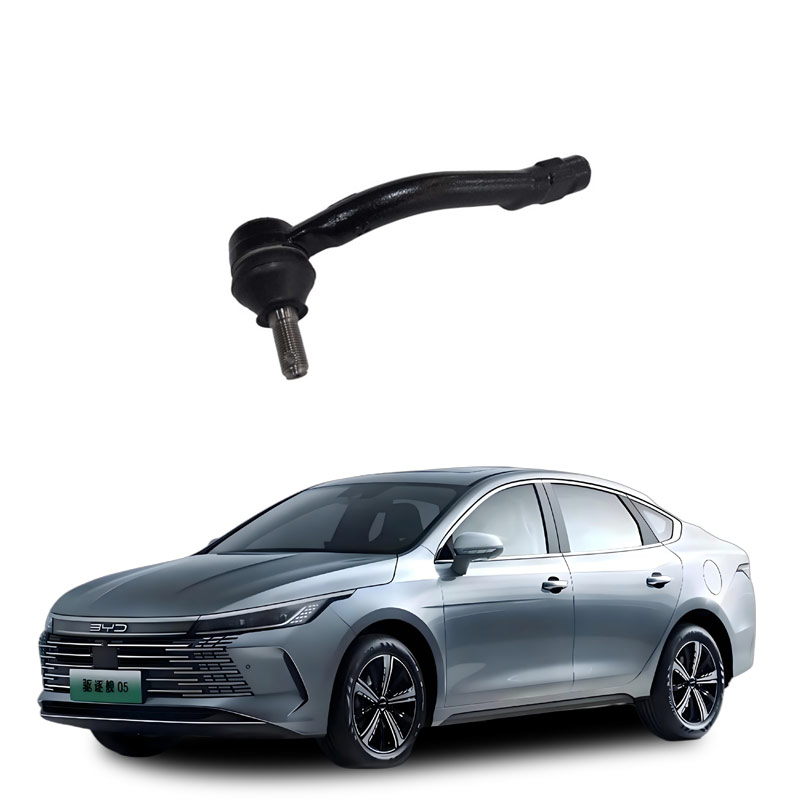

What is the external ball joint assembly of the car steering column?
The external ball joint assembly of the car steering rod is a crucial connecting component in the car steering system. It belongs to the "ball socket joint" structure and is mainly used to connect the steering cross-link rod with the steering knuckle (or steering arm), enabling the precise transmission of the driver's steering command to the wheels. Core function
Transmitting steering force: The steering wheel rotation command is transmitted through the steering gear, tie rod, and steering knuckle to drive the wheels to deviate.
Flexible multi-angle rotation: Allows for multiple-directional swaying during vehicle movement due to road bumps or steering actions.
Withstanding impact loads: Absorbs longitudinal, lateral forces and vibrations from the road surface to ensure handling stability and safety.
Typical structure components
Ball stud: A metal rod with a spherical end, which cooperates with the ball socket to form a hinge.
Ball socket (ball bowl): Wraps the ball stud to provide rotational support.
Rubber dust cover: Seals the internal lubricating grease to prevent dust and moisture from entering.
Fastening threads/connection interface: Used for installation on the tie rod or steering knuckle.
Lubricating grease chamber: Contains high-viscosity synthetic lubricating grease to reduce wear.
Common fault manifestations
A "clunking" noise occurs when steering (especially on bumpy roads).
The steering wheel has "false movement", shakes, or veers off course.
Abnormal tire wear (such as unilateral wear).
Slow response and difficulty in steering correction during turns.
Maintenance suggestions
Regularly check if the dust cover is cracked or leaking oil.
If any of the above abnormal symptoms are found, promptly test the ball gap.
It is recommended to replace with original factory parts or high-precision aftermarket parts to ensure metal toughness, ball surface smoothness, and sealing performance.
Note: The outer ball head usually works in conjunction with the "inner ball head" (close to the steering gear end), but the two are not directly connected and each performs different connection tasks at different positions.
The outer ball joint assembly (commonly called "outer ball head") is a key connecting component in the steering system. Its functions can be summarized as follows:
Core function
Transmit steering force: Transmits the steering wheel command through the steering tie rod to the steering knuckle, driving the wheels to deviate, achieving precise steering.
Flexible multi-angle rotation: Uses a ball socket joint structure, allowing rotation in multiple directions, adapting to the up-and-down bouncing of the wheels and steering actions.
Buffering road impact: Absorbs vibrations and impacts from the road surface, reducing shaking transmitted to the steering wheel, improving driving comfort and stability.
Structural characteristics
Composed of ball stud, ball socket, sealing cover, and lubricating grease chamber, it belongs to a typical "ball hinge" structure.
The outer ball head connects the tie rod and the steering knuckle, while the inner ball head connects the steering gear pull rod. They work together but are not connected.
Common fault manifestations
If the outer ball head is worn or loose, the following symptoms may occur:
Bumpy road: A "clunking" noise is emitted near the front wheels.
Steering wheel shakes or veers off course.
Abnormal tire wear (tread biting): Unilateral wear.
Slow steering response or increased false movement.
In severe cases, it may cause steering failure or ball head detachment, leading to safety accidents.
Maintenance suggestions
Regular inspection: Especially after driving over 60,000 kilometers or frequently on bumpy roads.
After replacement, a four-wheel alignment must be performed to ensure normal front beam parameters and avoid accelerated tire wear.
Pay attention to the condition of the dust cover: Damage will allow mud, water, and dust to enter, accelerating internal wear.
Note: The lifespan of the outer ball head is typically 8-100,000 kilometers, but it is greatly affected by road conditions and driving habits.
The outer ball joint (commonly called "outer ball head") of the vehicle steering tie rod is a key component of the steering system, and its faults can directly affect handling, stability, and driving safety. According to the latest authoritative public information, the common fault symptoms are as follows:
Typical fault symptoms
Noise: On bumpy roads, a "clunking" or "clicking" metallic sound is emitted near the front wheels; during steering, there may be a "clicking" sound, indicating looseness or insufficient lubrication.
Unstable driving: The vehicle exhibits left-right swaying and up-and-down shaking, especially at high speeds or during braking.
Abnormal steering control:
Steering deviation (the vehicle automatically leans to one side) The steering wheel shakes, especially at high speeds or when reversing.
The steering is heavy and not flexible, and there may even be a jerking sensation.
Abnormal tire wear: Due to inaccurate wheel alignment parameters, the tires wear out excessively in certain areas (commonly known as "tire eating").
Extreme risk: Severe wear may cause the ball joint to come off, leading to the wheel swaying and falling off, resulting in a serious accident.
Common causes of faults:
Long-term use leads to natural wear and tear.
The sealing rubber sleeve ages or is damaged, causing lubricating oil leakage.
Lack of regular maintenance and lubrication.
Frequent driving on harsh road conditions (such as potholes, bumpy sections).
Environmental corrosion (such as coastal salt fog, acid rain areas).
Suggested handling measures:
Stop immediately for inspection: If any of the above symptoms occur, especially abnormal noise or loss of steering control, stop at a safe location as soon as possible.
Professional diagnosis: Go to a regular repair shop or 4S store, have the technician check for loose or worn ball joints, and combine with four-wheel alignment testing.
Replace in time: The outer ball joint usually cannot be repaired individually; it needs to be replaced as a whole along with the steering tie rod assembly or the outer ball joint component.
Regular maintenance: It is recommended to inspect the steering system components every 20,000 kilometers or once a year.
Safety reminder: Faults in the steering system directly endanger driving safety. Do not drive with a faulty steering system. If the symptoms are obvious (such as severe shaking of the steering wheel, frequent abnormal noise), stop driving immediately and have it towed for repair.
