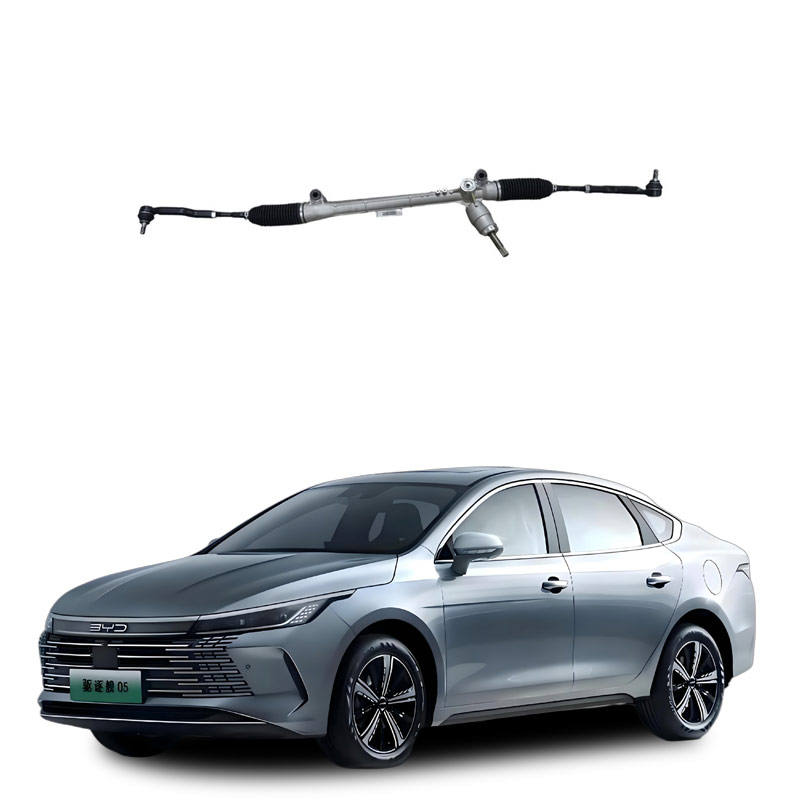

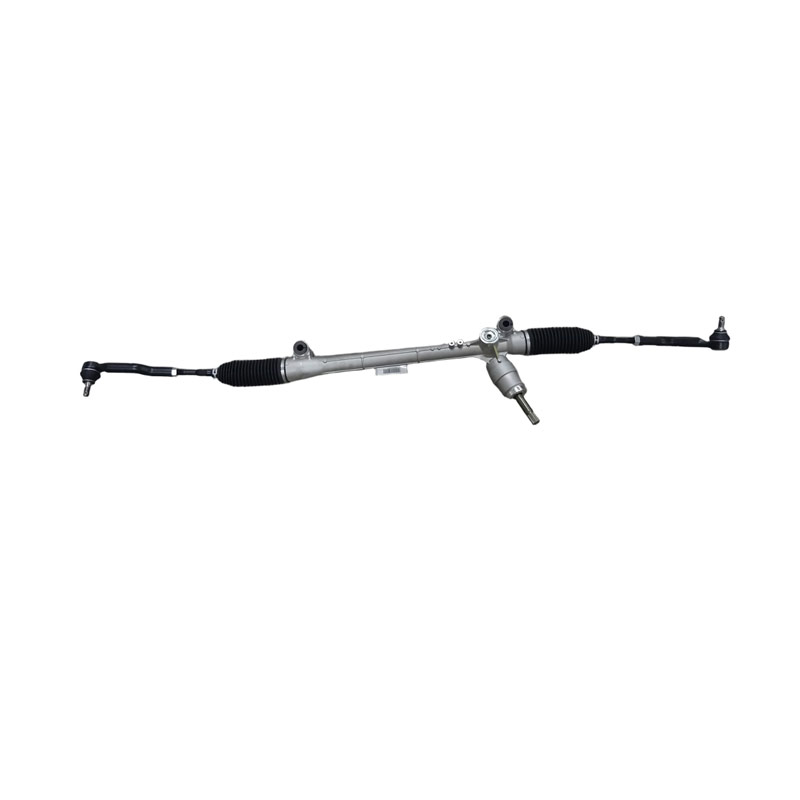

The mechanical steering system with connecting rod components of the car functions as follows
The mechanical steering system of a car with a tie-rod assembly, whose core function is to precisely transfer the steering force and movement input by the driver through the steering wheel to the steering wheels, enabling the vehicle to turn along the intended trajectory. This system is entirely dependent on human power as the steering energy source and does not rely on hydraulic or electric assistance. It belongs to a traditional but reliable mechanical steering system.
Main Components and Functions
Steering gear (directional gear): Converts the rotational motion of the steering wheel into linear motion and reduces and increases torque to amplify the steering force .
Steering transmission mechanism (including tie-rod assembly):
Steering arm (vertical arm): Receives the rotational motion output by the steering gear and converts it into oscillation .
Steering tie rod: Connects the arm and the steering knuckle arm, transmitting tension/pressure and driving the wheels to deviate .
Steering cross tie rod: Connects the left and right trapezoidal arms to ensure that the wheels on both sides deviate synchronously according to the Ackerman geometry, reducing tire slippage .
Trapezoidal arm and ball stud: Form the steering trapezoidal mechanism to ensure that the angular differences between the inner and outer wheels adapt to the turning radius .
Summary of Core Functions
Force and Motion Transmission: The mechanical force is transmitted throughout the entire process from the steering wheel to the steering wheels via tie rods, arms, etc., in a rigid or articulated manner.
Steering Amplification and Control: The steering gear reduces and increases torque to make light and easy steering possible; the tie-rod structure ensures that the wheels deviate at the correct angle.
Stability and Safety: The tie-rod assembly must have high stiffness, wear resistance, and impact resistance to ensure the reliability of steering at high speeds or in complex road conditions .
Front Crown Adjustment Function: By adjusting the length of the cross tie rod, the front crown of the wheels can be calibrated to reduce abnormal tire wear .
Note: The "crank-linkage mechanism" mentioned in some materials is actually the internal structure of an engine (converting the reciprocating motion of the piston into the rotation of the crankshaft), and is unrelated to the tie rods in the steering system .
The "tie rods" in the car's steering system specifically refer to the straight tie rods and cross tie rods that transmit force in the steering transmission mechanism.
Common faults of the mechanical steering system with a tie-rod assembly in a car usually involve mechanical components such as tie rods, tie rods, ball joints, arms, etc. of the steering transmission mechanism. According to authoritative public information, the common causes, manifestations, and handling methods of such faults are as follows:
Common Fault Causes
Deformation or bending of tie rods or tie rods: Caused by collisions, intense driving, or long-term stress, affecting the accuracy of steering .
Wear or loosening of the ball joint: The ball joint and stud of the steering cross tie rod or straight tie rod wear out over time, causing increased clearance, abnormal noise, or loose steering .
Poor lubrication: Lack of lubricating grease leads to dry grinding of the ball joint and bushing, accelerating wear and even jamming .
Loose connecting bolts or nuts: Causes the transmission chain to become loose, affecting the steering response .
Sealing parts aging or damage: Such as a cracked oil seal or dust cover, resulting in dust entering and lubricating grease leakage .
Typical Fault Symptoms
Loose or excessive deflection of the steering wheel: Turning the steering wheel but the wheels do not respond or respond with delay.
Abnormal noise of steering: Such as a "clicking" sound, mostly from the ball joint or bushing wear .
Vehicle veering off course: One tie rod fails or length changes, causing the driving trajectory to deviate .
Abnormal tire wear: Incorrect front crown causes tire wear on the inner or outer side .
Heavy or insensitive handling: Tie rod jamming or reduced transmission efficiency .
Suggested Handling Steps
Initial Inspection:
Check if the steering cross tie rod or straight tie rod is obviously deformed or damaged.
Shake the tires to listen for any abnormal noise to determine if the ball joint or bushing is loose.
Check if the dust cover is cracked or if the lubricating grease is leaking.
Professional Diagnosis:
Use a four-wheel alignment instrument to detect if the front crown, kingpin offset angle, etc. are normal.
Disassemble and inspect the wear of the ball joint, bushing, arm, etc. components.
Repair Measures: Replace the worn ball head, tie rod or bushing.
Fasten all connecting bolts and tighten them to the specified torque.
Supplement or replace the lubricating grease to ensure good lubrication of the moving parts.
If the connecting rod is bent, the entire tie rod must be replaced; it cannot be corrected and used.
Further suggestions:
After the repair is completed, a four-wheel alignment must be performed to restore the normal driving characteristics of the vehicle.
Regularly inspect the steering system, especially after driving on bumpy roads.
Safety reminder: The steering system is directly related to driving safety. If any of the above faults are found, do not continue driving; stop immediately and contact a professional repair agency.
