Solution to assembly process defects
The solution to assembly faults of the large automotive dashboard components needs to be handled specifically based on the type of fault. The core measures include re-standardizing the assembly, repairing or replacing functional modules, and reinforcing or replacing mechanical structure components.
If the fault manifests as abnormal noise, uneven gaps, or loose components, the focus should be on troubleshooting the assembly process:
Abnormal noise handling: After turning off the power, gently press each area of the dashboard to locate the source of the noise, disassemble the corresponding trim panel to check if the clips are fully engaged and the screws are loose. Use a torque wrench to re-tighten according to the maintenance manual standards (usually 3–5 N·m), and replace the aging or broken clips.
Gap calibration: Use specialized measuring tools to detect the seams between the dashboard and the A-pillar, center console, etc. If the deviation exceeds 0.5mm, adjust the positioning bracket or add a thin spacer to correct the gap and ensure uniformity.
Component fixation: For loose modules such as the navigation screen and air outlet, check if the fixing brackets are deformed or not installed properly. Re-assemble and use the original factory clamps to lock them.
Solution to failure of functional modules
For problems such as black screen display, malfunctioning buttons, and airbag alarm:
Power supply and signal check: Use a multimeter to detect the voltage of the wiring harness and confirm if the power module output is normal. If the wiring plug is loose, re-insert it and secure it with a lock, preventing it from falling off due to vibration.
Circuit repair: For buttons without response, disassemble the panel to check if the contacts are oxidized or have a welded short circuit. Use electronic cleaner to wipe the contacts, and if necessary, re-weld or replace the button module.
Safety system reset: If the airbag light alarms, use a dedicated diagnostic tool to read the fault code, check if the airbag plug is fully locked, and for some models, use a dedicated tool (such as airbag locking clamp) to ensure a reliable connection and perform system self-check reset.
Solution to mechanical structure damage
For physical damages such as cracking, deformation, and broken brackets:
Minor damage repair: Minor cracks in the dashboard can be repaired using high-strength epoxy resin glue. After curing, sand it smooth and apply the same color paint; deformation of the trim panel can be restored by heating and softening it with hot air.
Serious damage replacement: If the cracks penetrate the structural layer or the bracket breaks, the entire dashboard or bracket component must be replaced to avoid secondary faults due to insufficient strength.
Installation calibration: After replacement, use a level gauge to calibrate the position of the dashboard to ensure it is level with the vehicle body without any tilt. Tighten all screws according to the standard torque in multiple stages.
Prevention and testing suggestions
During the assembly process, strictly follow the maintenance manual procedures and use original factory tools and parts.
After assembly, perform comprehensive functional tests: Start the vehicle to check all indicator lights self-check, display display, button response, and safety airbag system status.
Avoid sharp objects colliding daily, and use sunshades in hot weather to reduce interior aging.

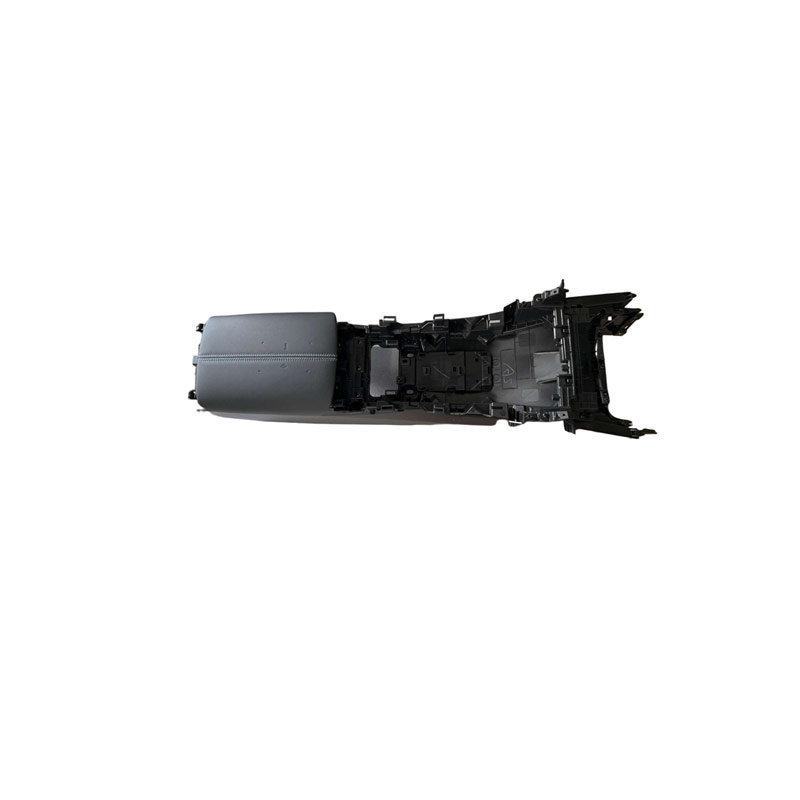

The large automotive dashboard components of the vehicle are core interior components for integrated display, control, and safety functions. Assembly faults of these components not only affect the driving experience but may also pose safety hazards. Based on actual repair cases, such component faults can be classified into three types: assembly process defects, failure of functional modules, and mechanical structure damage. They need to be targetedly diagnosed and repaired.
Assembly process defects are common problems for new vehicles or those that have just been assembled, mainly manifested as abnormal noise, uneven gaps, and loose components. Abnormal noise is mostly caused by plastic clips not fully engaging or insufficient screw torque during assembly. The components rub against each other during vehicle vibration, generating high-frequency noise; uneven gaps are due to assembly process deviations, such as the gap between the dashboard and the A-pillar, center console exceeding 0.5mm, which not only affects appearance but also easily gets dusty; loose components are mostly seen in adjustable modules such as the navigation screen and air outlet, often caused by improper installation of the fixing brackets. For such faults, the relevant components need to be disassembled again, and the screws should be tightened using a torque wrench according to the specified torque (usually 3-5 N·m) as per the manual. New clips should be replaced for the damaged areas and then re-coupled. Uneven gaps can be calibrated by adjusting the position of the positioning bracket or adding special pads, ensuring uniform and consistent gaps for all components.
The failure of the functional modules involves three systems: display, control, and safety. It manifests as black screens on the display, unresponsive buttons, and safety airbag alarms. Black screens on the display are mostly caused by loose wiring connections or power supply module failures. If the wiring plugs are not fully locked during assembly, vehicle vibrations can easily cause signal interruptions; a damaged power supply module will cause the display to lose power supply. Unresponsive buttons are mostly due to poor contact between the button contacts and the circuit board during assembly, or due to incorrect welding of the lines. Safety airbag alarms are often related to incorrect connection of the airbag plugs during assembly. For some models, special tools are required to ensure the plugs are locked in place. During maintenance, the fault codes should be read using a diagnostic tool. If it is a wiring problem, the plugs can be reinforced or the damaged wiring can be replaced; if it is a power supply module failure, the corresponding module needs to be replaced; for button failures, the panel should be disassembled to adjust the contact position or re-weld the lines; for safety airbag alarms, the connection status of the plugs should be checked, and if necessary, special tools should be used to re-lock them.
Mechanical structure damage faults are mostly caused by external force collisions or aging due to long-term use, including cracked dashboard, deformed trim panels, and broken brackets. Minor cracks can be repaired by using high-strength epoxy resin glue, which is then allowed to cure, smoothed, and painted with the same color to restore the appearance; severe cracks require replacing the entire dashboard. Deformed trim panels are mostly caused by uneven force during assembly or long-term exposure to the sun, and can be solved by heating and shaping or replacing with a new trim panel; broken brackets will cause the dashboard to loosen and sink, and a new bracket needs to be replaced and the dashboard re-fixed to ensure the levelness of the dashboard after installation, meeting the required standards.
To prevent assembly faults of large-scale instrument panels, the assembly quality at the source needs to be controlled: strictly follow the assembly procedures in the vehicle maintenance manual, and use special tools to ensure that the screw torque and the degree of clip engagement meet the standards; after assembly, conduct a comprehensive functional test, including display display, button response, and safety airbag system self-checks; during daily use, avoid sharp objects colliding with the dashboard, and use sunshades when parking for a long time to reduce the interior temperature and slow down the aging speed of the components. Once fault signs are detected, professional personnel should be promptly consulted and repaired to avoid small problems causing greater safety risks.
