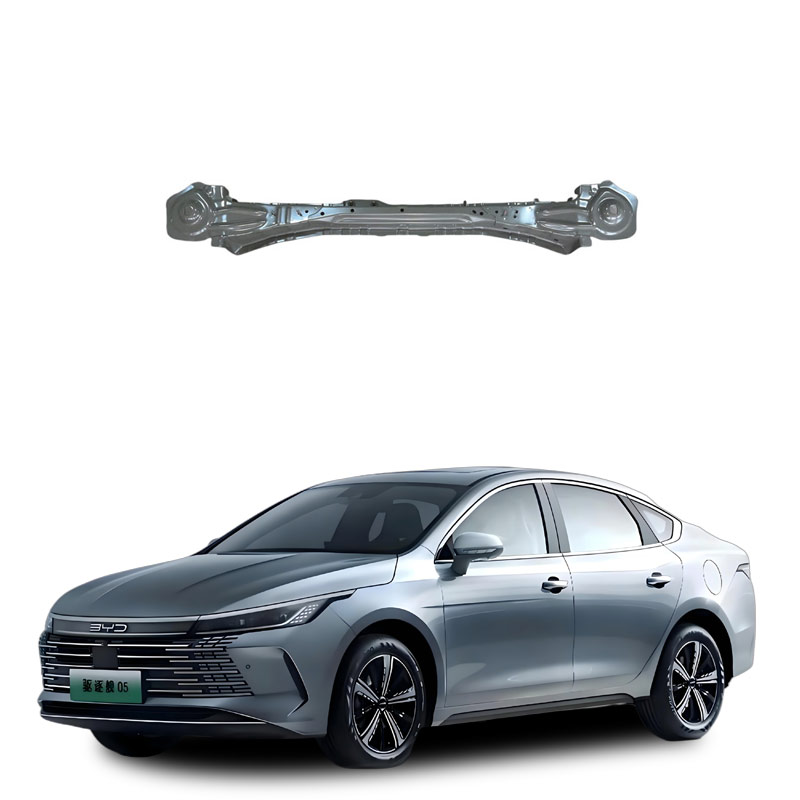

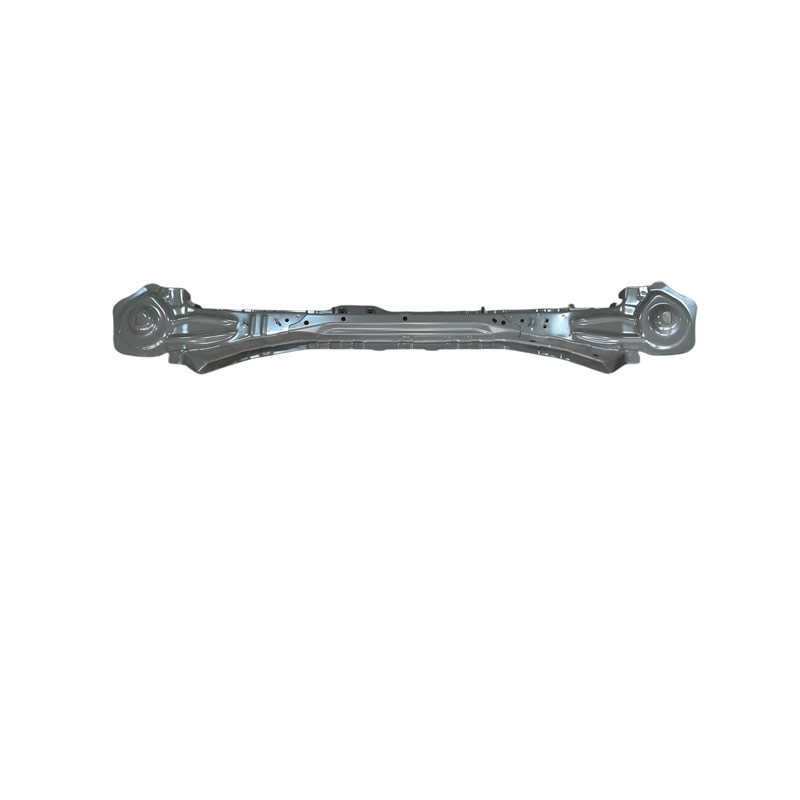

What is the left rear longitudinal beam assembly of the car?
The left rear longitudinal beam assembly (commonly referred to as "left rear longitudinal beam") is a key load-bearing component in the rear structure of the vehicle and is an important part of the vehicle body frame.
Basic Definition and Position
Chinese Name: Left Rear Longitudinal Beam
Foreign Name: rear side member (also known as floor side member, rear floor side frame, etc.)
Installation Position: Located at the rear of the vehicle, below the trunk, with one on each side of the vehicle, arranged longitudinally along the vehicle, and visible on the spare tire compartment or the rear floor .
Main Functions
Structural Support: Together with the crossbeam and side panels, it forms a side beam-type frame, bearing the rear load of the vehicle, enhancing the rigidity and stability of the vehicle .
Collision Energy Absorption: In rear-end collisions or other rearward collisions, it can undergo controlled crushing to absorb impact energy, protecting the passenger compartment and key components such as the fuel tank, battery pack, etc. .
Connecting Function: The upper part connects the wheel arch and the outer panel of the side panel, and the lower part connects the suspension system, being an important link in the force transmission path between the front and rear of the vehicle .
Structural and Material Characteristics
Section Shape: Commonly in the form of slot, I-beam, or box structure .
Common Materials:
Traditional High-Strength Steel: such as HC340-590DP dual-phase steel, SP783-590B, etc., with a thickness of approximately 1.8–2.0 mm .
Under the trend of lightweighting: aluminum alloys (such as AlSi10MnMg) are used through integrated die-casting, reducing weight by up to 31%.
Manufacturing Process: Mostly multi-pass stamping (cutting, drawing, trimming, shaping, bending, etc.), due to the complex shape and high strength, it is prone to springback and distortion, requiring CAE simulation and precise mold adjustment .
Maintenance Precautions
If the left rear longitudinal beam is severely deformed or cracked in an accident, it can be replaced, but it must be precisely positioned and installed using a professional beam alignment instrument .
The strength after repair is difficult to fully reach the original factory level, and it is recommended to operate in a qualified professional repair shop .
The left rear longitudinal beam assembly of the vehicle (commonly referred to as "left rear longitudinal beam") is a key component of the vehicle body structure, mainly functioning in the areas of structural support and collision safety:
Structural Support Function: As an important part of the vehicle body frame, the left rear longitudinal beam is arranged longitudinally along the vehicle, together with the crossbeam and the side panel, forming a load-bearing frame that supports the weight of the vehicle and the suspension system, powertrain, and other key components, enhancing the rigidity and stability of the vehicle .
Collision Energy Absorption Function: In side or rear-end collisions, the left rear longitudinal beam can undergo controlled crushing to absorb impact energy, combined with the energy absorption box at the front end and the anti-collision steel beam at the rear, effectively dispersing the impact force and reducing intrusion into the passenger compartment, ensuring the safety of the occupants .
In modern vehicles, the left rear longitudinal beam often uses high-strength steel (such as DP590, Usibor®2000) or aluminum alloys (such as AlSi10MnMg) through advanced manufacturing processes such as integrated die-casting or laser spot welding to achieve a balance of lightweighting and high strength. Simple explanation: The left rear longitudinal beam is like the "backbone" of the vehicle - the rear section on the left side. It usually bears the weight and maintains stability. In case of an accident, it "self-sacrifices" to absorb energy and protect passengers.
The left rear longitudinal beam of the car is a vehicle structural component, responsible for supporting the body and absorbing collision energy, among other critical safety functions. Once it fails (such as deformation or fracture), it will directly affect the safety and driving stability of the entire vehicle.
Fault Impact and Handling Suggestions
Can it still be driven:
If the left rear longitudinal beam only undergoes slight deformation and does not affect the four-wheel alignment, suspension system, or door opening and closing, short-distance low-speed driving to the repair point may be feasible, butdo not recommend driving at high speed or long distances. At high speeds, the damaged part of the structure may deteriorate further, increasing the risk of loss of control.
Can it be repaired:
Yes, but it needs to be operated by a professional institution. The repair methods include:
Beam correction: Using specialized correction equipment to stretch and restore the slightly to moderately deformed part;
Replacement of components: If the deformation is severe or there is a fracture, usually a new section of the longitudinal beam needs to be cut and replaced, and welding or riveting techniques are used.
Impact after repair:
Even if the repair is successful, the metal strength and energy absorption performance cannot fully return to the original factory level;
Possible remaining problems include: steering deviation, abnormal tire wear, abnormal noise, and exceeding four-wheel alignment parameters, etc.;
In subsequent accidents, the protection ability of this part will decrease, endangering the safety of passengers.
Is it considered a "major accident vehicle":
Yes. As long as the longitudinal beam (including the left rear longitudinal beam) repair or replacement is involved, regardless of whether it affects driving, in the assessment of used cars, it is regarded as an accident vehicle, and it belongs to structural damage, significantly affecting the vehicle's residual value.
Suggested Operating Steps
Stop driving at high speed immediately to avoid exacerbating the damage;
Have it towed to a regular 4S store or professional body repair shop, for detailed inspection (if necessary, use X-ray or magnetic particle testing);
Decide on the repair or replacement plan based on the degree of damage, do not handle it yourself;
If it is a used car,it is recommended to query the historical maintenance records through a third-party platform (such as Chaobo, Che300), to confirm whether it has ever been in an accident.
Important Reminder: After the beam repair, the items such as skid, four-wheel alignment, etc. may not meet the standards during the annual inspection every year, and in some cities, this may prevent the vehicle from passing the annual inspection. If the repair cost is too high or the vehicle is old, consider scrapping it.
