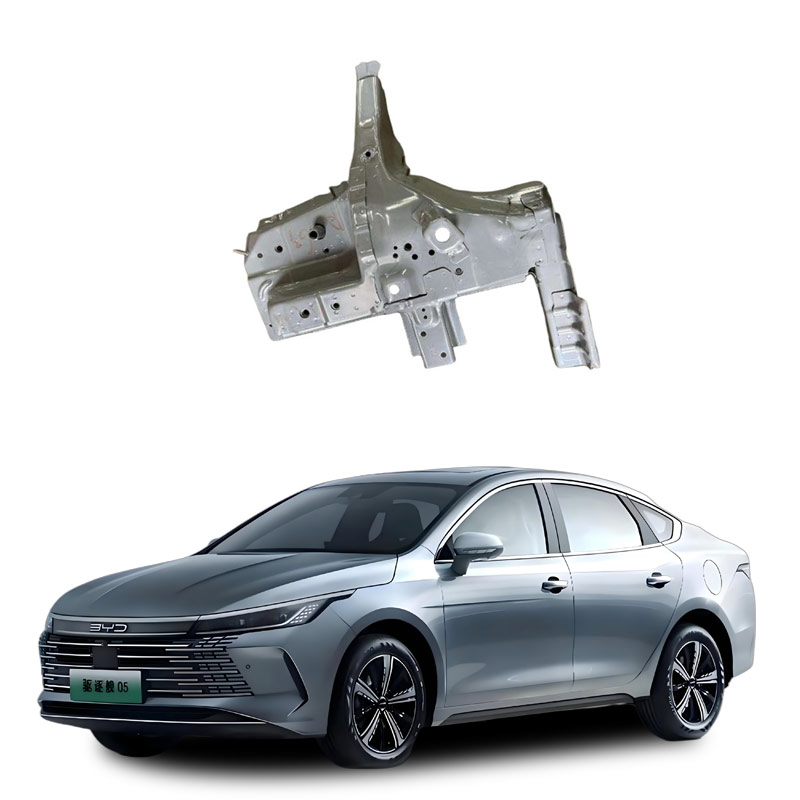

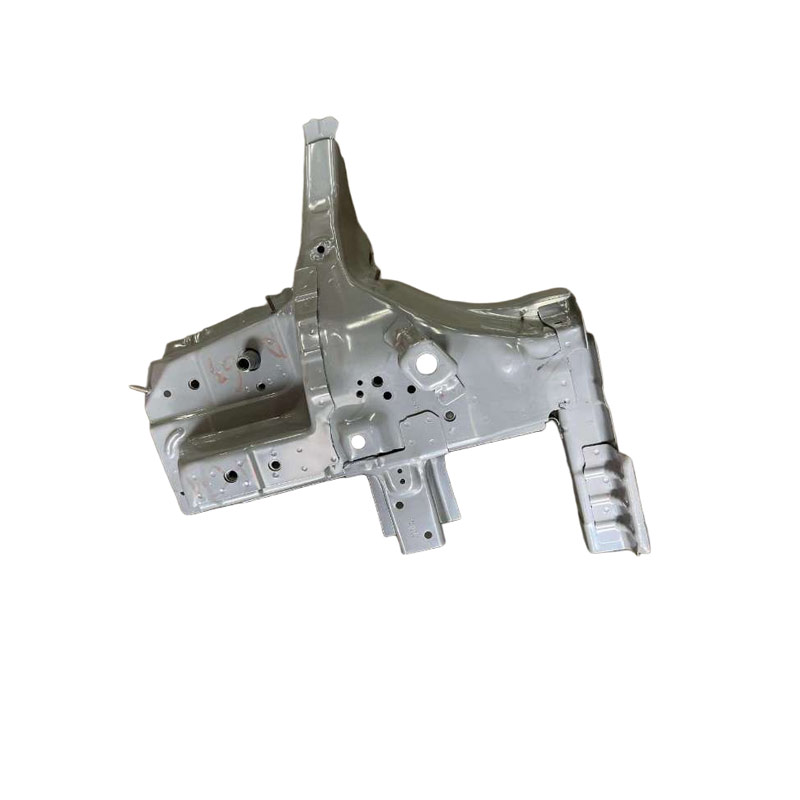

What is the rear section component of the front longitudinal beam of the car?
The rear section component of the vehicle's front longitudinal beam refers to the structural section part located below the engine compartment and near the midsection transition area of the front longitudinal beam, close to the vehicle body. It is usually integrated with the front longitudinal beam and may also include reinforcing plates, expansion plates, etc., to enhance the bending and torsion resistance, and participate in collision energy absorption.
According to public information, this component has the following key features:
Structural form: Commonly, it is in the form of a groove, Z-shaped or box-shaped section. Some models adopt variable cross-section design to optimize space layout and mechanical performance.
Material: Mostly uses low-alloy high-strength steel (such as HC340-590DP, DP590, etc.), with a thickness generally ranging from 1.8–2.0mm. Some high-end models use hot-formed steel or aluminum alloy for lightweighting.
Function positioning:
Carrying static loads of the engine compartment;
In frontal collisions, it absorbs approximately 40% of the impact energy through controlled crushing;
Forming a complete force transmission path with the front impact beam, energy absorption box and sub-frame.
Typical accessories: Some designs include rear expansion plates (such as the rear expansion plate of the right front longitudinal beam), to enhance connection stiffness or provide installation points.
Note: "Section component" is not a standard term. It actually refers to the structural section of the front longitudinal beam in the rear section (close to the front panel of the passenger compartment) and its related reinforcing structures. If maintenance or replacement is required, professional correction equipment must be used, as this part directly affects the vehicle's rigidity and collision safety.
The function of the rear section component of the vehicle's front longitudinal beam is closely related to its functional positioning in the vehicle structure. According to public information, the front longitudinal beam is the core longitudinal load-bearing component of the vehicle body. Its rear section usually plays the following key roles:
Load bearing and force transmission: The rear section of the front longitudinal beam is an important transition area connecting the engine compartment and the passenger compartment, responsible for transferring collision energy from the front to the midsection and rear of the vehicle, and supporting the installation loads of key components such as the sub-frame, suspension, etc.
Crushing and energy absorption: In frontal or oblique collisions, the rear section of the front longitudinal beam is often designed as a controllable crushing area, achieving orderly deformation through the gradual change of the section shape (such as groove, Z-shaped or box-shaped), absorbing impact energy and protecting the occupants' safety.
Maintaining structural rigidity: The section form of this area affects the torsional and bending stiffness of the entire vehicle, helping to maintain the stability of the vehicle's overall frame, especially in high-speed driving or cornering, improving handling performance.
Connection coordination: The rear section must be efficiently connected with crossbeams, firewall, floor longitudinal beams, etc., to ensure a continuous load path and avoid stress concentration.
Note: For some models, to accommodate powertrain components (such as diesel engine flywheel housing, starter motor), the rear section of the front longitudinal beam may adopt non-equal-width or locally thickened design, but it brings limitations to the installation of belly plate accessories. In conclusion, the rear section component of the front longitudinal beam is not only crucial for structural load-bearing, but also an important guarantee for passive safety and the overall rigidity of the vehicle.
The rear section components of the vehicle's front longitudinal beam are crucial load-bearing parts of the vehicle structure. Their failures usually involve issues such as deformation, fracture, welding cracks, or corrosion. According to the current publicly available information, combined with professional maintenance and safety assessment standards, the following key information is summarized:
Fault types and impacts
Minor deformation (such as bending, local dents): May affect the four-wheel alignment, causing steering deviation and abnormal tire wear.
Severe deformation or fracture: Significantly reduces the structural rigidity of the vehicle, decreases the energy absorption capacity during collisions, and poses a threat to passenger safety.
Welding/repair marks: If钣金 correction or welding has been performed, it is necessary to confirm whether the original factory process was used; otherwise, there is a risk of stress concentration and secondary cracking.
Is it repairable?
Repairable conditions：
Small deformation (such as < 3 cm), no fracture, or wrinkling；
Precisely restored by professional institutions using laser measurement and hydraulic correction equipment；
After restoration, complete four-wheel alignment and verify structural integrity.
Replacement situations：
The section shows wrinkles， fractures， or obvious plastic deformation；
Original factory weld points are damaged and cannot be restored to the original structure.
Note： Even after repair， the structural strength is difficult to fully restore to the original factory level， and the risk increases during another collision.
Professional inspection suggestions
Appearance inspection： Observe whether the collapse holes are deformed， the paint is peeling or rusting；
Weld point analysis： Compare the original factory weld points (flat bottom， inclined edge， stamping marks)， identify later supplementary welding；
Equipment inspection： Use X-ray or magnetic particle testing to determine internal cracks；
Chassis lifting： Check whether the longitudinal beam and firewall， shock absorber package connection are cut or re-welded.
Subsequent processing suggestions
Seek medical attention immediately： If there is suspicion of structural damage， do not drive yourself； drag to a professional repair center；
Repair options：
Prioritize 4S stores or third-party institutions with body correction qualifications；
Require providing repair before inspection report and post-repair warranty；
Used car evaluation： If the longitudinal beam is repaired or replaced， it is defined as an accident vehicle， significantly affecting the resale value. If you need to further determine the specific extent of the fault, it is recommended to upload photos of the damaged parts of the vehicle (especially the rear section of the crossbeam and the connection area), or go to a repair shop equipped with a laser measurement system for structural inspection.
