SAIC MG 6-18 Steering knuckle (Sheep Horn) 10142280

Short Description:

Products Application: SAIC MG MG 6-18

Products OEM NO: 10142280

Org Of Place: MADE IN CHINA

Brand: CSSOT / RMOEM / ORG / COPY

Lead time: Stock, if less 20 PCS, normal one month

Payment: TT Deposit

Company Brand: CSSOT


Product Detail

Product Tags

Products information

Products Name Steering knuckle (sheep horn)
Products Application SAIC MG MG 6-18 / RX5
Products OEM NO 10142280 10142285 10187241 10187242 10187243 10094082 1009408
Org Of Place MADE IN CHINA
Brand CSSOT / RMOEM / ORG / COPY
Lead time Stock, if less 20 PCS, normal one month
Payment TT Deposit
Company Brand CSSOT
Application system Chassis system

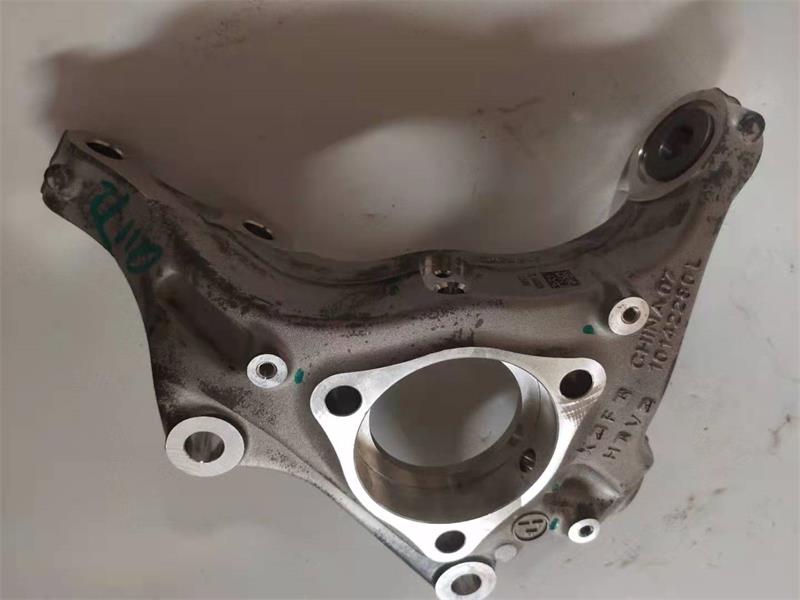

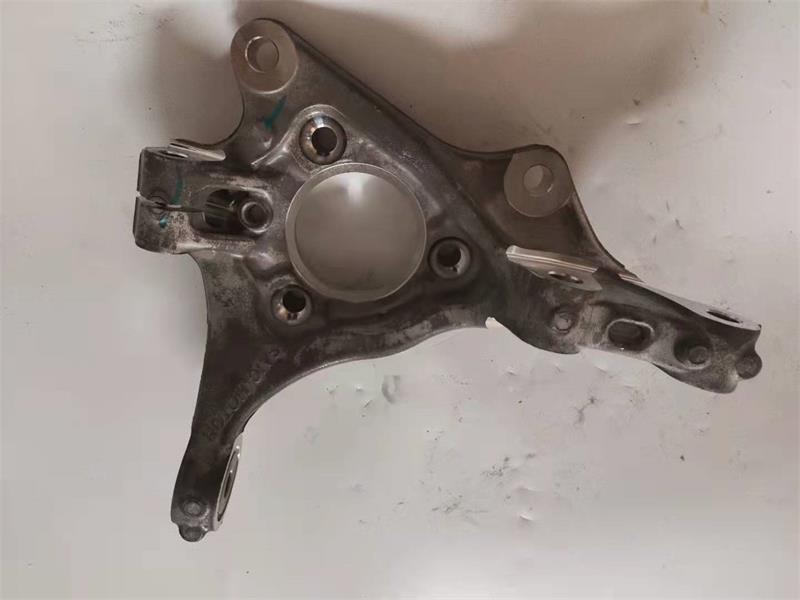

Mg6-18 front steering knuckle front horn L-10142280 R-10142285

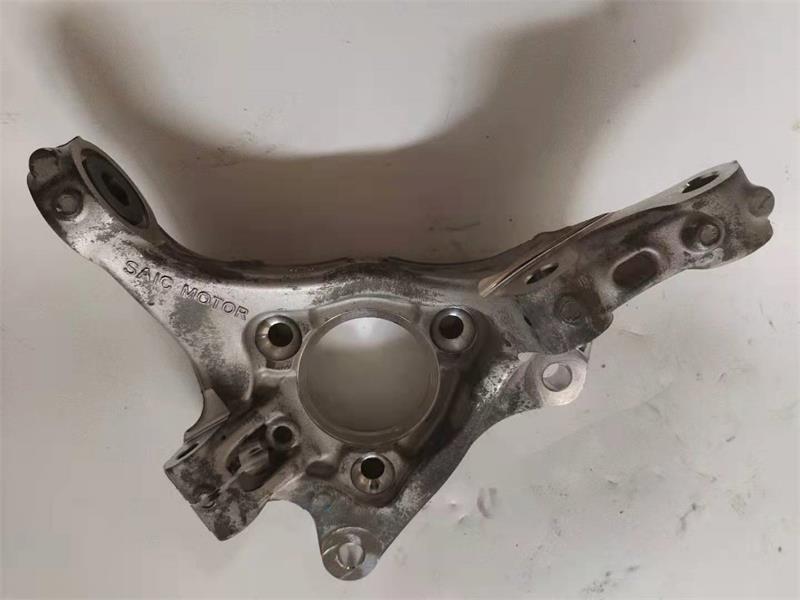

10142280 (1)
10142280 (2)

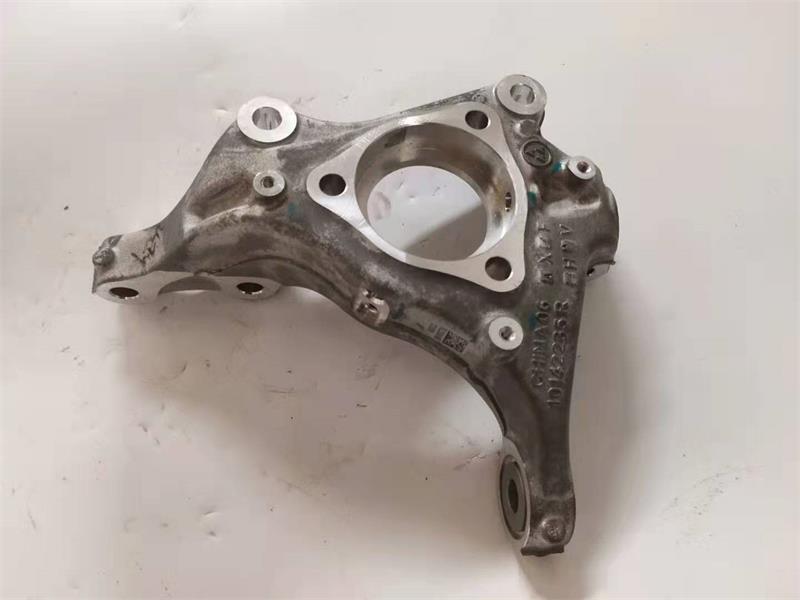

10142285 (2)
10142285 (1)

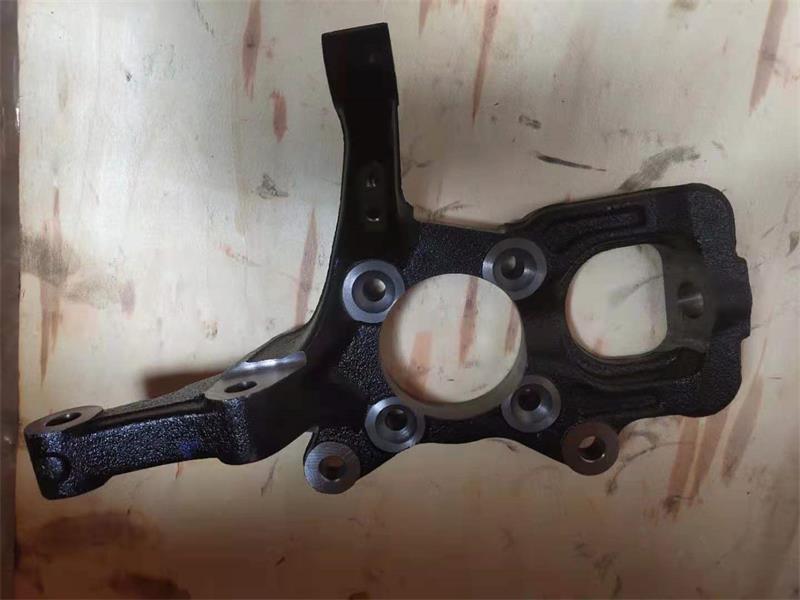

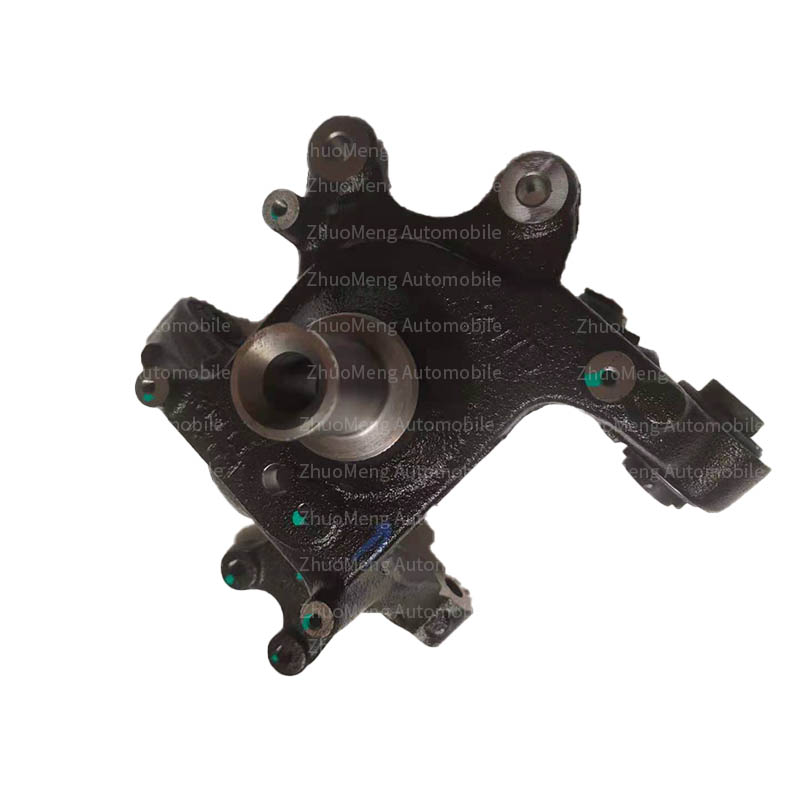

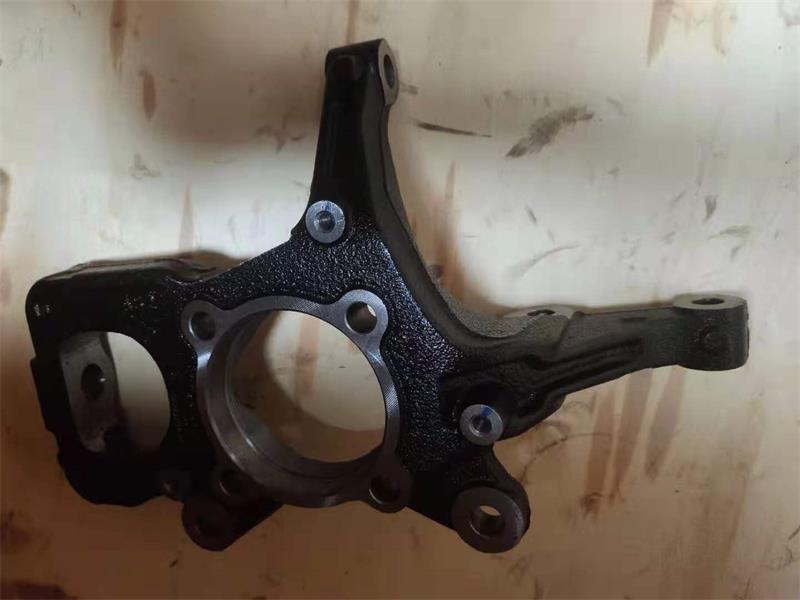

Rx5 front steering knuckle front horn R 10094082

2
1

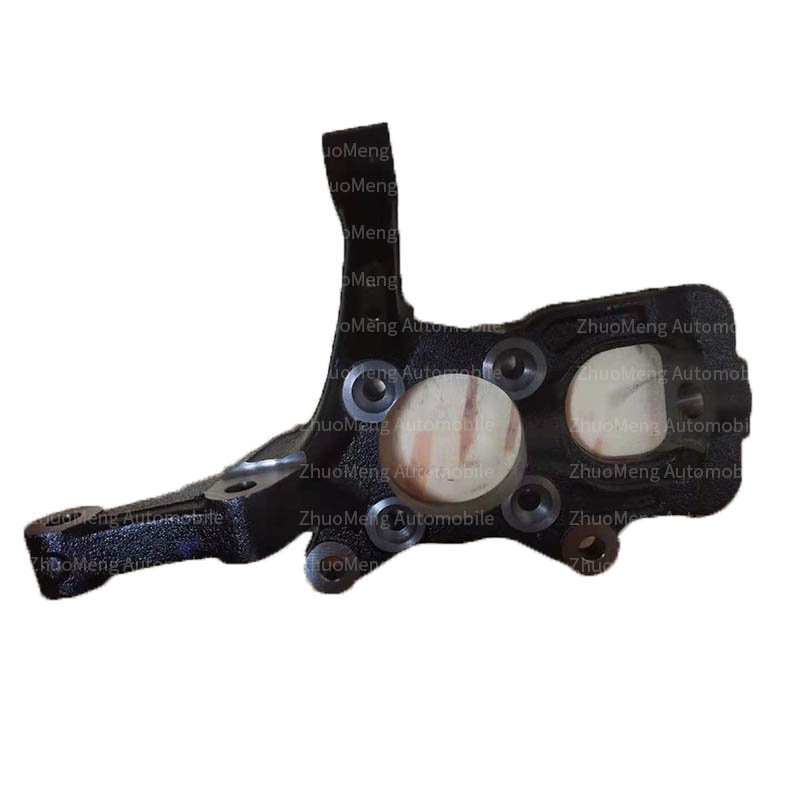

10094082(1)
10094082

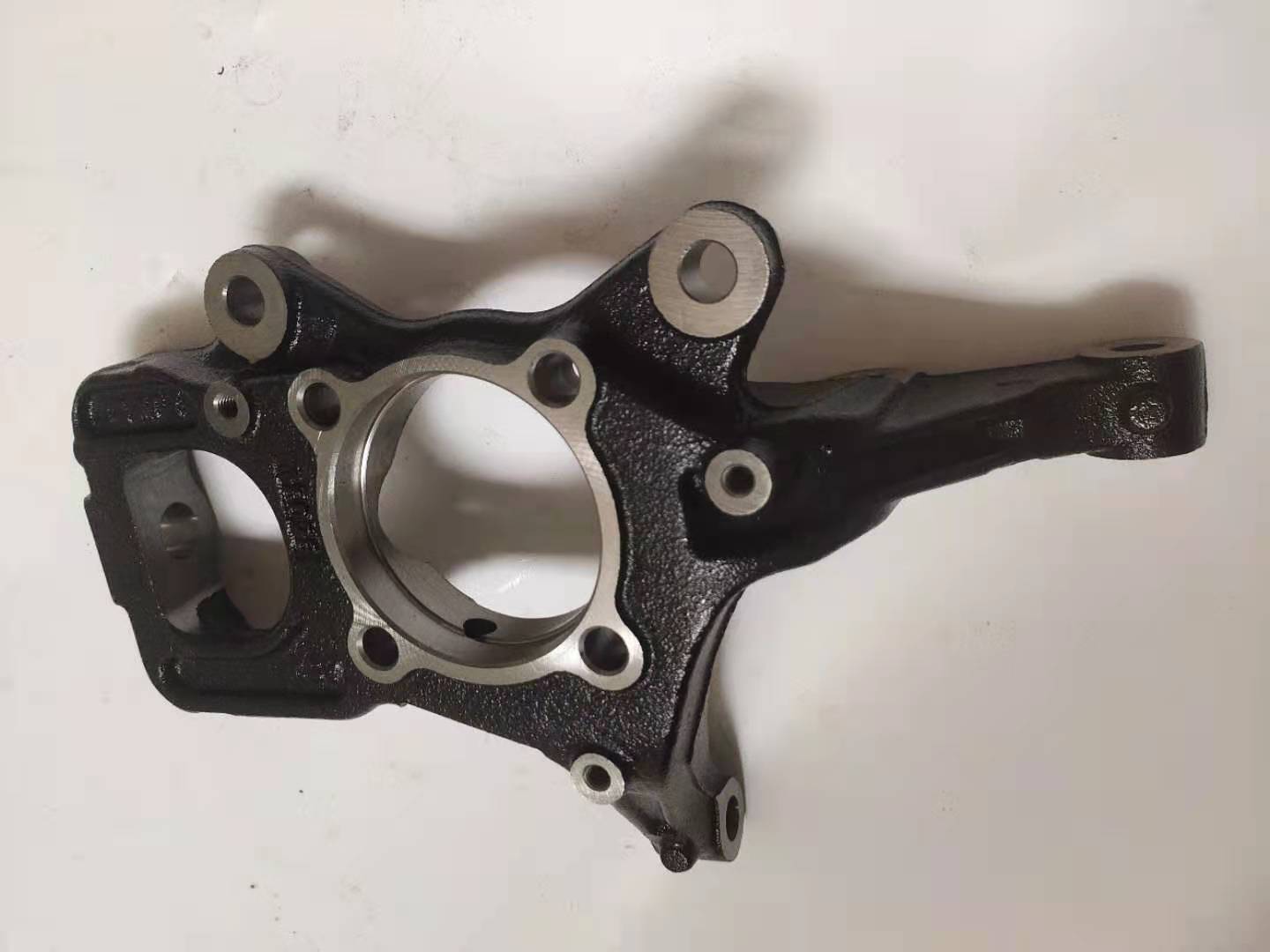

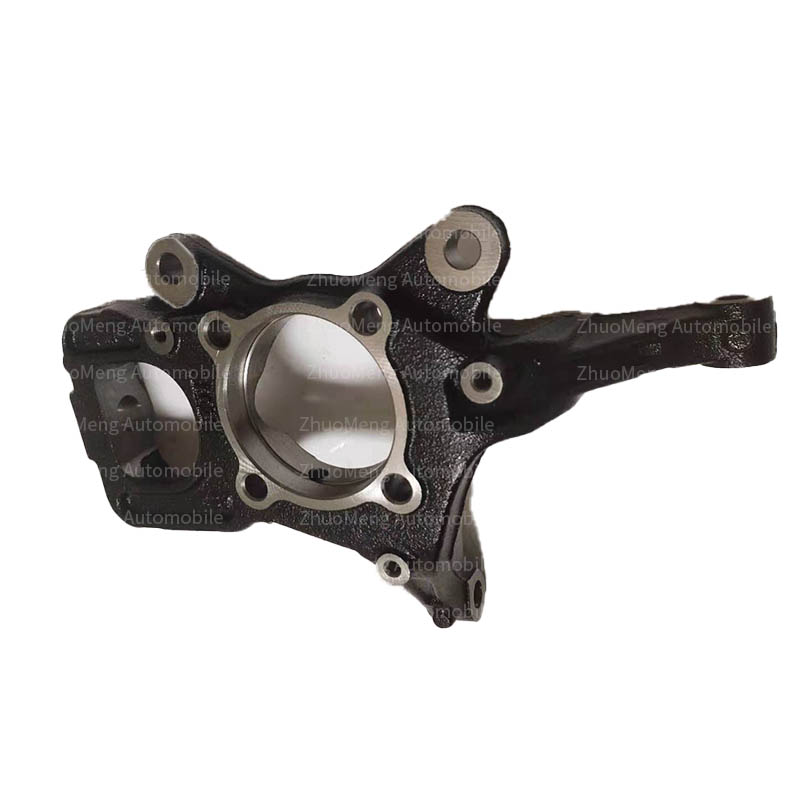

Rx5 front steering knuckle front horn-l 10094081

1
2

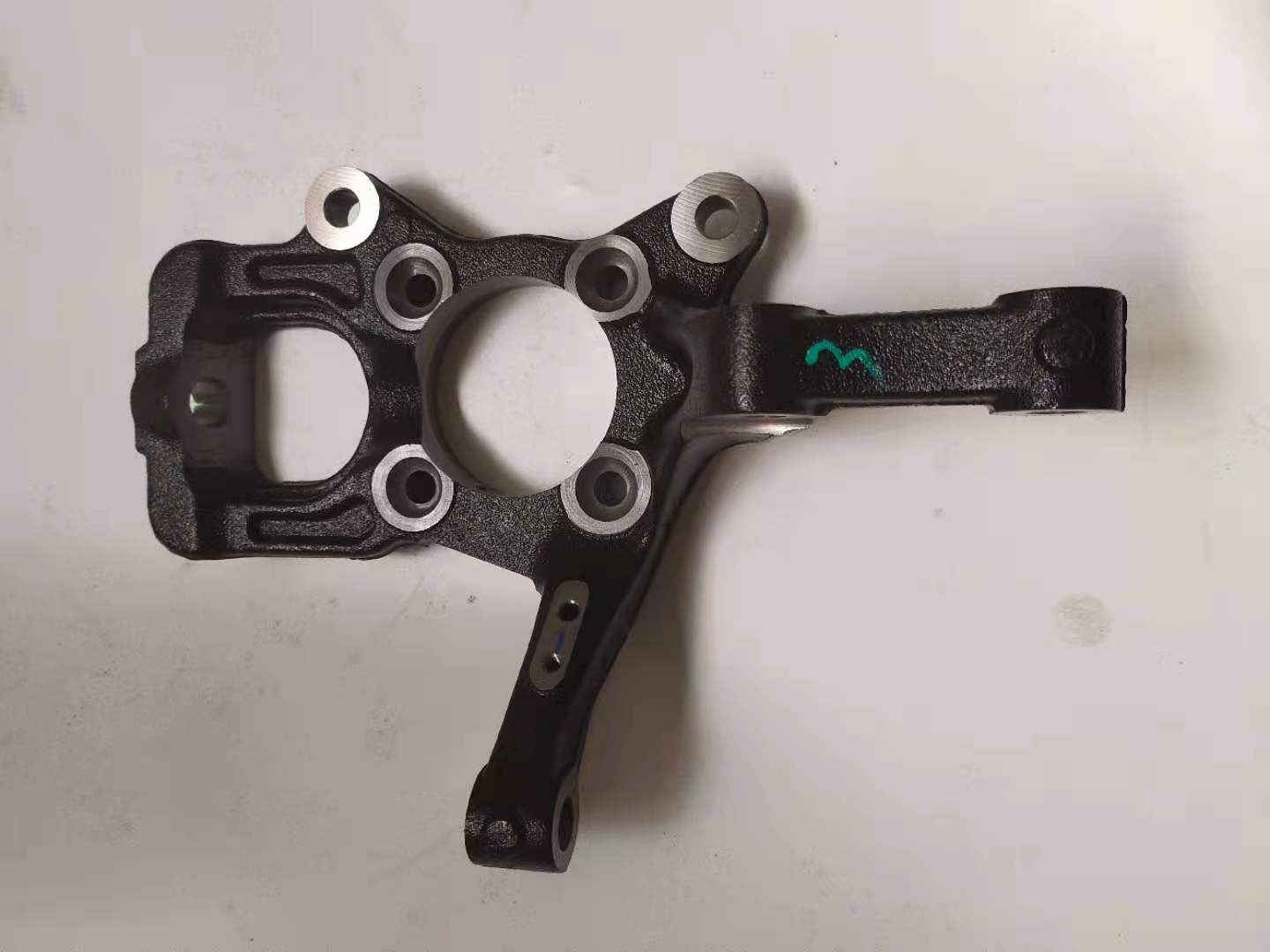

10094081 (1)
10094081 (2)

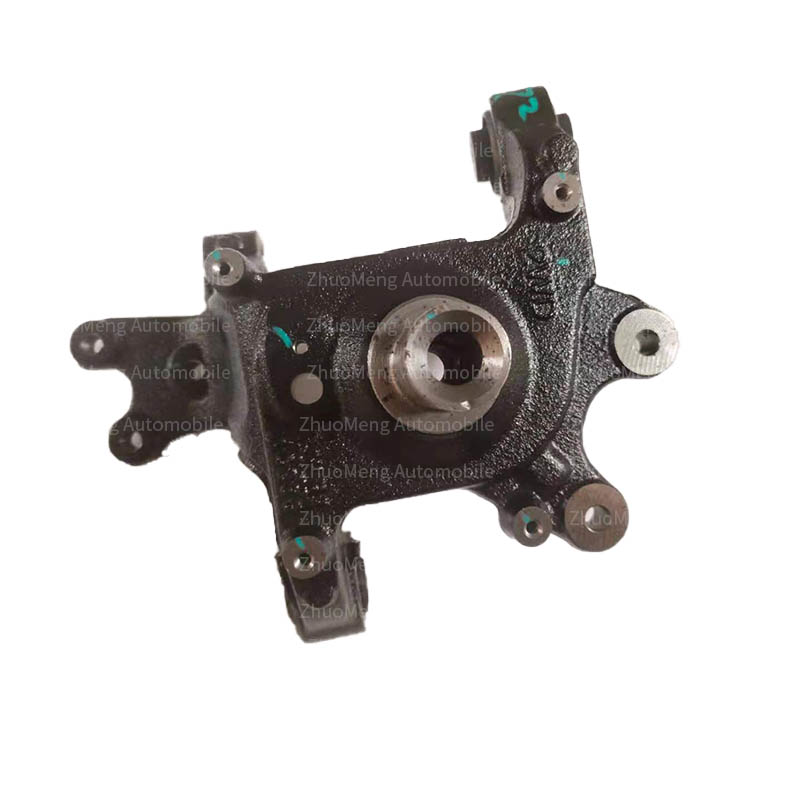

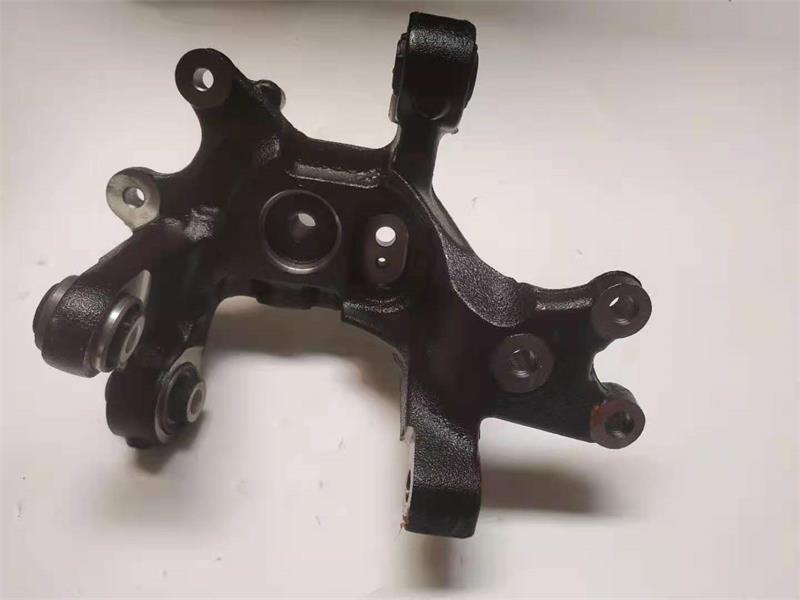

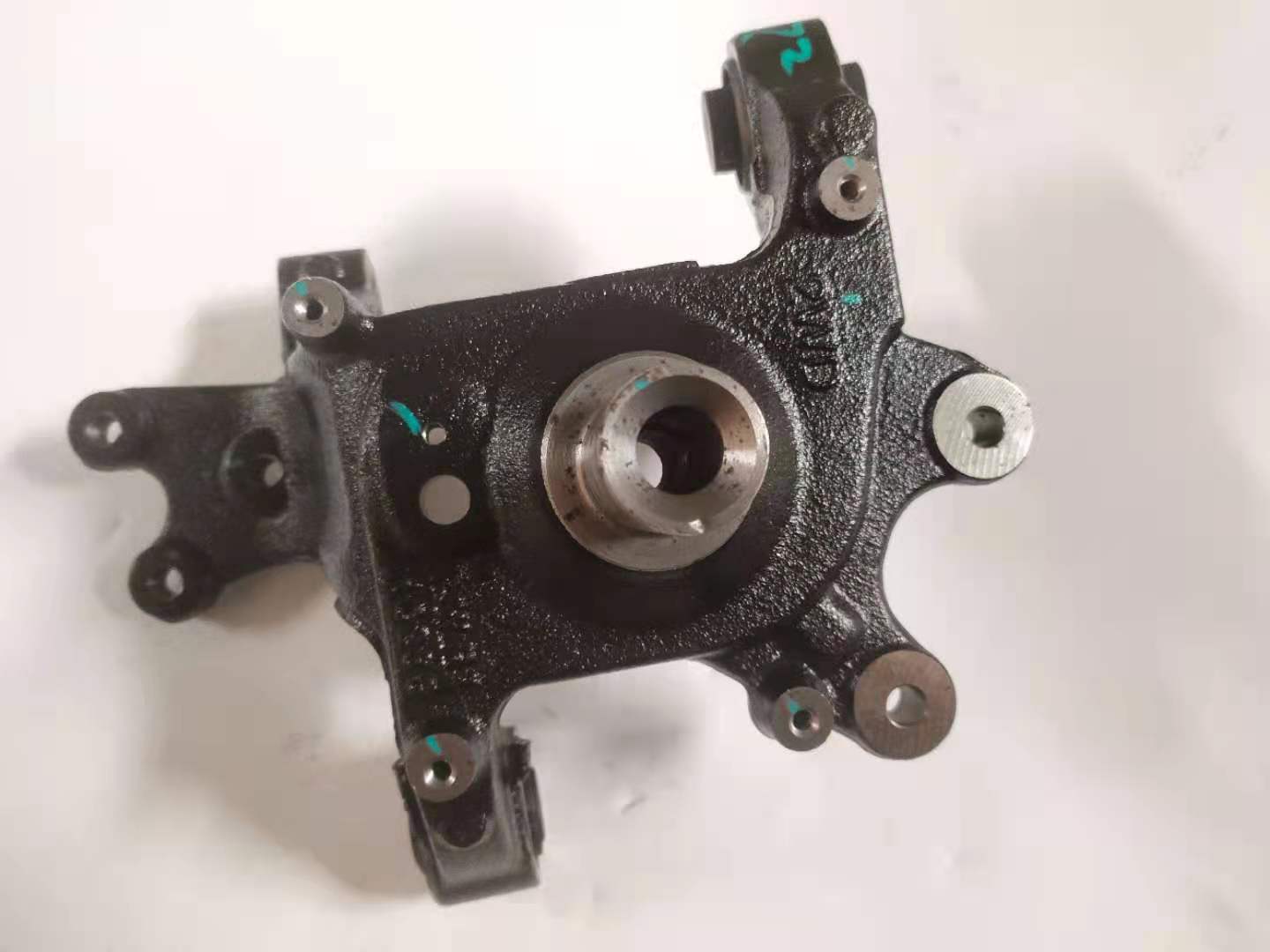

Rx5 rear steering knuckle rear horn 2WD L 10187241

1
2

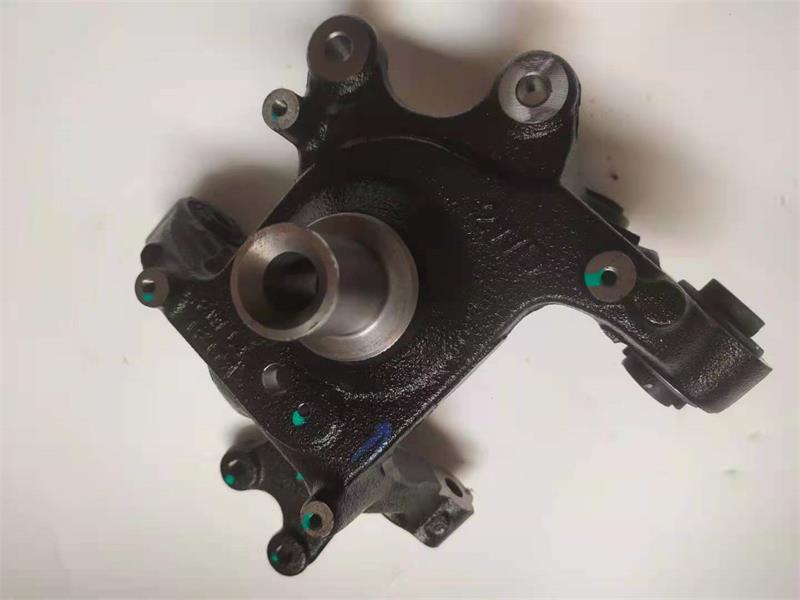

10187241 (1)
10187241 (3)

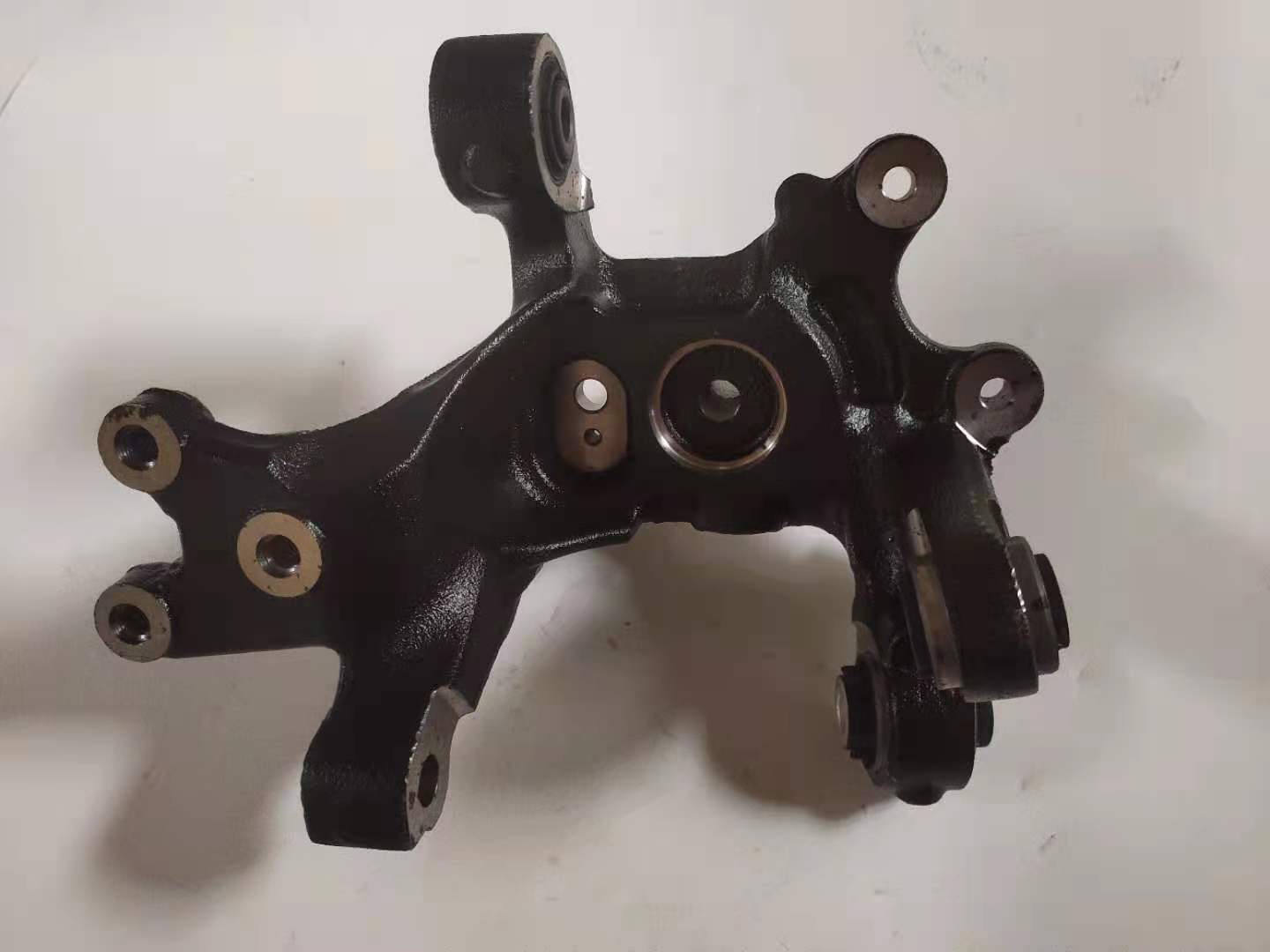

Rx5 rear steering knuckle rear horn 2WD R 10187242

1
2
10187242 (2)
10187242 (1)

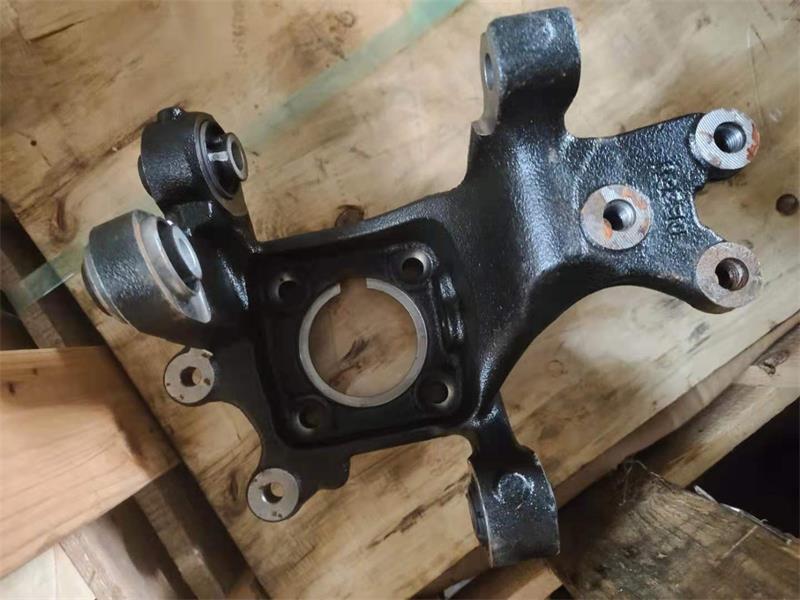

Rx5 rear steering knuckle rear horn-4wd-l 10187243

1
2

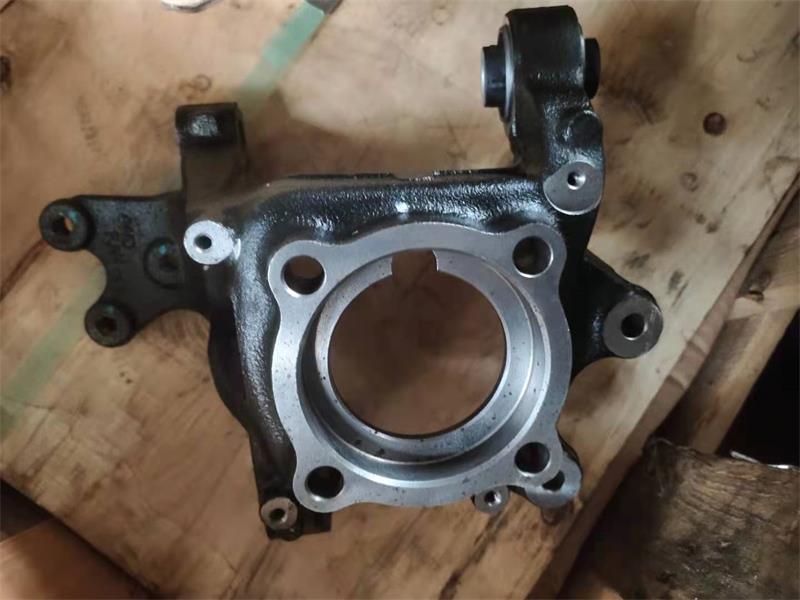

10187243
10187243(1)

Product knowledge

Steering knuckle, also known as "sheep horn", is one of the important parts of automobile steering axle, which can make the automobile drive stably and transfer the driving direction sensitively. The function of the steering knuckle is to transmit and bear the front load of the car, support and drive the front wheel to rotate around the kingpin to turn the car. When the vehicle is running, it bears changeable impact load, so it is required to have high strength.

The steering knuckle is connected with the vehicle body through three bushings and two bolts, and is connected with the brake system through the brake mounting hole of the flange. When the vehicle is driving at high speed, the vibration transmitted from the road surface to the steering knuckle through the tire is the main factor we consider in our analysis. In the calculation, the existing vehicle model is used to apply 4G gravity acceleration to the vehicle, calculate the support reaction force of the three bushing center points of the steering knuckle and the center points of the two bolt mounting holes as the applied load, and restrict the 123456 degrees of freedom of all nodes on the end face of the flange connecting the braking system.

Steering

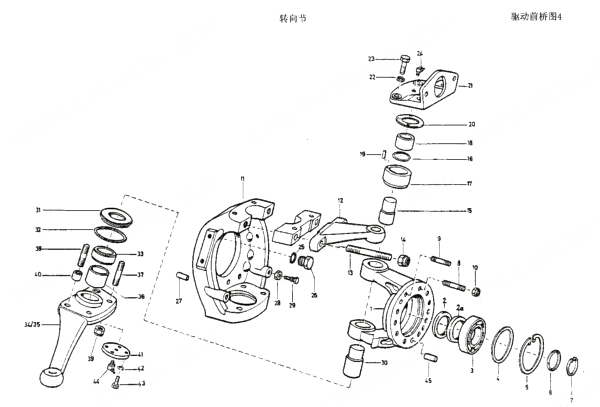

The shape of the steering knuckle is relatively complex, which focuses on the structural characteristics of four types of parts such as shaft, sleeve, disc ring and fork frame. It is mainly composed of three parts: supporting journal, flange and fork frame. The structural shape of the supporting journal is a stepped shaft, which is characterized by a rotating body composed of a coaxial cylindrical surface, a conical surface, a threaded surface, and a shaft shoulder, a transition fillet and an end face perpendicular to the axis line; The flange plate comprises a flange surface, evenly distributed connecting bolt through holes and threaded holes for steering limit; The fork frame .
