What is the rear door fender of a car?
The "rear door fender" of a car is not a standard term. It actually refers to the area above the rear wheels (including the rear side panels and wheel wells), which is a semi-circular structural part designed to accommodate the rotation of the rear wheels and protect the vehicle body.
Professional definition: The fender refers to the semi-circular cavity above the tires that houses the rotation of the wheels and its covering structure; corresponding to the body outer panel, it is called the rear side panel, and the external covering parts are often called the wheel well.
Position characteristics: It is located behind the rear door and directly above the rear tires. It is usually the widest part of the vehicle body's side panel, which can assist in determining the position of the rear wheels.
Main functions: It blocks the sand, mud, and water splashed by the rear wheels from eroding the vehicle body, optimizes the airflow to reduce wind resistance, and the internal lining can buffer impacts and reduce scratches.
Material composition: The outer panel is mostly made of metal or engineering plastic that is integrally stamped with the vehicle body, and the wheel well is often made of black matte engineering plastic or a painted part of the same color as the vehicle body.
In daily language, "rear wheel fender" is often mistakenly called "rear door wheel fender" because this part is close to the rear door tail, but structurally it belongs to the rear side panel category and has no direct connection to the door.
The rear door wheel fender is a combination of the vehicle body covering parts and the structural space. Its core function is to accommodate the movement stroke of the rear wheels, prevent the splashing of mud, water, and sand from corroding the vehicle body, optimize the airflow to reduce wind noise, and directly determine the shape of the rear door and the limit of the window raising and lowering due to the occupied space. Core function
Mechanical accommodation: Provides the physical space required for the up-and-down movement and steering of the rear wheels, preventing interference between the tires and the vehicle body.
Protection isolation: Blocks the mud, gravel, and rainwater rolled up by the tires during driving, protecting the internal structure of the doors, suspension components, and the paint surface from corrosion and wear.
NVH optimization: Combines with the inner lining materials to absorb tire noise, smooth the airflow in the wheel cavity, reduce wind noise, and improve driving quietness.
Shape restriction: Its arc-shaped structure intrudes into the lower space of the rear door, often resulting in the rear door being narrower at the bottom and wider at the top, which is the fundamental reason for some models' inability to fully lower the rear window glass.
Structural composition and precautions:

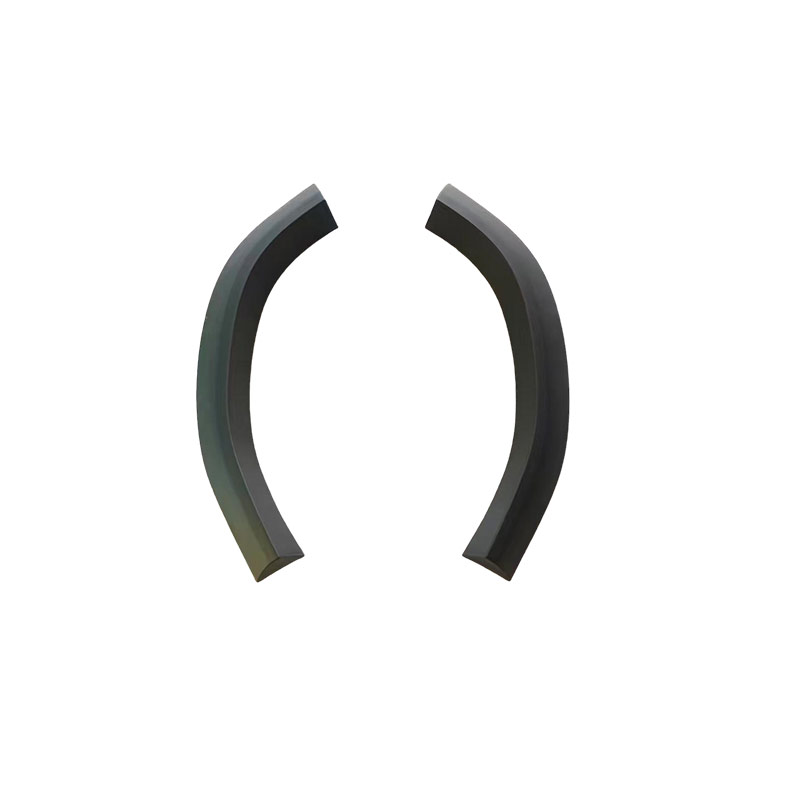

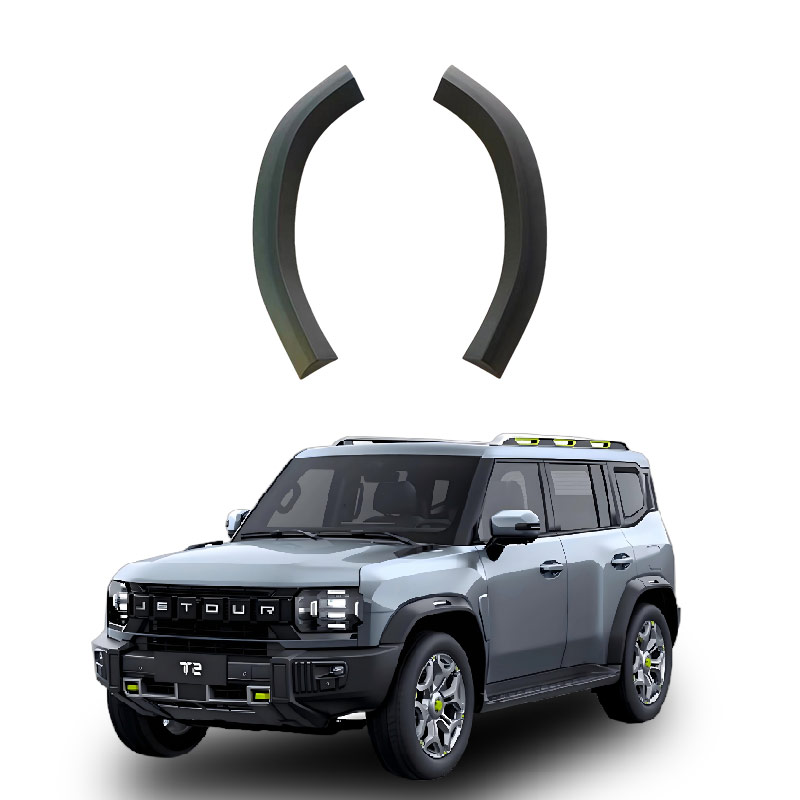

The wheel arch is typically composed of the external "wingside panel/wheel well" (metal or plastic covering) and the internal "wheel arch liner" (engineering plastic/rubber baffle). The external components focus on styling and basic airflow guidance, while the internal components focus on splash prevention and sound insulation. If the inner liner is damaged or missing, it will significantly increase the risk of chassis rust and interior noise.
"Car rear door wheel arch failure" is usually not a mechanical failure but a design phenomenon where the rear wheel arch encroaches on the door space, causing insufficient internal storage space and the glass being blocked by the structure. This is common in models with short wheelbases or those pursuing large wheel hub sports styling (such as Audi A7, etc.).
If it refers to the failure of wheel arch components (liner/wingside panel), damage, abnormal noise, or detachment, it is a physical damage that requires repair.
Core judgment and distinction:
Non-fault situation (design limitation): The rear window glass cannot be fully lowered. The reason is that the rear wheel arch is in the form of a circular arc and intrudes into the lower part of the door, resulting in insufficient internal storage space and the glass being blocked by the structure. This is common in models with short wheelbases or those pursuing large wheel hub sports styling (such as Audi A7, etc.).
True fault situation (component damage): The liner of the wheel arch is cracked, loose, or detached, or there is abnormal noise at the wheel arch during driving, or debris is rolled into the chassis. The causes are mostly impact on potholes, aging and cracking, or loose screws, and require repair or replacement of the inner liner.
Misjudgment situation: The "wheel arch failure" is mistakenly referred to as caused by abnormal rear suspension (such as bearing damage, incorrect alignment) resulting in "wheel skew/swinging". This involves chassis safety and requires professional inspection.
Response plan:
If the glass cannot be fully lowered: It is a normal design and does not require repair; some models can solve this by installing a fixed triangular window, but it will change the appearance and increase costs.
If the inner liner is damaged or has abnormal noise: Minor cracks can be repaired with special glue; severe cracks, detachment, or causing abnormal noise at the wheel arch require replacement of the original factory inner liner at a regular repair shop to prevent the chassis from being corroded by mud and debris.
If accompanied by wheel skew/swinging: Immediately stop driving, check the suspension, bearings, and four-wheel alignment, and do not treat it as a common wheel arch problem.
