The rear bumper of the car - what is it made of?
"The rear bumper - frame" is not a standard term. It actually refers to the connection structure between the rear bumper frame (including the impact beam) and the vehicle body longitudinal beams/frame: the former is the internal metal support component of the bumper, and the latter is the main frame that bears the entire vehicle load. They are connected rigidly or in a crushable manner through energy absorption boxes or mounting brackets.
Core definitions and relationships

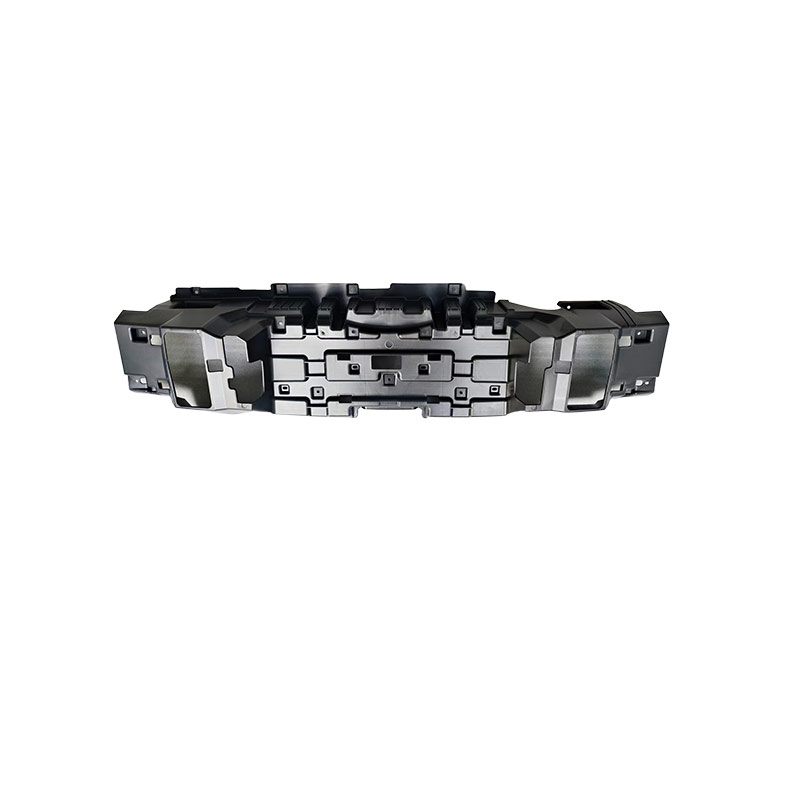

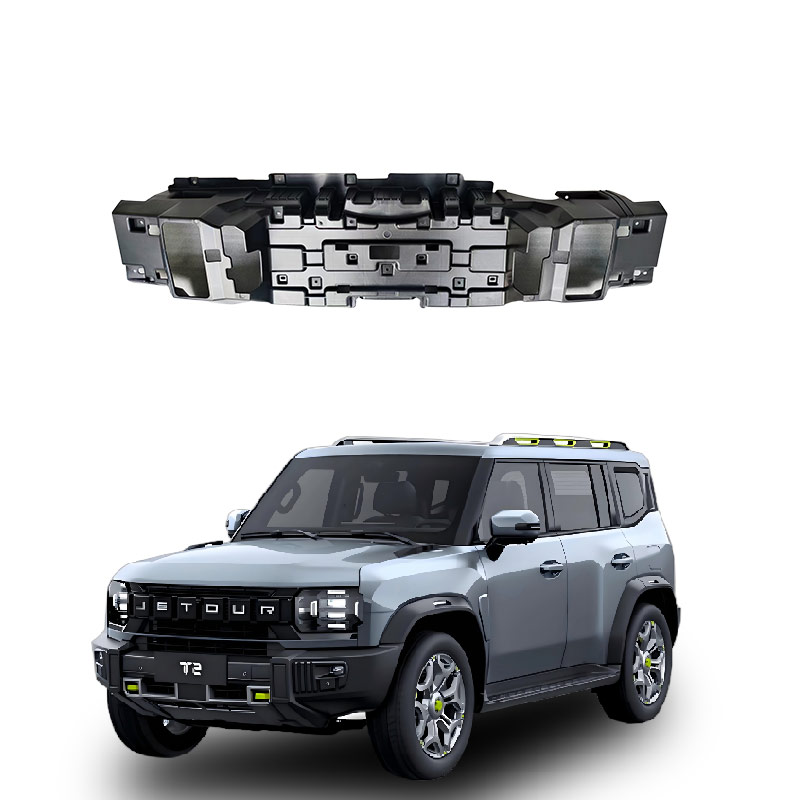

Rear bumper frame: Located inside the plastic outer cover, usually made of high-strength steel or aluminum, it includes the main beam of the impact beam and the impact boxes on both sides, responsible for energy absorption at low-speed collisions, maintaining the shape of the bumper, and transmitting the impact force.
Frame (body longitudinal beams): The main load-bearing structure of the vehicle. The rear longitudinal beams extend to the rear and are the ultimate bearers of collision energy; modern unibody vehicles without a separate main beam have the longitudinal beams regarded as part of the "frame".
Connection method: The two ends of the frame are fixed to the vehicle body longitudinal beams through energy absorption boxes (crushable metal parts) or mounting bracket bolts/welding during a collision. The energy absorption box deforms first to protect the longitudinal beams and the passenger compartment.
Key functional distinctions
Support and fixation: The frame ensures the precise position of the bumper outer panel and prevents sagging or abnormal sounds.
Low-speed energy absorption: In collisions at speeds below 15-20 km/h, the frame and the foam buffer layer absorb energy, reducing maintenance costs.
Force transmission path: Impact force → outer panel → frame/impact beam → energy absorption box → vehicle body longitudinal beams → the entire vehicle for dispersion.
Safety classification: The frame with only plastic/thin iron "sides" provides weak protection; a complete safety structure includes steel/aluminum impact beams + energy absorption boxes.
Common misunderstandings clarified
Not the "frame" itself: It is not equivalent to the chassis beam, but a safety component attached to the end of the frame/body longitudinal beams.
Frame ≠ impact beam: Strictly speaking, "frame" is a general term, some low-end vehicles only have plastic brackets without metal impact beams; the core of the protective capability is the metal impact beam assembly.
Historical evolution: In the early days, the rear bumper was directly riveted to the frame (steel channel steel); modern cars are mostly plastic outer cover + independent metal impact beam system, flexibly connected to the vehicle body.
If you need to query the specific model configuration, it is recommended to check the collision test report or disassembly evaluation of the vehicle to confirm whether it is equipped with a metal impact beam and energy absorption box structure.
The rear bumper and the frame of the vehicle are not directly rigidly connected; they are indirectly connected through energy absorption boxes/ribs, with the core function being "low-speed energy absorption to protect the vehicle, high-speed force transmission to protect the passenger compartment".
Core functional mechanism
Energy management: In low-speed collisions (usually <15-20 km/h), the plastic outer panel, foam buffer layer, and energy absorption box collapse to absorb energy, avoiding damage to the longitudinal beams and the main body of the vehicle; in high-speed collisions, after the energy absorption box completely collapses, the impact beam will transfer the remaining impact force to the vehicle body longitudinal beams, dispersing the load to protect the integrity of the passenger compartment.
Structural support and connection: The rear bumper frame (impact beam) serves as the main force-bearing component, fixed to the end of the vehicle body longitudinal beams through energy absorption boxes via bolts or welding, providing an installation base for the outer panel and converting local impact force into overall structural load.
Safety and protection: Preventing damage to key components such as the fuel tank and exhaust system due to rear-end collisions, reducing maintenance costs; some designs also consider pedestrian protection, reducing the injury to the pedestrian's legs.
Structural composition and connection logic
Outer panel: Engineering plastic (PP/EPDM), mainly serving decoration, air flow guidance, and initial buffering, almost not bearing weight.
Buffer material: Foam or honeycomb structure, assisting the outer panel in absorbing minor impacts.
Impact beam (rib): Steel or aluminum U-shaped channel, providing rigid support, being the main force transmitter.
Energy Absorption Box: Located between the crossbeam and the frame longitudinal beam, it undergoes controlled collapse through preset folds and is a key component for "protecting the vehicle body".
Connection Method: The outer panel is fastened or bonded to the crossbeam → The crossbeam is connected to the frame longitudinal beam via the energy absorption box bolts (not directly welded, facilitating replacement and energy absorption).
Key Difference Explanation
Modern passenger cars are mostly of the monocoque body type, without independent main beams. "Frame" refers to the body longitudinal beam structure. The rear bumper system does not directly bear the vehicle's driving load. It only intervenes in operation during the collision moment; if the bumper is rigidly welded directly to the frame (as in some old-style trucks or modified vehicles), the collision energy cannot be absorbed, and the impact will directly hit the vehicle structure, thereby increasing the difficulty of maintenance and the risk to passengers.
