What is the arched shape of the front wheels of a car?

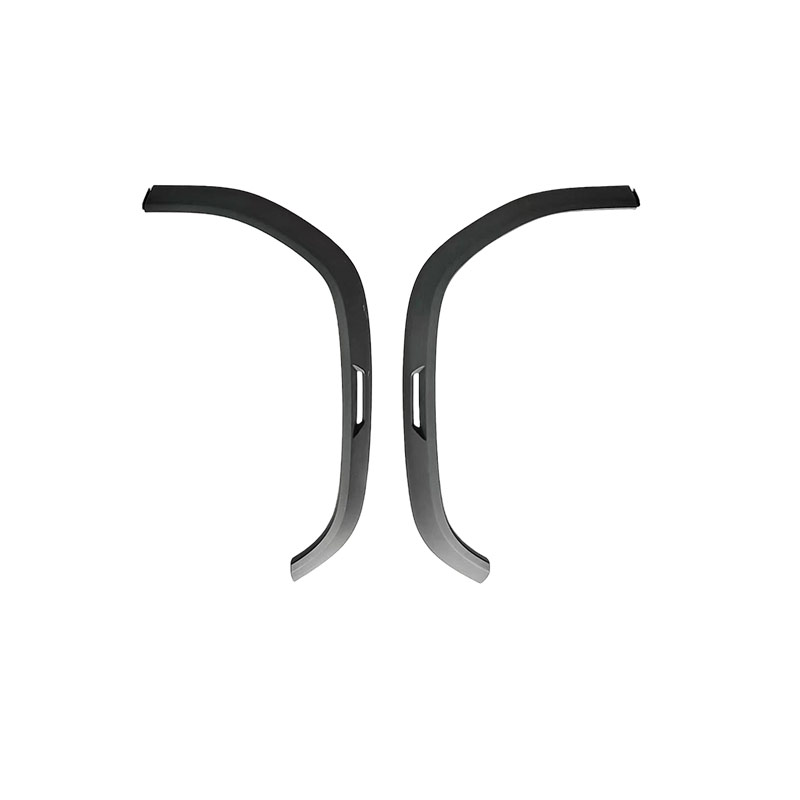

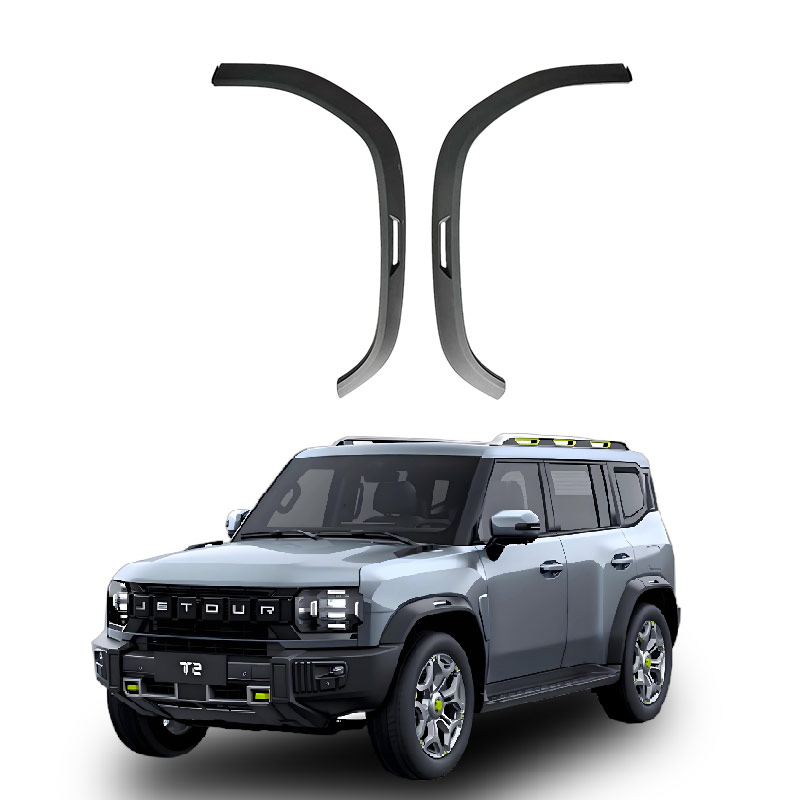

The arched shape of the car's front wheel refers to the front wheel arch (the area of the wheel arch) and its covering components, namely the front fender (outer panel) and the front wheel arch liner/hood (inner guard). It is an arched body structure that wraps around the top of the front wheel.
Front fender: The metal/composite outer panel of the vehicle, located above the front wheel side, resembling a bird's wing, is connected to the vehicle and mainly serves the functions of covering, aesthetics, and aerodynamics.
Front wheel arch liner (hood/inner liner): A plastic/rubber arc-shaped guard plate located on the inner side or edge of the fender, directly adhering to the tire contour, is used to prevent mud, sand, and debris from splashing, reduce noise, and prevent foreign objects from entering the engine compartment.
Structural relationship: "Wheel arch" is the arched space or contour line that accommodates the rotation of the wheel, while the front fender constitutes the external visible part, and the wheel arch liner is the internal protective covering component. These three are often collectively referred to as "wheel arch" or "hood".
The design of this area needs to reserve space for the limits of wheel steering and bouncing (verified through the "wheel bounce diagram"), to avoid interference during driving; the materials are mostly modified PP, FRP, or engineering plastics, with both weather resistance and noise reduction functions.
The core function of the car's front wheel arch shape (including the fender arch area and liner) is to reserve space for wheel movement, block mud, water, and sand from splashing, optimize airflow to reduce wind resistance, and assist the structure in resisting impact.
Core function details
Motion inclusiveness: The arched curvature is strictly designed according to the "wheel bounce diagram" to ensure that the tire does not interfere with the vehicle body at the maximum steering angle and suspension up and down bouncing, guaranteeing steering safety and suspension travel.
Protection isolation: It blocks the mud, water, and sand rolled up by the tire from directly impacting the engine compartment, chassis wiring, suspension ball joints, and side skirt paint surfaces, preventing corrosion, rust, and component wear.
Aerodynamics: It guides the airflow smoothly around the wheel area, reducing turbulence and wind noise, and some designs can improve the stability at high speeds.
Structural support: The arched structure itself has mechanical advantages, and combined with the inner reinforcement, it can disperse road impact loads, enhancing the local body rigidity.
Key component distinction
Outer panel (fender): Metal or composite material shell, responsible for the appearance and basic mud protection, needs to reserve space for wheel movement.
Inner liner (wheel arch cover/liner): The plastic/composite layer located on the inner side or edge of the fender, is the key "invisible armor" that blocks mud from entering the engine compartment and corroding the chassis, and some contain sound insulation function.
"Car front wheel arch failure" is not a standard term; it usually refers to abnormal outward inclination of the front wheel (in the shape of an "eight"), bulging of the tire sidewall, or swaying during driving. The core cause is deformation or damage of suspension/steering components, failure of the tire structure, or incorrect four-wheel alignment.
Core failure manifestations and corresponding causes
Visual "eight-shaped" deviation or skew of the wheel: Mostly caused by impacts resulting in bent steering knuckles, deformed lower arm links, loose ball joints, or failure of shock absorbers/springs, changing the camber angle and toe-in values.
Tire sidewall "bulging" and bulge: Due to the failure of the tire's cord or rubber layer, often caused by strong impacts (over potholes, hitting curb), low tire pressure, or quality issues, it is irreparable and requires immediate replacement.
High-speed front wheel swaying/steering wheel shaking: Resulting from hub deflection, off-balance, wear of the tie rod ball joint, or incorrect alignment parameters. Long-term driving on arched roads may exacerbate wear but is not the direct cause.
Emergency handling and maintenance steps
Immediately stop and inspect: If you find a bulge in the tire, significant skew of the wheel, or severe deviation or shaking during driving, do not continue long-distance or high-speed driving to prevent tire blowout or loss of control.
Basic self-inspection: Observe if the tire has any bulges or cracks, check if the tire pressure is consistent, and observe if the hub has any obvious impact deformation. Professional Diagnosis: It is necessary to go to the repair shop for a chassis lift inspection (to check the gap and deformation of the suspension parts), four-wheel alignment testing (to correct the camber and toe-in), and dynamic balance calibration.
Repair Plan: The deformation of the suspension parts needs to be replaced rather than corrected; the bulging of the tires must be replaced with new tires; the misalignment needs to be adjusted and the root components need to be investigated.
Such problems involve safety (driving safety). Do not attempt to reset by knocking or ignore small deformations. It is essential to have professional technicians use instruments to detect and determine the specific damaged components.
