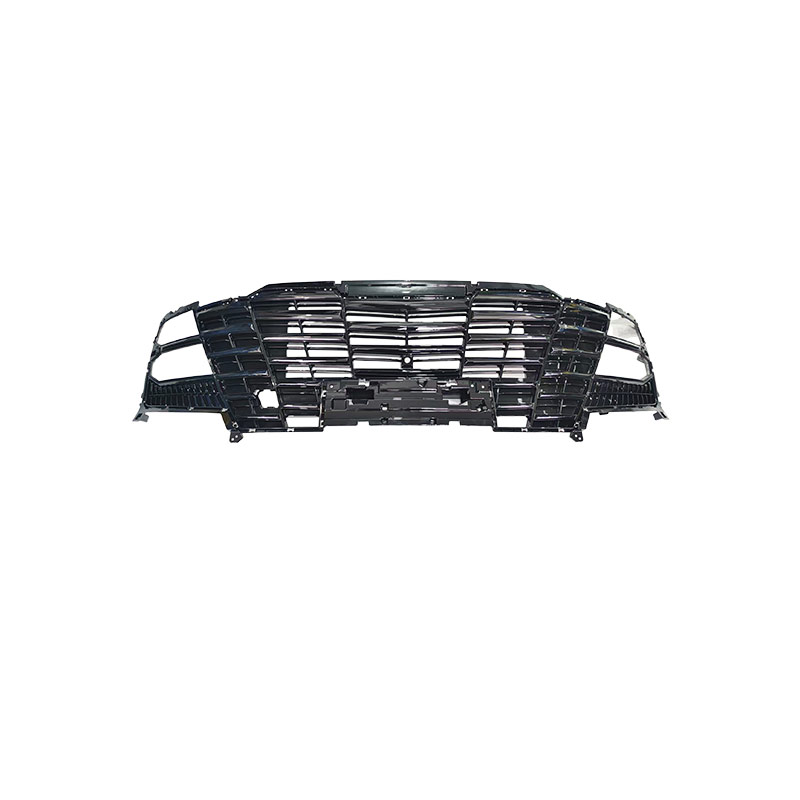

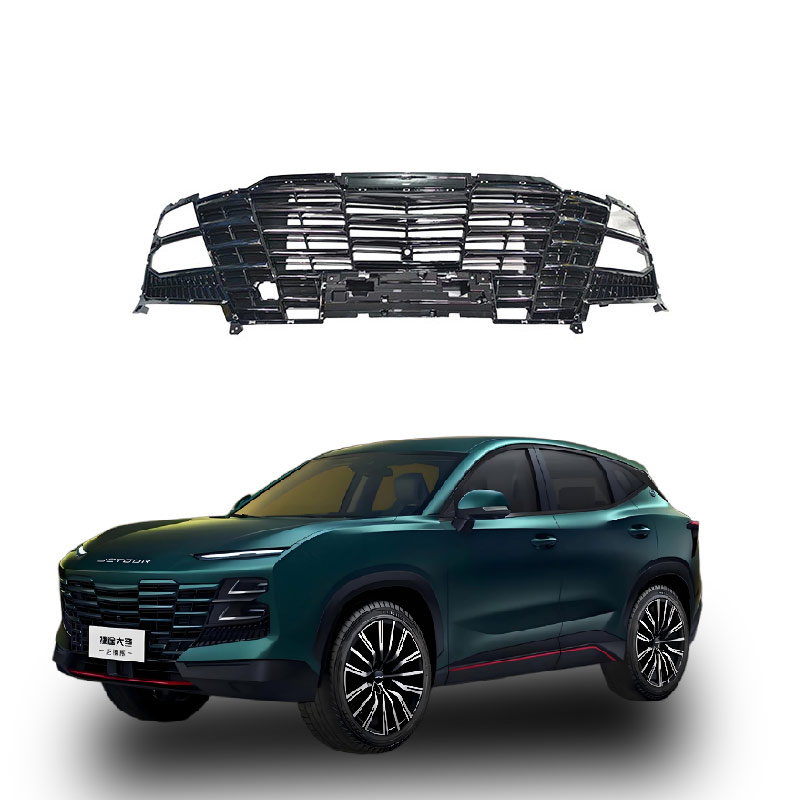

The function of the car bumper grille
The core function of the car bumper grille is to guide airflow for cooling, prevent foreign objects, optimize aerodynamics, and shape the brand appearance.
Core Function Analysis
- Cooling and ventilation: As the main air intake channel, it guides cold air into the engine compartment to cool the water tank, condenser, oil cooler, and braking system (for some models, the grille is dedicated for this purpose). This ensures the efficient operation of the thermal management system.
- Physical protection: The grid structure blocks road debris, insects, branches, and large objects, preventing them from directly impacting and damaging the vulnerable radiator core and internal pipes.
- Aerodynamic optimization: Through specific shape and angle design, it guides the airflow over the front of the vehicle, reducing underbody turbulence and drag, improving driving stability and assisting in reducing fuel consumption; some high-end models are equipped with an "active grille", which can automatically open and close based on temperature to balance cooling and drag.
- Aesthetics and identification: It forms the visual core of the vehicle's "front face", reflecting the family design language through unique grid textures, sizes, and materials, strengthening brand recognition.
Additional Explanation
- Active technology: Modern vehicles often use motor control for blade opening and closing. During cold start, the motor is closed to quickly warm up, and it opens at high speeds or high temperatures to enhance cooling, balancing energy efficiency and lifespan.
- Maintenance Tips: Regularly clean debris such as mosquitoes, willow fluff, or dirt to prevent airflow obstruction and engine overheating; when installing a protective net, ensure the mesh density does not affect the original vehicle's cooling requirements.
Common faults of the car bumper grille usually include damage to the active intake grille motor, blade jamming, wiring/communication faults, or sensor abnormalities. They are often accompanied by engine fault lights, slow warming of the cold engine, high-speed drag, or reduced air conditioning cooling efficiency.
Core Fault Phenomena and Causes
- Instrument alarm: Engine fault light is on, common fault codes include P059F (valve performance), P16E8 (LIN communication fault).
- Physical jamming: The blade cannot open or close due to water ingress, sand, frost, or mechanical deformation, and manual manipulation can detect resistance.
- Electrical failure: Motor burnout, LIN bus communication interruption, power/ground circuit breakage or short circuit.
- Signal misjudgment: Abnormal data from the coolant temperature sensor causes the computer to incorrectly control the grille action.
Main Function and Fault Impact
The active intake grille is not merely decorative; its core function is to intelligently regulate the intake air volume: it closes during cold start to quickly raise the water temperature (reducing wear and emissions), opens during high temperatures or heavy loads to ensure cooling, and closes during high speeds to reduce drag and fuel consumption. Faults can lead to slow warm-up of the heater, increased fuel consumption, increased risk of engine overheating, or reduced air conditioning cooling efficiency.
Troubleshooting and Repair Suggestions
- Diagnostic reading: Use a dedicated diagnostic computer to read fault codes and data flow, perform "action test" to drive the grille open and close, and observe if it responds.
- Visual inspection: Remove the front bumper (for some models, only the guard plate needs to be removed), check if the blade is blocked by foreign objects, broken, or the motor gear is slipping.
- Circuit measurement: Measure the voltage of the motor plug power, ground, and signal lines; if the lines are normal but the motor does not operate, it is usually a damage to the motor assembly.
- Repair plan:
- Jamming clearance: Clear foreign objects and lubricate the rotating shaft; if the blade is deformed, replace the assembly.
- Component replacement: Motor damage usually requires replacing the grille assembly (most original models are integrated); some models can replace the motor alone.
- System matching: After replacement, perform computer initialization/matching learning; otherwise, the fault light may not go out.
