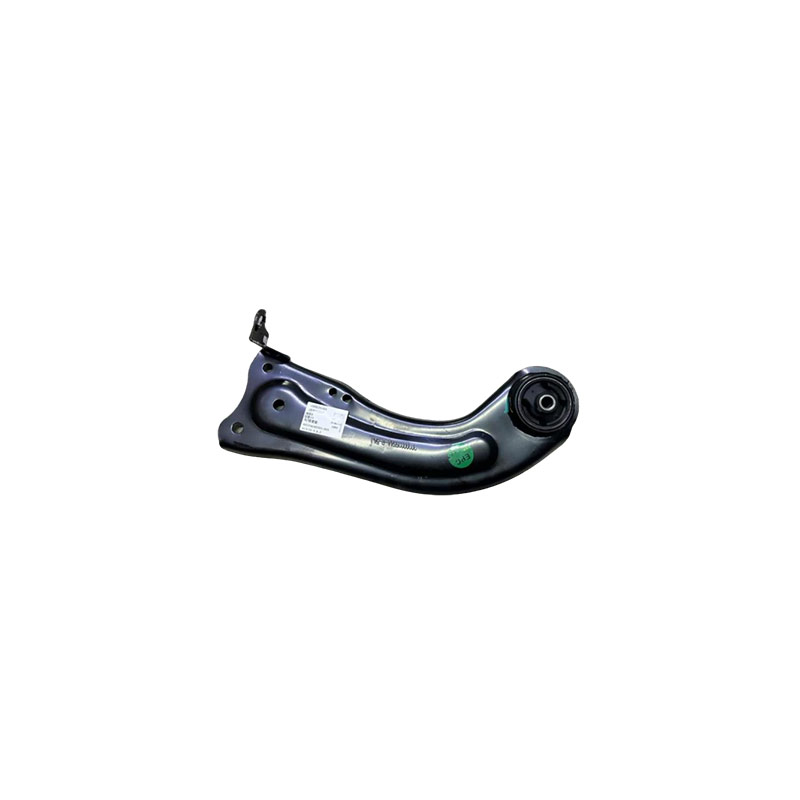

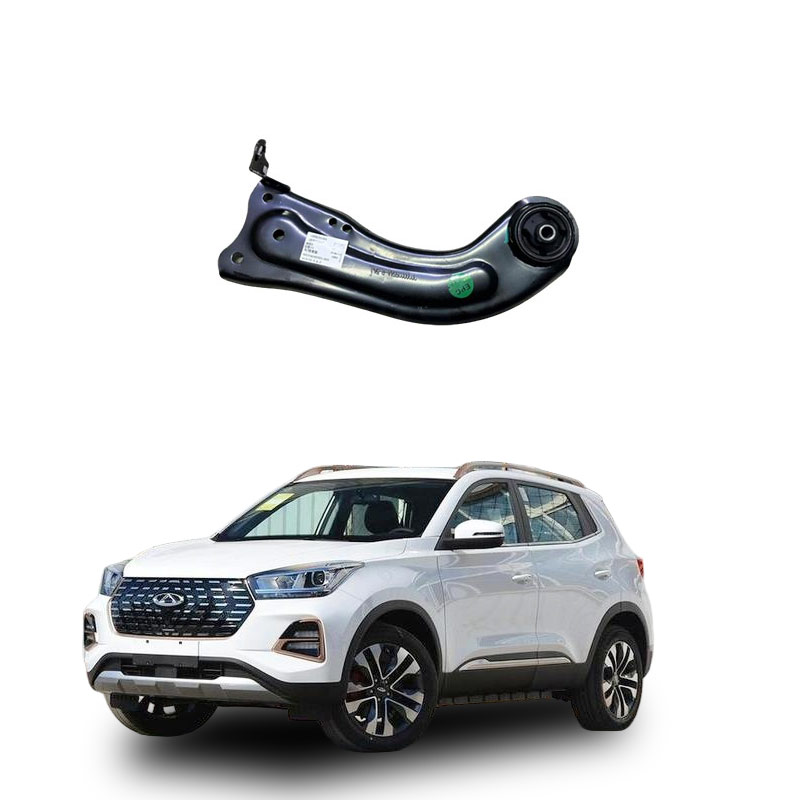

What is the rear upper control arm assembly (common for both left and right sides)?
The rear upper control arm assembly (common for both left and right sides) refers to the suspension control arm component installed on the rear axle of the vehicle and located above the wheels. It has the same structure on both sides and can be interchanged, belonging to a key force-transmitting and guiding component in the vehicle's suspension system.
Core Definition and Function
Chinese Name: Control Arm (also known as swing arm, suspension arm, or connecting rod)
English Name: Control Arm
Discipline: Mechanical Engineering / Automotive Engineering
Year of Publication: 2013
The rear upper control arm assembly usually connects the wheel steering joint with the vehicle body subframe or frame. Its main functions include:
Constraining the wheel's movement trajectory, ensuring the wheels jump up and down along the designed trajectory;
Transmitting longitudinal, lateral, and vertical forces, such as during acceleration, braking, and turning;
Optimizing the tire's contact state, enhancing grip and driving stability;
Absorbing road impacts, buffering vibrations through rubber bushings or hydraulic bushings, improving comfort .
The meaning of "left and right common"
It indicates that the left and right rear upper control arms of the same model have exactly the same structure, size, and installation holes, and can be interchanged for use;
It is commonly seen in symmetrical rear suspension designs (such as multi-link, double wishbone, or certain torsion beam structures);
During maintenance or replacement, there is no need to distinguish left and right, simplifying spare parts management and assembly processes .
Typical Structure and Materials
Structural Form: Mostly A-shaped (fork-shaped), L-shaped, or straight-line type ;
Materials:
High-strength steel (such as FB780);
Aluminum alloy (lightweight);
Hollow casting (weight reduction) ;
Connection Method:
One end is hinged to the steering joint through a ball joint;
The other end is flexibly connected to the vehicle body through a rubber bushing or hydraulic bushing .
Common Problems and Replacement Suggestions
Damage Manifestations:
Chassis abnormal noise (especially when passing over减速带)；
Vehicle drift；
Steering wheel shaking；
Abnormal tire wear ；
Suggested Inspection Mileage： Check the condition of the bushing and ball joint every 6–8 thousand kilometers ；
Required after Replacement： Four-wheel alignment to restore the correct wheel geometry parameters .
Reference Examples
BYD Qin Pro： After replacing the original factory rear control arm assembly， the chassis tightness was significantly improved， and the "clunking" sound when passing over减速带 disappeared；
Wuling Hongguang S： The aging of the rear upper control arm (commonly known as "lower arm") would cause the vehicle to drift during turning， and the tires would wear unevenly on the inner side. Replacing it improved the tracking performance ；
Tianla (2008–2012 models)： The upper swing arm bushing was loose， causing "rear wheel drift"， and replacing the matching original factory geometry assembly could significantly improve the stability of high-speed lane changing .
The rear upper control arm assembly (common for both left and right sides) is a key component of the vehicle's rear suspension system， connecting the wheels to the vehicle body， responsible for transmitting forces， maintaining wheel alignment， and absorbing road impacts. Its failure can significantly affect driving safety and handling stability.
Common Fault Phenomena
Chassis Abnormal Noise： Abnormal noise when passing over减速带， rough road， etc.， mostly caused by aging rubber bushings and worn ball joints .
Abnormal Steering Control：
Vehicle drift， requiring frequent correction of the steering wheel；
Reduced stability during high-speed driving， steering drifting or failure ；
Steering wheel shaking， especially at high speeds .
Abnormal Tire Wear： Deformation of the control arm or damage to the bushing causing abnormal wear on the inner or outer side of the tires (commonly known as "tire wear") .
Suspension System Instability： In severe cases， insufficient suspension support causes increased vehicle body shaking， and the braking distance may increase .
Main Causes of Failure Rust on rubber bushings: As mileage increases (typically over 80,000 kilometers) or the vehicle's service life extends (5-8 years), the rubber naturally ages and cracks.
External force damage: Damage from bottoming out, scraping the curb, hitting potholes, etc., causes the arm body to deform or the ball head to be damaged.
Corrosion: Long-term driving on wet, muddy, or salt-sprayed winter roads accelerates the rusting of metal parts.
Manufacturing defects: In rare cases, there may be batch-specific material or process issues, such as structural tearing of the rubber sleeve.
Handling suggestions
Immediately stop using and tow for repair: If there is severe deviation, frequent abnormal noises, or a loose feeling of the chassis, it is not recommended to continue driving. There are safety hazards, and you should contact rescue services.
Professional inspection:
Lift the vehicle, visually inspect the control arm for cracks or deformations;
Check if the bushing is cracked or has come loose, and if the ball head is loose;
Use a crowbar to test if there are any abnormal gaps in the tires.
Repair plan:
Minor wear and tear: Only replace the bushing (some models support this, and the cost is lower);
Serious damage (cracks, deformations, ball head fracture): Must replace the entire control arm assembly.
After replacement, it is necessary to perform four-wheel alignment: The control arm is a key component for alignment, and if not recalibrated after replacement, it will cause accelerated tire wear and control problems.
Selection and replacement precautions
Part selection: Prefer original factory parts or well-reputed brands (such as Vika uses forged aluminum + original rubber formula) ； Avoid getting overly cheap and ensure safety.
Applicability of left and right universal parts: Confirm whether the vehicle model is truly "left and right universal". Some models are labeled as universal, but the installation holes or angles may vary slightly. It is necessary to check the part number.
Maintenance channels: It is recommended to choose a regular repair shop or 4S store to ensure the correct torque during disassembly and assembly (for example, the tightening torque of the control arm on Audi A4L is 40N.m + 50N.m + 90°).
Special reminder: The control arm failure is concealed. In the early stage, it may only manifest as slight abnormal noise or "slight drifting" of the steering wheel. But once it worsens, it is very likely to cause loss of control. Regularly inspect chassis components, especially after driving over 80,000 kilometers or after the vehicle has been in use for more than 5 years, it should be included in the regular maintenance items .
