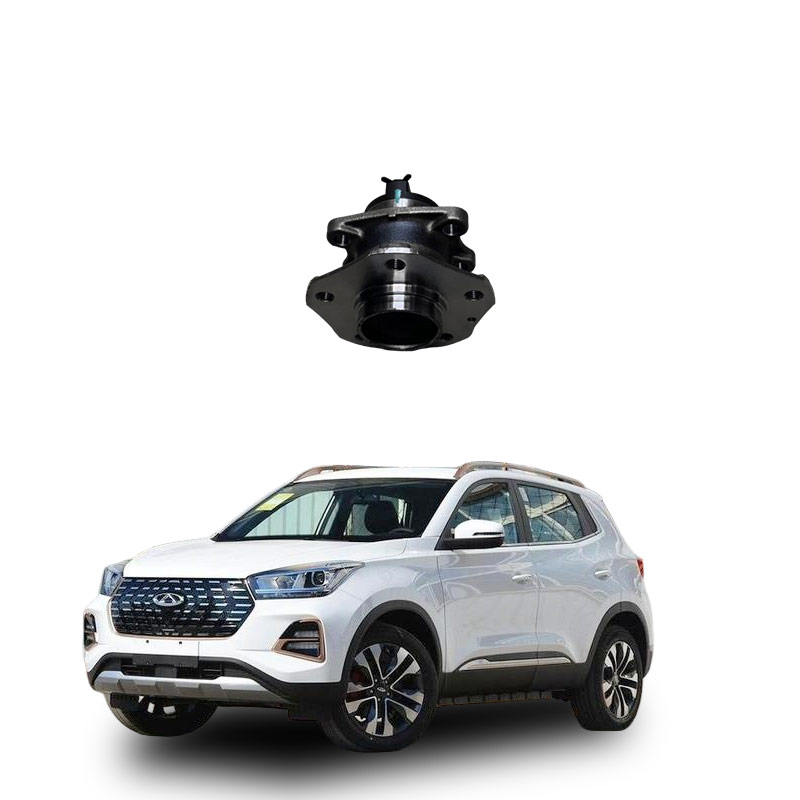

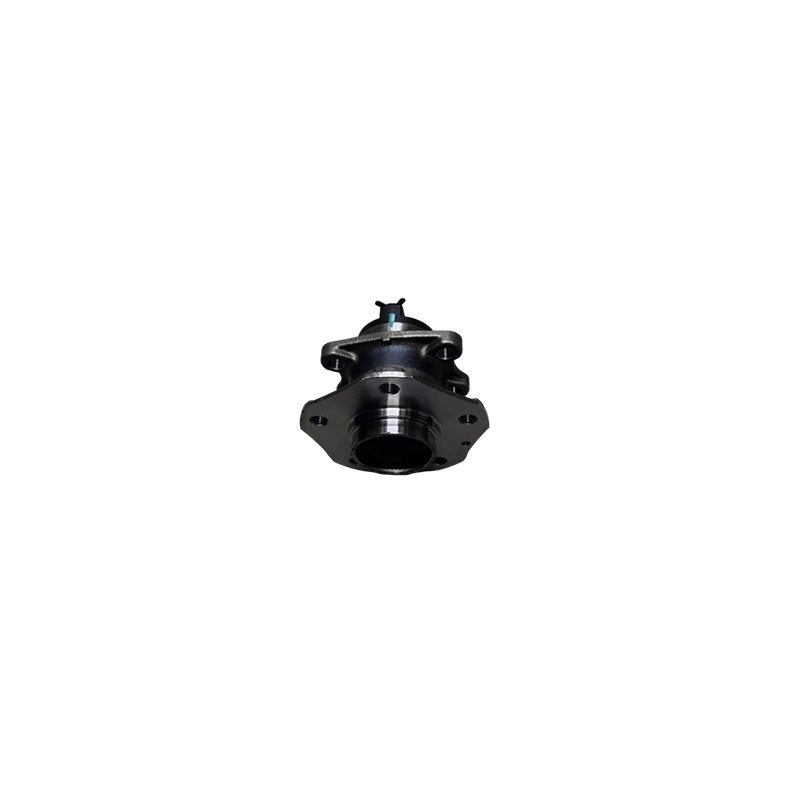

What is an automotive bearing assembly?
The automotive bearing assembly is a highly integrated and modular rotating support component in modern automobiles, mainly used to connect the wheels with the steering knuckle (or transmission shaft), bearing the radial load (vertical body weight) and axial load (lateral force during turning, crossing potholes), while ensuring that the wheels rotate smoothly, with low friction and low noise.
Core features
Modular design: Integrates the bearing body, inner and outer rings, rolling elements (such as steel balls or rollers), seals, lubrication system, shaft head, even ABS sensors, etc. into one unit. Pre-tightening force calibration and dynamic balance correction are completed before leaving the factory.
High precision manufacturing: Uses high-carbon chromium bearing steel (such as GCr15) for heat treatment, with hardness reaching HRC60–65, combining fatigue resistance and wear resistance.
Strong sealing protection: Generally uses double lip rubber sealing rings + labyrinth type dustproof structure to effectively prevent sand, moisture from entering, extending service life.
Safety critical component: Directly affects steering stability, braking response, tire wear uniformity and high-speed driving safety.
Main functions
Supports the wheels and transmits power (front-wheel drive models)
Withstands vehicle weight and dynamic loads
Reduces rotational friction, improves fuel economy
Provides speed signals for electronic systems (some integrated sensors)
Reduces vibration and abnormal noise, improves ride comfort
Common types and matching examples
Wheel hub bearing assembly: Used at the wheel end, such as Guangqi Tongmei Rui Ling (part number 42450-05080), Toyota WISH (42450-20080), etc.
Transmission shaft mid-bearing assembly: Used in rear-wheel drive or four-wheel drive vehicles, providing support and vibration reduction functions.
Front wheel unit bearing shaft head assembly: Widely used in Honda, Ford, Changan and other front-wheel drive models, emphasizing high concentricity and pre-tightening accuracy.
Maintenance and replacement suggestions
Check cycle: Check the sealing and lubrication status every 30,000 kilometers; it is recommended to consider replacing at 8–100,000 kilometers or when replacing the brake disc.
Replacement principle: Replace both sides simultaneously, avoiding uneven force; preferentially choose original factory-level products certified by ISO/TS 16949.
Fault symptoms:
Buzzing abnormal noise (increases with vehicle speed)
Steering wheel shaking or seat vibration
Unilateral abnormal tire wear
ABS alarm or steering not returning to normal
Low-quality bearing assemblies may cause hub detachment, brake failure, etc., leading to serious safety hazards. It is essential to choose products from official channels, with clear labels and installation parameters (such as torque, lubrication requirements).
After the automotive bearing assembly is damaged, corresponding handling measures should be taken based on the degree of damage and the specific model. The following is a response plan based on authoritative public information:
Whether to replace
Minor wear (such as slight scratches on the surface, insufficient lubrication): Can try cleaning + replenishing high-quality lubricating grease, but the effect is limited, only for temporary treatment.
Severe damage (abnormal noise, shaking, jamming, track depression, cracks or deformation): Must replace the assembly, cannot be repaired, otherwise there are serious safety hazards such as hub detachment; must replace as a whole, not separately disassemble and replace the ball bearings; it is not allowed to replace the bearing assembly alone.
Special reminder: The wheel bearing assemblies of new energy vehicles (such as Aion) usually integrate wheel speed sensors, cannot disassemble and replace the ball bearings alone, must replace the entire assembly.
Replacement operation steps (for ordinary fuel vehicles as an example):
Safety lift the vehicle: Use a jack or lift device to ensure stability.
Disassemble related components:
Remove the wheel;
Remove the brake caliper, brake disc (if necessary);
Disconnect the brake speed sensor wiring (pay attention to protection, especially for new energy vehicles); Remove the half shaft nut or fixing bolt. Remove the old bearing assembly:
Use a dedicated pulling tool or pressure device. Avoid violent knocking to prevent damage to the hub.
Install the new bearing assembly:
Must be pressed in vertically using a press machine to ensure no tilt.
All installation bolts should be tightened according to the original factory standard torque.
Reconnect the wheel speed sensor, braking system, etc.
Reassembly and testing:
Reinstall the wheel;
Perform four-wheel alignment (must be done after replacement to ensure driving stability);
Drive at low speed and check for any abnormal noises or if the ABS is working properly.
Suggested accessory selection:
Prioritize original factory parts or well-known brands (such as Cummins, etc.), as they are of reliable quality;
Avoid low-priced non-standard products, as they have short lifespan and pose safety hazards;
For electric vehicles, be sure to confirm that the bearing assembly is compatible with the wheel speed sensor interface.
Prevention and maintenance suggestions:
Check the bearing clearance and lubrication status every 20,000 kilometers;
Avoid long-term driving over uneven roads at high speed, and check the drainage holes promptly after driving through water;
Pay attention to whether there is a continuous "buzzing" sound during driving (especially above 80 km/h) or abnormal shaking of the steering wheel. Discover and address issues early.
