What is the steering knuckle assembly in a car?
The term "car internal pull rod assembly" is not commonly found in public materials, but when combined with the context and automotive technical terms, it usually refers to the mechanical pull rod assembly located inside the driver's cabin, used to operate the parking brake (i.e., handbrake), also known as the handbrake pull rod assembly.
Core Definition and Function
Function: As a key component of the traditional mechanical parking brake system, it converts the driver's pulling action of the parking handle through a steel cable or linkage to the rear wheel brakes (such as brake shoes or calipers), achieving reliable locking of the vehicle when stationary.
Structure Composition:
Handle (often with PVC coating)
Damping spring or elastic return mechanism
Positioning latch (lever mechanism that makes a "clicking" sound)
Travel adjustment nut
Wear-resistant sliding sleeve
Connection cable or linkage interface
Features:
Simple structure, direct response
Does not rely on electronic systems, can still operate in power failure, low-temperature and other extreme conditions
Low failure rate, but may have problems such as looseness, weak rebound or abnormal noise after long-term use
Differences from other "pull rods"
There are other types of "pull rod assemblies" in cars, which are easy to confuse, and it is necessary to pay attention to distinguishing:
• Steering cross pull rod/straight pull rod assembly: belongs to the steering system, connects the steering gear with the wheels, transmits steering force, located in the chassis, not inside the cabin.
• Suspension control arm (pull rod): belongs to the suspension system, connects the wheels with the body, used to stabilize the driving posture, also not inside the cabin.
• Handbrake pull rod assembly: the only one clearly located inside the cabin, specifically used for parking brake operation.
Common Problems and Maintenance Suggestions
Typical Fault Manifestations:
When pulled, it feels soft, "like pulling a rubber band"
Slow rebound or stuck in a half gear position
The "clicking" sound becomes dull or disappears
Maintenance Suggestions:
Regularly check the travel and rebound force of the pull rod
If the feel significantly deteriorates, it is recommended to replace the original or compatible assembly
After replacement, no modification of the interface is required, installation is ready, and it will not trigger the fault light

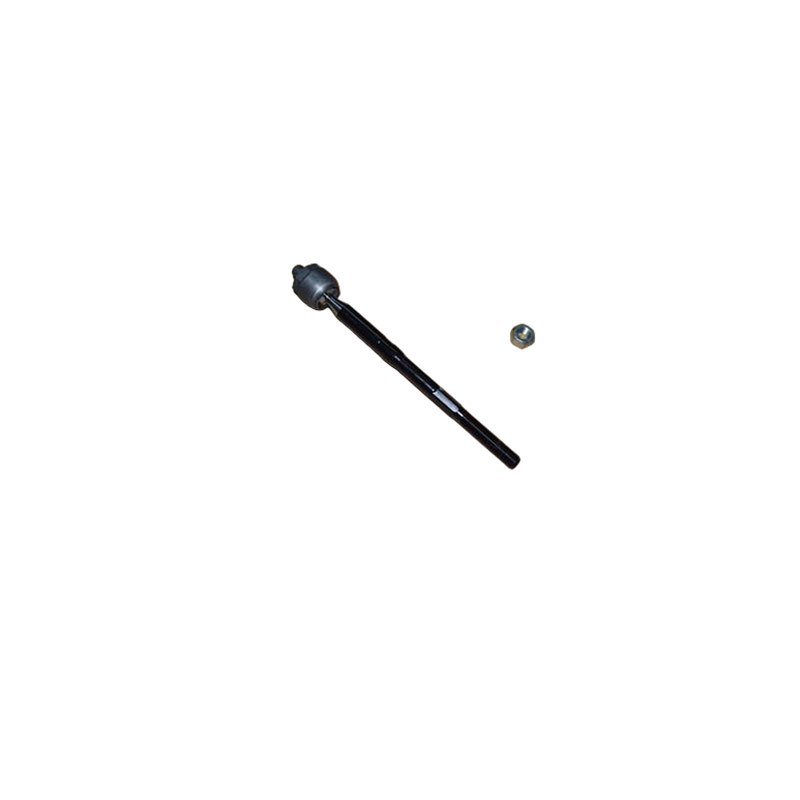

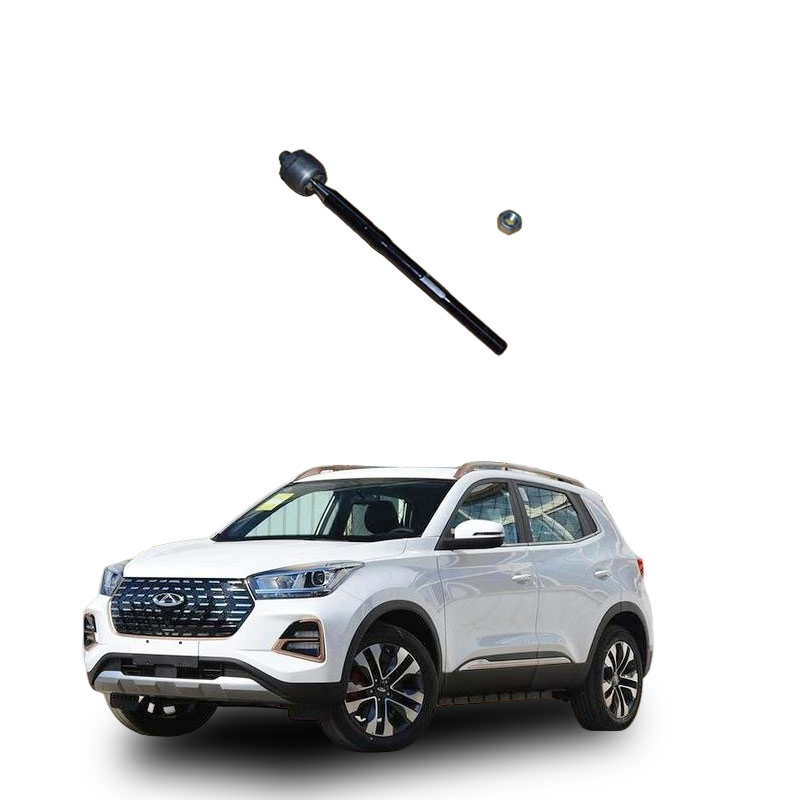

Car Internal Pull Rod Assembly (usually referring to the straight pull rod or the internal pull rod component in the steering system) is a key force transmission component in the vehicle's steering system, with the following functions:
• Transmitting steering force: Transmits the force generated by turning the steering wheel through components such as the steering gear, rocker arm, etc., precisely to the steering knuckle arm, driving the wheels to turn, achieving steering operation.
• Ensuring steering synchronization: In the steering trapezoid mechanism, the internal pull rod and the cross pull rod work together to ensure that the left and right wheels turn at different angles synchronously, avoiding "deviation" or steering lag.
• Enhancing handling response: Its rigid structure reduces the "false movement" of the steering wheel, making the steering response more sensitive and precise, especially in high-speed cornering or emergency lane changing, enhancing driving confidence.
• Absorbing road shock: Some internal pull rods integrate ball joints or rubber sleeves, which can buffer vibrations from the road, improving ride comfort and smoothness.
Note: In daily language, "internal pull rod" sometimes generally refers to the force transmission rod (i.e., straight pull rod) on the side of the steering gear in the steering system, rather than "external pull rod" (the cross pull rod connecting the steering knuckle). Their functions are clearly defined: The internal pull rod is responsible for force input transmission, and the external pull rod is responsible for the coordinated adjustment of the left and right wheels.
