What is the automotive fuel filter assembly?
The fuel filter assembly refers to a system composed of multiple components such as the fuel filter, oil pump, oil float, and wires, which work together to filter the fuel before it enters the engine, ensuring its cleanliness and protecting the engine and fuel supply system.
Main Components
The fuel filter assembly is not a single component but an integrated system consisting of several key components.
Fuel Filter (Filter Element): The core filtering component, usually made of filter paper (paper filter element) or metal, used to physically intercept impurities, moisture, and particles in the fuel.
Oil Pump: Responsible for transporting fuel from the fuel tank to the engine, often integrated with the filter (especially in integrated designs).
Oil Float: A sensor component used to monitor the fuel level in the fuel tank.
Wires and Other Connectors: Provide power and signal transmission for components such as the oil pump.
Functions and Effects
This system, through the collaboration of its components, achieves the following core functions:
Filtering impurities: Effectively remove harmful substances such as iron oxide, dust, moisture, and other solid particles from the fuel to prevent them from entering the precision components of the engine (such as fuel injectors, cylinder liners, piston rings), avoiding wear, clogging, and damage.
Ensuring fuel supply: The oil pump ensures stable pressure for fuel transportation, working in conjunction with the filter to provide a continuous and clean fuel supply to the engine.
Protecting the engine: Clean fuel is a key prerequisite for the stable operation of the engine, maintaining good performance and extending its lifespan.
Common Types and Installation
Depending on the design and installation location, it is mainly divided into two types:
Integrated (Built-in) Type: The assembly (usually including the fuel filter, oil pump, etc.) is installed in the fuel tank interior. Replacement is relatively complex and requires disassembling related interior components.

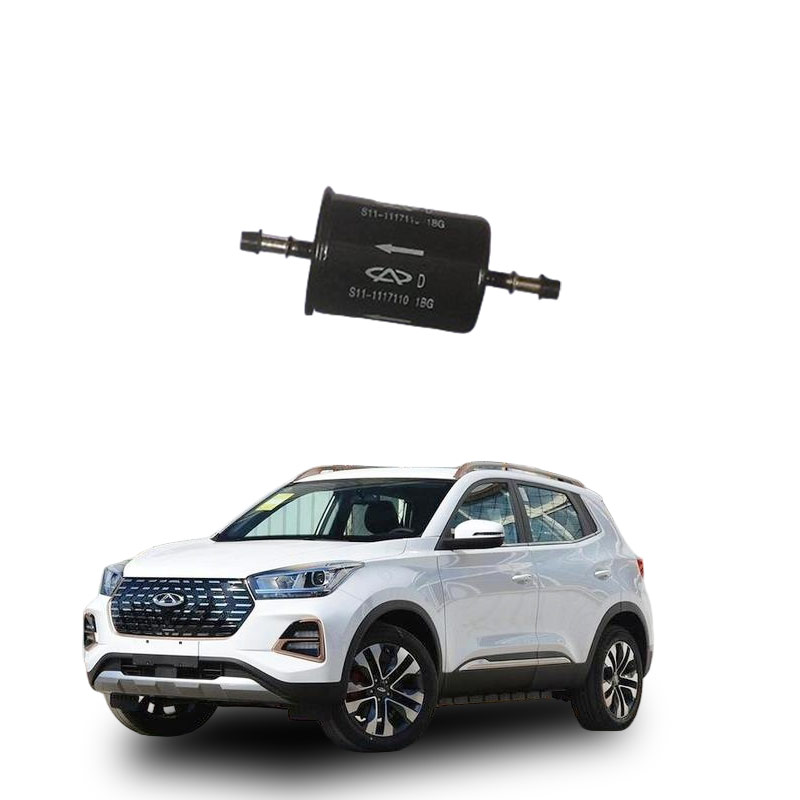

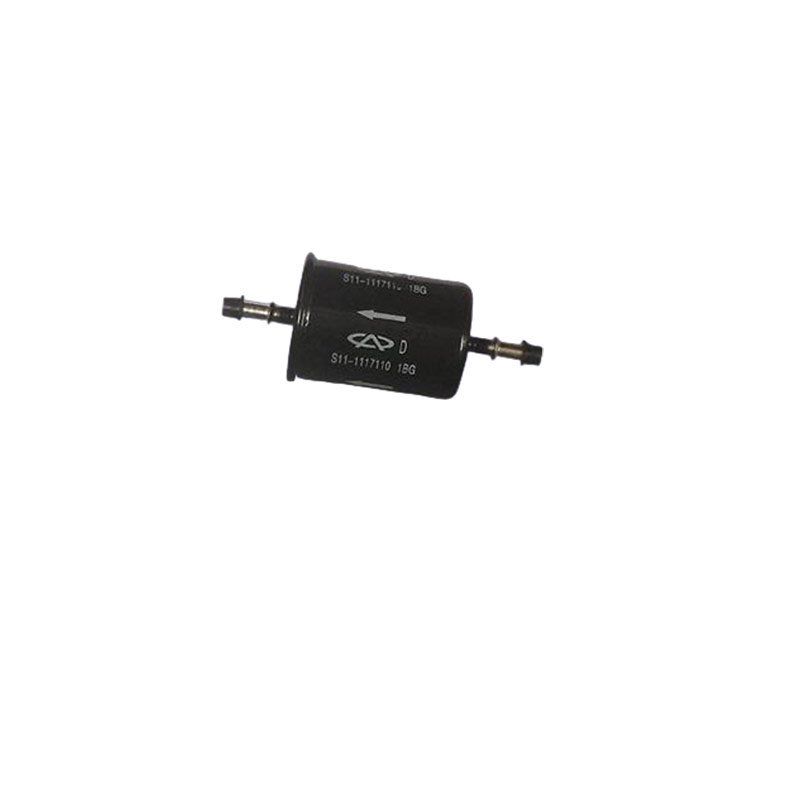

External Type: The fuel filter is installed separately on the fuel lines in the vehicle chassis or engine compartment. Replacement is relatively convenient.
The fuel filter assembly in a car is a core purification component of the fuel system. Its main functions can be summarized as follows:
Core Function
Filtering fuel impurities: Effectively remove iron oxide, dust, moisture, and other solid particles from gasoline, diesel, or natural gas to prevent these harmful substances from entering the engine.
Protecting precision components: Avoid wear and blockage of key components such as fuel injectors, oil pumps, cylinder liners, and piston rings due to impurities, extending their lifespan.
Ensuring combustion efficiency: Provide clean fuel to ensure accurate fuel mixture ratio, maintain stable engine power output, reduce fuel consumption and emissions.
Structural and Type Characteristics
By fuel type: Includes gasoline filters, diesel filters, and natural gas filters.
By installation location:
External Type: Installed in the chassis fuel lines, easy to replace, usually recommended to replace every 20,000 to 30,000 kilometers.
Integrated Type: Integrated in the fuel tank (often with the oil pump), longer lifespan, up to 60,000 to 100,000 kilometers, but replacement is complex.
By structural form: Includes replaceable type, screw-on type, straight type, return tubing type, and integrated oil pump assembly type, etc.
Notes
Not interchangeable: The filter for electronic fuel injection systems must be resistant to pressure of 200–300 kPa (pressure resistance ≥ 500 kPa), while carburetor-type has a lower pressure, and the two cannot be interchanged.
Installation direction: The filter housing usually has an arrow indicating the fuel flow direction. Ensure the fuel flows correctly to avoid poor fuel supply.
Risk of inferior quality: Poor-quality filter elements may shed fibers, instead blocking the fuel lines. It is recommended to use products that meet the original factory standards. In conclusion, although the fuel filter assembly is small in size, it is an essential guarantee for the "smooth operation" of the engine, and regular replacement is of utmost importance.
