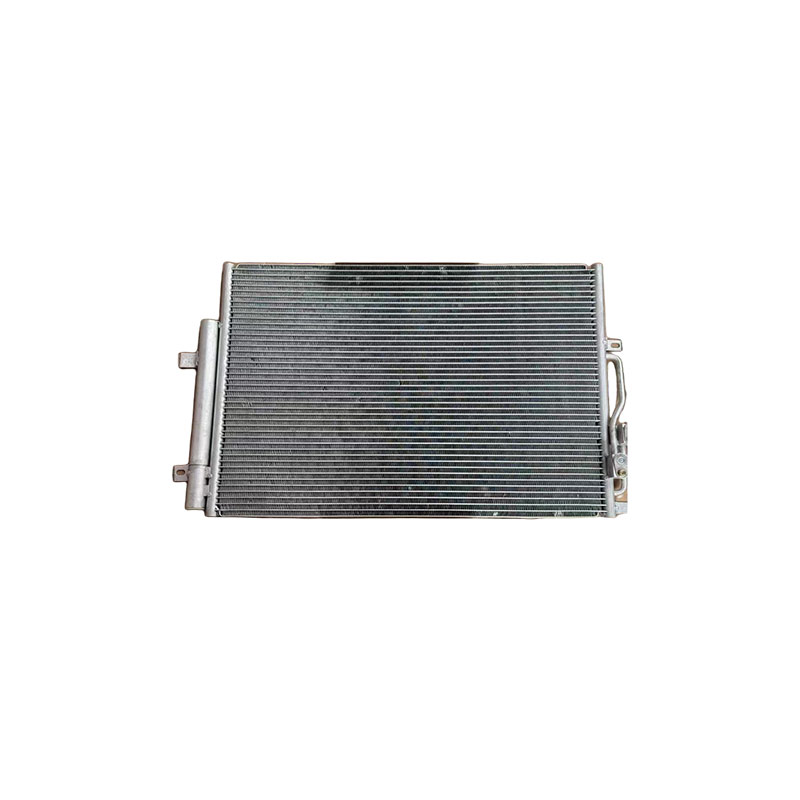

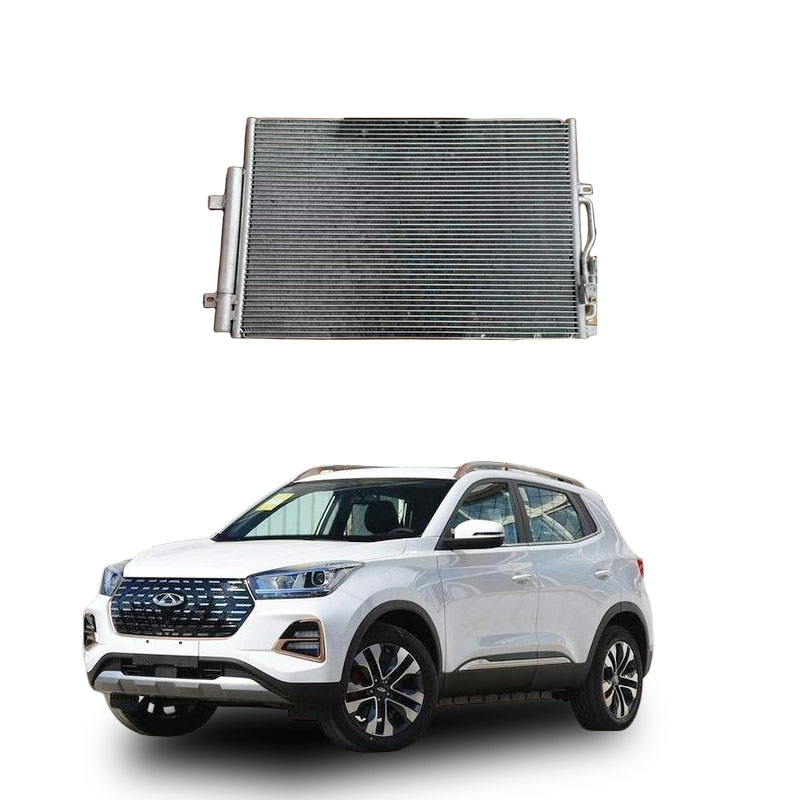

The function of the automotive condenser assembly
The automotive condenser assembly is the core heat exchange component in the automotive air conditioning system. Its main functions can be summarized as follows:
Converting refrigerant state: Cooling and condensing the high-temperature and high-pressure gaseous refrigerant discharged by the compressor into high-pressure liquid refrigerant. This is a crucial phase change in the refrigeration cycle.
Efficient heat dissipation: Through heat exchange with the frontal airflow of the vehicle head (or in combination with electronic fans), the heat absorbed by the refrigerant in the vehicle and the heat generated by the compressor are discharged to the external environment.
Maintaining system pressure and cycle stability: Controlling the refrigerant pressure through the liquefaction process to ensure there is sufficient liquid refrigerant in front of the throttling device (such as the expansion valve), ensuring the efficient operation of the entire refrigeration cycle.
Assisting engine cooling for some vehicle models: In some vehicle models, the condenser is integrated with the water tank, which can assist in reducing engine temperature and improving the overall thermal management efficiency.
Condenser type and structural characteristics
Common types:
Plate type: Simple structure, but low heat dissipation efficiency.
Strip type: Has a 15%–20% higher heat dissipation efficiency than the plate type.
Parallel flow type: The best heat dissipation effect, mostly used in mid-to-high-end models.
Installation position: Usually located in front of the vehicle head and before the water tank, to fully utilize the driving airflow for heat dissipation.
Maintenance suggestions
Regular cleaning: Clean 1–2 times a year to remove dust, fluff, insect corpses, etc. on the heat dissipation fins to avoid blockage and affect heat dissipation.
Check the fan: Ensure the electronic fan operates normally, especially at low speed or idle to ensure heat dissipation.
Timely repair: If the air conditioning refrigeration effect significantly decreases, check if the condenser is clogged or leaking.
The performance of the condenser directly affects the refrigeration efficiency, energy consumption, and compressor lifespan of the air conditioning system, so its condition is crucial for the comfort of the passengers.
The failure of the automotive condenser assembly is one of the common problems in the air conditioning system. The main manifestations are:
Common failure manifestations:
Insufficient or no refrigeration: The air outlet temperature is high, even if refrigerant is added, it is ineffective.
Refrigerant leakage: Oil stains or oil streaks appear on the condenser surface (due to the mutual solubility of refrigerant and refrigeration oil).
Physical damage: The heat dissipation fins are deformed, punctured by stones, or blocked by insect corpses or dust.
System abnormalities: The compressor overheats, fuel consumption increases, the evaporator abnormally frosts or freezes.
Main causes:
Physical damage: Road debris impact, long-term bumps causing damage to the heat dissipation fins.
Chemical corrosion: Snow-melting agents in northern regions, acid rain corroding the pipes.
Abnormal system pressure: Compressor failure causing high-voltage breakdown of welds.
Dirty blockage: Accumulation of dust, leaves, and oil stains affecting heat dissipation efficiency.
Maintenance suggestions
Minor blockage:
Use low-pressure nitrogen gas backflushing (pressure ≤ 0.3 MPa) or high-pressure water gun flushing (note to control water pressure to avoid damaging the fins) and can be combined with a special cleaning agent for deep cleaning.
Leakage or damage:
For small-scale leakage: Try welding repair, but re-pump vacuum and add refrigerant is required.
Severe leakage, perforation, or large-scale corrosion: Must replace the assembly.
Preventive measures
Clean the condenser heat dissipation fins once every 2 years.
Check the protective net before the rainy season.
When parking for a long time, start the air conditioning for 10 minutes monthly to prevent the sealing ring from aging.
Try to avoid potholes or gravel roads during daily driving. Important Reminder: The condenser is located in front of the water tank and has a complex structure. It is not recommended to disassemble or weld it by yourself. Improper operation may cause greater damage. It is recommended to have it handled by a professional repair facility.
