What is the assembly part for the rear door lock of the car?
The rear door lock assembly (also known as the rear door lock block assembly or lock body assembly) is the core mechanical and electronic integrated component in the vehicle's rear door that is responsible for performing the locking and unlocking functions. It not only realizes the basic door opening and closing actions but also undertakes multiple tasks such as signal feedback, child lock activation, and remote control response.
Core Components and Functions
Locking tongue and ratchet: Achieve physical engagement, completing the "lock—hold—unlock" three-stage action.
Drive motor or mechanical lever: Receive central locking signals (such as remote control, central control panel instructions), drive the locking tongue to move.
Microswitch/sensor: Detect the state of the door (whether it is fully closed, whether it is locked), and send signals to the dashboard.
Shell and connecting rod: Protect the internal structure and connect the door handle, child lock, and other operating mechanisms.
Counterweight block/lever mechanism (for some older models): Utilize gravity to assist the locking tongue's return, preventing accidental unlocking or automatic opening during closing.
Common Fault Manifestations
No response from the remote control or only some doors respond.
The door can be closed but the dashboard does not display "closed".
There is a "click" sound when closing but the locking tongue does not engage, causing the door to automatically open during driving.
Abnormal child lock switching, abnormal locking sound or jamming.
Typical Application Scenarios
Car rear door: Integrated into the door panel, cooperating with the central control system to achieve coordinated locking of all four doors.

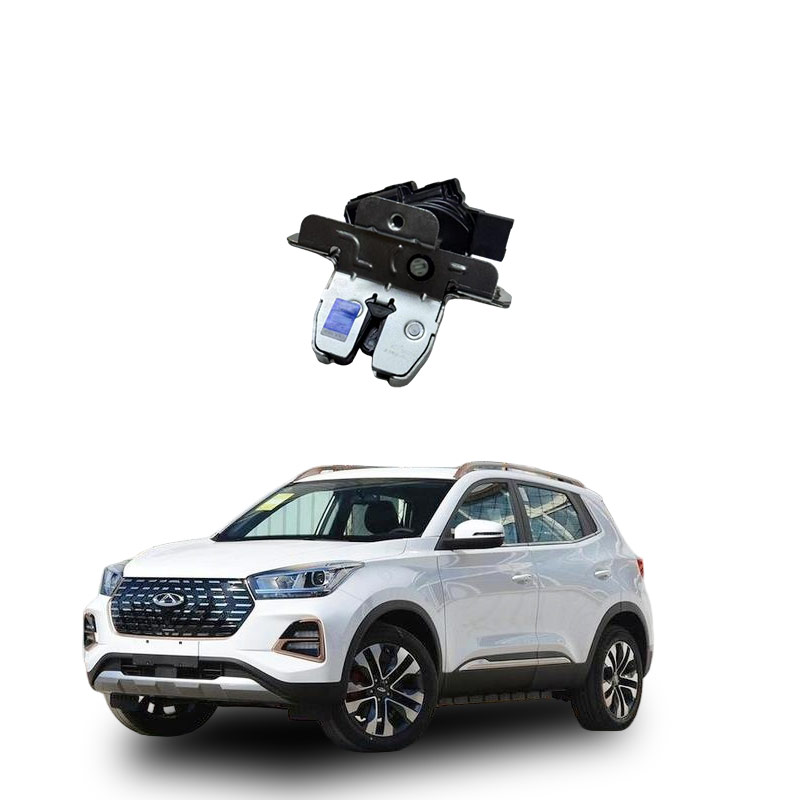

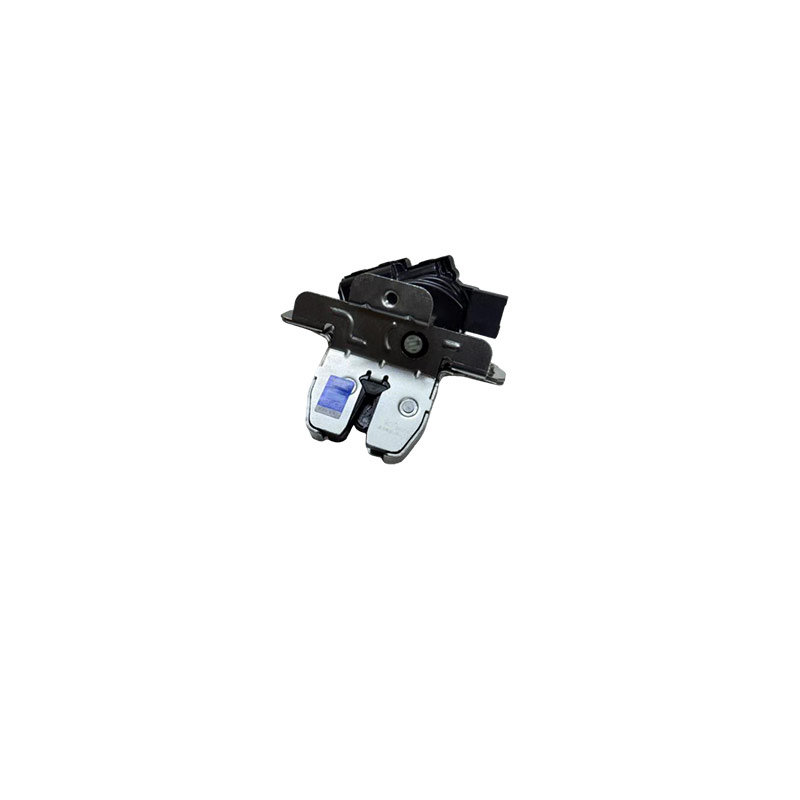

SUV/convertible tailgate: Known as "tailgate lock block" or "rear compartment lock block", emphasizing the mechanical locking reliability.
Older models (such as Jetta, Bora): Dependent on counterweight iron + lever structure, prone to failure due to rust.
Replacement Precautions
Need to remove the interior panel: Replacement usually requires removing the rear door inner panel, the operation is complex, and it is recommended to be handled by professionals.
Match original factory specifications: Non-original parts may have signal delays, unstable engagement issues.
Some models support no programming: Such as the door lock assembly compatible with BYD F3, Haval H6, etc., plug and play.
Modern rear door lock assemblies typically adopt a mechanical + electronic composite structure, with materials that are both wear-resistant and corrosion-resistant (such as reinforced PA66 engineering plastic + stainless steel locking tongue), capable of stable operation in a temperature range of -30°C to 80°C, with a lifespan generally based on 100,000 switch cycles.
Common Fault Causes and Solutions of Automotive Rear Door Lock Assemblies
Common Fault Causes and Solution Methods
Lock cylinder damage: Long-term use or foreign objects entering causing wear, jamming, or fracture.
Check: Try to rotate with a key to see if it is smooth. Solution: Replace the new lock cylinder.
Loose or broken connecting rod mechanism: The mechanical connecting rod between the lock cylinder and the lock catch is deformed, detached or broken.
Inspection: Remove the interior door panel and inspect the condition of the connecting rod.
Solution: Tighten or replace the connecting rod.
Fault of the door lock module (control unit): The rear door locks of modern vehicles are mostly controlled by electronic modules, and may experience communication interruption, power supply abnormalities or internal damage.
Inspection: Use a diagnostic tool to read the fault code and check the power supply and grounding.
Solution: Replace the faulty module or repair the wiring.
Wiring problem: Aging wiring harness, loose plugs, short circuits or open circuits.
Inspection: Use a multimeter to measure continuity, and check if the plugs are oxidized or detached.
Solution: Repair or replace the wiring harness.
Water ingress or rusting: Water immersion or poor sealing causes rust inside the lock, affecting mechanical or electronic components.
Inspection: Observe if there are water stains or rust on the lock body.
Solution: Clean the rust, dry it and repair the seal.
Child lock activation: Some models have child safety locks on the rear doors, which cannot be unlocked from the outside after being activated.
Inspection: Check the position of the child lock switch inside the rear door.
Solution: Close the child lock.
Door deformation: Collision or long-term use causes the position of the door to shift, affecting the engagement of the lock tongue.
Inspection: Observe if the door is closed smoothly and if there are any abnormal sounds.
Solution: Perform shaping and repair.
Remote key battery depletion: Only affects the remote control function, but may be misjudged as a door lock failure.
Solution: Replace the key battery.
Special circumstances handling (taking Audi A6 as an example)
If it is a fault of the car module of the right rear door lock of Audi A6, you can try the following reset operations first:
Close all doors and the trunk;
Turn off the ignition switch and wait for at least 1 minute;
Insert the key (without starting), keep it in the ignition position;
Continue to press the door lock button until you hear continuous "clicking" sounds;
Pull out the key, wait for 10 seconds and test if the door lock returns to normal.
If ineffective, it is recommended to contact a professional repair person, as it may involve communication line faults, lock block damage or module failure, and requires specialized equipment for diagnosis.
