Front-end module of the vehicle - Component functions

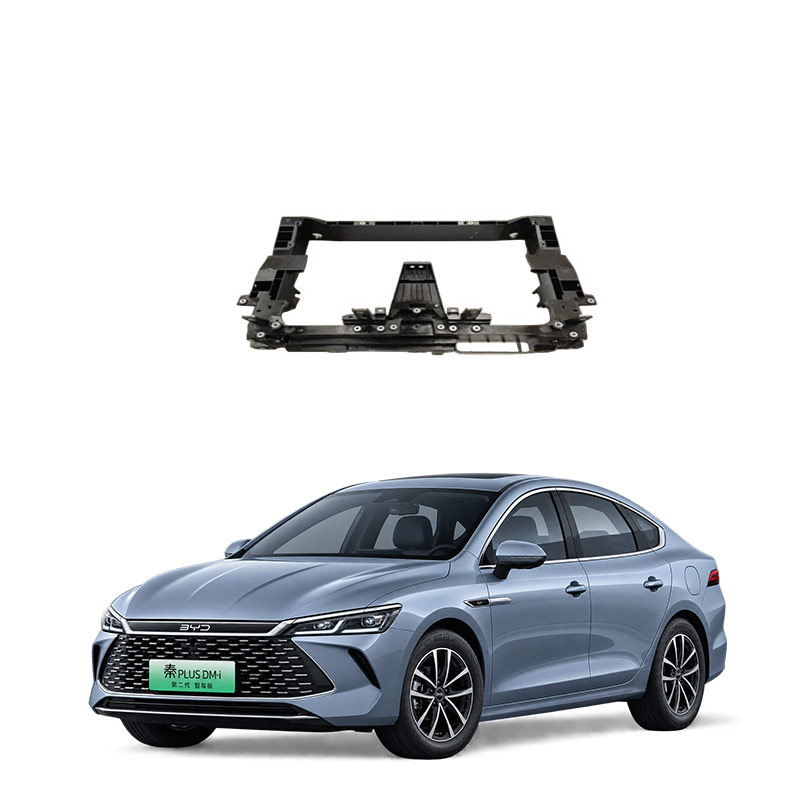

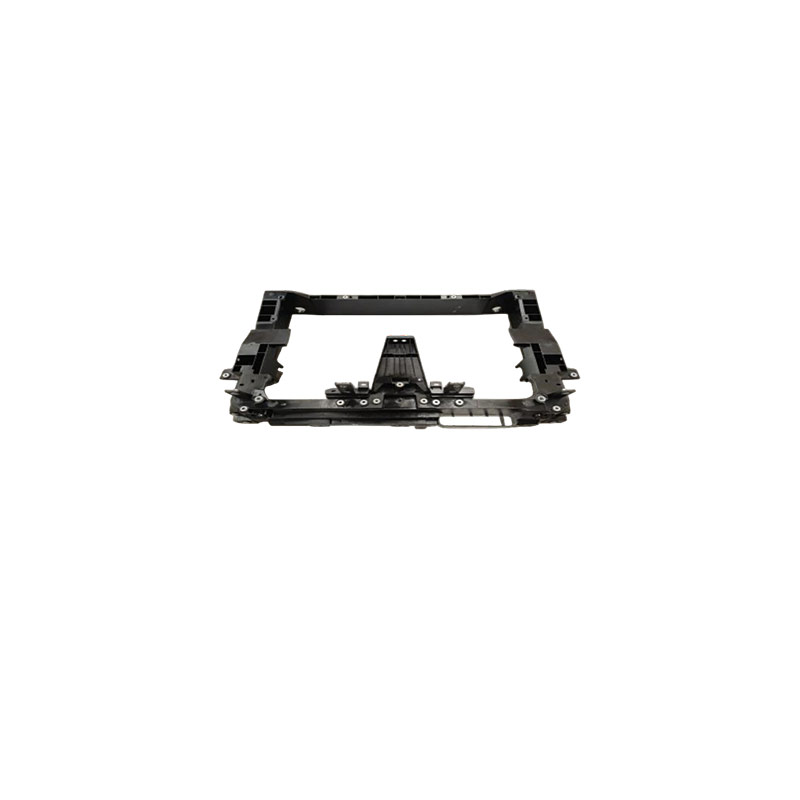

The front end module (FEM) is the assembly that integrates 100 or more individual parts of the vehicle's front end into one unit. Its core functions are to enhance assembly efficiency, ensure collision safety, and integrate various functions. It uses a framework structure to package components such as cooling, lighting, locking, and energy absorption together. Suppliers directly supply these components or the manufacturer pre-assembles them before moving them to the final assembly line, eliminating the need for individual installation.
Key integrated components and their functions:
- Cooling and cooling components: including radiators, cooling fans, air conditioning condensers, and intercoolers, responsible for heat exchange in the engine and air conditioning systems, ensuring proper operation within a suitable temperature range.
- Lighting system: the front headlights are integrated into the module, ensuring precise spacing and surface differences for the lamp assembly and better appearance consistency.
- Energy absorption and protection structure: impact beams, energy absorption boxes/buffers are the first line of defense to protect pedestrians and the vehicle during collisions, reducing damage to the vehicle body structure in low-speed collisions.
- Locking and opening mechanisms: the engine hood locking system is integrated within the module, ensuring reliable opening and closing of the hood.
- Grilles and decorative parts: grille reinforcement plates, bumpers with decorative panels, and fenders, etc., are also mounted on the module. Changing the design only requires modifying the skin to fit different models.
- Electronic and intelligent components: including various sensors, cameras, radars, even 5G communication modules and active air vents (AAF), providing hardware support for assistance driving and thermal management.
- Other accessories: windshield wiper water bottles, horns, and wiring harnesses are also integrated into the front end module, reducing the disorganization of pipes and wires.
The practical benefits brought by modularization:
- Reduced labor time and costs: The installation time for the manufacturer can be reduced by over 30%, and costs can be lowered by 20% to 30% after mass production.
- More stable quality: One-piece molding of plastic or composite materials avoids cumulative welding errors and better controls the size accuracy of the front end.
- Significant weight reduction: For example, a plastic front end module can reduce the weight by approximately 69% compared to a steel structure, having a positive impact on fuel consumption and range.
- Changed repair approach: Now, vehicle repairs often involve directly replacing the entire module. The cost for replacing the module in high-end electric vehicles can be several thousand or even tens of thousands of dollars, while for economy cars, it can be several hundred to a thousand dollars.
It should be noted that the front end module (FEM) and the BMW front electronic module (also known as FEM) are not the same thing. The latter is an electronic control unit that controls functions such as lights, windows, central locking, and gateway, located at the passenger footwell A-pillar. Be sure not to confuse them.
Front end module (FEM) failures typically manifest as functional abnormalities or structural damage of integrated components such as headlights, radiators, bumpers, etc. The cause and troubleshooting methods of the module's failure need to be distinguished based on specific manifestations.
Common causes of failures:
- Mechanical damage: Front-end collisions causing deformation or cracks in the bumper, uneven gaps between the fenders and doors, or bending or wrinkling of the longitudinal frame beams, which are relatively obvious physical damages.
- Electrical failure: Circuit short circuits, open circuits in the module, or water ingress and oxidation of connectors, plug pins, and needle pins, causing failure of electronic components such as headlights and sensors.
- Sensor or actuator abnormalities: Sensor failures of radar, cameras, etc., or damage to related actuators, causing errors in systems such as assistance driving and lighting control.
- Software or communication issues: Program errors in the module's control system or CAN communication interruption, causing simultaneous errors in multiple systems, such as black screen of the central control or failure of window control.
- Environmental and aging factors: Damage to the module from high temperatures, high humidity, and strong magnetic fields, and oxidation of wiring connectors over long-term use, especially more likely to cause occasional failures in humid areas.
Suggestions for troubleshooting and handling:
First, read the codes and don't rush to replace the parts: Use professional diagnostic equipment to read the fault codes and freeze frame data, and determine whether the problem lies in the module itself, abnormal power supply, or communication link. Avoid making a wrong judgment of "fixing where it's faulty".
First, check the periphery and then determine the component: Check if the connectors are water-damaged and oxidized, if the plug pins are loose, if the power supply and grounding are normal, and if the wiring is worn or disconnected. After eliminating peripheral issues, consider the module's own fault.
Distinguish between software and hardware problems: Software problems can be attempted to be solved by reprogramming or updating the software; hardware damage requires replacing the matching genuine parts and following the operation specifications.
Check the structure after collision: If caused by a collision, check if the bumper, fender gap, engine hood gap, frame longitudinal beam, engine compartment pipelines and condenser, radiator, etc. are deformed or shifted, and confirm that the power and electronic systems are functioning normally.
The front-end module has a high degree of integration, and the fault code only indicates "which circuit data is incorrect", which does not mean that the component must be damaged. First, check the peripheral factors such as wiring, power supply, and connectors, and often this can avoid unnecessary replacement costs.
If it is a new energy vehicle, pay attention to the fact that the "three-electric systems" are highly integrated and encrypted. The repair of some modules may be restricted within the authorized system, and third-party repairs face the dilemma of "not being able to obtain parts or read data", so it is recommended to prioritize choosing a professional store with specialized inspection equipment for handling.
