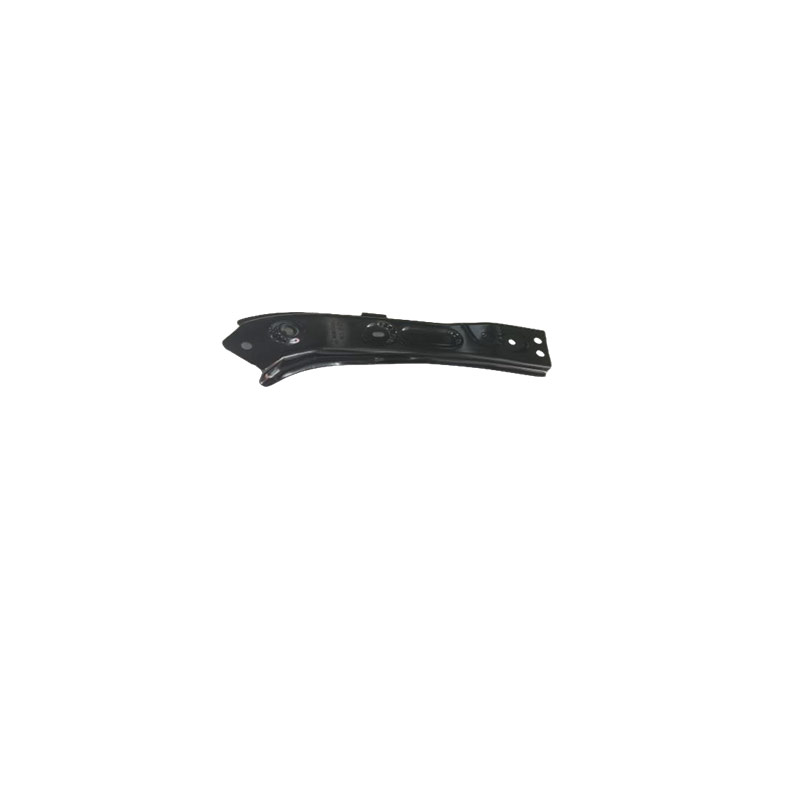

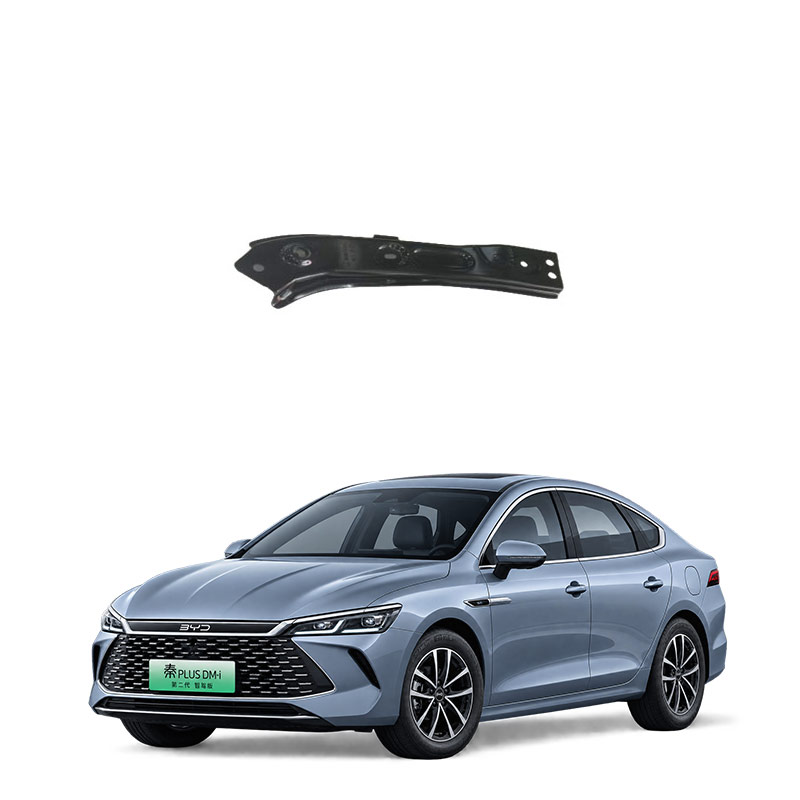

What is at the front of the left connecting plate of the car radiator support beam?
The front part of the left connection plate of the car water tank frame usually refers to the transitional structural component that connects the left side of the water tank frame (the gantry) to the vehicle body longitudinal beam or the inner lining of the fender, located on the left front side of the vehicle head. It is used to fix components such as the water tank frame, the headlight bracket, etc., and to transfer the load to the vehicle frame.
Specific location and function
Location: At the left end of the water tank frame assembly, it connects the upper and lower water tank frames with the left front longitudinal beam or the inner lining of the fender, belonging to the "left vertical plate" area of the front frame.
Function: As a structural connection point, it supports the front components such as the radiator, condenser, and headlights, and transfers and disperses the impact force during a collision, protecting the core components of the engine compartment.
Common forms
Independent connection plate: A separate sheet metal component, welded or screwed between the frame and the longitudinal beam, and some models can be detachable.
Integrated: Formed together with the water tank vertical plate or the headlight frame, forming part of the "door" shape structure.
Maintenance note
If this component is deformed or replaced, it usually indicates that the front part has been subjected to a certain impact. When judging an accident vehicle, it is important to check whether the welding points and the glue marks are original.
The main function of the front part of the left connection plate of the car water tank frame is to connect and support, and also participate in collision energy absorption and increase the stiffness of the installation points. It is a connecting component of the water tank frame (also called the gantry) assembly, located on the left front side of the vehicle head, responsible for connecting the water tank frame with the vehicle body longitudinal beam, fender reinforcement plate, etc., and fixing the cooling system, as well as bearing the load of the vehicle's exterior components such as the front bumper, headlights, and fender.
Specific functions
Structural connection and fixation: Connects the water tank frame with the vehicle body longitudinal beam or the reinforcement plate of the fender, making the water tank and condenser securely installed, omitting support ribs and some connection points, and the structure is more compact.
Load-bearing and support: Bears the load of the front bumper, headlights, fender reinforcement plate, etc., supports the key components of the vehicle, and ensures the torsional stiffness of the frame and the longitudinal load-bearing capacity.
Collision energy absorption and dispersion of impact: Helps to disperse the impact force during a collision, protects the core components of the water tank, condenser, etc., and cooperates with the energy absorption box to collapse and absorb energy, reducing the direct damage to the vehicle body longitudinal beam.
Increase the stiffness of installation points: Forms a closed cavity with the front frame pillar, engine compartment front pillar, and front wheel well reinforcement parts, increasing the support stiffness of the installation points of the upper water tank frame, ensuring driving stability.
The front part of the left connection plate is the key area for connecting the water tank frame and the left side longitudinal beam of the vehicle body. If it is deformed or rusted, it may cause the water tank to shift, reduce cooling efficiency, and even affect the normal working temperature of the engine.
"Fault of the car water tank frame left connection plate front part" usually refers to the structural component damage caused by the collision at the front of the vehicle, not a simple water tank leakage or cooling problem. This component is part of the water tank frame (the gantry) and is a key component of the front energy absorption structure. Once damaged, maintenance and used-car evaluation will be handled as structural components.
How does this fault usually come about
Collision is the main cause: When the front part is hit, the impact force will be transmitted to the water tank frame through the impact-resistant beam, causing the left connection plate to deform, tear, or have weld points cracking.
Minor scratches do not necessarily affect it: Only the appearance components such as the bumper and headlights are damaged, usually not affecting the connection plate; but if the frame itself is deformed or needs to be replaced, it indicates that the impact force is not small, and it may also damage the longitudinal beam and shock absorber seat.
Material and structure influence judgment: The water tank frame has plastic, iron, or alloy materials, and is divided into integral and sectional types. The sectional type is generally divided into three segments, connected by bolts or welds, and the left connection plate is the end connection point of one of the segments.
?? How to judge the degree of damage
Check the appearance: Open the engine compartment and check if there are wrinkles, repainting, re-welding or glue marks on the left connection plate, which should have a regular surface and rule weld points.
Check related components: Focus on checking if the left front longitudinal beam is straight, if there is any deformation or repair marks, and if the shock absorber seat, fender beam are affected.
Look for functional symptoms: If accompanied by high water temperature, coolant leakage, and the fan running at high speed but unable to effectively cool down, it indicates that the collision may have also damaged the water tank or the cooling pipeline. Special attention is required.
If only the connecting plate is slightly deformed,correction may be sufficient; however, if the frame is severely damaged and needs to be replaced, and the body frame and water tank frame are of an integrated design， during the repair process， cutting and welding may be required， which would be regarded as astructural damage， affecting the value of the used car.
In terms of repair time， if only the front bumper， water tank， and impact beam are damaged， it usually takes about one week to repair； if the longitudinal beam， fender beam， etc.， structural components are injured， it may take one month.
It is recommended to first go to a professional repair shop forfour-wheel alignment andbody frame measurement to confirm whether the main beam has been damaged， and then decide on the repair plan.
