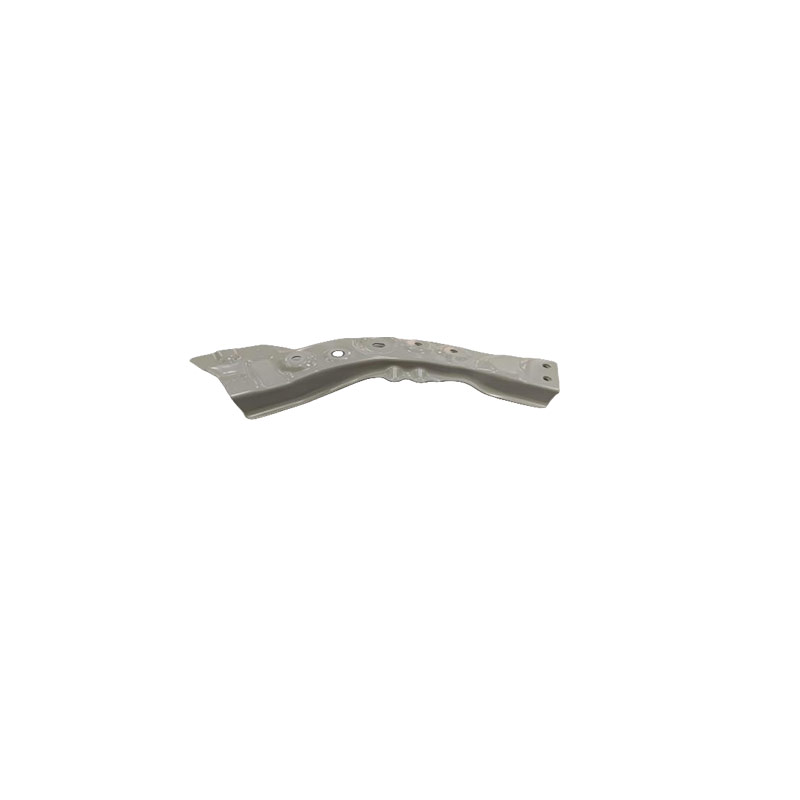

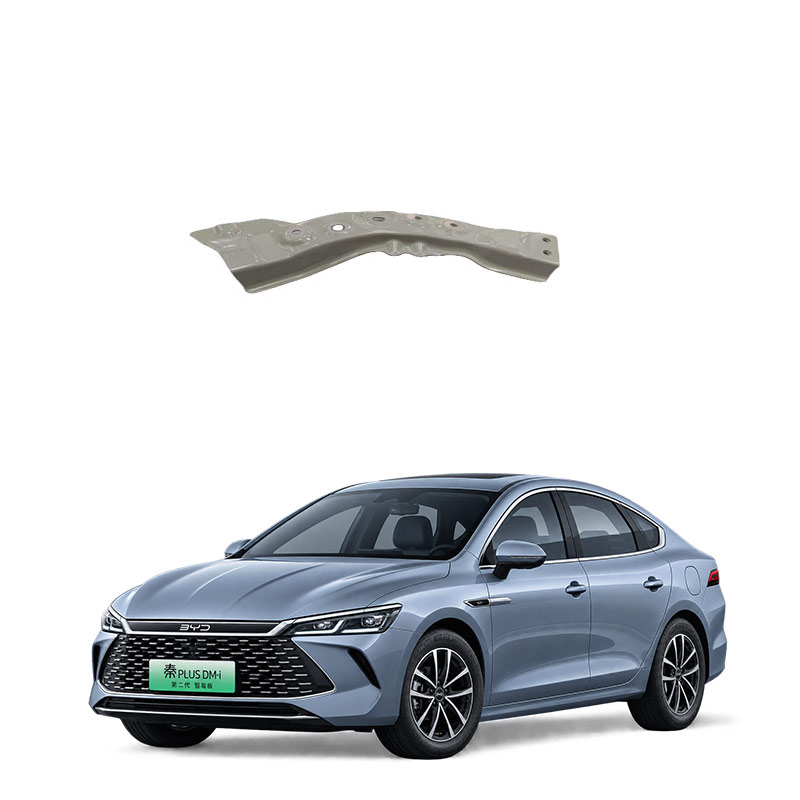

What is at the rear of the left connecting plate of the car radiator support beam?
The rear part of the left connecting plate of the car water tank frame is usually connected to the side structure of the water tank frame or the front longitudinal beam area, depending on the vehicle design. This connecting plate is part of the water tank frame assembly and mainly serves the functions of connection and support, joining the water tank frame beam to the vehicle frame structure.
Structural Position
Connection Object: The left connecting plate is located on the left side between the upper and lower water tank beams, and usually connects to the front longitudinal beam, fender lining, or engine compartment frame at the rear. It forms a supporting structure.
Common Name: In the auto parts market, such parts are usually called "left water tank frame connecting plate" or "left lower connecting plate of the frame beam", belonging to the structural components of the vehicle's front part.
Maintenance Note: If there are deformations, welding or repair marks at this position, it indicates that the vehicle's front part may have been hit in an accident, which may affect the determination of an accident vehicle in the used car assessment.
Specific to your vehicle, it is best to directly refer to the maintenance manual or disassemble for inspection. Different vehicle models have different connection methods.
The main function of the rear part of the left connecting plate of the car water tank frame is to connect and support. It reliably fixes the water tank frame beam to the vehicle structure and transmits and distributes loads, ensuring the overall stiffness and stability of the front frame.
Specific Functions can be understood from the following aspects:
Structural Connection and Fixation: The connecting plate is a transitional component between the water tank frame beam and the main structures such as the vehicle longitudinal beams, wheel covers, etc. It is fixed to the vehicle body through welding or screwing to form a rigid whole.
Enhanced Support Stiffness: The rear area is often designed with reinforcement plates, closed cavities, etc., which can significantly increase the support stiffness at the installation points of the water tank upper beam, preventing deformation or vibration during driving.
Load Transmission and Distribution: It evenly transmits the weight of the water tank, radiator, and road impact, braking, etc. to the vehicle longitudinal beams, preventing stress concentration and protecting the water tank and cooling system.
Collision Energy Absorption: During a frontal collision, the connecting plate and surrounding structures participate in transferring the impact force to the longitudinal beams and energy absorption boxes, absorbing part of the energy through collapse, protecting the passenger compartment.
Lightweighting and Space Optimization: A well-designed connecting plate can simplify the water tank fixation device, omitting supporting ribs and other components, ensuring strength while achieving lightweighting and increasing the installation space in the front cabin.
If maintenance or replacement is involved, note that if the connecting plate is spot-welded to the longitudinal beam, cutting or re-welding repair may be regarded as an accident vehicle, affecting the used car assessment value; replacing the frame beam alone with bolts usually does not affect safety determination.
The rear part of the left connecting plate of the car water tank frame is usually damaged, cracked or deformed at the left rear connection point of the water tank frame (truss). It is necessary to check and repair it as soon as possible. This component is a structural part of the vehicle's front part, bearing the water tank, condenser, headlights, etc. If the damage expands, it may affect the stability of the cooling system and the strength of the front structure.
Fault Impact
Reduced Supporting Function: The connecting plate is the connection point between the water tank frame and the vehicle longitudinal beams or wheel covers. If damaged, the water tank will not be fixed stably, and driving bumps may exacerbate shaking, even causing damage to the water tank, condenser, etc.
Safety Hazard: If this area is deformed or fractured, the absorption and bearing capacity of the front structure will decrease, and the protection performance during a subsequent collision will be reduced. It may also affect the stability of the vehicle's handling.
Judgment and Inspection
Appearance Inspection: Open the hood and check if the left rear connecting plate has cracks, folds, repainting, welding marks, or loose screws. These may indicate an impact or fatigue damage.
Function Observation: Pay attention to whether the water temperature is abnormally high, and if there is any leakage of coolant. If the damage affects the water tank, it may cause cooling problems.
Structural Association: If the front part has experienced a collision, it is necessary to check together with the longitudinal beam, shock absorber seat, and engine compartment weld points, do not only look at the connecting plate.
Maintenance suggestions
Minor cracks or slight deformations: If the cracks are less than 5 cm and not in the critical stressed areas, consult a technician to assess whether they need to be dealt with; however, the connecting plate is a structural component, and it is recommended to follow professional inspection.
Fractures or severe deformations: Generally, it is recommended to replace rather than simply repair; otherwise, it may cause damage to the water tank and lead to greater losses.
Maintenance methods: For some models, the connecting plate is welded integrally with the frame. Replacement may leave marks, affecting the appraisal of used cars; while the screwing type is easier to replace.
If the vehicle has experienced a front collision, it is essential to have a professional repair shop inspect the condition of the crossbeam and connecting plate; do not ignore structural damage just because the appearance seems fine.
