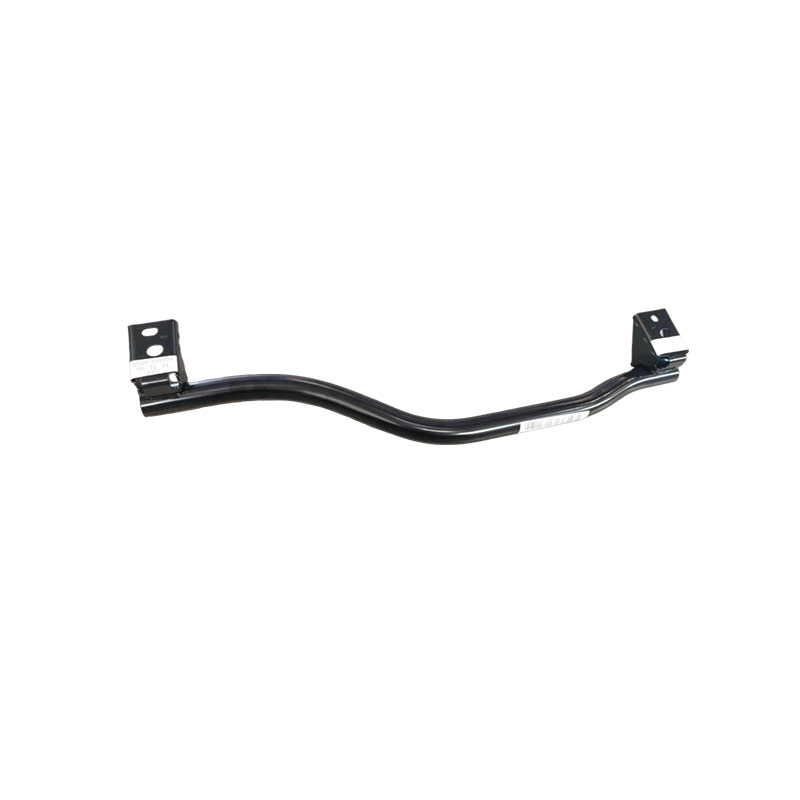

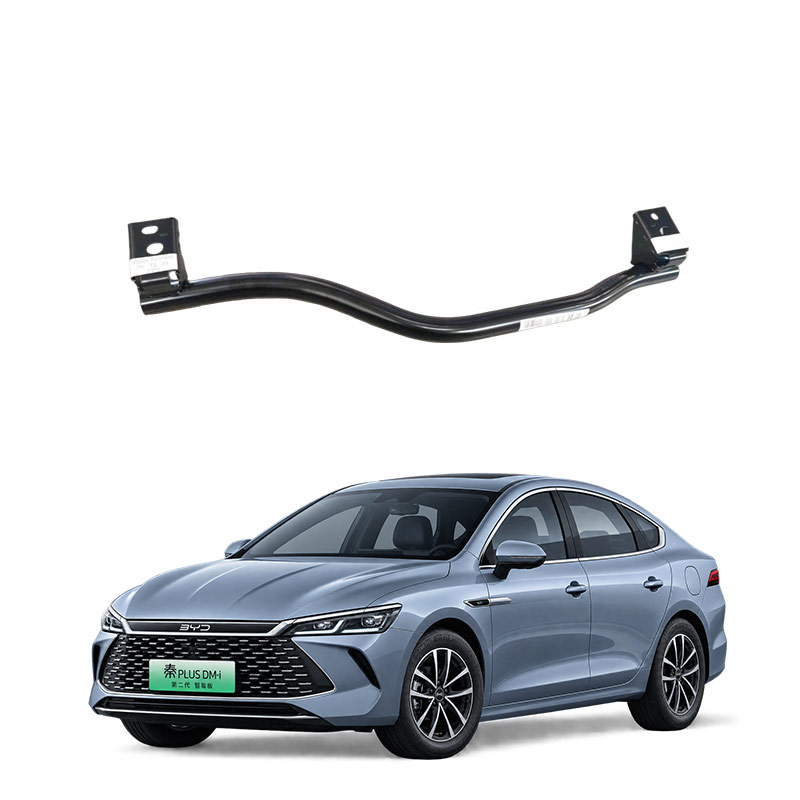

The function of the anti-collision rod assembly for the car battery pack
The core function of the anti-collision rod assembly for the car battery pack is to absorb and disperse the impact energy during a collision, preventing or reducing the direct transmission of the impact force to the battery pack, thereby lowering the risks of battery pack compression deformation, puncture short circuit, and even thermal runaway. It is an important defense line in the passive safety system of new energy vehicles.
Specifically, its functions can be broken down into several aspects:
Core protective function
Absorption and dispersion of impact force: During a collision, the anti-collision rod absorbs and dissipates the impact kinetic energy by deforming itself, distributing the concentrated impact force over a larger area, and reducing the peak pressure that the battery pack is subjected to. This is like adding a "buffer armor" to the battery pack.
Change of force transmission path: Some designs connect the threshold, sub-frame, and other vehicle structures to guide the collision force to the strong structure of the vehicle, avoiding the force directly "shooting" at the battery pack, thereby reducing the risk of component compression and knocking against the battery pack after the collision.
Delay deformation and strive for power-off time: The buffer structure can extend the time for impact transmission, providing a precious "golden window" for safety responses such as high-voltage power-off and airbag deployment after the vehicle collision, reducing the probability of cell compression short circuit.
Typical design ideas
The design of anti-collision rod assemblies for different car manufacturers has their own characteristics, but the ideas are similar:
Decade-grid threshold anti-collision beam: Inspired by the watertight compartments of aircraft carriers, it forms multiple reinforced borders inside. The outer side is thick and the inner side is thin, forming a "graded energy absorption zone" from weak to strong - the outer side absorbs the first wave of impact, and the inner side absorbs the energy through deformation to protect the battery from damage.
Battery frame anti-collision structure: Horizontal rods and X-shaped rods are arranged at the bottom of the battery pack frame. When the collision force exceeds the preset value, these rods participate in deformation and disperse the force, reducing the compression of the base plate on the battery pack.
Threshold beam reinforcement: The threshold beams on both sides of the chassis are often designed as high-strength anti-collision structures, absorbing energy first in the case of side collision to prevent the impact from directly transmitting to the battery pack.
It should be noted that the anti-collision rod is a passive safety component, mainly dealing with collision scenarios. In daily driving, it cannot completely avoid the impact of bottoming out or knocking against the battery pack. Chassis protection also needs to be combined with the battery pack's own protective plates, IP68 waterproof level, and other designs.
Some more "radical" technical solutions (such as the battery pack detaching from the vehicle body after the collision) aim to avoid fires, but they have secondary safety risks. Currently, they are mostly in the stage of technical reserves and have not been widely mass-produced and applied.
When the anti-collision rod assembly of the battery pack fails, it is usually not an isolated small problem. It directly affects whether the battery pack can withstand the impact during a collision and requires immediate inspection and confirmation. This component belongs to the external protective structure of the battery pack. Once it fails, the battery pack loses the buffer during bottoming out or collision, which may damage the internal cells and lay a foundation for thermal runaway.
The possible impacts of the failure
Reduced protective capability: The function of the anti-collision rod and the energy absorption box is to absorb the impact force. If the component is damaged, the impact force is directly transmitted to the battery pack, which may cause deformation of the shell and compression of the cells.
Hidden damage risk: After a bottom collision, there may be no alarm at that time, but the internal cell separators have been slightly damaged. After several hours or even several weeks, it may evolve into insulation failure or thermal runaway.
Impact on trailer rescue: Some new energy vehicle anti-collision beam designs have insufficient strength. During towing, the anti-collision beam may break or even cause the battery pack to fall off. If the component itself is faulty, the rescue risk is higher.
Suggestions for inspection and handling
Check the appearance first: Inspect the chassis, bumper, anti-collision beam for deformation, cracks, or looseness. If there are obvious bottoming-out marks, focus on checking.
Go to the dealership to read data: Even if there is no alarm, it does not mean it is okay. It is recommended to go to a 4S store or professional repair shop, use equipment to read the data related to the collision and insulation resistance at the bottom of the battery pack to confirm the structural components and battery status.
According to the standard: The new national standard GB 38031-2025 has added a mandatory test for bottom impact of 150J. It requires that the battery pack not catch fire, not explode, and not leak after the impact. This can be used as a reference for judging whether the protection is qualified.
If there has been a bottom collision or impact, even if there is no fault code on the dashboard, it is recommended to go to the store as soon as possible to check the bottom protection structure and insulation status of the battery pack. Do not drive with injuries for a long time.
Prevention ideas
When choosing a vehicle, pay attention to the protection structure: pay attention to the isolation space before and after the battery frame, the material and quantity of the lateral protection crossbeam, the bottom guard plate structure, and whether there is a logic for discharging high voltage after the impact.
Adding guard plates needs to be cautious: for some models, the original factory already has a protection design. Additional installation needs to confirm that it does not affect the ground clearance and heat dissipation, and avoid counterproductive effects.
