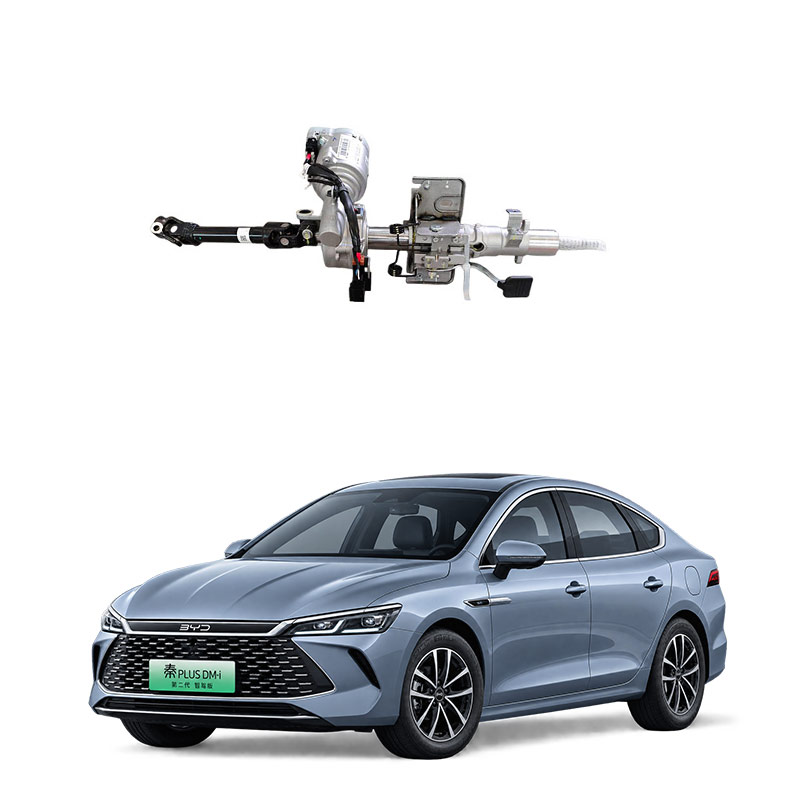

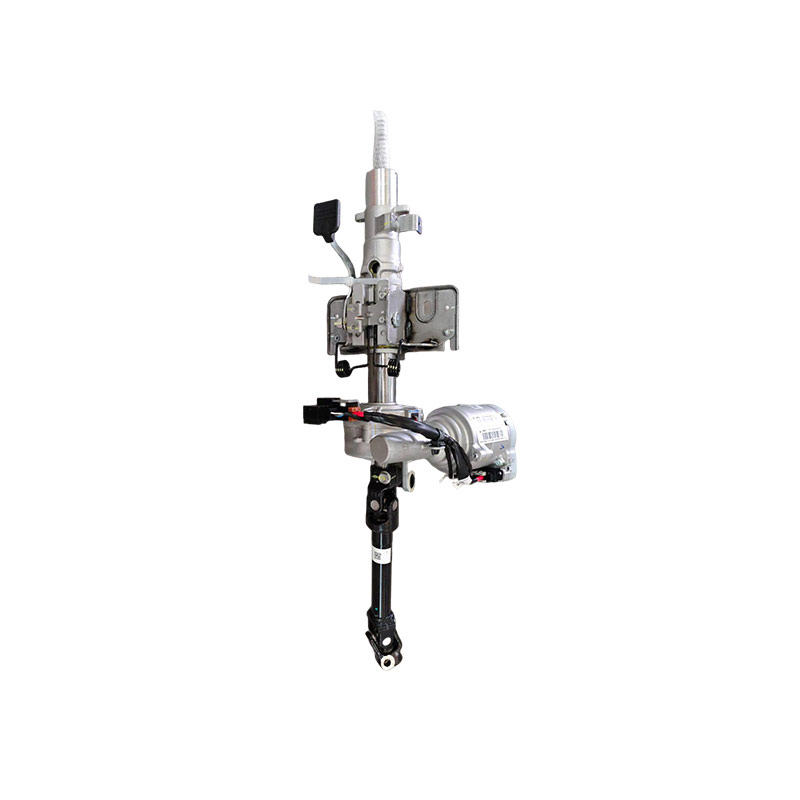

What is the automotive electric power steering column and the universal joint assembly?
The automotive electric power steering column and universal joint assembly is a mechanical transmission component combination in the electric power steering system (EPS) that connects the steering wheel to the steering gear. Its core function is to reliably transfer the driver's steering action to the steering gear, while allowing the motor assistance to smoothly intervene.
When disassembled, it mainly consists of two parts:
Steering column (steering column tube)
The steering column is the transmission shaft that connects the steering wheel to the steering gear, responsible for transmitting the steering torque. In electric power steering models, it usually also integrates a torque sensor and a power assist motor (C-EPS type).
Transmitting torque: When the steering wheel rotates, the steering column transmits the force to the lower end of the universal joint.
Carrying power assist: The motor of C-EPS is directly installed on the steering column and drives the steering column through a reduction mechanism to provide auxiliary assistance.
Safety design: Modern steering columns mostly adopt a collapsible structure, which can deform to absorb energy during a collision to protect the driver.
Universal joint (cross-axis universal joint)
The universal joint is installed between the steering column and the steering gear, usually at the ends of the steering intermediate shaft, and is the "joint" of the assembly.
Why use it: The rotational axis of the steering wheel and the input axis of the steering gear are difficult to be perfectly aligned. Suspension movement, engine vibration, and assembly errors can all cause angle deviations.
How it works: Through the cross-axis joint structure, an angle can exist between the two axes, and torque can be continuously transmitted.
Common types: In the steering system, cross-axis type unequal speed universal joints are commonly used, with simple structure, low cost, and durability; when used alone, the output speed may fluctuate, so they are usually used in pairs to cancel out the effect.
Simple understanding: The steering column is the "transmission shaft", and the universal joint is the "flexible joint". Together, regardless of how the angle between the steering wheel and the steering gear deviates, the steering force can be smoothly transmitted.
Common fault manifestations
This part is also the most likely to be encountered during daily driving:
There is a regular "clicking" sound when steering: It is likely that the universal joint is lacking lubricating oil or worn out. Adding lubricating oil or replacing it can be done without high cost.
The steering wheel is heavy at times: Wear of the universal joint connecting the steering column and the steering gear can cause steering delay or abnormal noise.
Steering is heavy: Insufficient lubrication of the steering column universal joint may also cause it.
If the universal joint is broken, do not force the steering. The dust cover is cracked, allowing dust and sand to enter, wear the bearing, and small problems left unaddressed may eventually require replacing the entire transmission shaft.
The core function of the automotive electric power steering column and universal joint assembly is to reliably transfer the steering action from the steering wheel to the steering gear, while allowing for angle and position changes, and considering assistance, safety, and adjustable functions. In simple terms, it is the "force transmission + joint" combination between the steering wheel and the wheels when you steer.
Division of labor between the two components
Steering column: The transmission shaft connecting the steering wheel and the steering gear, responsible for transmitting torque, directly sending the driver's rotation to the steering gear. The electric power steering column also undertakes: controlling the direction of travel, absorbing collision energy, adjusting the position of the steering wheel up and down and front and back, and cooperating with the ignition lock to achieve anti-theft locking of the vehicle.
Universal joint: The "joint" that realizes variable angle power transmission, allowing a certain angle change between the two axes, solving the angle deviations between the steering wheel, steering gear, and the vehicle body caused by installation positions and road vibrations.
Additional functions of the electric power steering column
The electric power steering system (EPS) precisely regulates the steering force through the electronic control unit, including:
Reducing steering force: The electric mechanical device amplifies or reduces the force applied by the driver, reducing fatigue.
Improving stability: Automatically adjusts the steering force at high speeds, making the turn more stable.
Enhancing accuracy: Adjusts in real time based on vehicle speed and direction, responding faster.
Memory and automatic adjustment: Some advanced models can remember the steering wheel position and automatically adjust to the set angle when you get in the vehicle.
Safety Assistance: Provides greater assistance in emergency situations, helping to respond to unexpected situations more quickly.
Maintenance Reminder
The universal joint and steering column may wear out over time. If you notice abnormal noises in the chassis, clicking sounds when turning, or a cracked dust cover with black lubricating grease leaking out, you should check it promptly. Otherwise, a minor issue could escalate into a major problem requiring the replacement of the entire transmission shaft.
