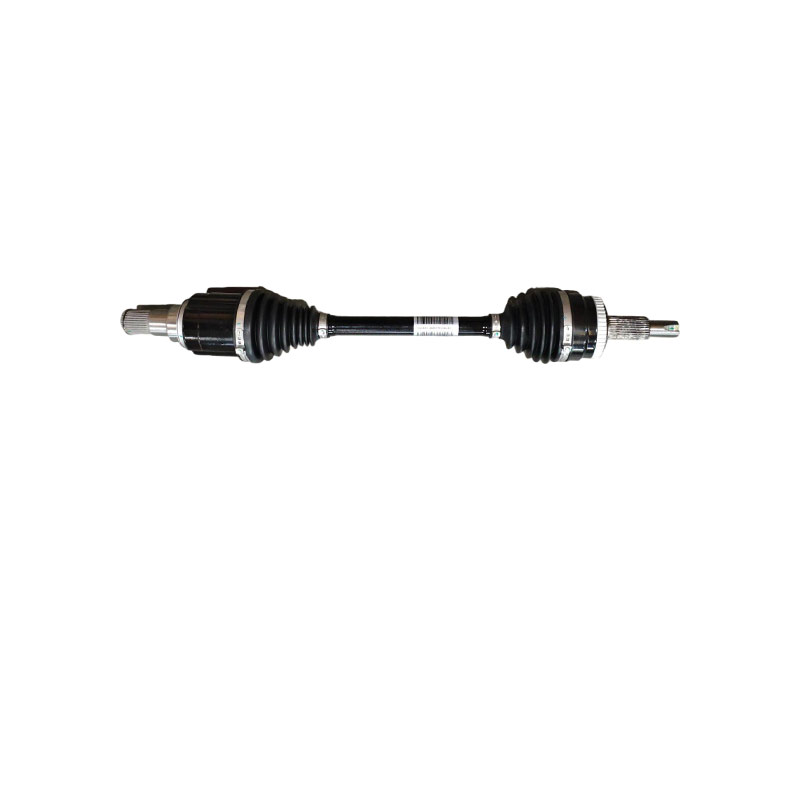

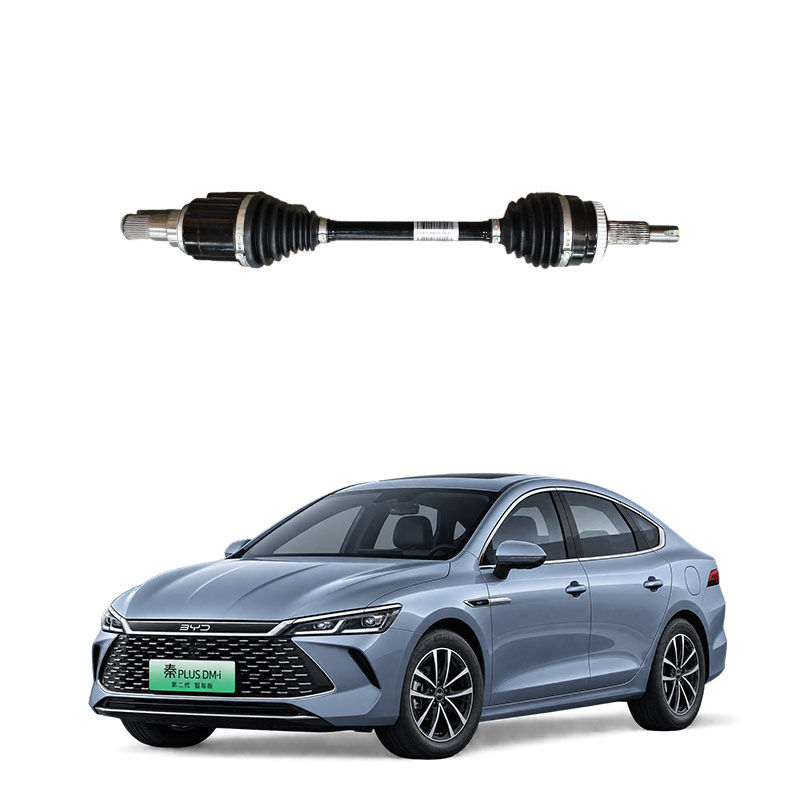

What is the left front drive axle assembly of the car?
The left front drive axle assembly is the transmission rod that connects the gearbox (or differential) to the left front wheel and is responsible for transmitting power. It is commonly known as the left front half shaft or left front drive shaft.
Structural composition
The half shaft assembly is mainly composed of the following parts:
Shaft rod: The main transmission part, usually made of high-strength alloy steel. Nowadays, hollow axles are used to reduce weight.
Outer ball cage (fixed joint): Connects to the wheel end, belongs to an equal-speed universal joint, allowing a large angle change (usually up to 47°), but cannot slide axially.
Inner ball cage (moving joint): Connects to the differential end, can compensate for angles and can axially expand through the spline joint to adapt to the up and down movement of the wheel.
Dust cover (gasket): Wraps the universal joint, filled with lubricating oil inside to prevent dust and moisture from entering.
Spline and connection flange: Used to connect with the differential gears and hub to achieve power transmission.
Main function
Torque transmission: The power from the engine, after passing through the gearbox and differential, is transmitted to the left front wheel to drive the vehicle forward.
Angle compensation: Through the universal joint, it adapts to the angle changes of the wheel steering and up-and-down vibration, ensuring continuous power transmission.
Length compensation: The inner ball cage is extendable, adapting to the changes in the length of the half shaft when the suspension bounces.
Common faults and maintenance
Strange noises: When turning or accelerating, a "clicking" metallic impact sound can be heard. This is likely due to the wear of the outer ball cage; at a speed of 60-80 km/h, the steering wheel shakes, which may indicate deformation of the inner ball cage or the axle.
Deviation: After the steering wheel returns to its normal position, the vehicle still deviates to one side. This may also be related to the half shaft.
Dust cover damage: Once it is broken, the lubricating grease leaks out, and sand and stones can invade, accelerating the wear of the universal joint. It is necessary to check and replace it in time.
Daily driving precautions: Avoid turning the steering wheel in place, and minimize sudden acceleration and drifting, which can effectively extend the lifespan of the half shaft.
The left front drive half shaft assembly of the car is responsible for transmitting power from the differential to the left front wheel, providing traction to the tire and allowing the vehicle to move. It also undertakes the task of power transmission during steering and is a key component of the front-wheel drive transmission system.
Specific functions
Torque transmission: The power output by the engine through the gearbox and differential is transmitted to the left front wheel, providing traction to the tire.
Adapting to steering and vibration: Both ends of the half shaft are equipped with universal joints, allowing the wheel to vibrate up and down and turn while still being able to output power stably, without getting stuck or falling off.
Cooperating with the differential: Through the differential, the left and right wheels can rotate at different speeds when turning, ensuring smooth steering.
Cautionary Notes
When adjusting the direction while stationary, try not to fully turn the steering wheel. This not only damages the steering gear but also increases the load on the half-axle universal joint. The rubber dust cover outside the half-axle must be intact. If it cracks, the lubricating grease inside will leak, and the universal joint is prone to wear and abnormal noise.
The typical symptom of a left front drive half-axle failure is a "clicking" metallic sound from the chassis when turning or accelerating, accompanied by body shaking or steering wheel vibration. The common cause is wear of the ball cage or cracking of the dust cover. It is necessary to check it as soon as possible. In severe cases, it can cause the vehicle to suddenly lose power, posing a significant safety hazard.
Common symptoms
Turning noise: When starting with the steering wheel fully turned, a "clicking" sound can be heard. This is usually due to the wear of the outer ball cage.
Acceleration shake: The vehicle shakes when accelerating sharply. This may be due to damage to the inner ball cage or bending of the half-axle.
Metal knocking sound: There is a sound similar to a metal tapping from the chassis while driving. This may be due to wear of the spline teeth, and the half-axle assembly needs to be replaced.
High-speed steering wheel shake: The steering wheel shakes significantly after the vehicle reaches 60 miles per hour. This is usually due to the half-axle dynamic balance being disrupted.
Deviation or power loss: The vehicle deviates on its own or does not gain speed when stepping on the accelerator, indicating that the transmission efficiency of the half-axle has significantly decreased.
How to self-check
After stopping, fully turn the steering wheel left and right, and listen for any abnormal sounds near the front wheels.
Lift the vehicle and check if there are cracks, oil leakage or damage to the half-axle dust cover. A cracked dust cover will cause the lubricating grease to leak, sand to enter, and the ball cage to be quickly worn out.
Rattle the half-axle by hand. If there is obvious clearance, it indicates severe wear.
Even if there is no abnormal sound due to slight damage to the dust cover, it is recommended to handle it promptly. After the ball cage has dried and rubbed, the half-axle can only be replaced as a whole, which is much more expensive.
Safety Alert
It is not recommended to drive a vehicle with a faulty component on the highway. If the half shaft suddenly breaks, it will cause the wheels to lose power instantly. On the highway, this may lead to skidding or rollover, which is extremely dangerous.
When repairing, it is advisable to choose original factory parts or high-quality replacement parts from well-known brands. Repaired parts or inferior aftermarket parts carry safety risks.
Check the dust cover every 20,000 kilometers to avoid jamming the steering wheel at the stop or starting with a gentle throttle application. This can effectively extend the lifespan of the half shaft.
