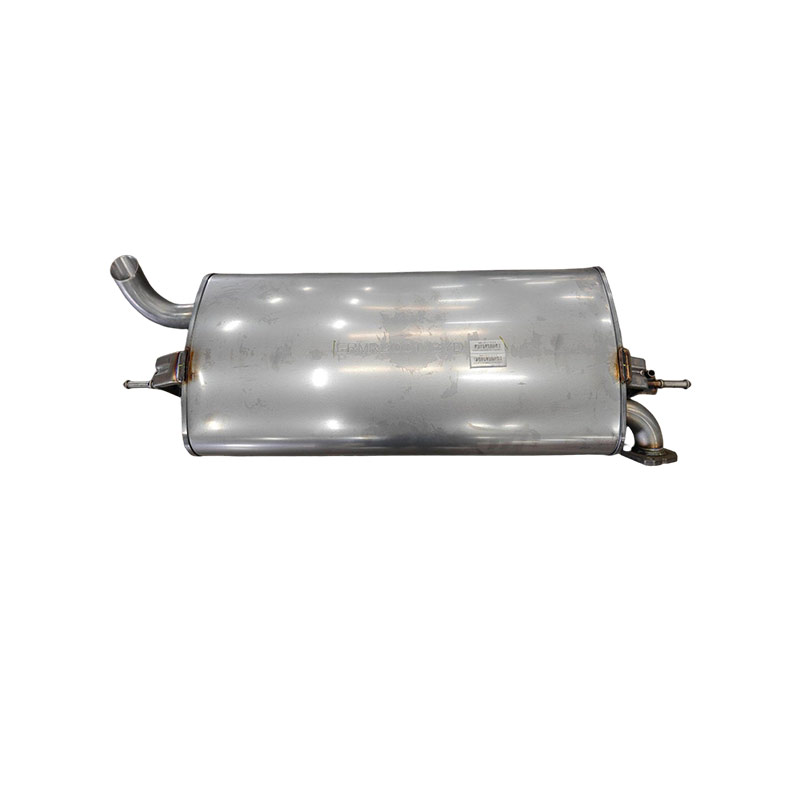

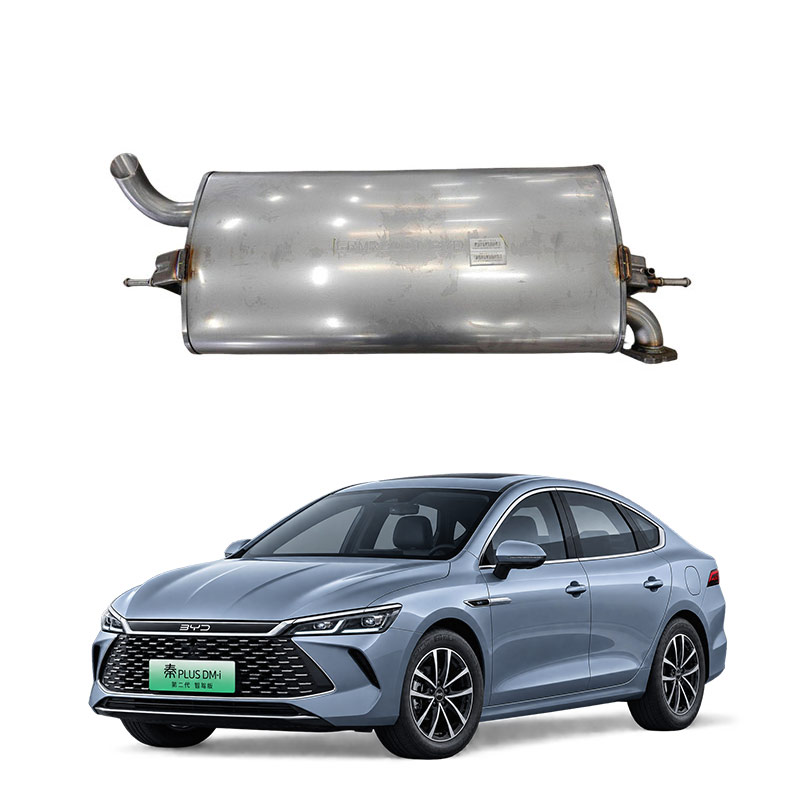

What is the rear exhaust pipe assembly of a car?
The rear exhaust pipe assembly is the tail section of the exhaust system, located near the rear bumper of the vehicle. It is mainly responsible for discharging exhaust gas, reducing noise, and maintaining aesthetics. It typically includes components such as the tail section pipe, muffler (tail drum), and tail throat.
Main Components and Functions
Tail Section Pipe: The final stage for exhaust gas discharge, close to the rear bumper. The material is mostly stainless steel, which is resistant to high temperatures and corrosion.
Muffler (Tail Drum): The end-stage noise reduction component. Through internal partitions, small holes, and sound-absorbing cotton, it reduces exhaust noise and also affects the low-torque and high-speed horsepower output of the engine.
Tail Throat: Also known as the exhaust pipe cover. It is installed at the end of the exhaust and mainly serves the functions of decoration, rust prevention, and fire safety. It can also change the exhaust sound, but does not enhance power.
Common types
S muffler: External back pressure design, enhancing torque at medium and low speeds.
Internal back pressure muffler: Customized back pressure, suitable for different vehicle models.
Straight exhaust muffler: Reduces exhaust resistance, improving high-speed performance.
Half back pressure muffler: Balances torque and sound intensity.
Elliptical flat muffler: Combines mid-low speed torque with noise reduction.
Modifying the rear muffler can adjust the exhaust sound and efficiency, but it requires consideration of engine displacement compatibility and mechanical stability; only decorative modifications to the exhaust pipe are usually not illegal, but altering the exhaust structure, causing emissions or noise超标， involves illegal activities.
The rear exhaust system of a car is mainly responsible for discharging exhaust gases， reducing noise and purifying exhaust fumes. It is located at the end of the exhaust system， close to the rear bumper， and is the last "processing station" before the exhaust gases leave the vehicle.
Three core functions
Exhaust gas discharge： Collects the hot exhaust gas from the engine combustion， passing through the middle and tail sections and finally discharged outside the vehicle， ensuring smooth exhaust and not affecting the engine's "breathing".
Noise reduction and sound suppression： The internal structure (noise-absorbing cotton， back pressure baffle， small hole partition) allows the airflow to， friction， and decelerate， significantly reducing exhaust noise. The most obvious symptom of a damaged muffler is an increase in engine noise.
Exhaust gas purification： Integrates a three-way catalytic converter， converting harmful substances in the exhaust gas into harmless substances， meeting environmental protection standards.
Other functions
Optimize performance： The rear section (muffler) can adjust exhaust pressure (back pressure)， affecting the engine's low-torque and high-speed horsepower performance. Modifying the rear section usually only changes the exhaust sound， with limited performance improvement； to enhance performance， it is necessary to start from the front section (exhaust manifold， three-way catalytic converter).
Aesthetic decoration： A rear exhaust pipe (exhaust pipe cover) can be added to the rear， made of stainless steel or galvanized material， which can prevent corrosion and deformation， increasing the sporty feel， but will not increase power.
Faults in the rear exhaust system of a car usually manifest as abnormal noises， lack of acceleration power， increased fuel consumption or exhaust gas， and the specific cause and repair plan depend on which component is faulty.
Common fault points
Three-way catalytic converter clogged ： The most typical feeling is a dull acceleration， significant power loss， 10%-30% increase in fuel consumption， and a rotten egg smell in the exhaust gas， severe cases with the exhaust pipe front end burning red， and a risk of spontaneous combustion.
Damaged muffler or pipe connections： Damage or rust penetration in the middle or tail section of the exhaust pipe， the most direct impact is increased noise， "puffing" or "sizzling" air leakage sounds， and severe cases can lead to non-compliance with exhaust gas emissions.
Sealing pad aging or loose screws： Leakage at the connection point， with a hissing sound or popping sound when accelerating， replacing the sealing pad or tightening the screws can solve the problem， without replacing the entire assembly.
Rusty suspension ears： The exhaust pipe is connected to the chassis through rubber suspension ears， aging the ears causes the pipe to shake and collide with the chassis， emitting low-frequency "buzzing" resonance sounds， replacing the ears costs only a few dollars.
Check first before going to the repair shop
Before going to the repair shop， you can do a few simple checks to save a lot of money：
Listen for sounds： Listen for abnormal air leakage sounds or metal collision sounds at idle or acceleration.
Look at the exhaust gas： White smoke is normal when the engine is cold； blue smoke indicates engine oil burning； black smoke is incomplete combustion； a pungent smell requires immediate inspection.
Smell the odor： The exhaust gas has a rotten egg smell， likely indicating a decline in the efficiency of the three-way catalytic converter.
Measure temperature： Use an infrared thermometer to measure the temperature difference between the front and rear of the three-way catalytic converter， a normal difference is 30-50°C at the front， a large temperature difference indicates severe blockage.
Exhaust pipe burning red or frequent engine stalling are severe faults with a risk of spontaneous combustion， stop the vehicle and turn off the engine immediately and call for rescue， do not continue driving.
