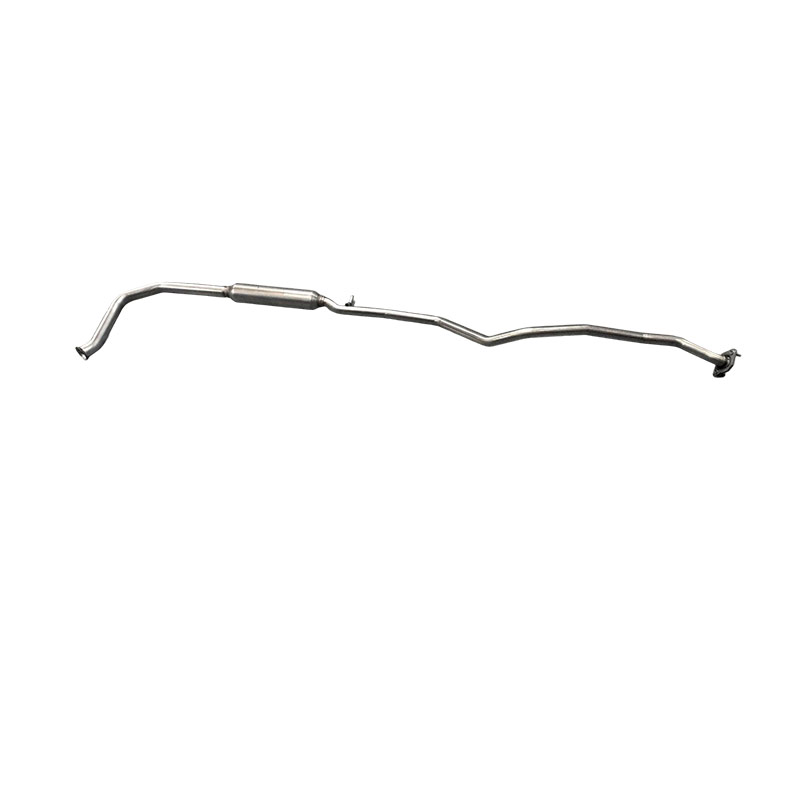

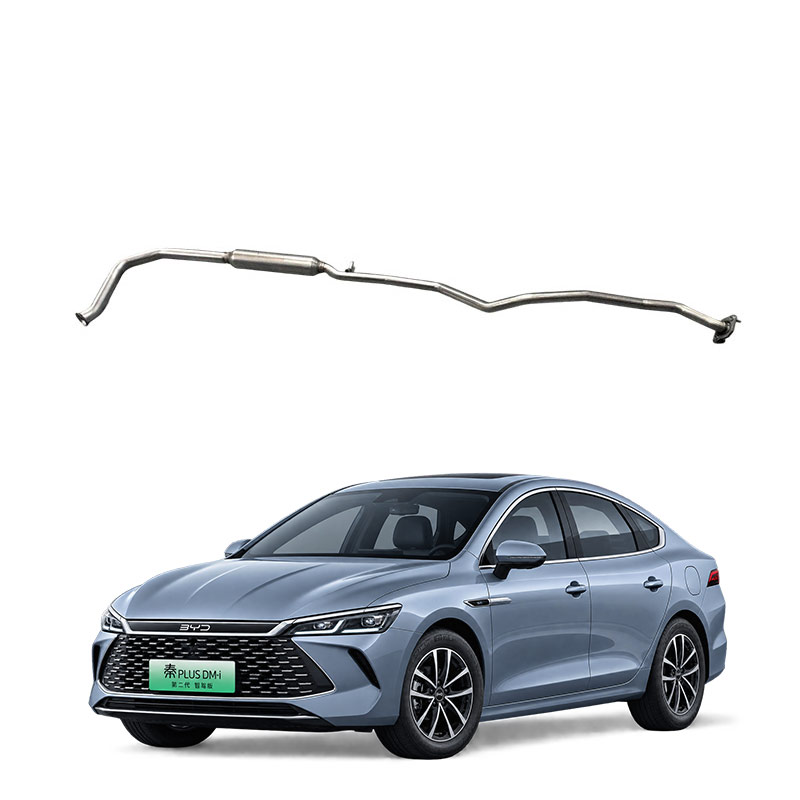

What is the mid-section exhaust pipe assembly of a car?
The mid-section exhaust pipe assembly is the section of pipe located beneath the chassis, connecting the exhaust manifold and the tail section. Its core function is to direct the exhaust gases from the front of the vehicle to the rear. It also works in conjunction with the muffler system to reduce resonance and noise.
Key Components
Mid-section pipe body: A longer metal pipe on the chassis, responsible for transporting exhaust gases. It is mostly made of stainless steel SUS304, which is resistant to high temperatures and corrosion.
Muffler package/muffler: There is usually a direct-through muffler installed in the mid-section, mainly used to reduce resonance. It works in conjunction with the muffler at the tail section to control the sound and tone of the exhaust.
Expansion joint or sleeve: Some models have wave tubes, expansion joints or steel wire sleeves in the mid-section to increase the elasticity of the pipe, absorb vehicle vibrations and displacements, and reduce noise generation.
Be mindful of
The middle section mainly affects the volume and tone of the sound, while the head section (exhaust manifold) is responsible for purification and performance. The functions of these two sections are different.
For large-displacement vehicles, due to the high sound intensity, one or two mufflers are usually installed in the middle section; for small-displacement vehicles, mufflers may only be present in the tail section.
Damage or blockage of the middle section will affect the normal exhaust emission, thereby impacting the vehicle performance. It is necessary to check it in time.
The middle section exhaust pipe assembly in a car mainly functions to reduce exhaust noise, flow rate and temperature, while controlling exhaust back pressure and balancing emission standards and sound levels.
Core function
Noise reduction and silencing: The middle section usually features a direct silencing package or a resonator, which is used to reduce resonance and eliminate specific frequency noises. It is a crucial part that determines the volume and tone of the exhaust sound.
Expansion and cooling: After the exhaust gas exits the cylinder, it expands in the middle section, reducing flow velocity and temperature, and minimizing the impact of the airflow.
Control of exhaust backpressure: The structure of the middle section affects the backpressure level. Excessive backpressure will weaken the low-torque acceleration performance, while too low backpressure may result in a loss of high-speed horsepower. A balance must be struck between the two.
Balancing emissions and sound: The middle section, in conjunction with the three-way catalytic converter, influences the emission standards and simultaneously tunes the overall sound wave direction. This is the core of the factory's exhaust tuning that is both compliant and pleasant to the ear.
It should be noted
The middle and tail sections are fixed with screws. They are prone to loosening under long-term high temperature and vibration. If there is abnormal exhaust, check this area first.
Only modifying the tail section has a limited impact on the power. Adjusting both the middle and head sections together can truly improve the exhaust efficiency. Otherwise, it may have the opposite effect.
Common faults of the middle section exhaust pipe assembly include damage to the muffler interior, aging and leakage of the interface gasket, damage to the flexible connection, and loosening of the hanger. These are the most common types. The middle section is responsible for three tasks: noise reduction, balancing exhaust pressure, and optimizing emissions. When there is a problem, the most typical feeling is increased noise, sluggish power, and increased fuel consumption.
Common Fault Types and Symptoms
Internal weld failure of the muffler: During sudden acceleration, there is a metallic knocking sound, similar to the loosening of a partition wall in an old house. This indicates that the internal partition has failed. The auxiliary factory muffler costs around 600 yuan, and it can be dealt with for free at the 4S store within the warranty period.
Leakage of the interface gasket: When starting or accelerating, there is a "buzzing" sound. This is mostly due to the failure of the sealing at the connection. The damage to the middle section gasket has a limited impact on power, but long-term leakage will cause the interface to deform, increasing the difficulty of subsequent repair.
Damage to the flexible connection (bellows): The noise significantly increases, and turbocharged vehicles may also experience acceleration weakness and difficulty starting because the front end leakage disrupts the exhaust pressure, affecting the operation of the turbocharger.
Loose hanger: On bumpy roads, the exhaust pipe shakes severely, and the vehicle has a resonance sensation. Replacing the rubber hanger costs only a few dollars, and it can eliminate most resonance noises.
Judgment and Handling Suggestions
Check first before repairing: Lift the car and shake the exhaust pipe to listen where it is noisy. Use a rubber hammer to tap and determine the loose position; or use an infrared thermometer to measure the temperature difference between the three-way catalytic converter before and after, which should be 30-50°C higher at the front end within the warranty period. A large temperature difference indicates poor exhaust flow.
Emergency treatment for minor damage: Small cracks or small holes can be temporarily treated with high-temperature resistant sealant, copper wire winding, or metal straps. However, this is only suitable for short-distance driving to the repair shop and should not be used as a long-term solution.
Replacement must be done for severe damage: Complete fracture, severe deformation, or large-scale rust penetration. When completely broken, severely deformed, or rusted through, the high-temperature exhaust gas may spray onto the vehicle's bottom components, posing a fire risk. It is necessary to replace the pipe section or assembly as soon as possible.
After the middle section of the exhaust pipe is damaged, if the noise is particularly loud and the power significantly decreases, do not leave it unattended for a long time. Failure to handle it promptly will lead to the engine becoming increasingly weak, continuous increase in fuel consumption, exhaust emissions exceeding standards, and failure of the annual inspection. In severe cases, the high-temperature exhaust gas may ignite the oil stains or plastic parts on the vehicle's bottom.
