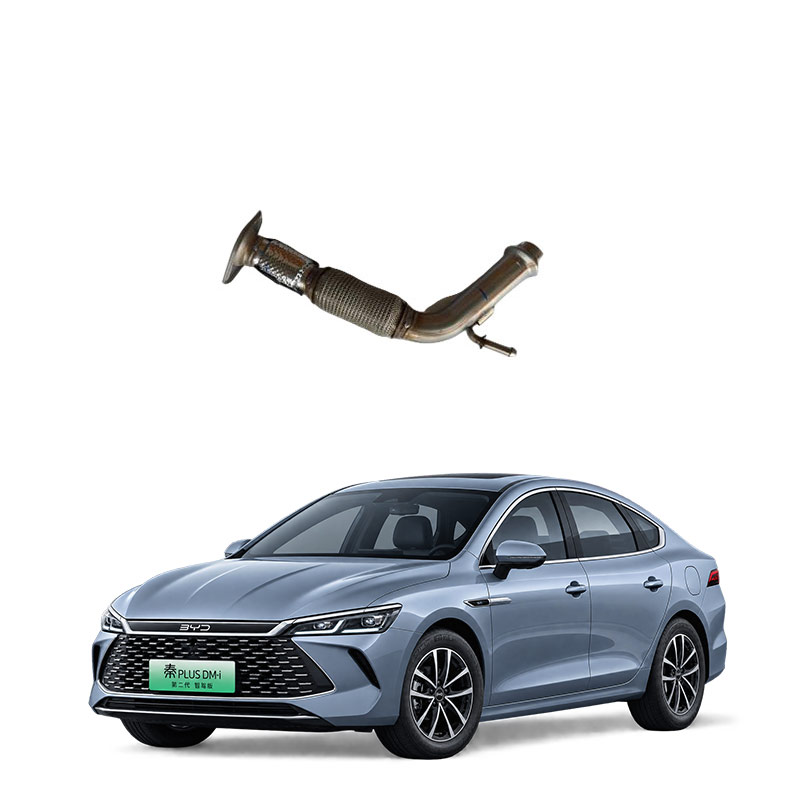

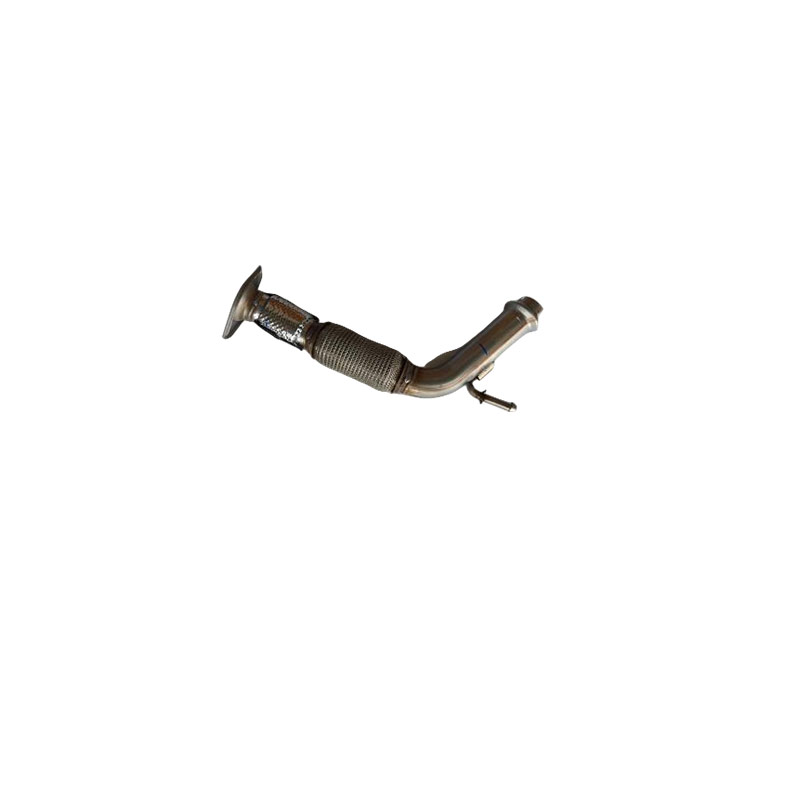

What components are included in the front exhaust pipe assembly of a car?
The front exhaust system components of a car mainly include the exhaust manifold, three-way catalytic converter, particulate filter, oxygen sensor, muffler, and connection sealing parts, etc. These components work together to collect, purify, reduce noise, and perform feedback control of the exhaust gas.
Key Components and Functions
Exhaust Manifold: Each cylinder of the engine has a corresponding pipe, responsible for collecting the exhaust gas from each cylinder and sending it to the exhaust pipe, serving as the "entrance" of the exhaust system.
Three-way Catalytic Converter: Through chemical reactions with the exhaust gas, it converts carbon monoxide, hydrocarbons, and nitrogen oxides into harmless substances, being the core component for purifying exhaust gas.
Particulate Filter: Commonly used in models up to the sixth B standard, installed before the three-way catalytic converter, it intercepts larger unburned particles in the exhaust gas and recombines them through high-temperature combustion to reduce particulate emissions.
Oxygen Sensor: Installed before and after the three-way catalytic converter, it monitors the oxygen content in the exhaust gas and sends signals back to the ECU, used to adjust the engine air-fuel ratio to ensure combustion efficiency and meet emission standards.
Muffler: Filled with sound-absorbing materials (such as rock wool, glass fiber), it reduces exhaust noise through friction of sound wave energy; some large-displacement models have one in the middle section and another at the tail section.
Connection and Fixing Parts: Including exhaust interface pads, fixing plates, flange screws, rubber hangers, and sealing pads, they are used for sealing connections and fixing the exhaust pipe to prevent air leakage and abnormal noise.
The front exhaust system components are the key parts of the exhaust system, mainly functioning to safely discharge the exhaust gas from the engine and, in conjunction with mufflers and purification devices, reduce noise and pollution.
Specifically, the front exhaust system (usually referring to the pipe section from the exhaust manifold to the three-way catalytic converter) performs the following core tasks:
Collecting and directing exhaust gas: The exhaust gas from each cylinder of the engine, first collected by the exhaust manifold, then sent through the front exhaust pipe to the subsequent purification devices. The number of cylinders determines the number of pipes in the manifold, which are irregular in shape to maintain balanced exhaust pressure.
Purifying exhaust gas: The exhaust gas enters the three-way catalytic converter through the front exhaust pipe, where it undergoes chemical reactions with precious metals (platinum, palladium, rhodium) to purify carbon monoxide, hydrocarbons, and nitrogen oxides. In models up to the sixth B standard, a particulate filter is also installed before the three-way catalytic converter to intercept larger unburned particles and recombine them through high-temperature combustion.
Reducing noise and vibration: The middle section of the front exhaust pipe usually has a muffler, filled with sound-absorbing materials (such as rock wool, glass fiber), to reduce noise intensity through the friction of sound wave energy. Small-displacement vehicles typically have only one muffler, while large-displacement vehicles add one or two in the middle section. Additionally, the exhaust pipe hose (wave pipe) can provide shock absorption, extending the lifespan of the exhaust system.
Faults in the front exhaust system components usually manifest as air leakage, abnormal noise, decreased power, or the fault light coming on. The specific handling depends on which component has failed.
Front-stage exhaust system components include the exhaust manifold, front oxygen sensor, soft connection, and part of the three-way catalytic converter, and the faults and repair methods for different components vary significantly.
Common Fault Points and Judgments
Exhaust Manifold Leakage: Aging sealing pads or cracked welding points will cause a "popping" sound of air leakage when the accelerator is applied, and the odor of exhaust gas may be present.
Front Oxygen Sensor Failure: Fault light on, increased fuel consumption, poor acceleration, idle vibration, or even black smoke from the exhaust. Using a diagnostic tool to read codes, the oxygen sensor voltage will be fixed outside the range of 0.1V-0.9V or remain unchanged, which can generally confirm the failure.
Soft Connection or Interface Loosening: Aging rubber hangers or loose flange screws will cause low-frequency resonance or "buzzing" sounds. Tightening the screws or replacing the hangers can solve the problem without replacing the entire assembly.
Three-way Catalytic Converter Blockage: Poor acceleration, poor exhaust flow, and severe cases may result in a sudden drop in power. The accumulation of carbon deposits due to long-term low-speed driving is a common cause. Minor blockages can be cleared at high speed, while severe blockages require disassembly and handling.
Suggested treatment:
Minor damages can be repaired: For minor rusting, polish it and apply anti-rust paint. Small holes can be filled with heat-resistant sealant or welded. Large-scale rust penetration or fractures require replacement of the pipe section or the entire assembly.
If welding or replacement is involved, it is recommended to seek professional services: The exhaust pipe is thin, and welding is prone to burning through. Professionals should be cautious when handling.
If the fault light is on and the vehicle has difficulty accelerating or shakes noticeably, it is recommended to slow down and go to the repair station for inspection; if the vehicle cannot start, directly call for a tow truck, and do not attempt to start it forcefully.
