Automobile nylon pipe fittings - components - I function

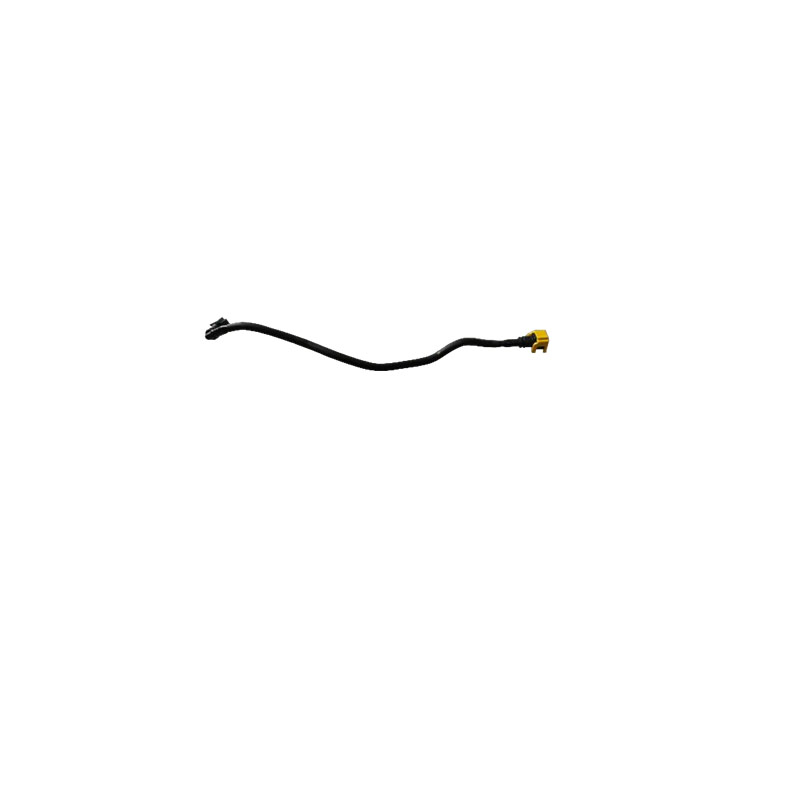

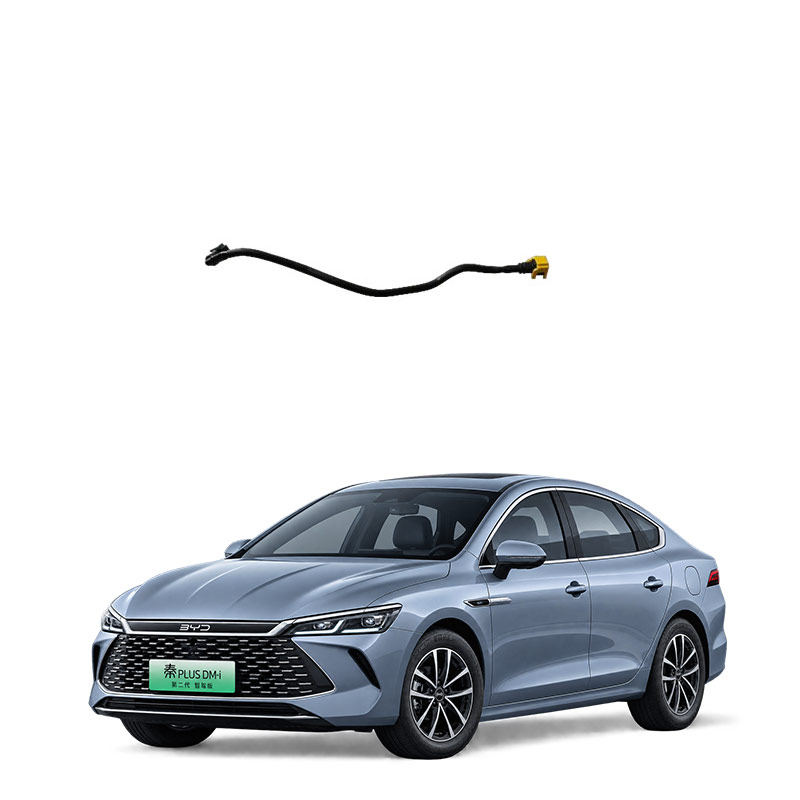

Automobile nylon pipe fittings - component-I are a type of connection and functional components in the automobile nylon piping system. Their main function is to connect pipes, transfer media (such as oil, gas, coolant, etc.), and ensure the sealing and reliability of the system under pressure, temperature, and vibration conditions.
Core functions
Connection and sealing: The pipe fittings act as the "joints" of the piping system, used to connect different pipe sections or connect pipes to equipment (such as engines, radiators), achieving sealing through quick connectors, clamps, or welding, to prevent medium leakage.
Medium transmission: The nylon pipe fittings are combined with nylon pipes to transport oil, gas, and coolant in systems such as braking, fuel, evaporation emissions, and cooling, being a key node of the vehicle's "vascular system".
Pressure resistance and temperature resistance: Pipe fittings at different positions need to meet different conditions. For example, the inlet water pipe fittings have a temperature resistance requirement of no more than 130°C, and can use PA6 + glass fiber or PA66 + glass fiber; the drainage pipe fittings need to withstand a temperature of 230°C, and require the use of PA46 + glass fiber and other temperature-enhancing materials.
Lightweighting: Compared to metal pipe fittings, nylon pipe fittings significantly reduce weight. The PA12 piping system is about 65% lighter than rubber piping systems, and nylon pipe fittings also contribute to the lightweighting of the entire vehicle, directly contributing to the improvement of the range of electric vehicles.
Common types
Inlet and drainage pipe fittings: Connect the engine cooling fluid inlet and outlet, and the drainage pipe fittings have higher requirements for temperature resistance.
Quick connectors: The nylon pipe interfaces adopt a quick-connect design, with low cost, convenient assembly, good elasticity, and suitable for batch application in the cooling system.
Connection clamps and joints: Such as the intake pipe between the turbocharger and the intercooler, the hard pipe uses 20% glass fiber reinforced PA66 injection molding and welding, the connection clamp uses 35% glass fiber reinforced PA6, and the high-temperature section joint uses 30% glass fiber reinforced PA66.
Material selection and design key points
Material selection: Select the type of nylon based on the working conditions (medium, temperature, pressure). PA6 and PA66 are commonly used for general piping; PA46 is used for high-temperature areas; PA12 is suitable for fuel pipes and cooling pipes due to its low water absorption and low moisture absorption.
Size stability: The assembly tolerance of the piping system is strict, and the material's moisture absorption will affect the sealing performance of the joint, and the long carbon chain nylon (such as PA12) has better size stability.
Water resistance and aging resistance: Heat management components are in contact with hot water for a long time, and attention should be paid to the water resistance grade of the material; otherwise, it is prone to cracking at stress concentration points.
In simple terms, this "component-I" is a connection and functional unit in the piping system. The material selection and design directly determine the reliability and lifespan of the vehicle's piping system.
The term "automobile nylon pipe fittings - component-I failure" is relatively concise. Currently, there is no corresponding specific fault code or standard definition entry in the public information. Combining the common failure modes of nylon pipe fittings, this "component-I" is likely to point to a specific pipe assembly or joint area, and can be investigated in the following directions.
Common failure types
Joint detachment or slippage: The clamping force at the connection between the nylon pipe and the flange or joint is insufficient, common in fuel pipes or brake air pipes, often caused by size deviations or material swelling.
Pipe cracking or discoloration: The nylon pipe has poor weather resistance and will age and crack over time in high temperatures and ultraviolet exposure, with early failure of the brake air pipe being a typical manifestation.
Expansion deformation: The nylon pipe expands and increases in size when in contact with fuel or coolant, causing the joint to loosen, common in PA11 oil pipes after soaking in gasoline.
Welding failure area: The welding of the nylon piping system at excessive temperature will damage the anti-water resistance system, showing no leakage in the short term but possible cracking and leakage in the long term, belonging to a "silent defect".
Leakage or seepage: Loose inner core of the joint, long-term bending and twisting at the connection position, or the pipe body being scratched or scratched, will cause leakage.
Troubleshooting suggestions
First, confirm the location of the fault: Check which section of the pipeline (fuel, braking, cooling or intake) corresponds to "Component-I". The failure modes of different systems vary greatly.
Measure dimensions and appearance: Focus on checking for swelling, deformation, cracks at the joint, and whether the surface of the pipe body is faded or brittle.
Verify materials and processes: Confirm whether the correct nylon grade (such as PA11, PA12, PA66) was used, and whether the welding temperature exceeded the limit.
Verify performance according to standards: The maximum pull-off load and aging resistance test are key indicators for judging early detachment and cracking.
If the fault involves the braking system, it is recommended to immediately stop using it and send it for repair; failure of the braking pipeline will cause brake failure, which poses a high safety risk.
